Scorpion Vision

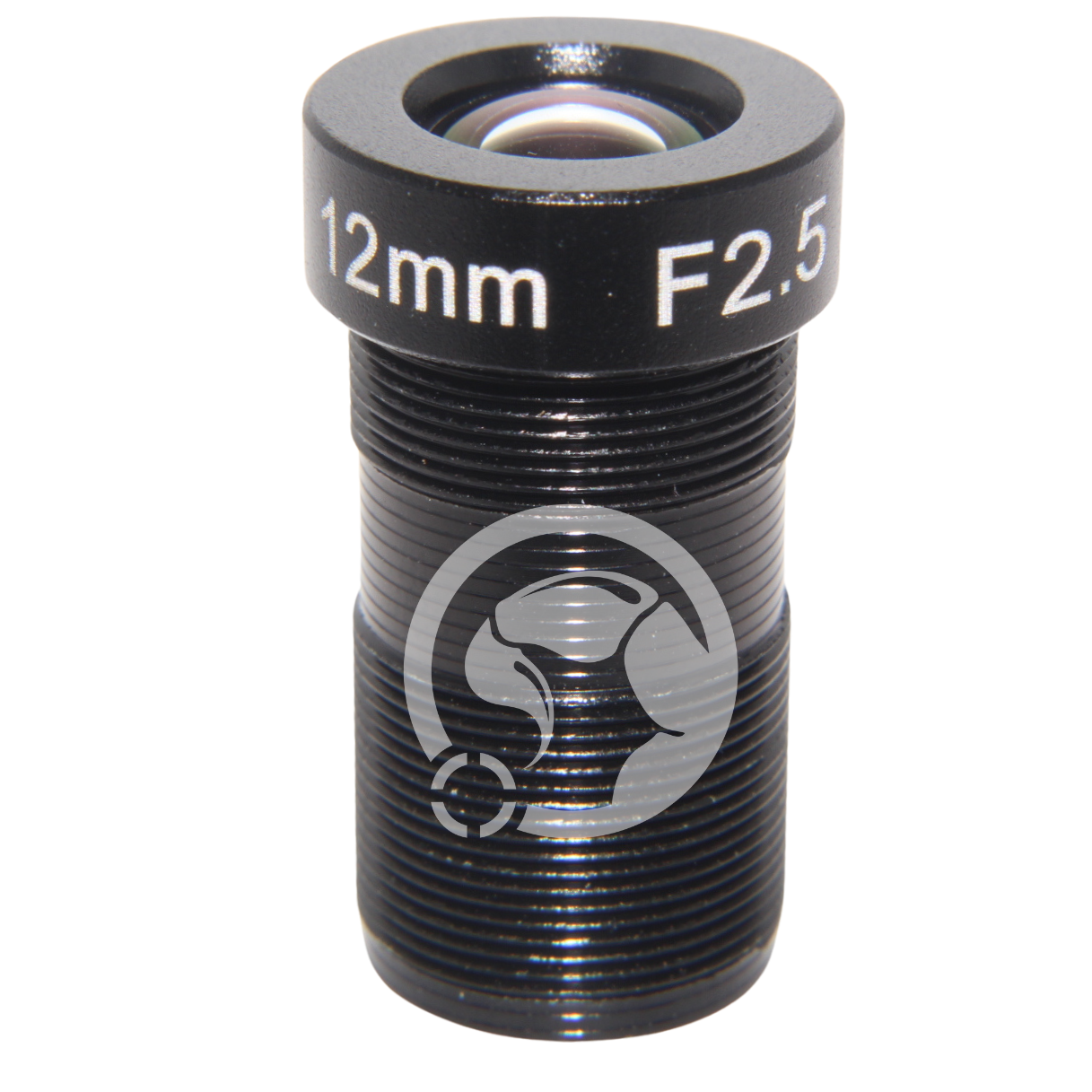

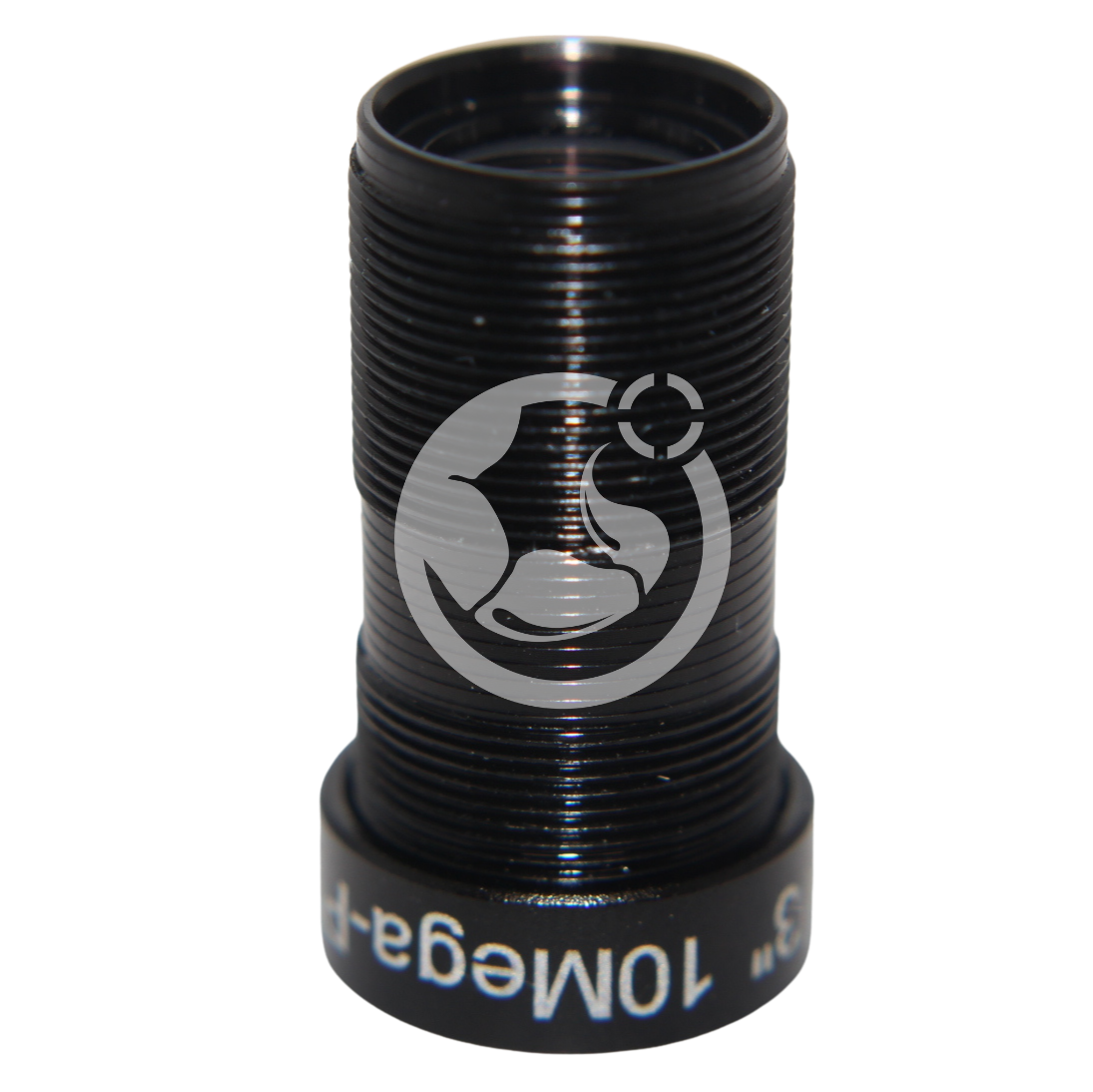

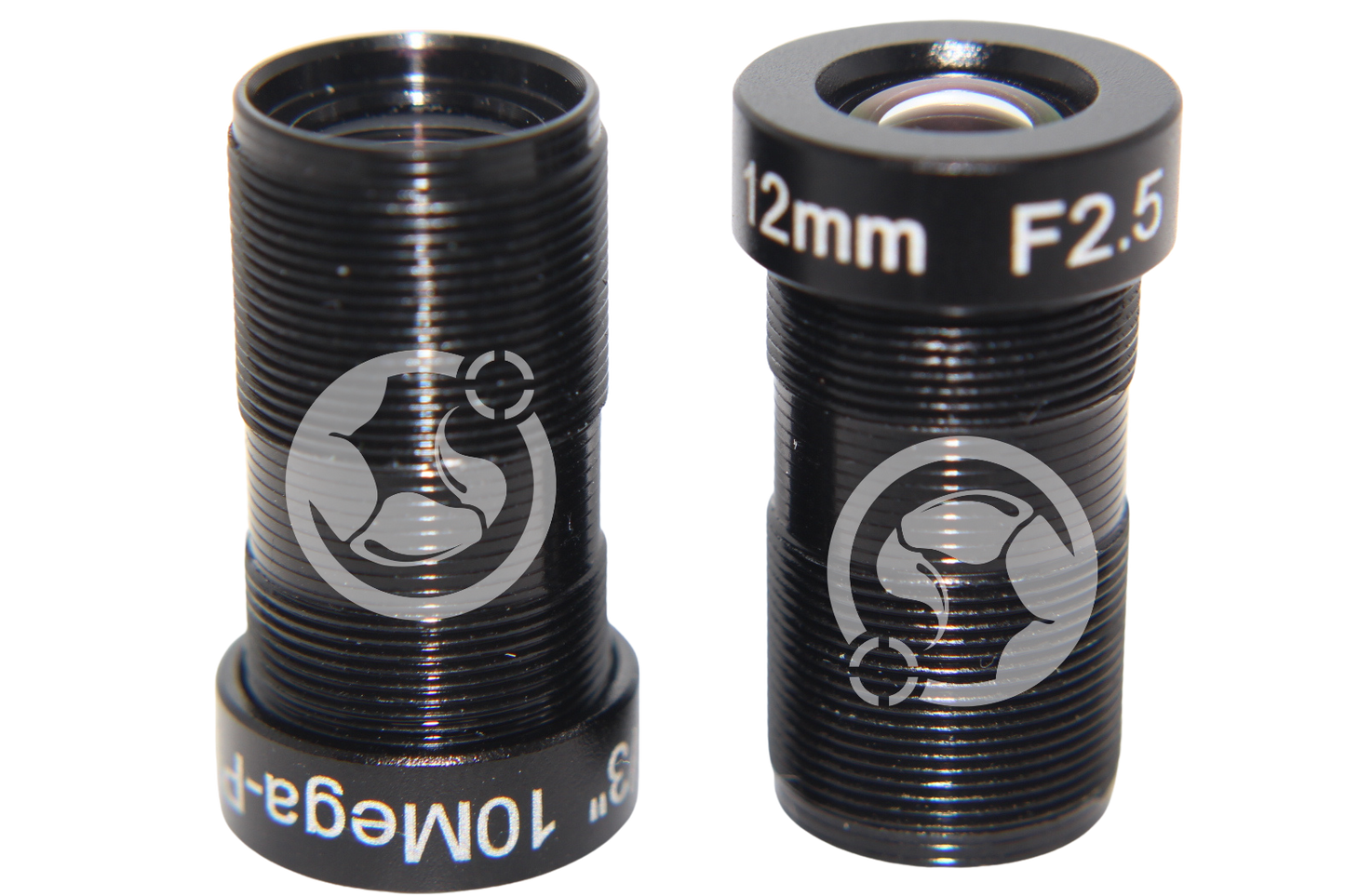

M12 Lens 12mm F2.5

SKU: SVL-F1225FM-I

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 12mm
  • F Number: F2.5
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 2/3"
  • Filter Size: n/a
  • Megapixel: 10MP
  • Horizontal Field of View: 40.7 Degrees
  • Distortion: <-1.2%
  • Back Focus: 5.85mm
  • Working Distance: 0.3m - ∞
  • Design Wavelength: 400-950nm

Sample Images

Sensor: 1/3" Aptina MT9V024

In the image below the sugar cube was 41mm from the lens. This is the minimum distance that this lens will focus on.


The next image shows the sugar cube at 112mm from the lens.

The sugar cube measures 16mm x 14mm.
