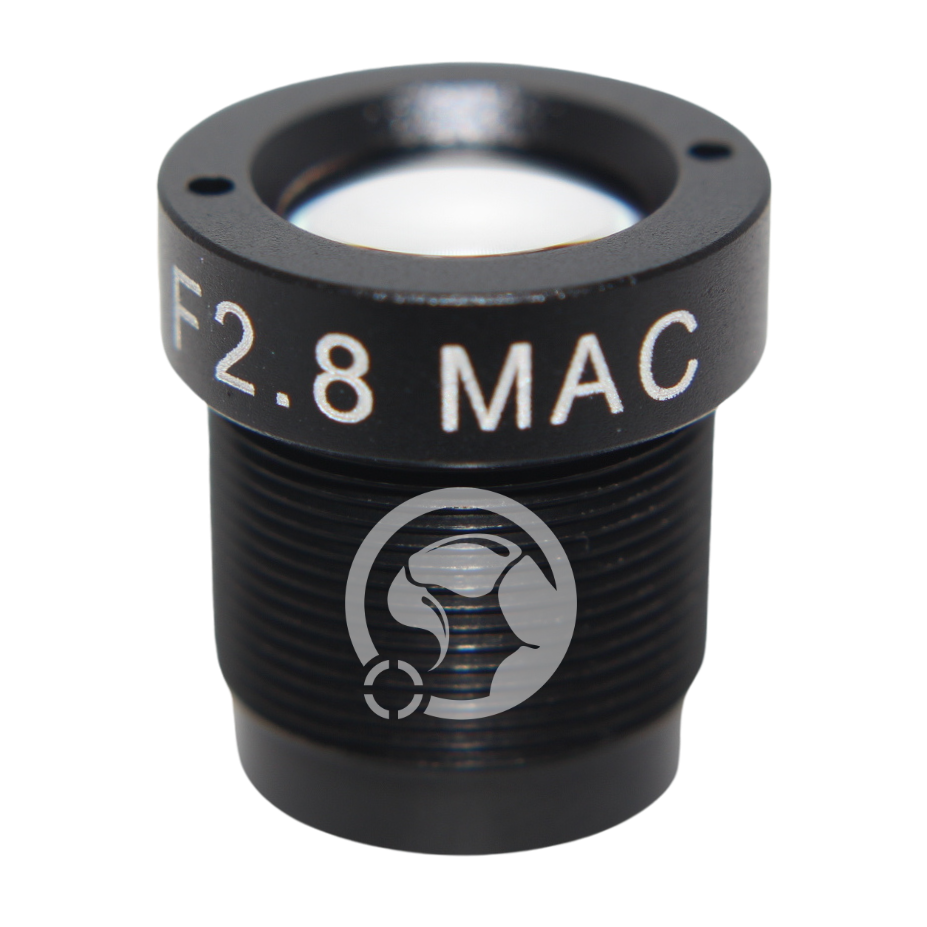

M12 Lens 12mm F2.8
SKU: SVL-1228MAC
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 12mm
- F Number: F2.8
- Iris: Non-adjustable
- Mount: M12
- Format: 2/3"
- Filter Size: n/a
- Megapixel: 10MP
- Field of View (D x V x H) : 43.4 x 26.9 x 35.3 Degrees
- Distortion: <0.17%
- Back Focus: 4.78mm
- Design Wavelength: 400-950nm
- Working distance: 0.1 ~ 0.5m
Sample Images
In the image below the sugar cube was 28mm from the lens. This is the minimum distance that this lens will focus on.
In the next image, the sugar cube was 160mm from the lens.
The sugar cube is 16mm x 14mm.
In the below sample image, the penny (d=20.3mm) was at a distance of 30cm from the lens. The sensor used was a 1/3" Aptina MT9V024.
This lens has a large focal length and minimal distortion.
The following image is an image of sugar granules, taken with a 6MP sensor at an operating distance of 36mm.
