Scorpion Vision

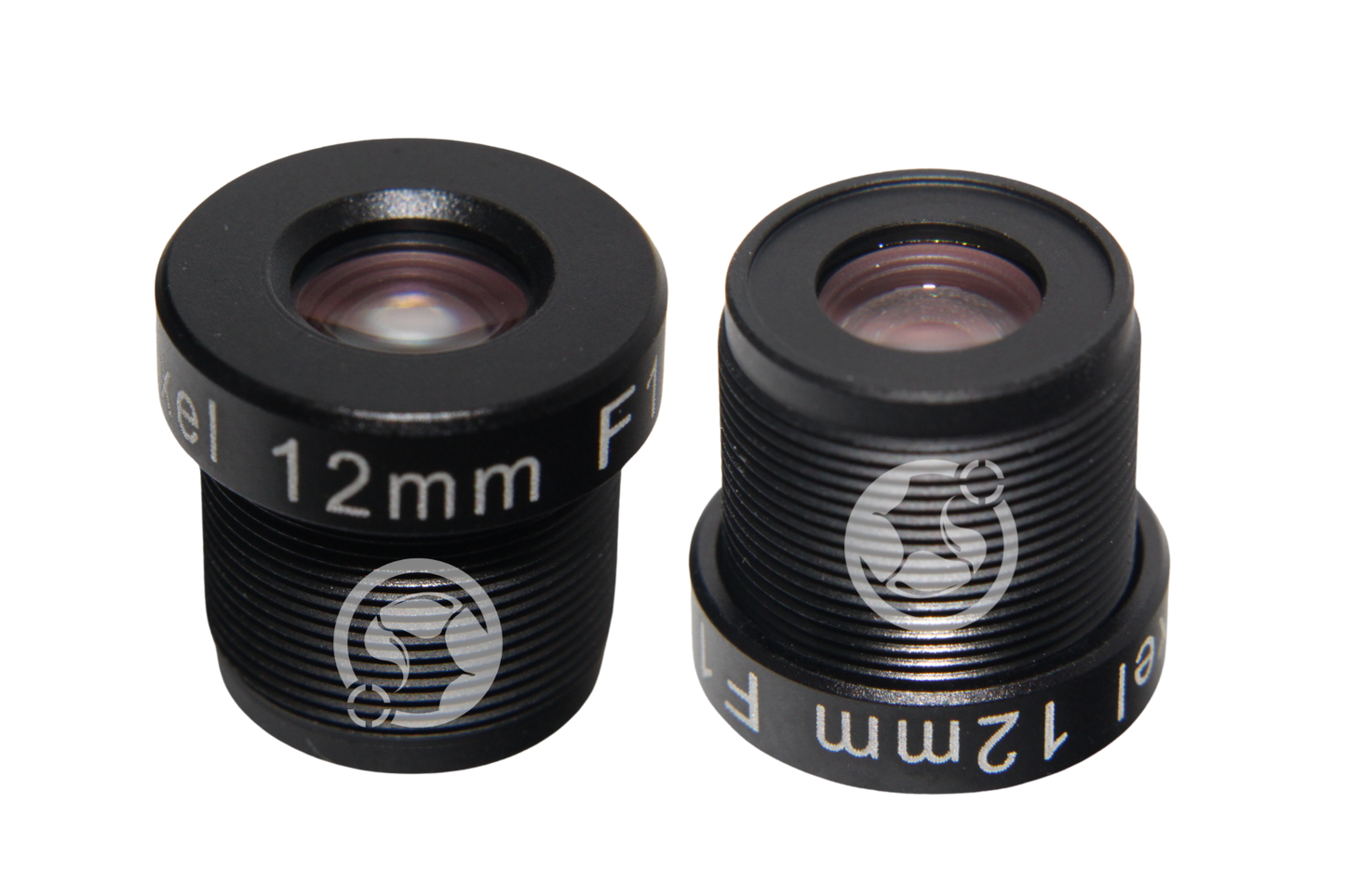

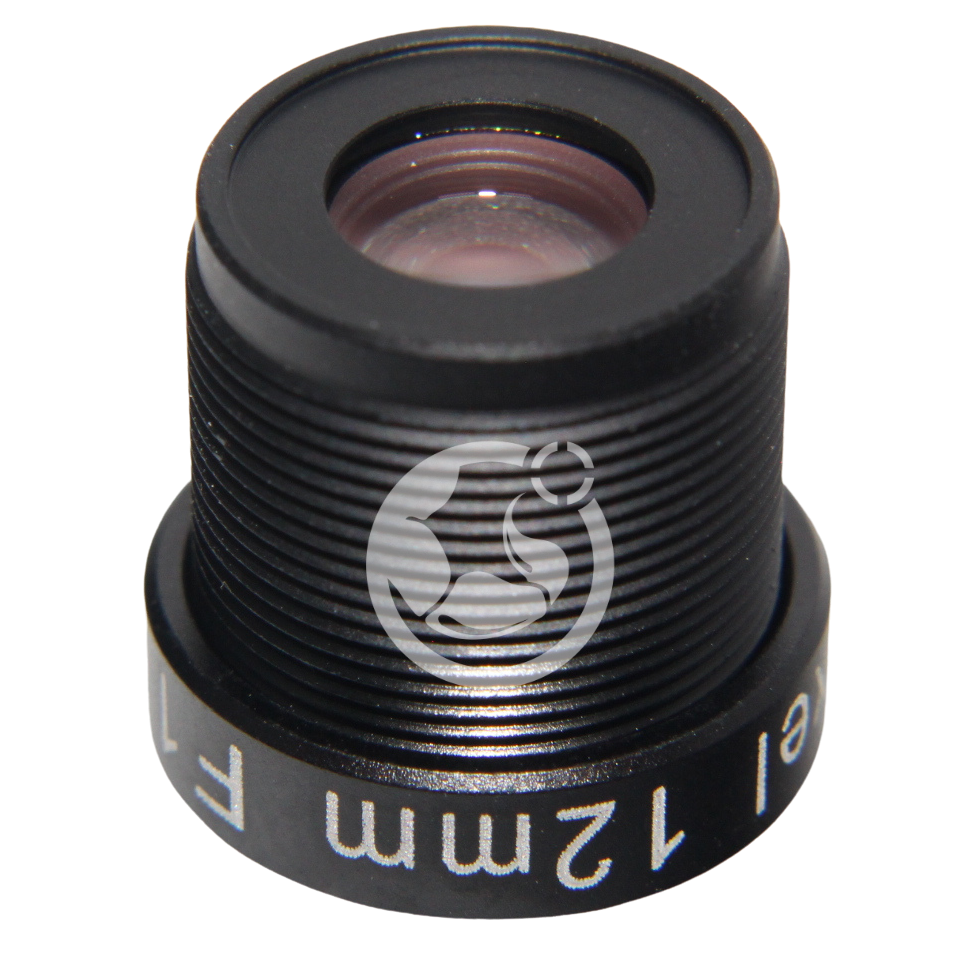

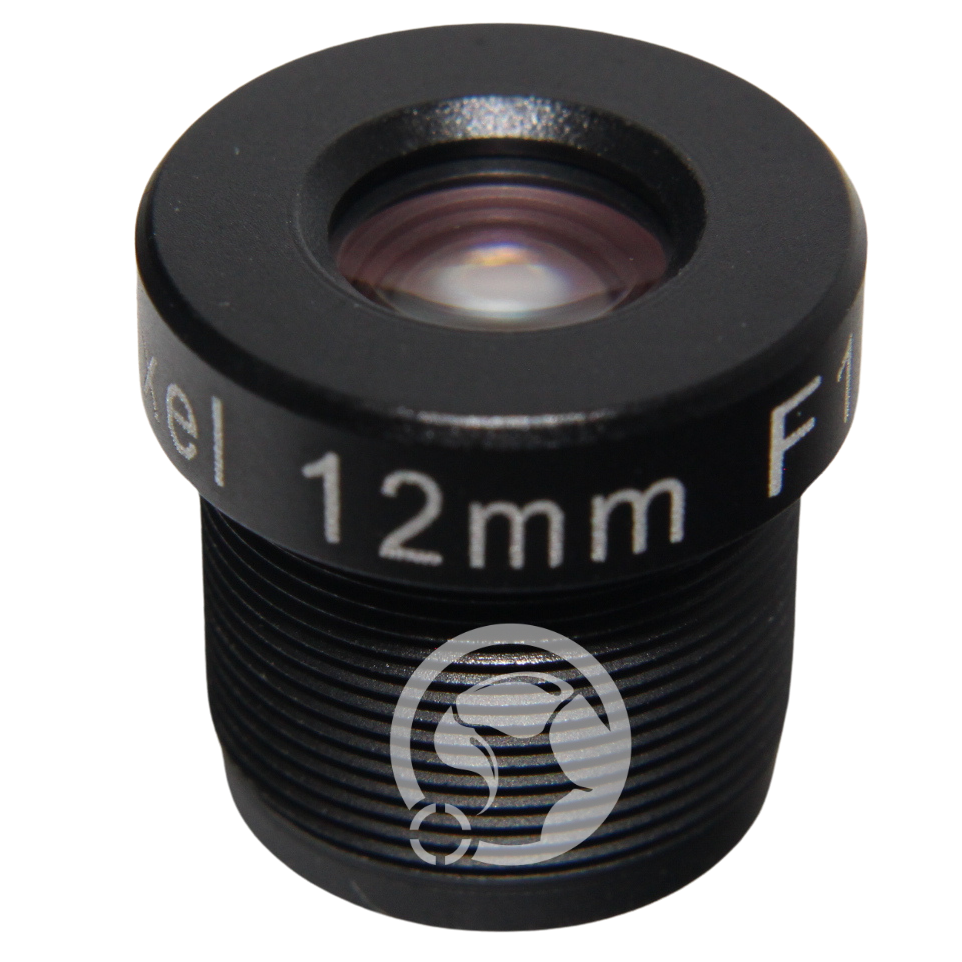

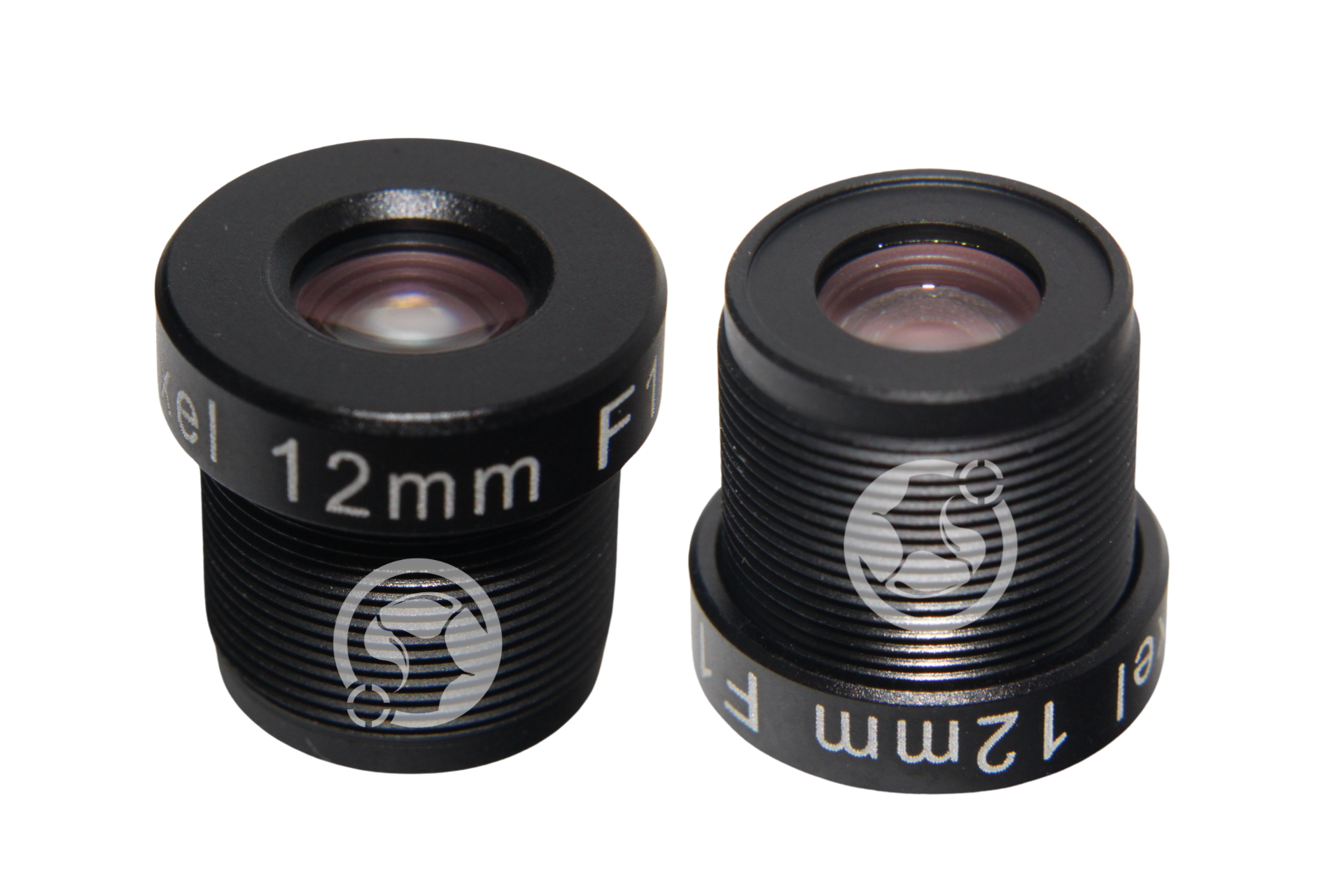

M12 Lens 12mm F11

SKU: SVL-1211SMAC

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 12mm
  • F Number: F11
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/1.8"
  • Filter Size: n/a
  • Megapixel: 3MP
  • Horizontal Field of View: 30.6 Degrees
  • Distortion: <-0.2%
  • Back Focus: 6.48mm
  • Working Distance: 0.1m - ∞
  • Design wavelength: 400-950nm
  • Operating Temperature: -20° C ~ +65° C
  • CRA - 15.53°

Sample Images

Sensor: 1/3" Aptina MT9V024

In the image below the sugar cube was 84mm from the lens. This is the minimum distance that this lens will focus on. The sugar cube is 16mm x 14mm.


In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 54mm from the lens and the second at 68mm. This lens has a high F Number of f11 and this creates a large depth of field allowing a large section of the image to be in focus. Unfortunately, this does also mean these images suffer from significant noise due to reduced light reaching the sensor.
