Scorpion Vision

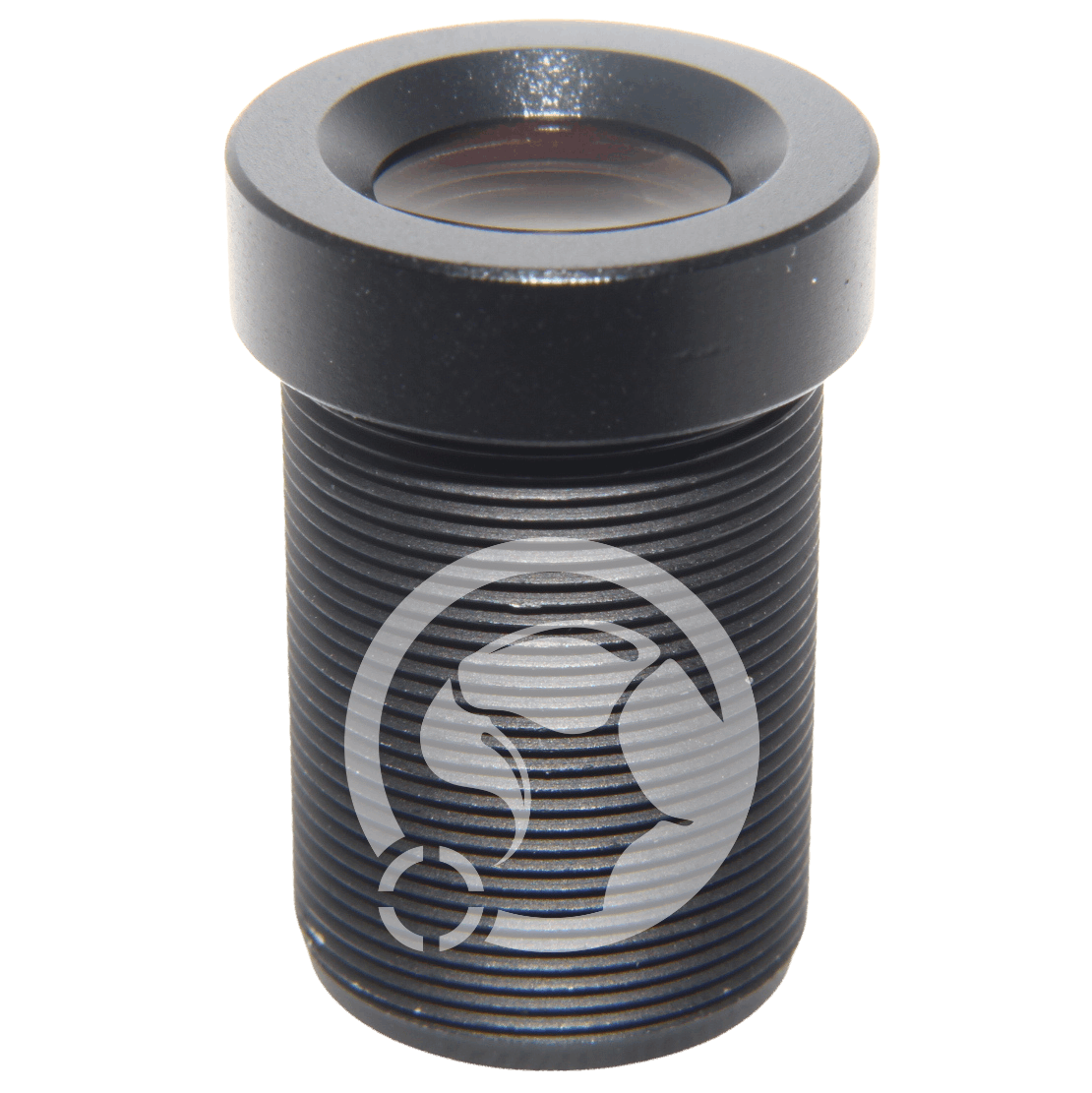

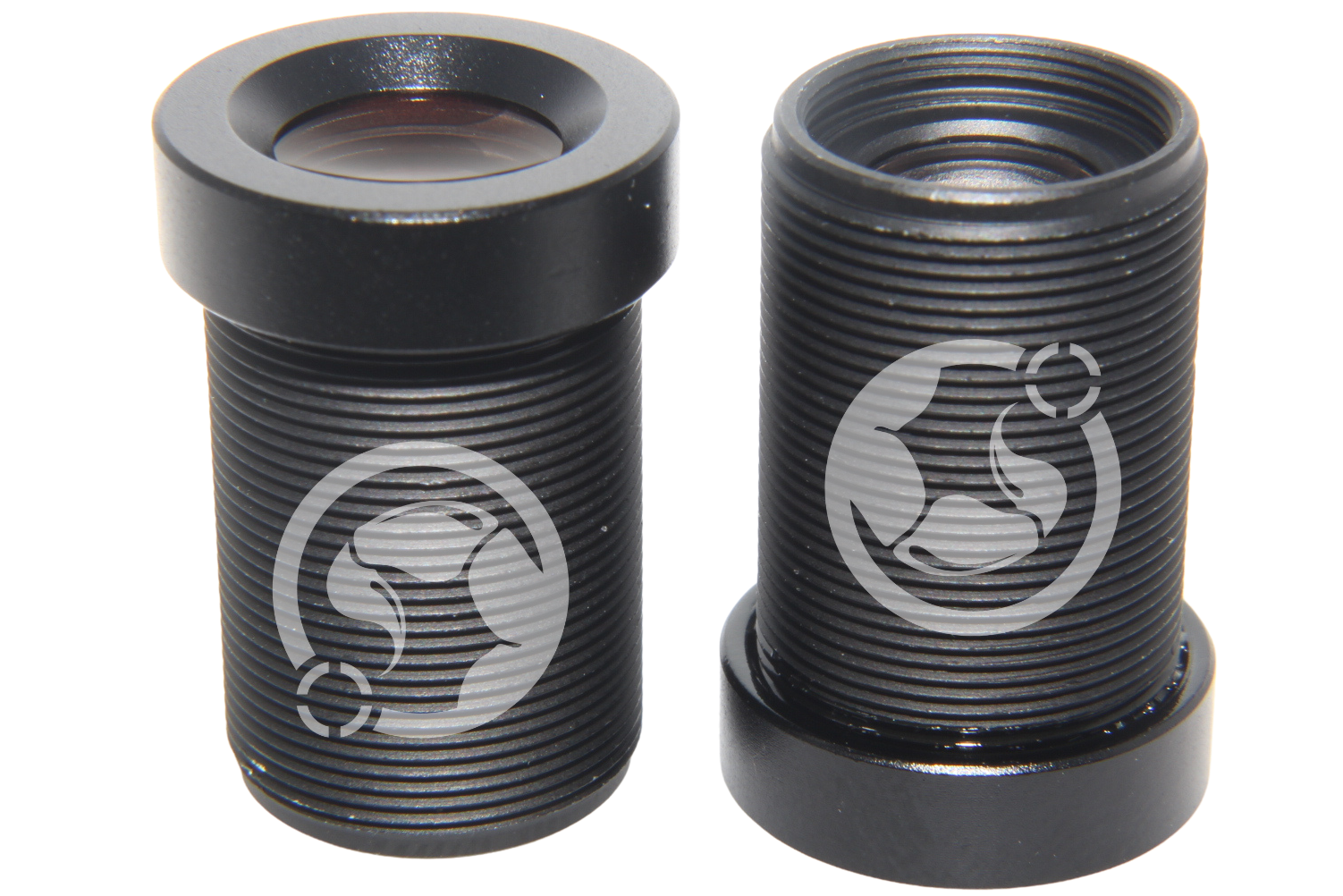

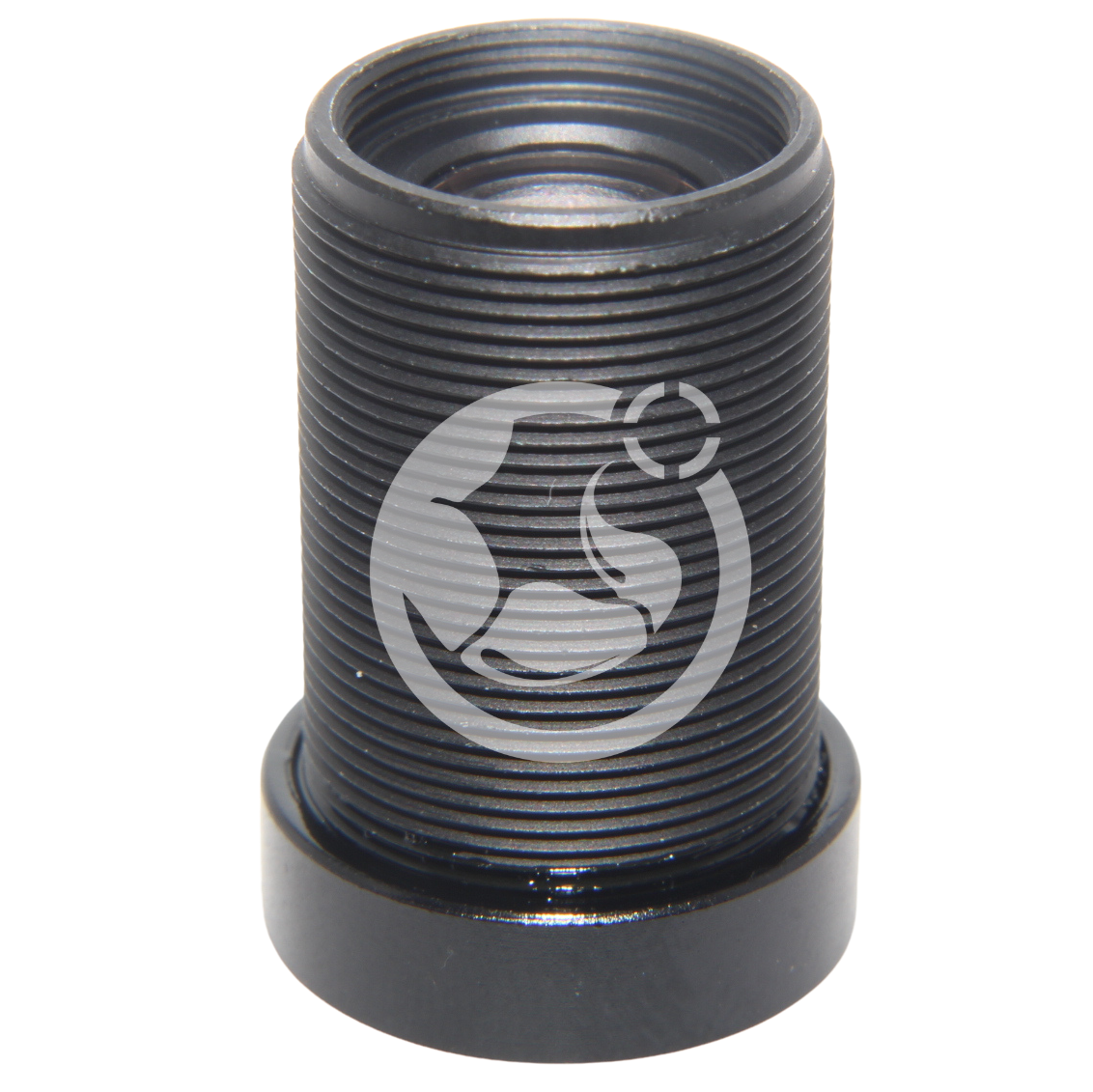

M12 Lens 12mm F1.8

SKU: SVL-IR1218B5M

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 12mm
  • F Number: F1.8
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/2.5"
  • Filter Size: n/a
  • Megapixel: 5MP
  • Horizontal Field of View: 27.4 Degrees
  • Distortion: <-4%
  • Back Focus: 8.3mm
  • Minimum Working Distance - 0.1m
  • Wavelength: 400nm-900nm

Sample Images

Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ

In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.

Minimum object distance: 65mm


Object distance: 87mmdfk-afux236-m12-svl-ir1218b5m-87mm.jpg


Object distance: 335mmdfk-afux236-m12-svl-ir1218b5m-335mm.jpg


Object distance: 546mmdfk-afux236-m12-svl-ir1218b5m-546mm.jpg
