Scorpion Vision

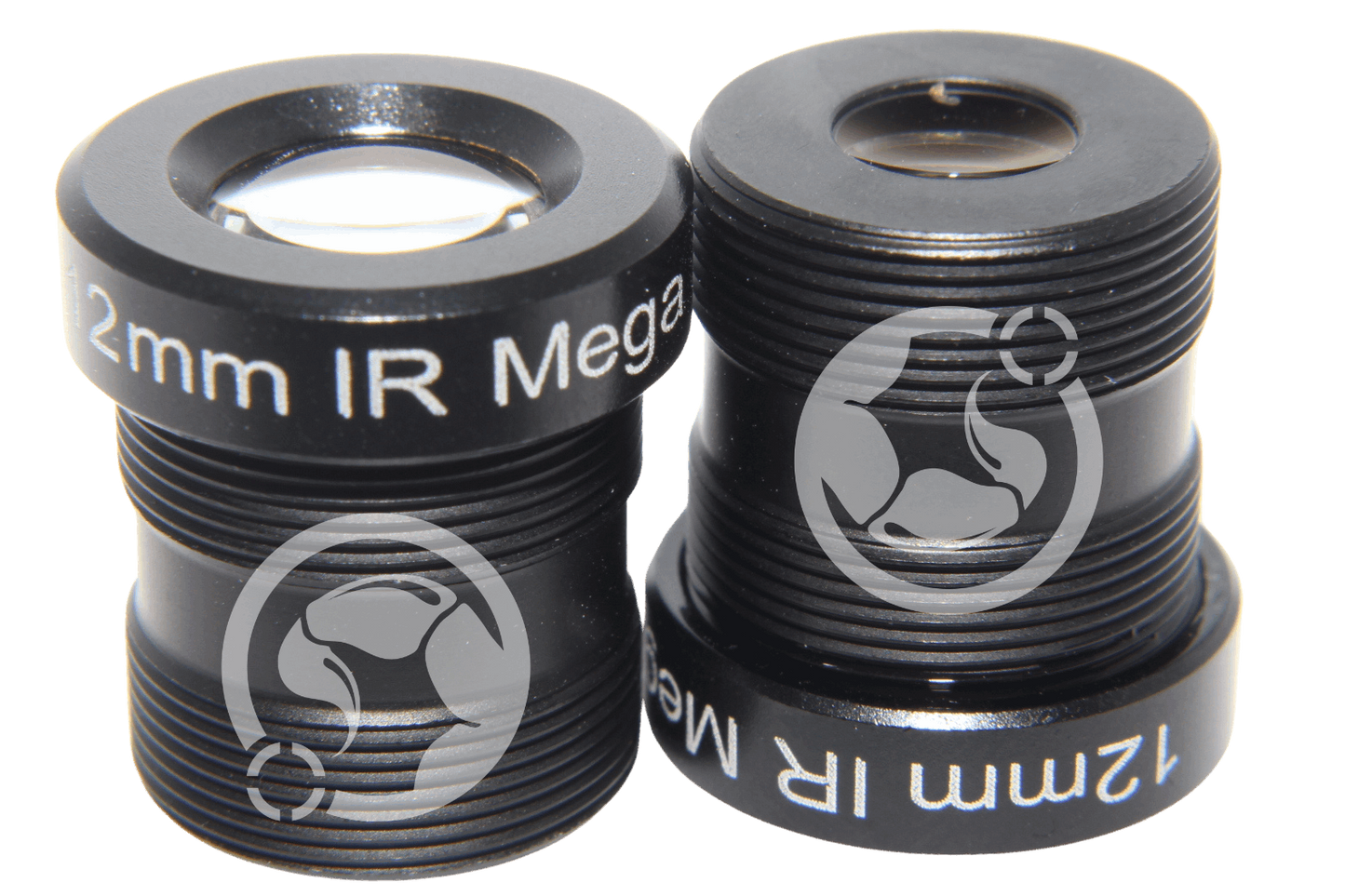

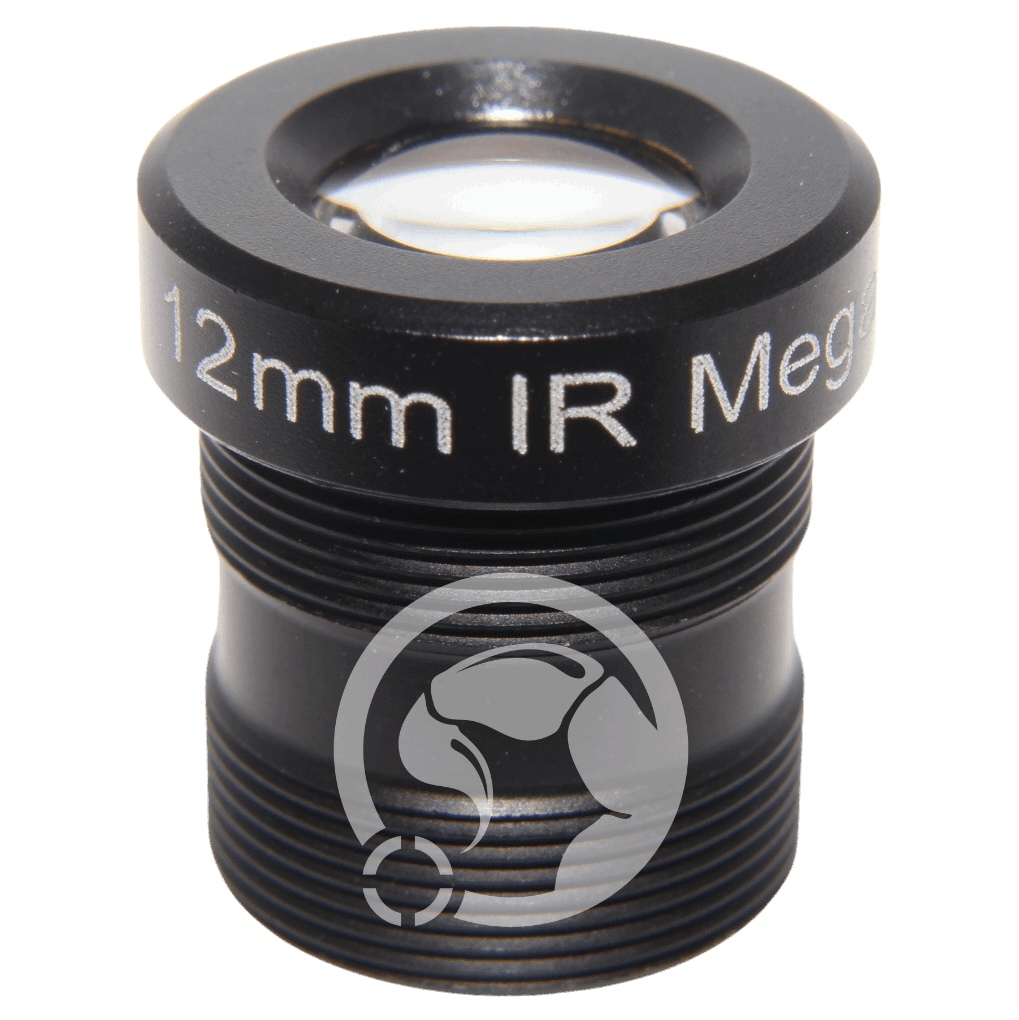

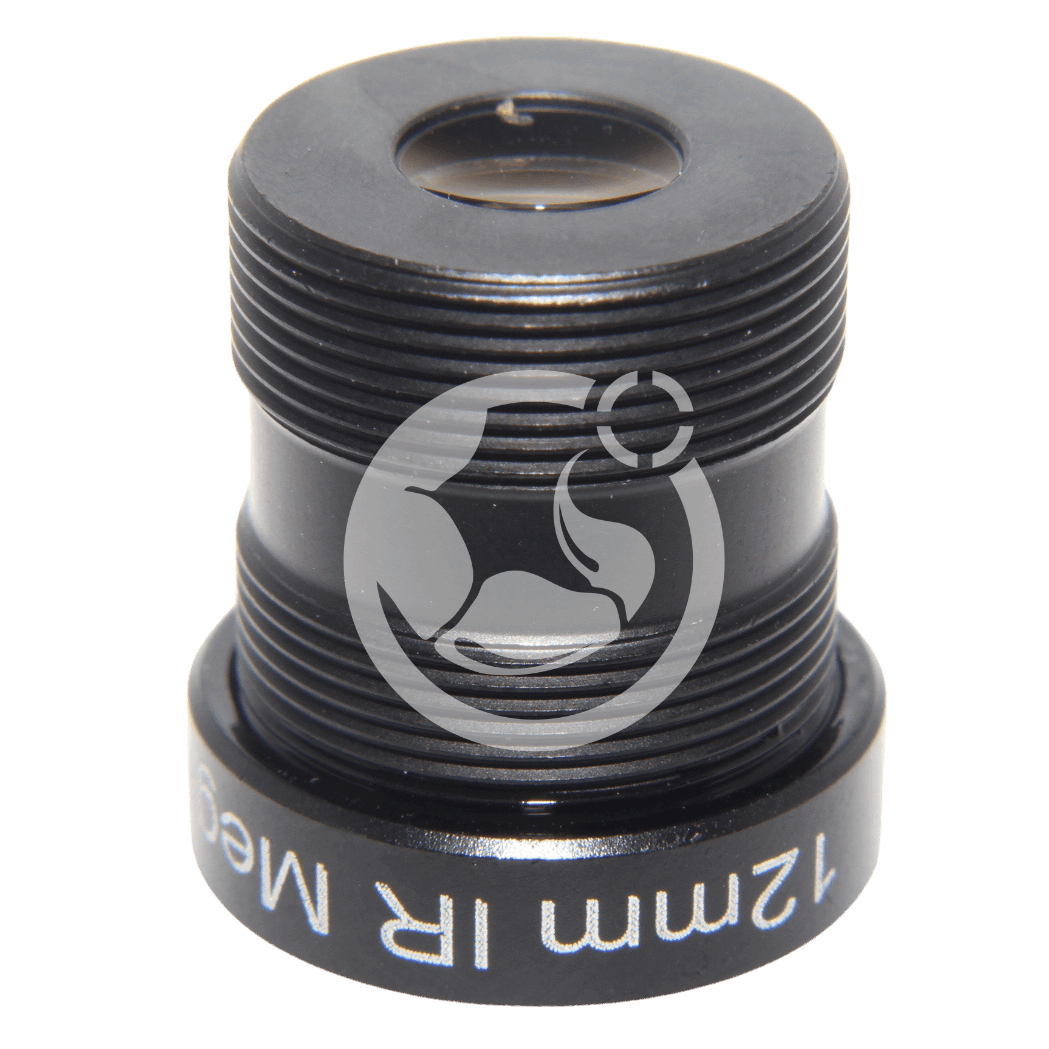

M12 Lens 12mm F1.6
SKU: SVL-IR1216B2M
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 12mm
- F Number: f1.6
- Iris: Non-adjustable
- Mount: M12
- Format: 1/3"
- Filter Size: n/a
- Megapixel:2MP
- Horizontal Field of View: 16.8 Degrees
- Distortion: <-2.5%
- Back Focus: 7.7mm
- Wavelength: 400nm - 900nm
Sample Images
Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ
In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.
Minimum object distance: 48mm
Object distance: 92mm
Object distance: 278mm
Object distance: 509mm
