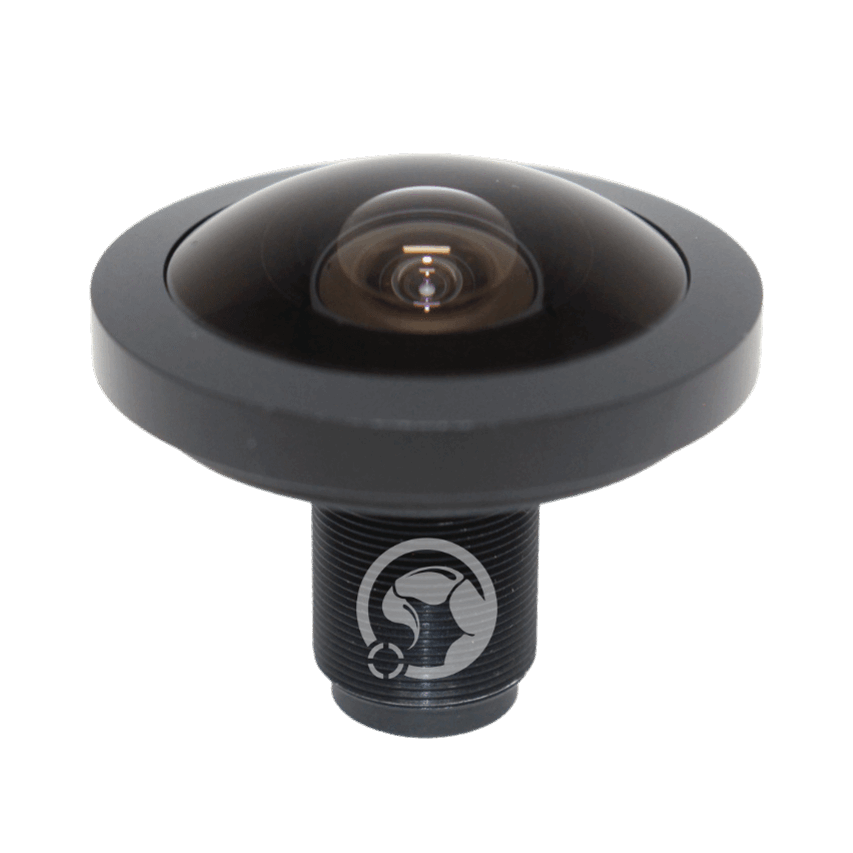

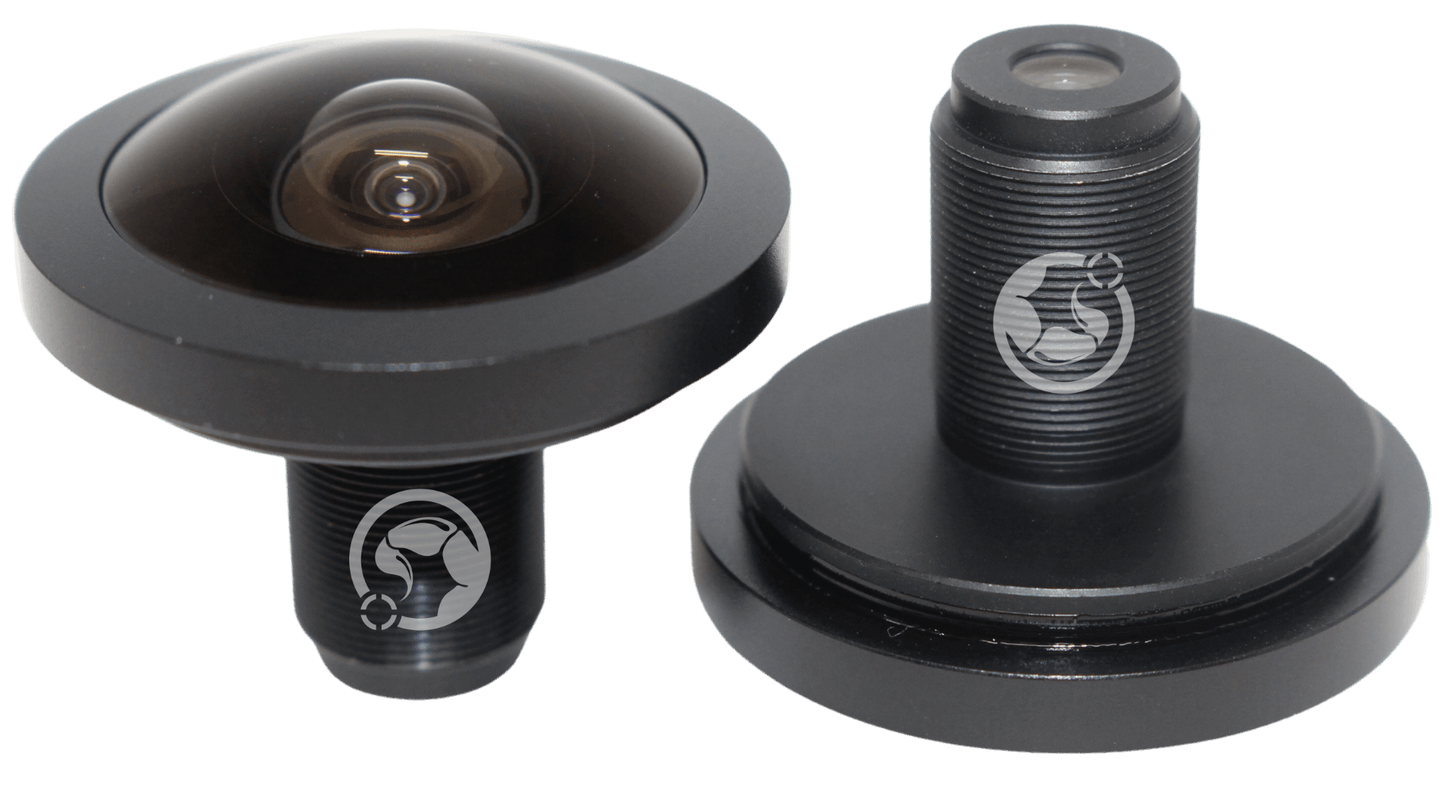

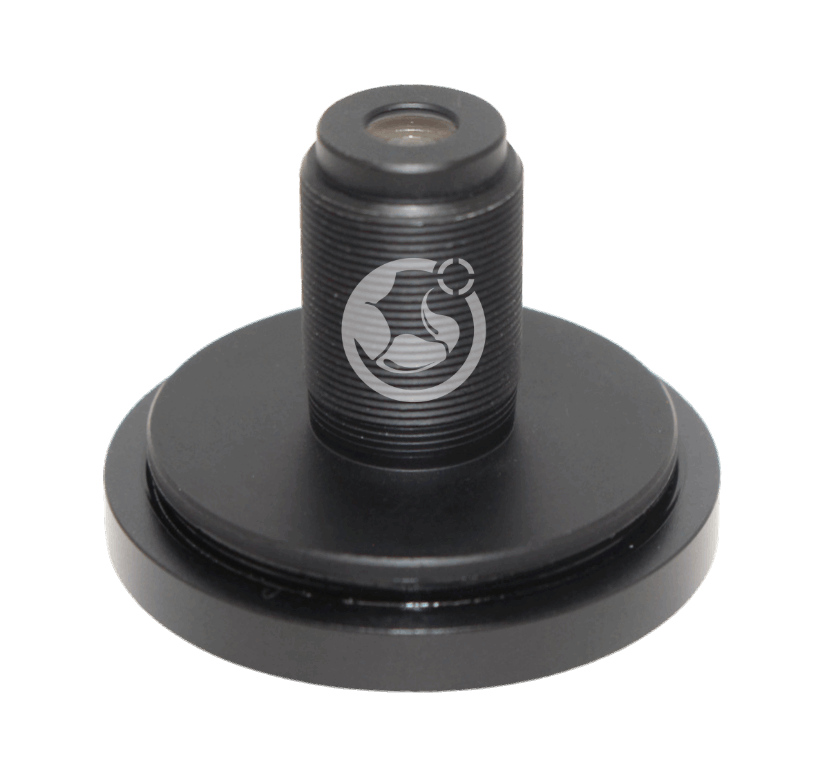

Scorpion Vision
M12 Lens 1.4mm F2.0
SKU: SVL-IR01420B9M
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 1.4mm
- F Number: F2.0
- Iris: Non-adjustable
- Mount: M12
- Format: 1/3"
- Filter Size: n/a
- Megapixel: 9MP
- Horizontal Field of View: 183 Degrees
- Distortion: <-97%
- Back Focus: 4mm
- Wavelength: 400nm - 900nm
Sample Images
Sensor: 1/3" Aptina MT9V024
In the image below the sugar cube was 22mm from the lens and shows a horizontal field of view of 900mm.
The sugar cube measures 16mm x 14mm.
Minimum object distance: approx. 1mm
In this sample image, the penny (d=20.3mm) was at a distance of 8cm from the lens.
Being a fish-eye this lens has a super short focal length and a huge field of view. This means that the image has distortion although the penny remains sharp.
