Scorpion Vision

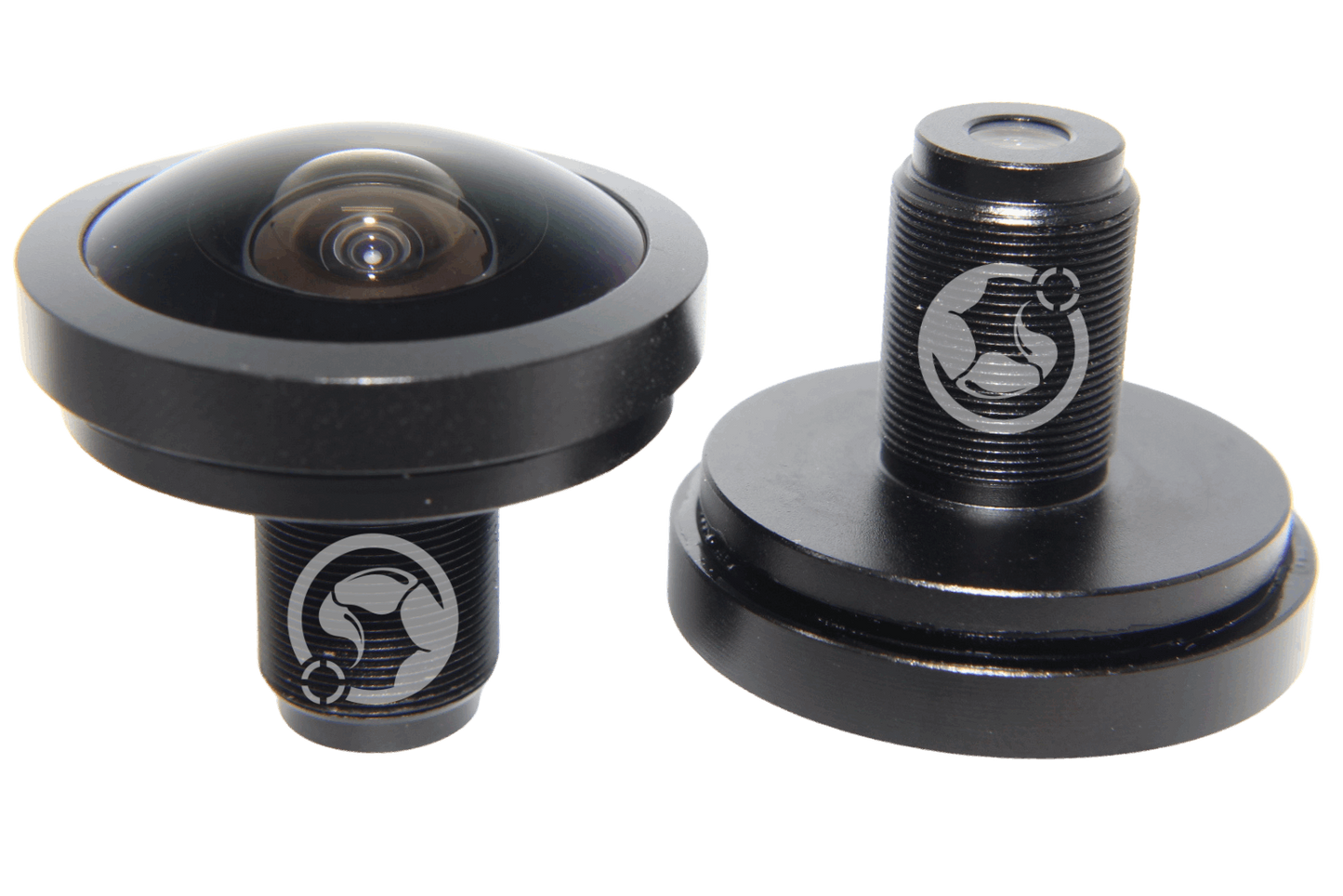

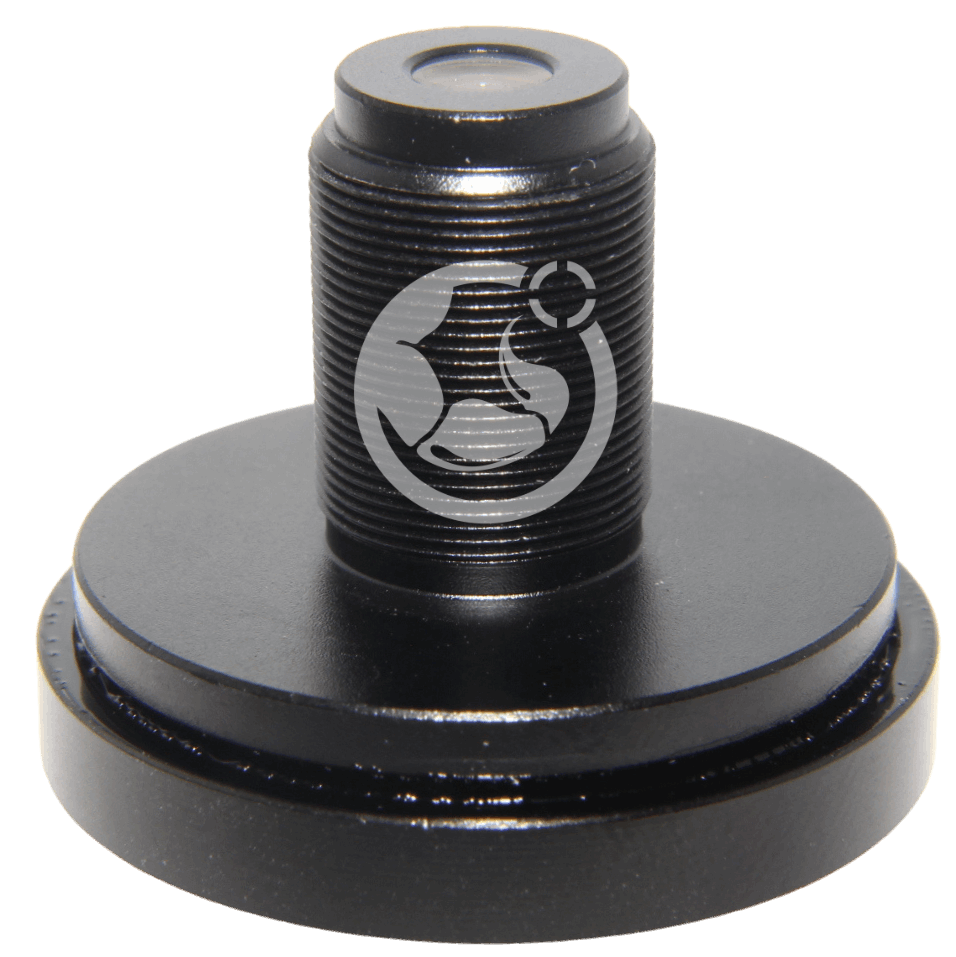

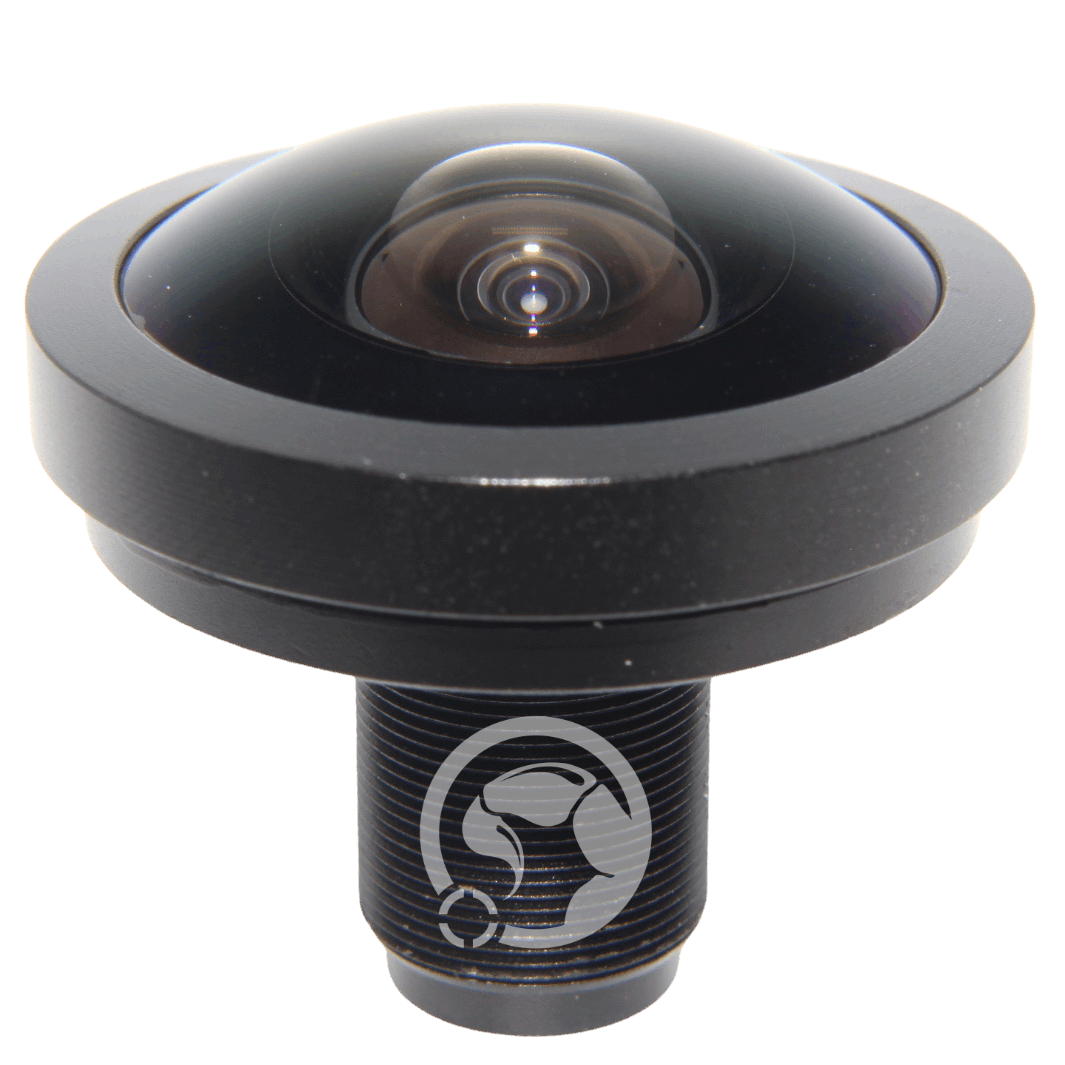

M12 Lens 1.3mm F2.0

SKU: SVL-IR01320B9M

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 1.3mm
  • F Number: F2.0
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/2.3"
  • Filter Size: n/a
  • IR Block: No IR Block
  • Megapixel: 9MP
  • Horizontal Field of View: 195 Degrees
  • Distortion: <-0.7%
  • Back Focus: 3.2mm
  • F-Theta Distortion is <-0.7%

Sample Images

Sensor: 1/3" Aptina MT9V024

In the image below the sugar cube was 590mm from the lens and shows a horizontal field of view of 2000mm.

The sugar cube measures 16mm x 14mm.


Minimum object distance: approx. 2mm


In this sample image the penny (d=20.3mm) was at a distance of 8cm from the lens.
Being a fish-eye this lens has a super short focal length and a huge field of view. This means that the image has distortion although the penny remains sharp.
