Scorpion Vision

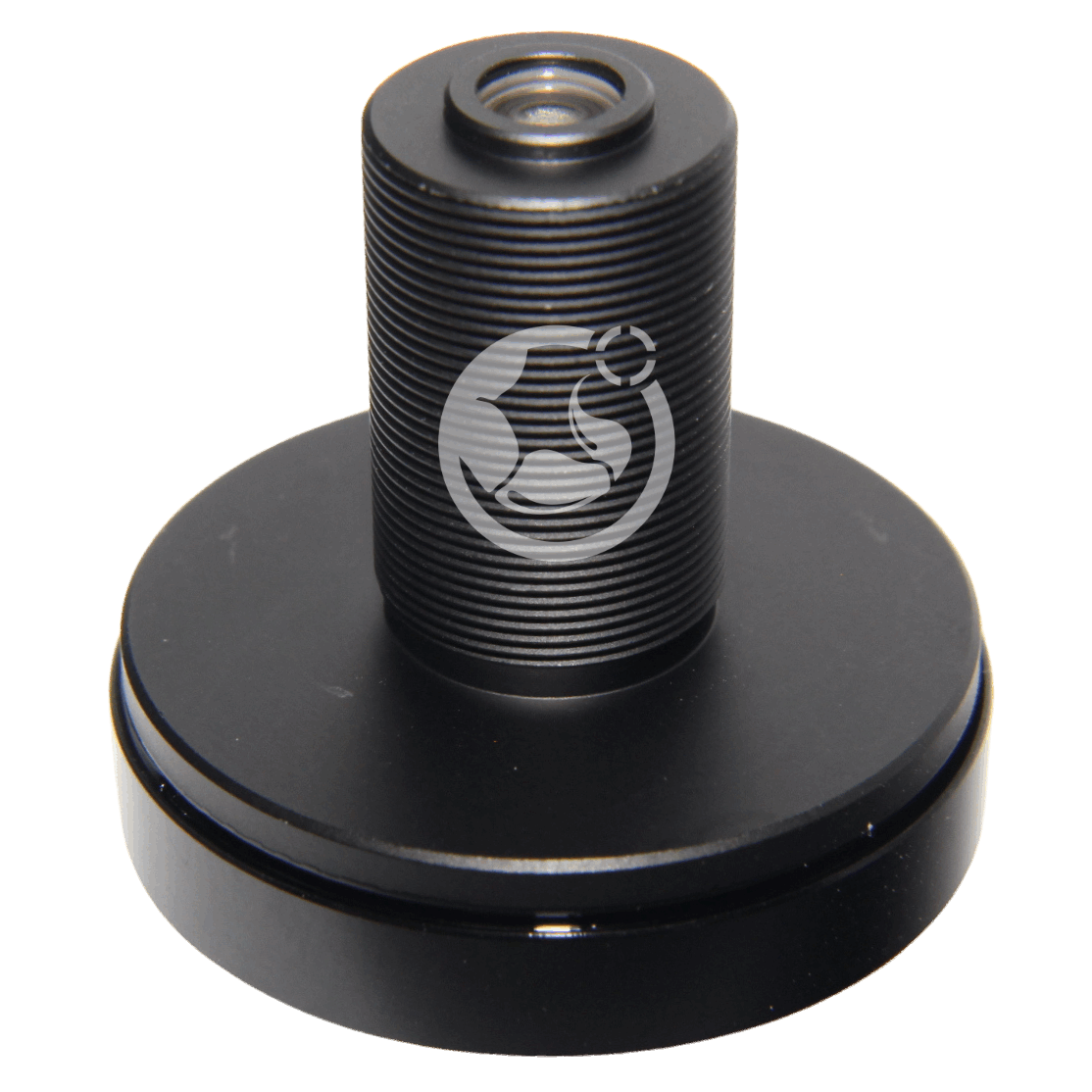

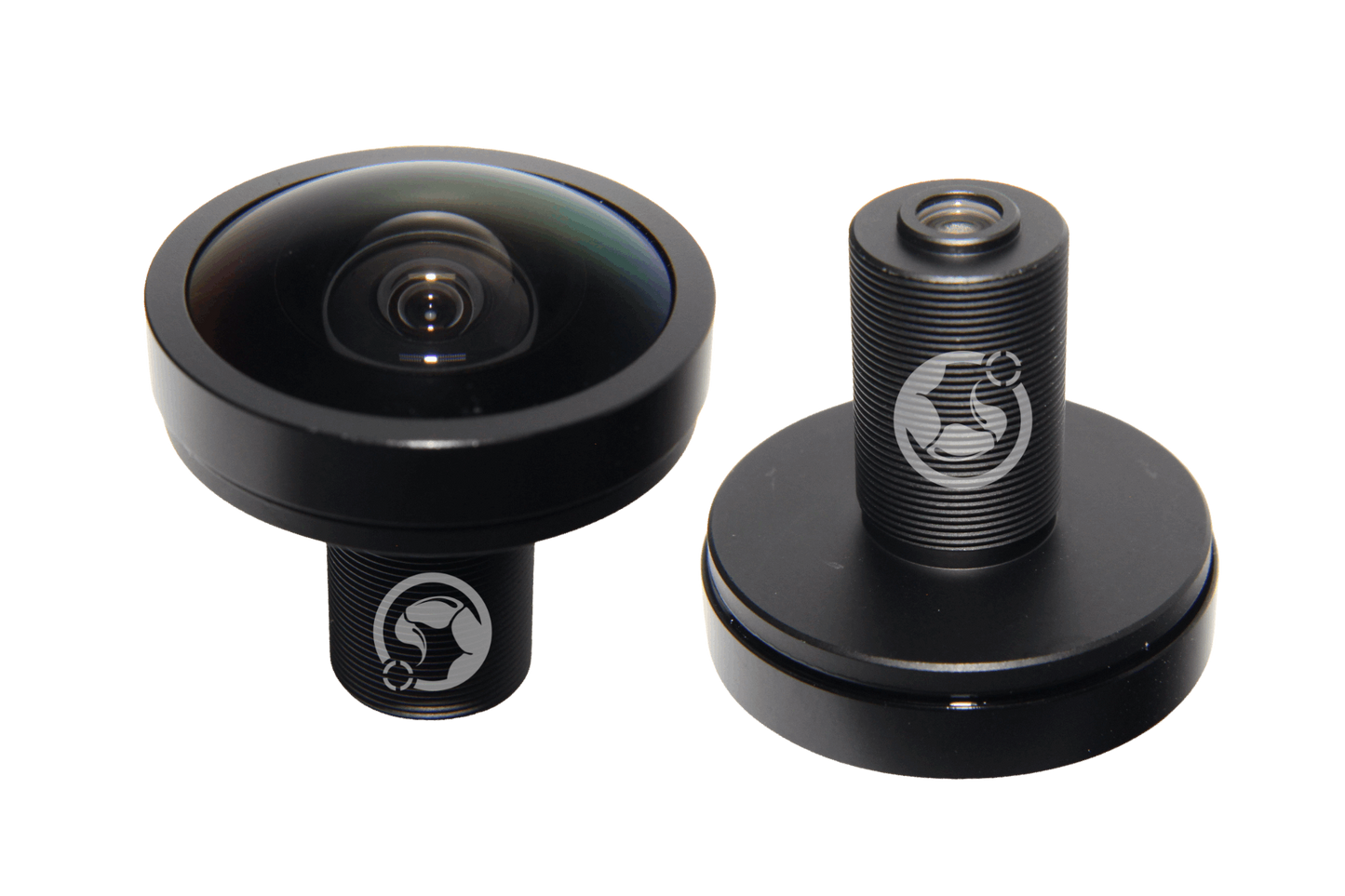

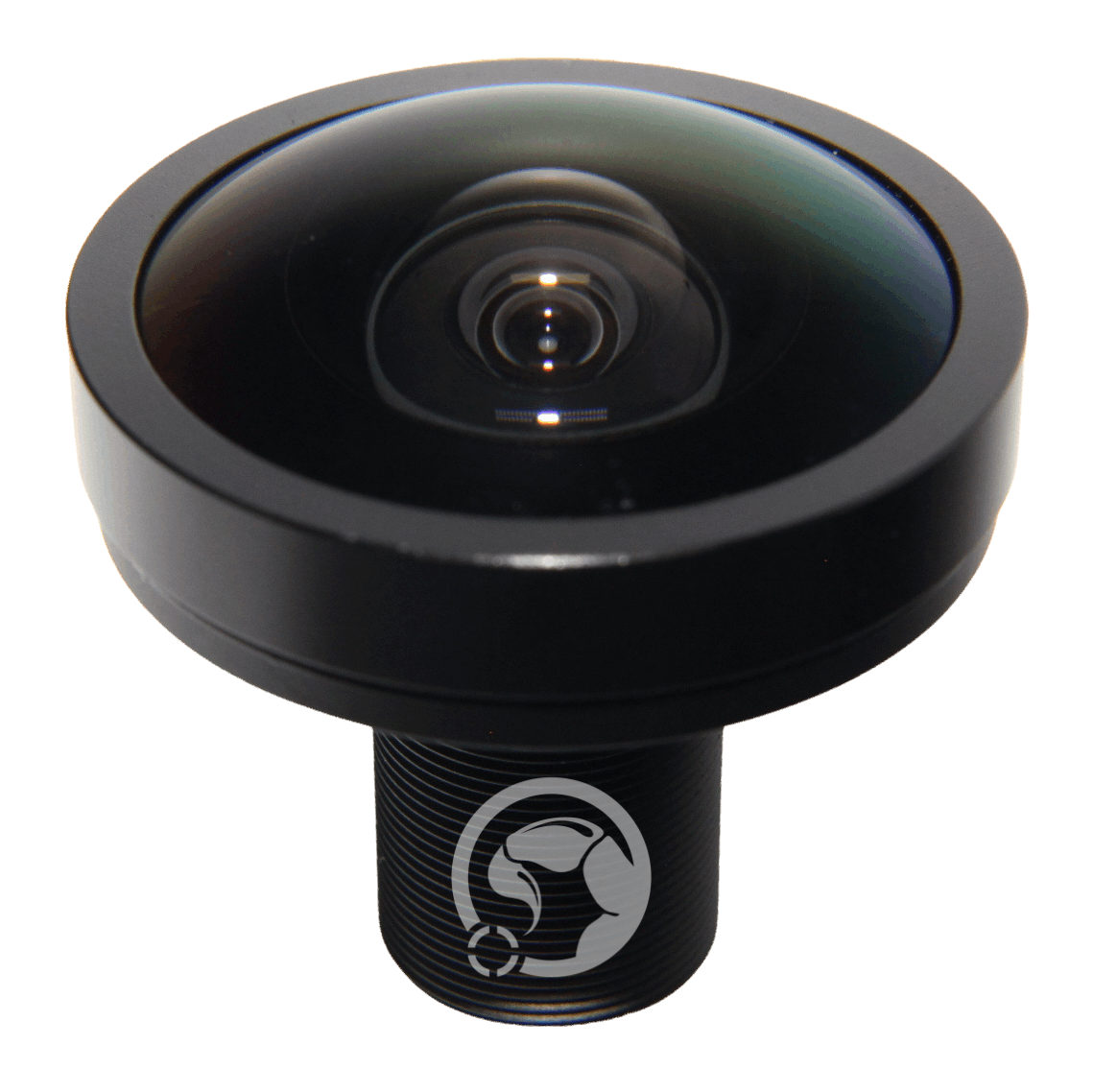

M12 Lens 1.08mm F2.0
SKU: SVL-01020B5M
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 1.08mm
- F Number: F2.0
- Iris: Non-adjustable
- Mount: M12
- Format: 1/3"
- Filter Size: n/a
- Megapixel: 5MP
- Horizontal Field of View: 185 Degrees
- Distortion: <-93%
- Back Focus: 4.4mm
- Wavelength: 400nm - 700nm
Sample Images
Sensor: 1/3" Aptina MT9V024
In the image below the sugar cube was 42mm from the lens and shows a horizontal field of view of 960mm.
The sugar cube measures 16mm x 14mm.
It shows the coin at the closest possible distance of approx. 2mm.
In this next image the coin was a distance of 37mm from the lens.
In the next images the sensor used was a 1/4" Sony ICX618. Despite this not being a macro lens due to its very short focal length it was able to focus right next to the lens. The first image is focused at a distance of 0mm from the lens and the second at 13mm.
