Scorpion Vision

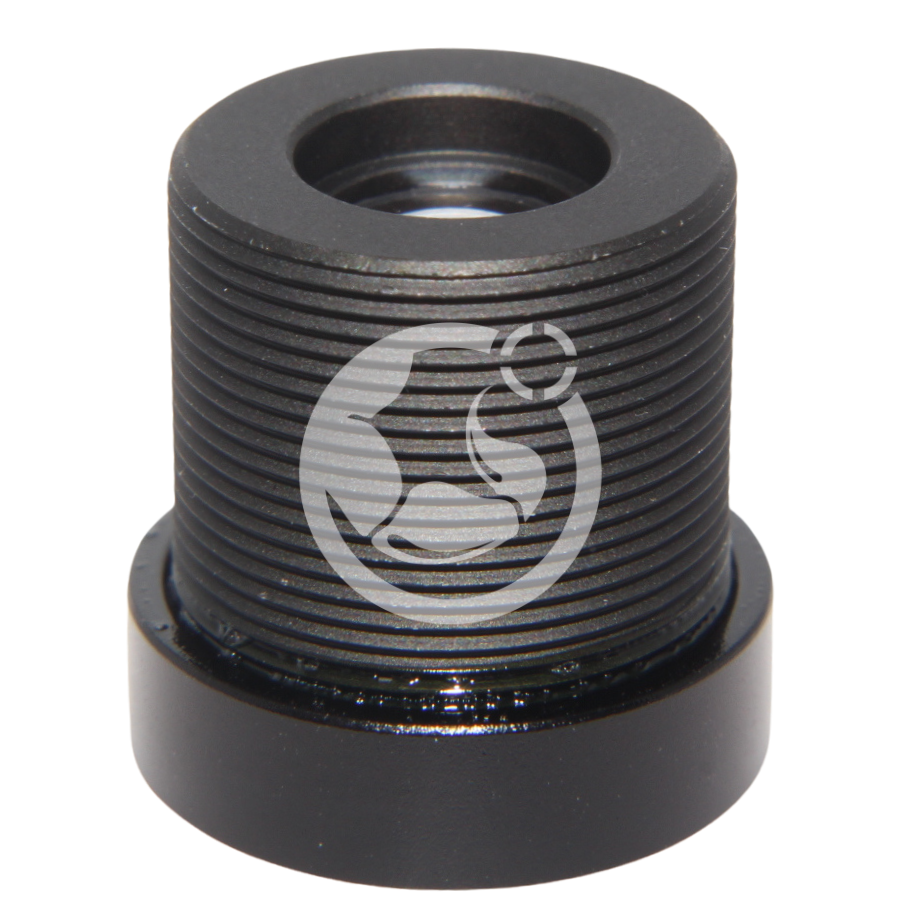

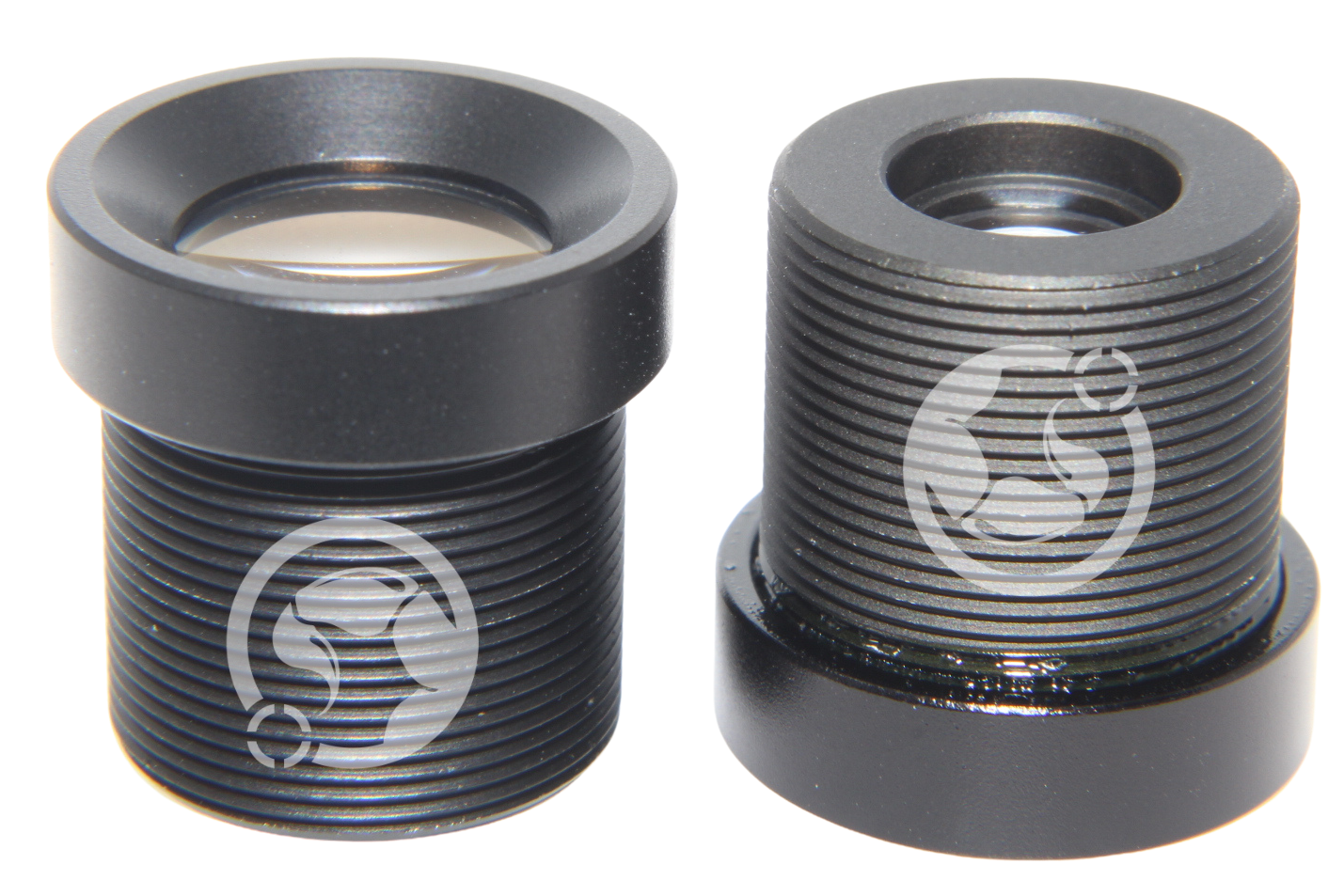

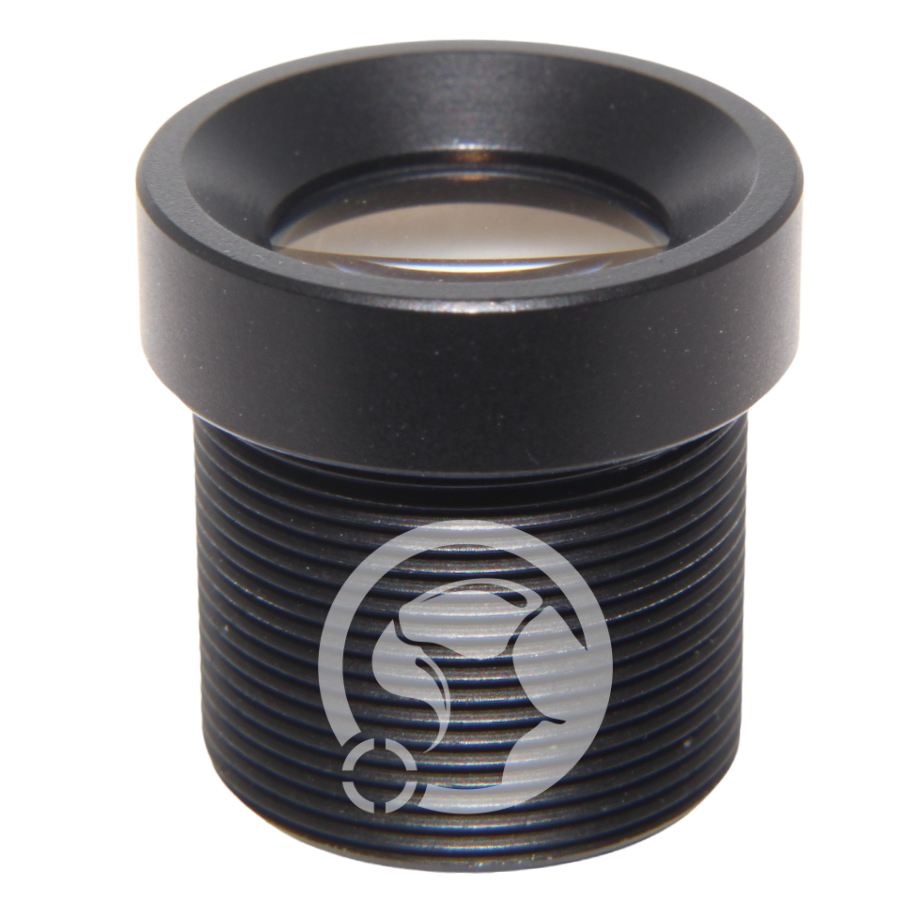

M12 Lens 8mm F2.0

SKU: SVL-IR0820BM

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 8mm
  • F Number: F2.0
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/3"
  • Filter Size: n/a
  • Megapixel: 1MP
  • Horizontal Field of View: 33.6 Degrees
  • Distortion: <-4.7%
  • Back Focus: 8mm
  • Wavelength: 400nm - 900nm

Sample Images

Sensor: 1/3" Aptina MT9V024

In the below image, the sugar cube is 54mm from the lens. This is the minimum distance at which the entire cube remains in focus.

The sugar cube measures 16mm x 14mm.


The coin was at a distance of approx 34mm.


In this sample image, the penny (d=20.3mm) was at a distance of 20cm from the lens.
The medium focal length of this lens produces a decent field of view whilst minimising distortion to produce a sharp image.


In these next images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 19mm from the lens and the second at 37mm. This lens has a small F Number of F2.0 creating a narrow depth of field.
