Scorpion Vision

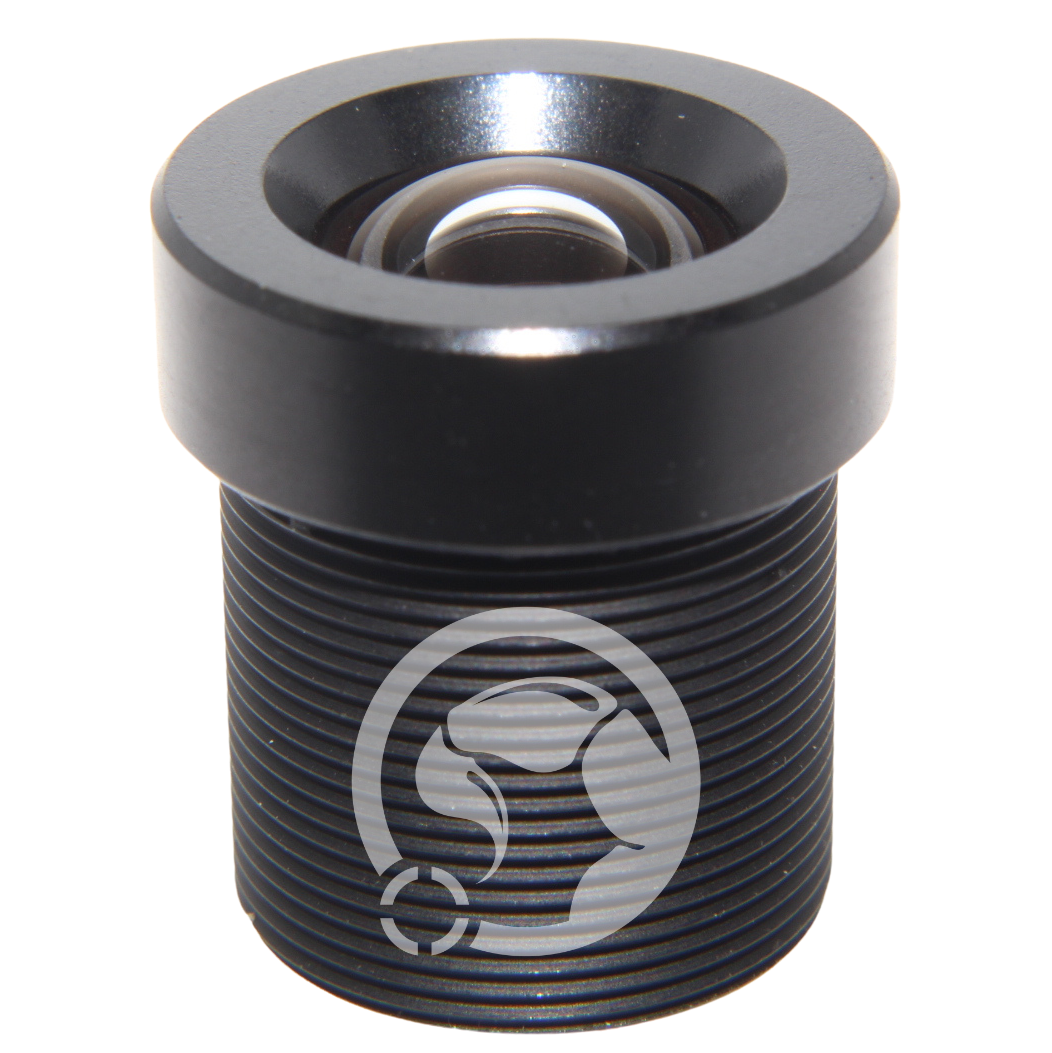

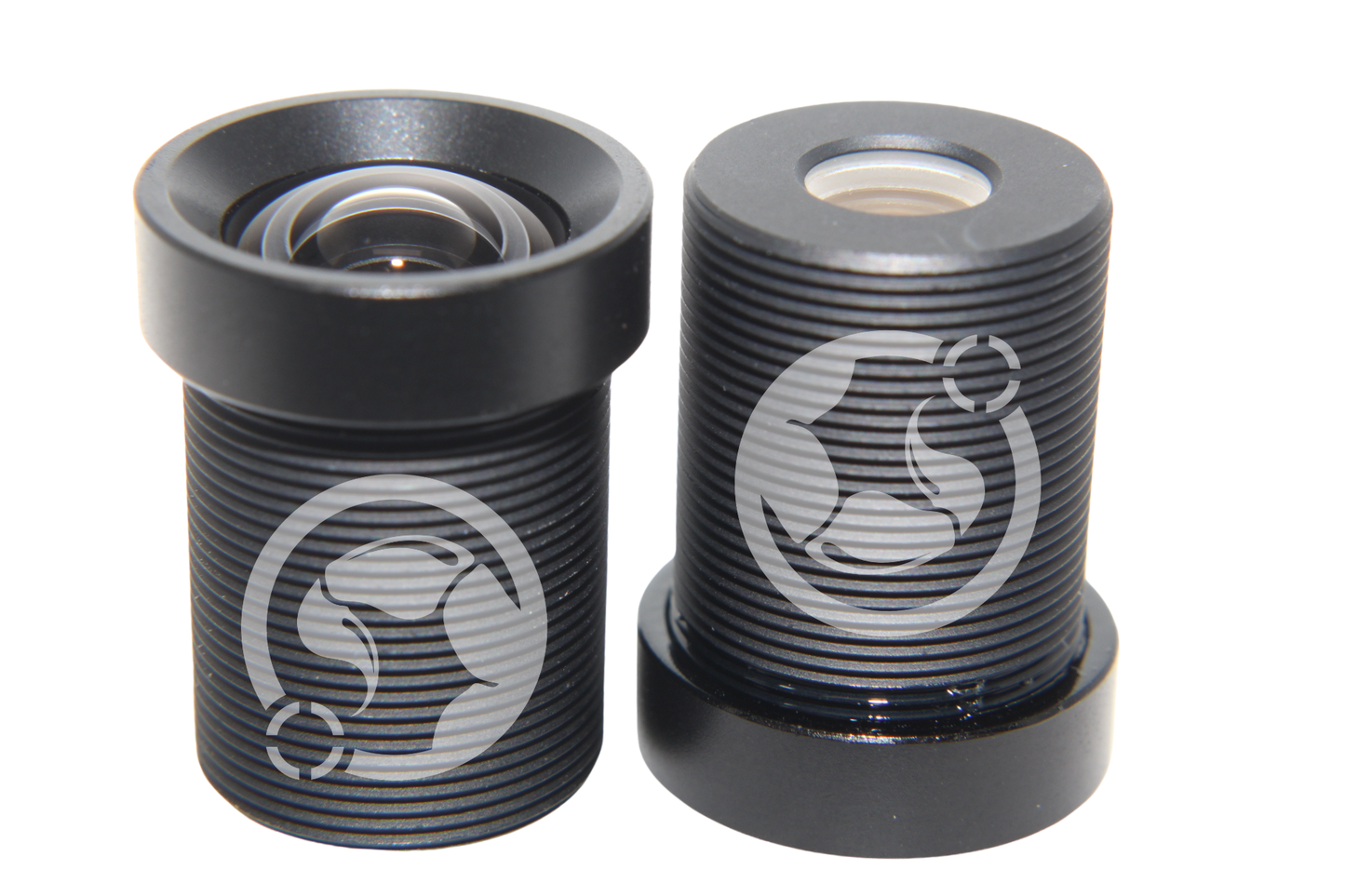

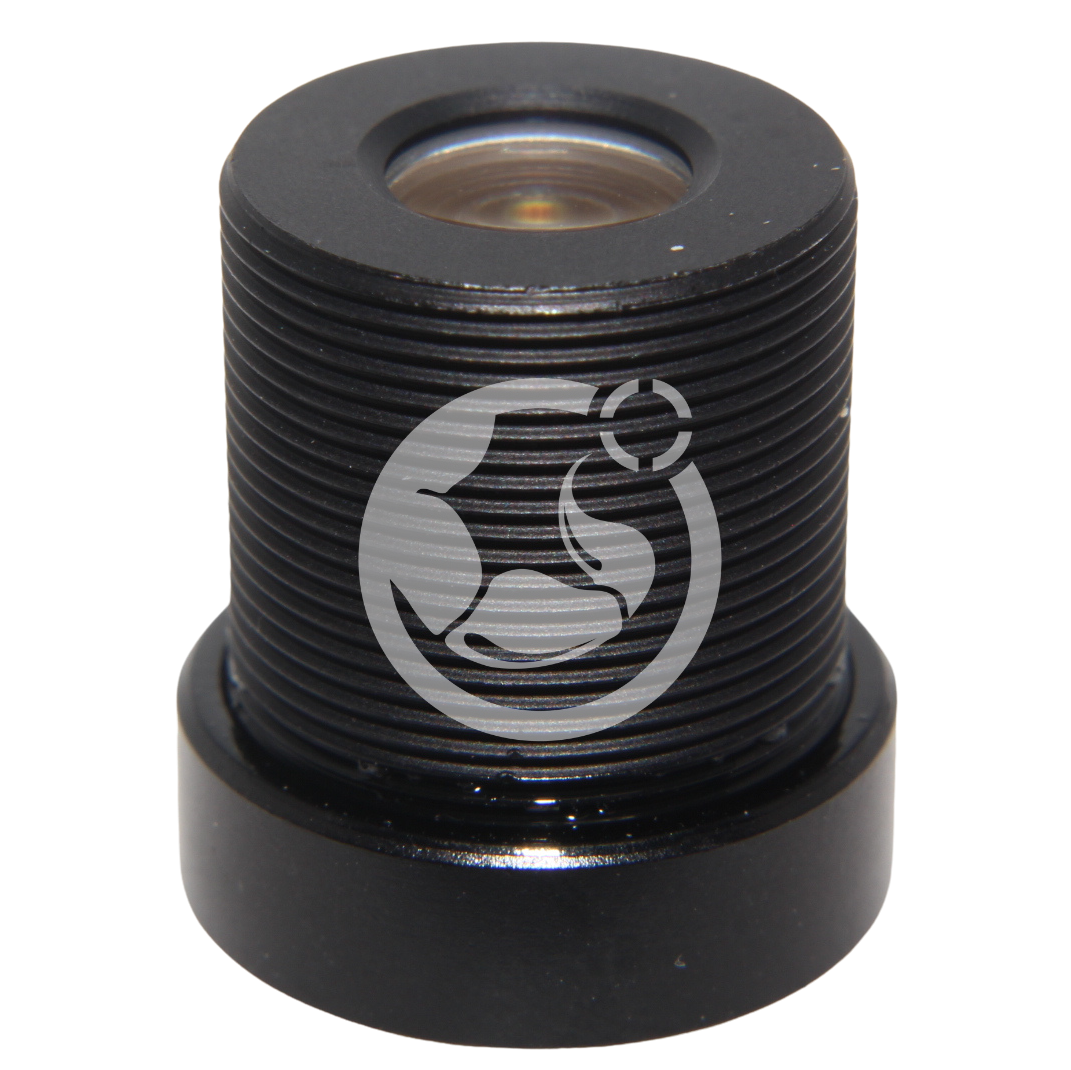

M12 Lens 6mm F2.0
SKU: SVL-IR0620BM
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 6mm
- F Number: F2.0
- Iris: Non-adjustable
- Mount: M12
- Format: 1/3"
- Filter Size: n/a
- Megapixel: 1MP
- Distortion: <-10.5%
- Back Focus: 8.27mm
- HFOV: 46.2 Degrees
- Wavelength: 400nm - 900nm
Sample Images
In this image, the sensor used was a 1/3" Aptina MT9V024. The coin was at a distance of approx. 28mm.
In this sample image, the penny (d=20.3mm) was at a distance of 20cm from the lens.
The medium focal length of this lens produces a decent field of view whilst minimising distortion to produce a sharp image.
In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 15mm from the lens and the second at 32mm. This lens has a small F Number of F2.0 creating a narrow depth of field.
