Scorpion Vision

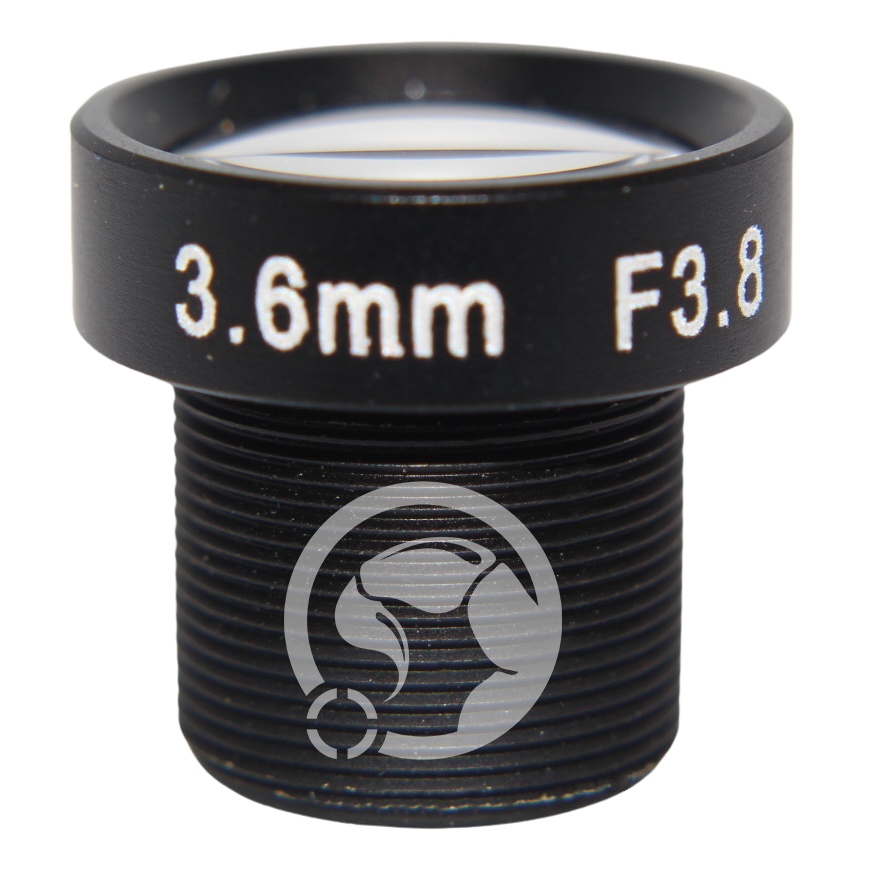

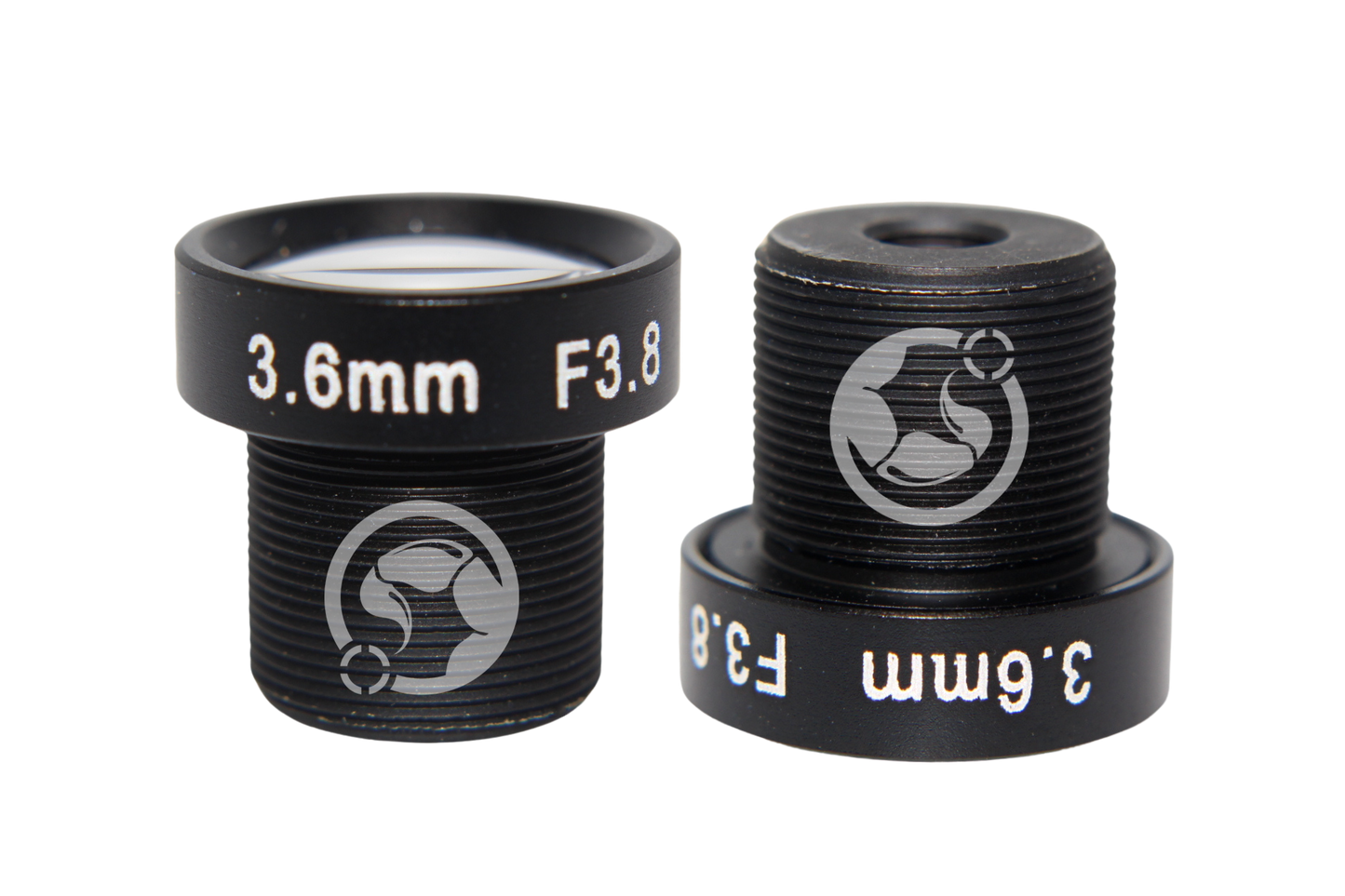

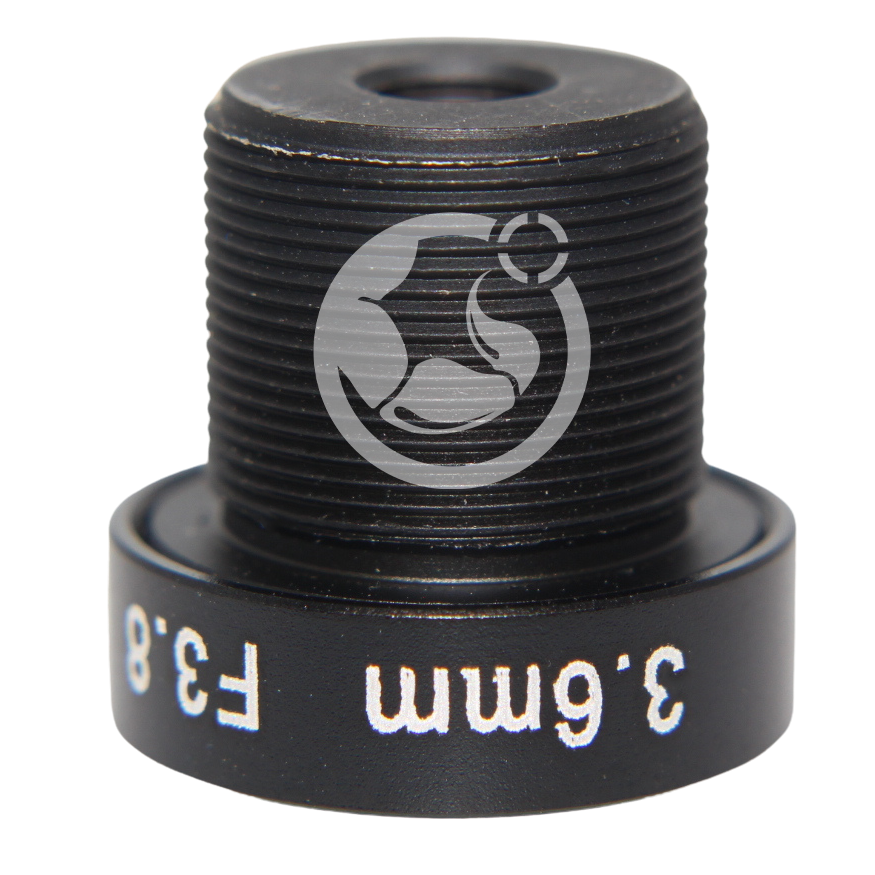

M12 Lens 3.61mm F3.8
SKU: SVL-IR03638B5M
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 3.61mm
- F Number: F3.8
- Iris: Non-adjustable
- Mount: M12
- Format: 1/4"
- Filter Size: N/A
- Megapixel: 5MP
- Horizontal Field of View: 54.44 Degrees
- Distortion: <-5%
- Back Focus: 3.67mm
- Wavelength: 400nm - 900nm
Sample Images
Sensor: 1/3" Aptina MT9V024
In the image below the sugar cube was 93mm from the lens. This shows a horizontal field of view of 22mm.
The sugar cube measures 16mm x 14mm.
Minimum object distance: approx. 10mm
In this sample image, the penny (d=20.3mm) was at a distance of 20cm from the lens.
This lens is telecentric meaning although it has a short focal length it has a reduced field of view which keeps distortion to a minimum.
