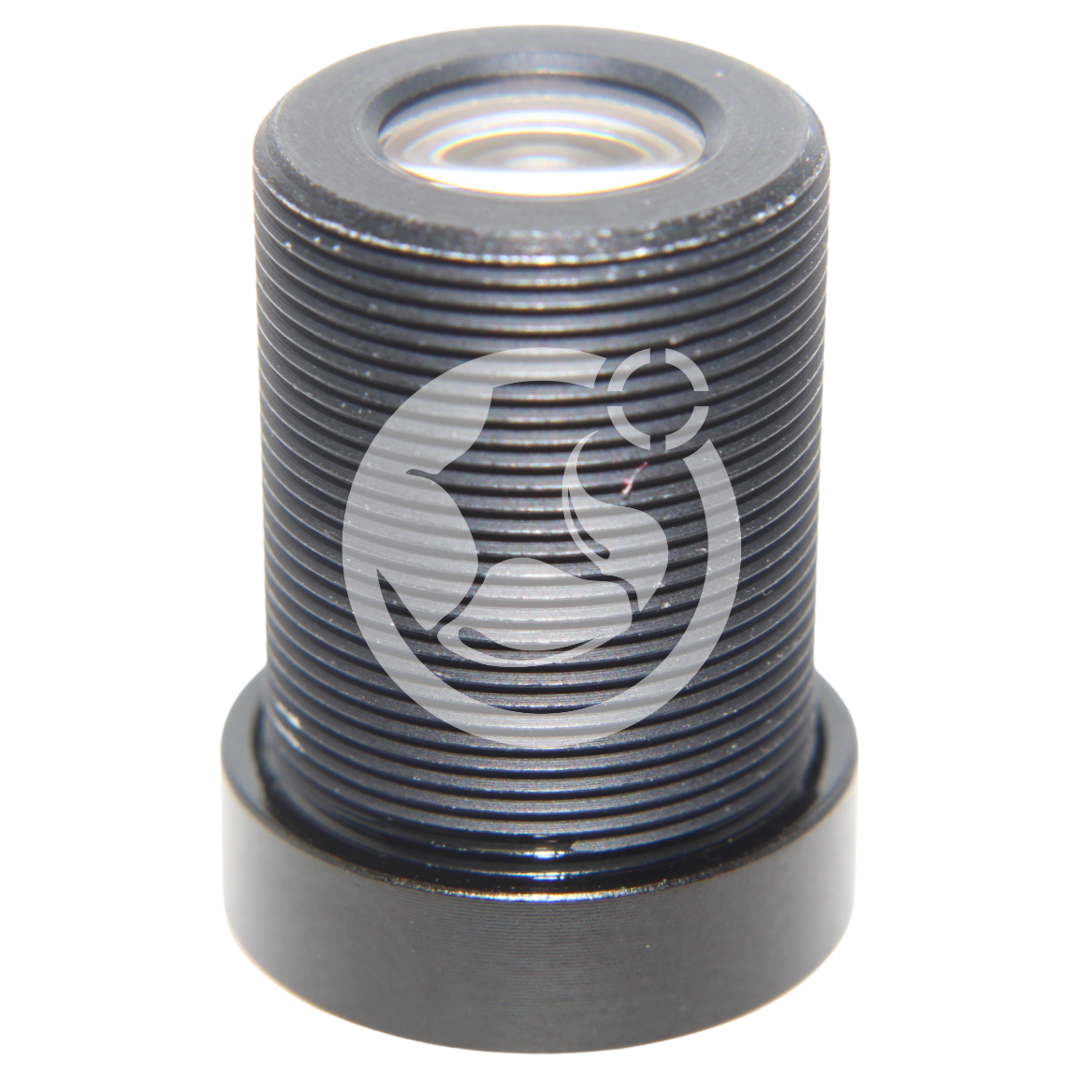

M12 Lens 3.6mm F2.6
SKU: SVL-IR03626B3M
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 3.6mm
- F Number: F2.6
- Iris: Non-adjustable
- Mount: M12
- Format: 1/3"
- Filter Size: n/a
- Megapixel: 3MP
- Horizontal Field of View: 80 Degrees
- Distortion: <+16.5
- Back Focus: 5.2mm
- Wavelength: 400nm - 900nm
Chief Ray Angle (CRA) for SVL-IR03626B3M is 4.04°
Sample Images
Sensor: 1/3" Aptina MT9V024
In the below image, the sugar cube is 28mm from the lens. This is the minimum distance at which the entire cube remains in focus.
The sugar cube measures 16mm x 14mm.
In this next image, the sugar cube was 460mm from the lens and shows a horizontal field of view of 580mm.
The coin is at a distance of approx. 20mm.
In this next image the coin was at a distance of 148mm.
In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 11mm from the lens and the second at 29mm. This lens has a small F Number of F2.6 creating a narrow depth of field.
