Scorpion Vision

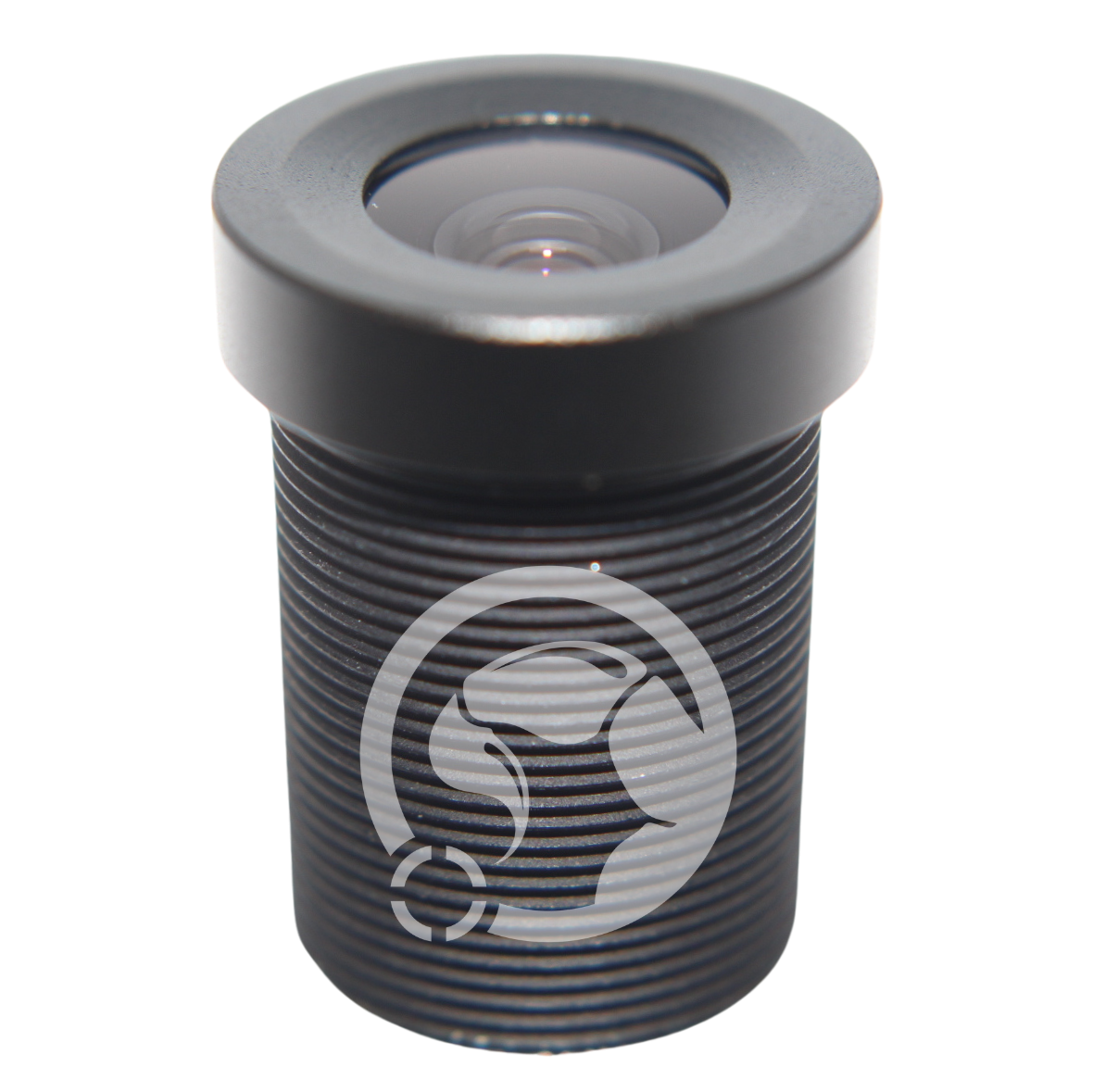

M12 Lens 3.6mm F1.7

SKU: SVL-IR03617B3M

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 3.6mm
  • F Number: F1.7
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/4"
  • Filter Size: n/a
  • Megapixel: 3MP
  • Horizontal Field of View: 58 Degrees
  • Back Focus: 5.16mm
  • Distortion: <-16%
  • Wavelength: 400nm - 900nm

Chief Ray Angle (CRA) for SVL-IR3617B3M is 8.6°.

Sample Images

Sensor: 1/3" Aptina MT9V024.

In the below image, the sugar cube is 34mm from the lens. This is the minimum distance at which the entire cube remains in focus.

The sugar cube measures 16mm x 14mm.


The coin was at a distance of approx. 21mm.


In this sample image, the penny (d=20.3mm) was at a distance of 20cm from the lens.
This lens has a short focal length enabling a large field of view. This does produce some distortion towards the edges of the image but the penny remains sharp.


In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 10mm from the lens and the second at 24mm. This lens has a very small F Number of F1.7 creating a narrow depth of field.
