Scorpion Vision

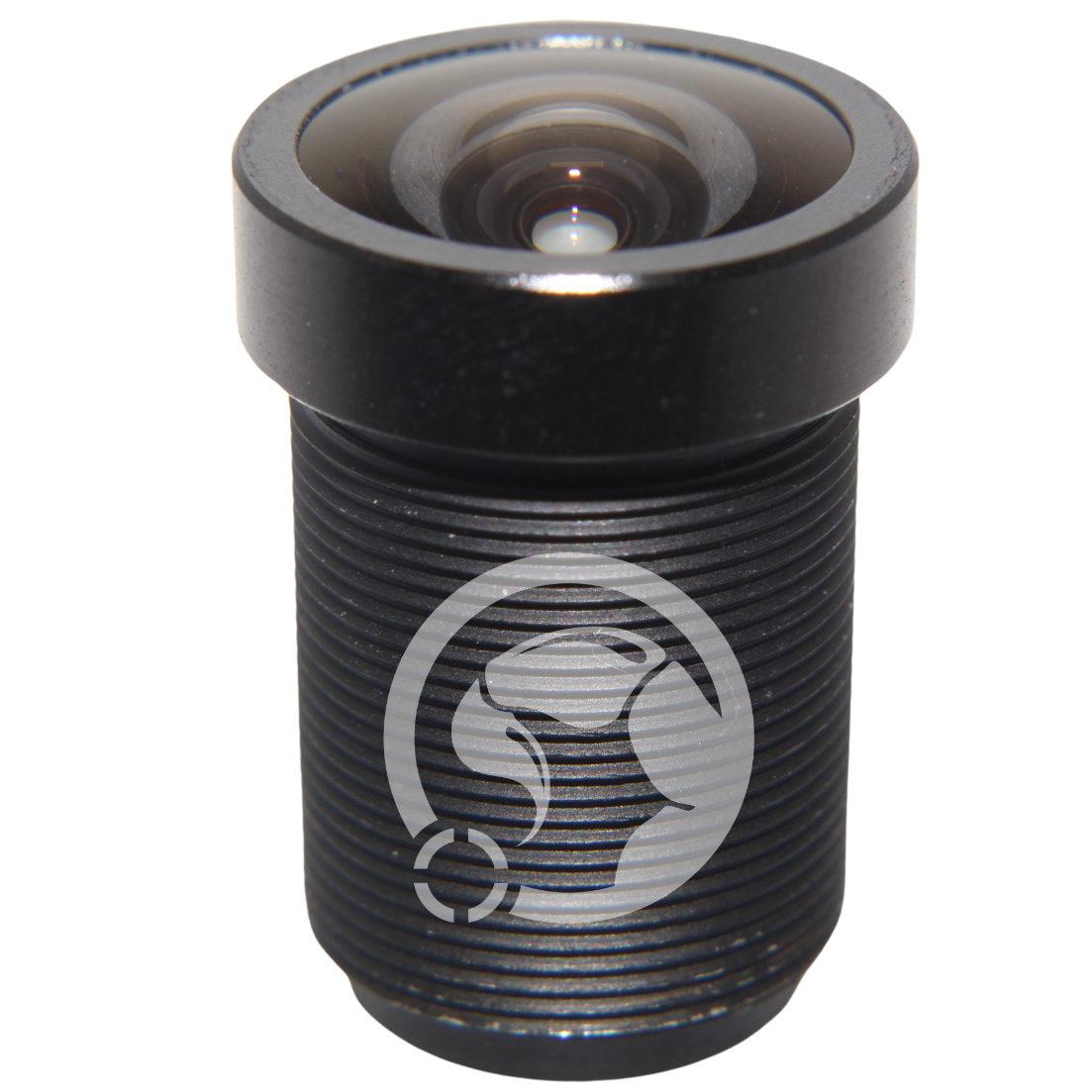

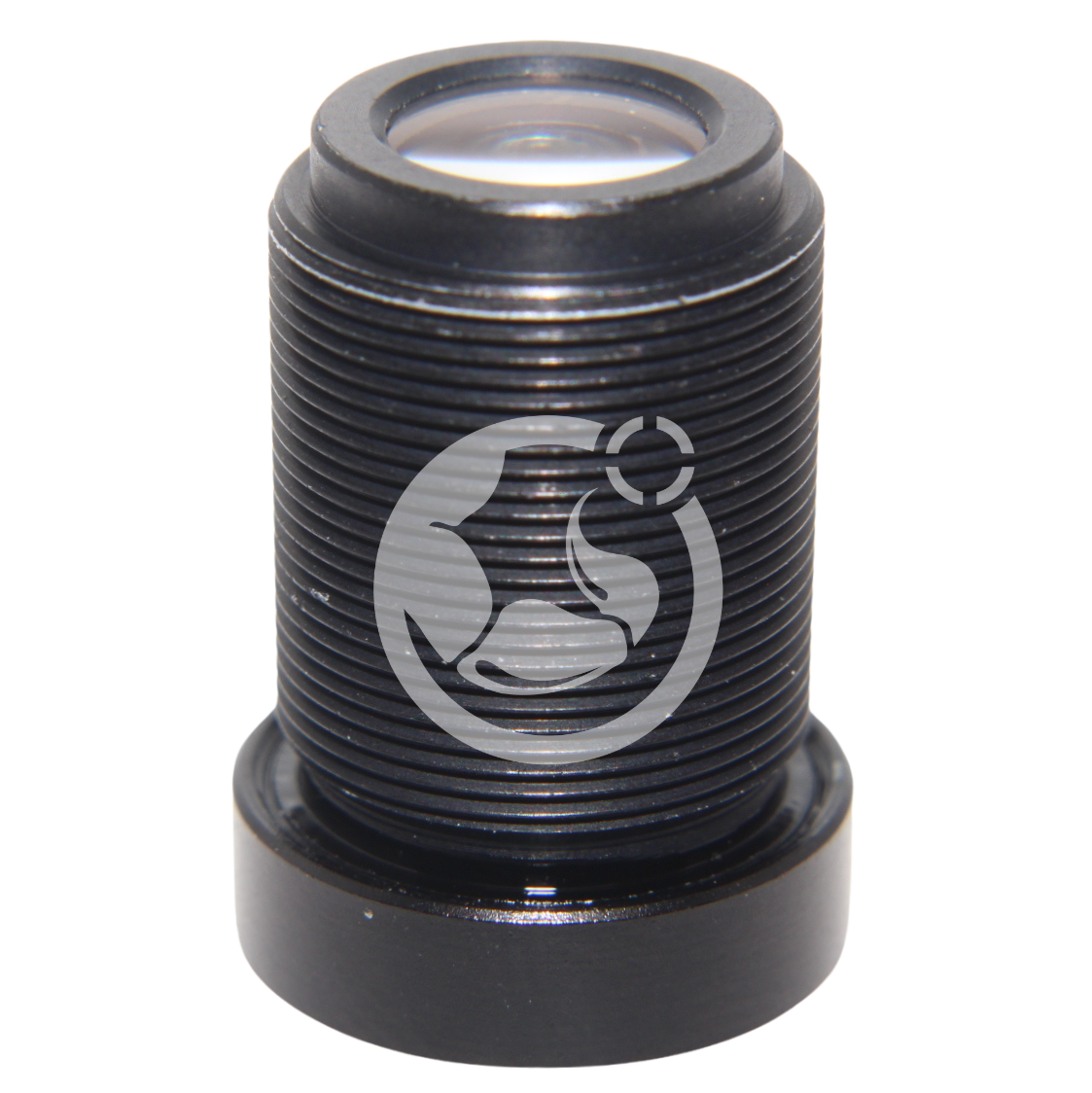

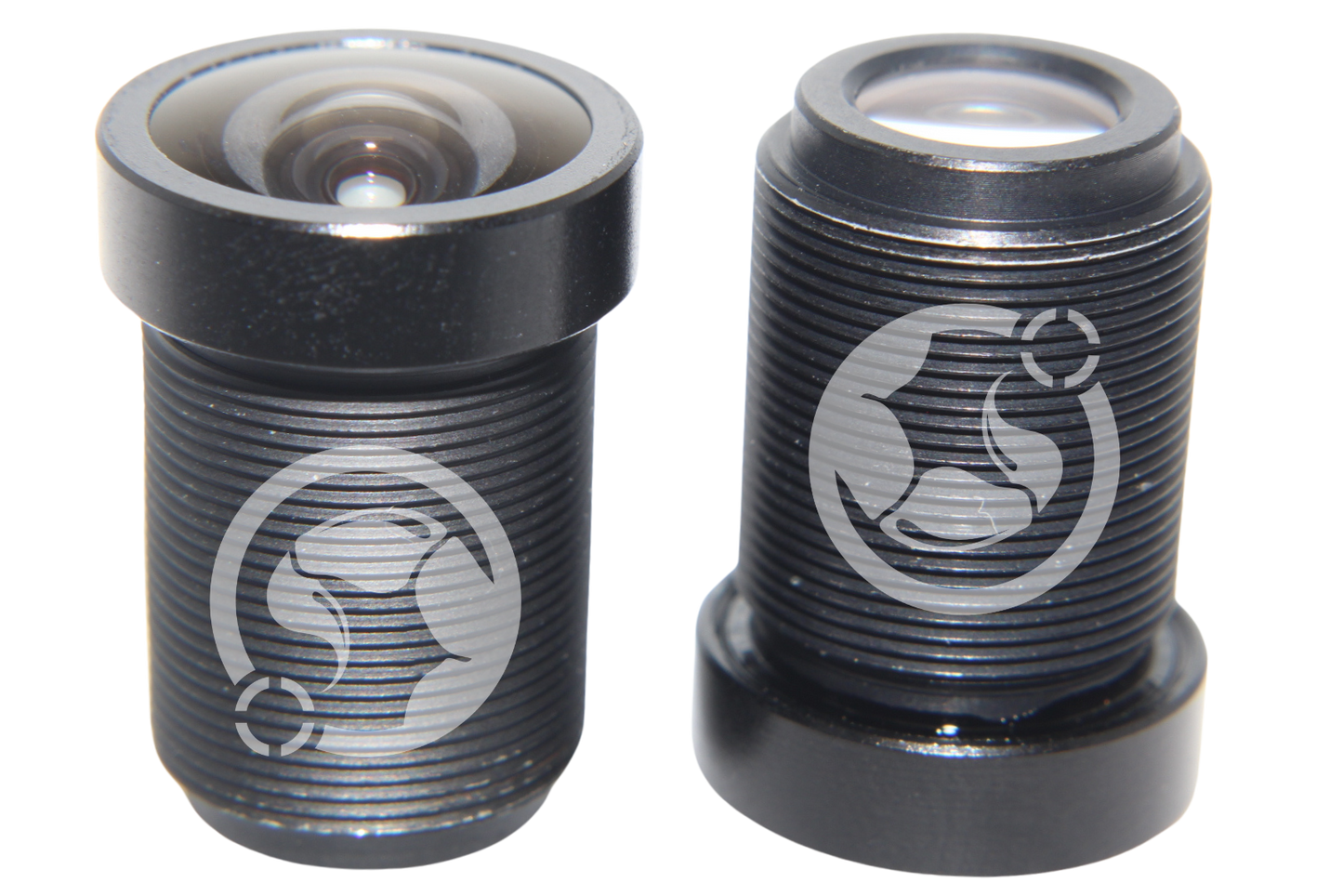

M12 Lens 2.88mm F2.0



Shipping & Returns


Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.


If you would like to return or have any questions about your returning your item, please contact

Key Features

  • Focal Length: 2.88mm
  • F Number: F2.0
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/2.7"
  • Filter Size: n/a
  • Megapixel: 5MP
  • Horizontal Field of View: 98 Degrees
  • Distortion: <-71%
  • Back Focus: 5mm
  • Wavelength: 400nm - 900nm

Sample Images

Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ

In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.

Minimum object distance: 23mmdfk-afux236-m12-svl-ir02920b5m-23mm.jpg

Object distance: dfk-afux236-m12-svl-ir02920b5m-45mm.jpg

Object distance: 135mmdfk-afux236-m12-svl-ir02920b5m-135mm.jpg

Object distance: 198mmdfk-afux236-m12-svl-ir02920b5m-198mm.jpg
