Scorpion Vision

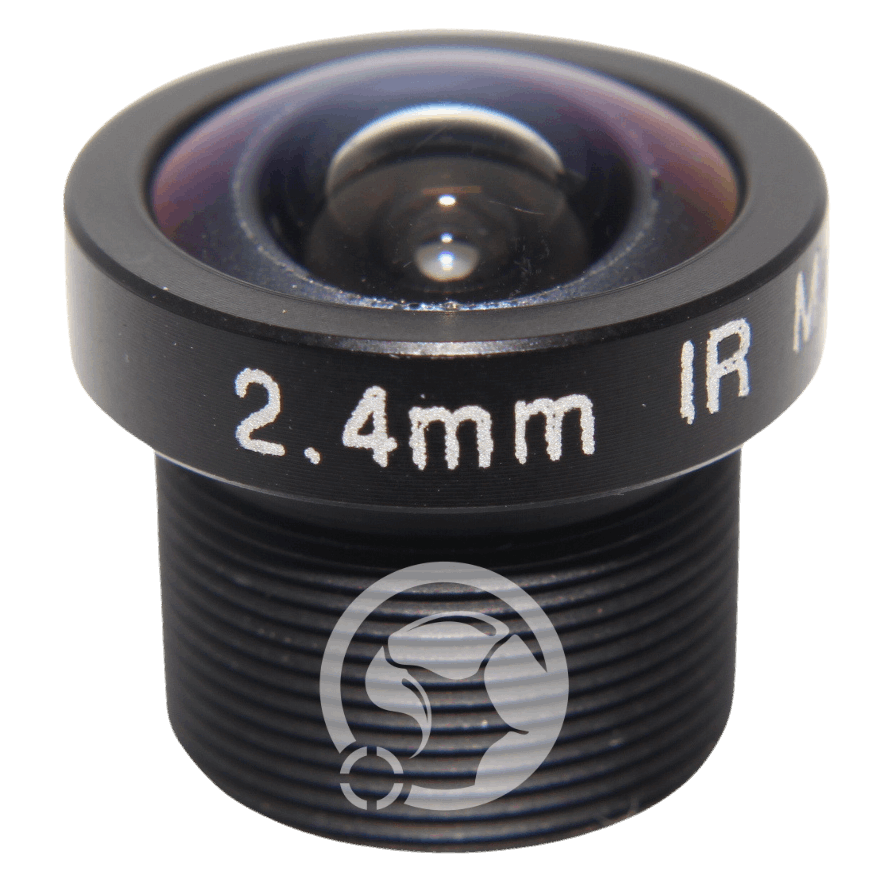

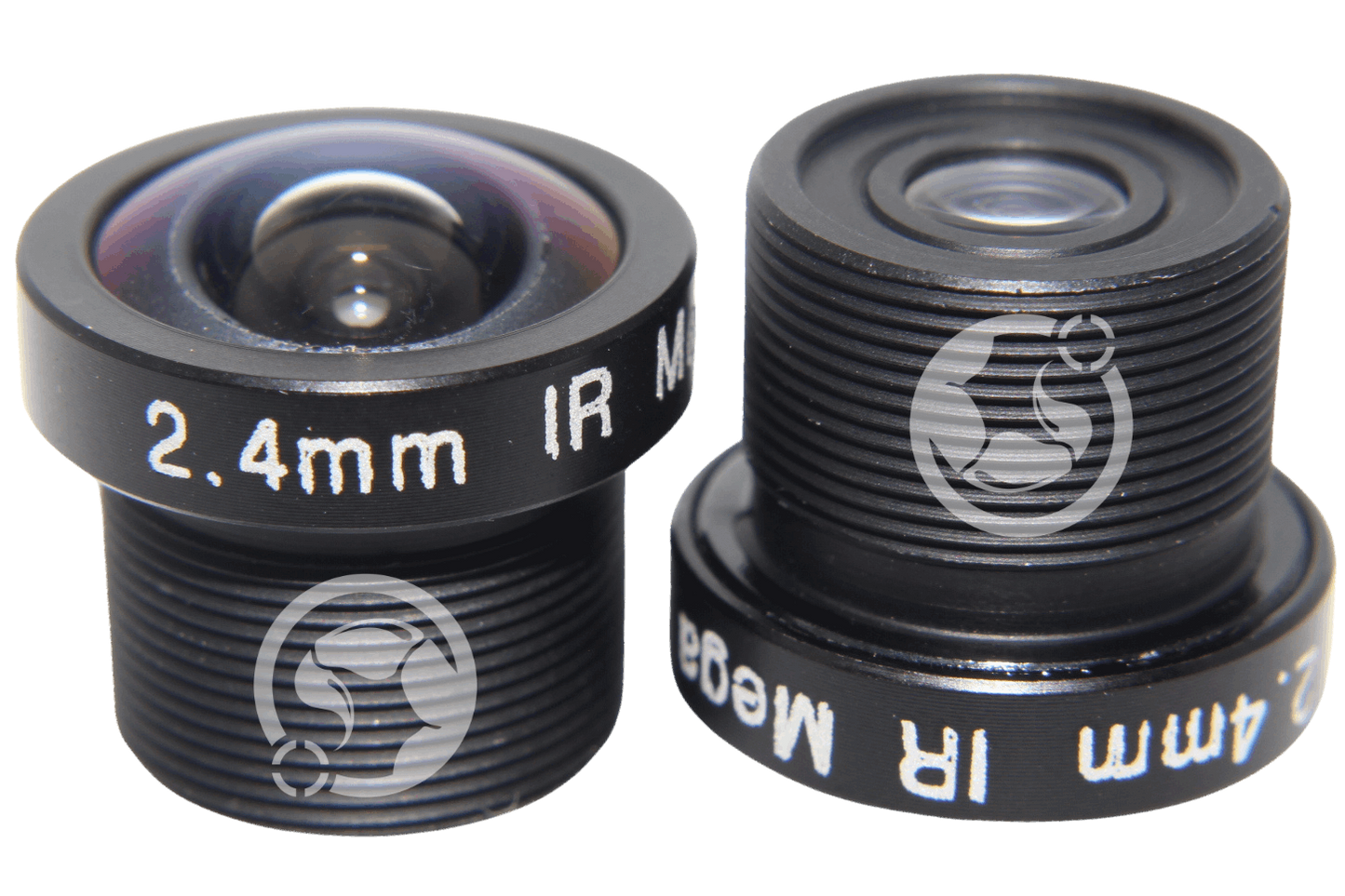

M12 Lens 2.4mm F2.0
SKU: SVL-IR02420BM
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 2.4mm
- F Number: F2.0
- Iris: Non-adjustable
- Mount: M12
- Format: 1/2.7"
- Filter Size: n/a
- Megapixel: 1MP
- Distortion: <-85%
- Back Focus: 4.15mm
- Wavelength: 400nm - 900nm
Sample Images
Sensor: 1/3" Aptina MT9V024
In the below image the sugar cube is 14mm from the lens. This is the minimum distance at which the entire cube remains in focus.
The sugar cube measures 16mm x 14mm.
In this next image, the sugar cube was 254mm from the lens and shows a horizontal field of view of 600mm.
Minimum object distance: 12mm
In this sample image, the penny (d=20.3mm) was at a distance of 8cm from the lens.
The very short focal length of this lens is a large field of view. This does produce high distortion of the image but the penny remains sharp.
