Scorpion Vision

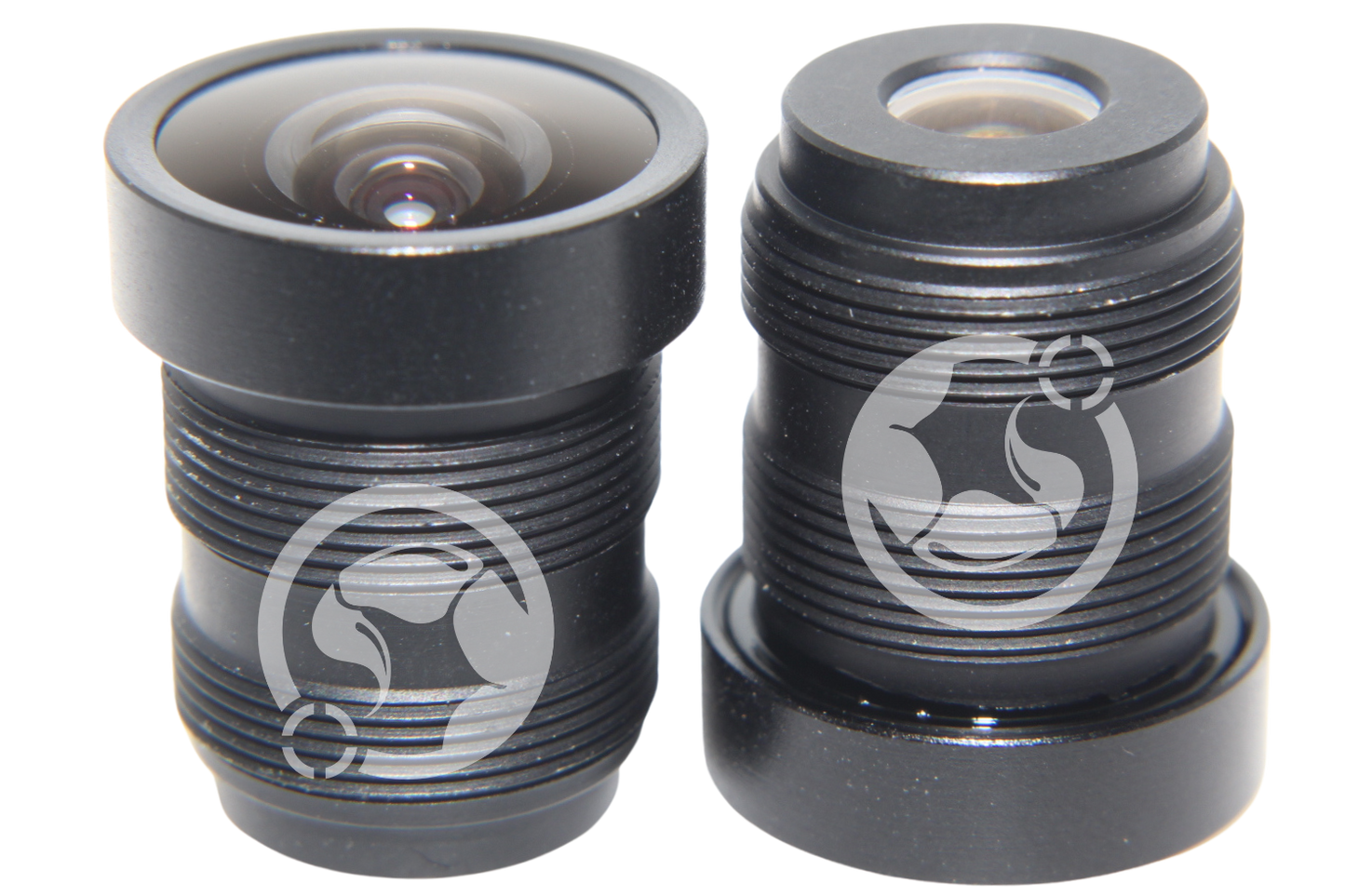

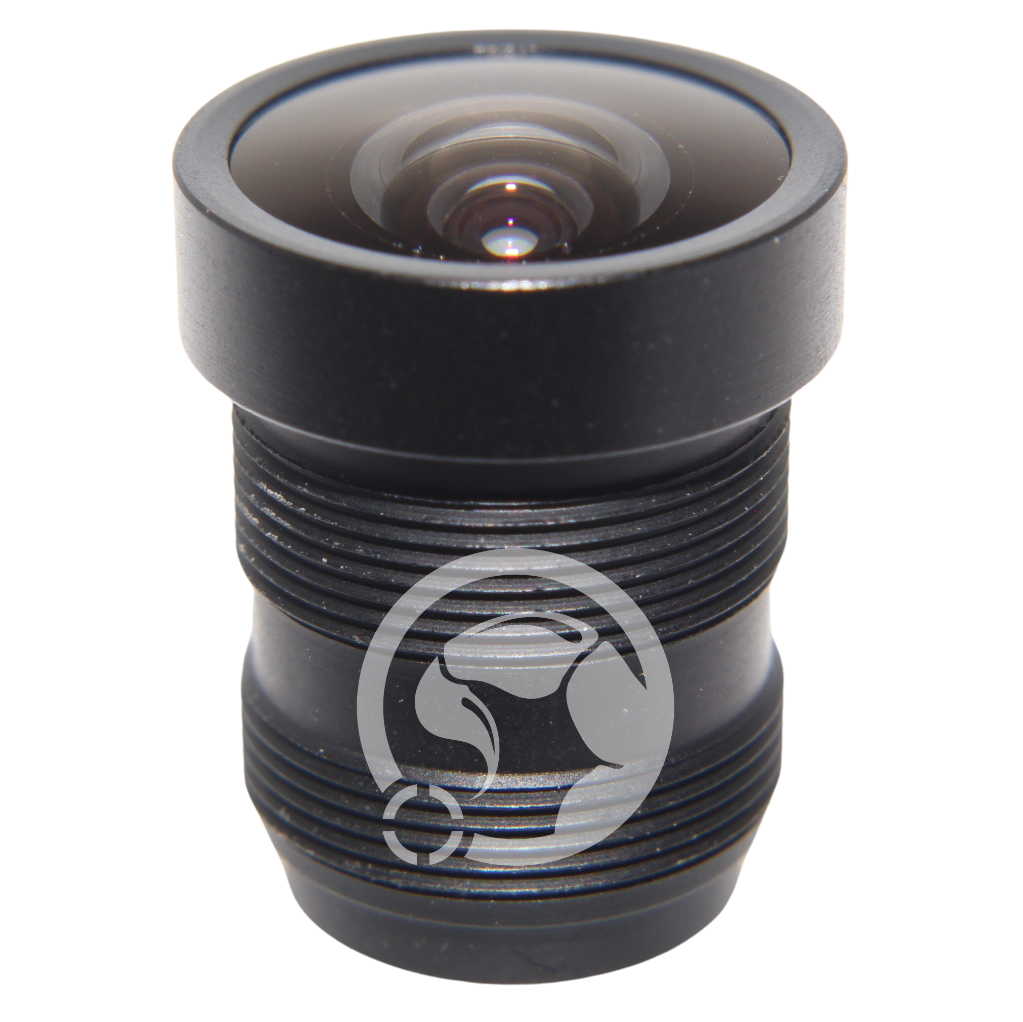

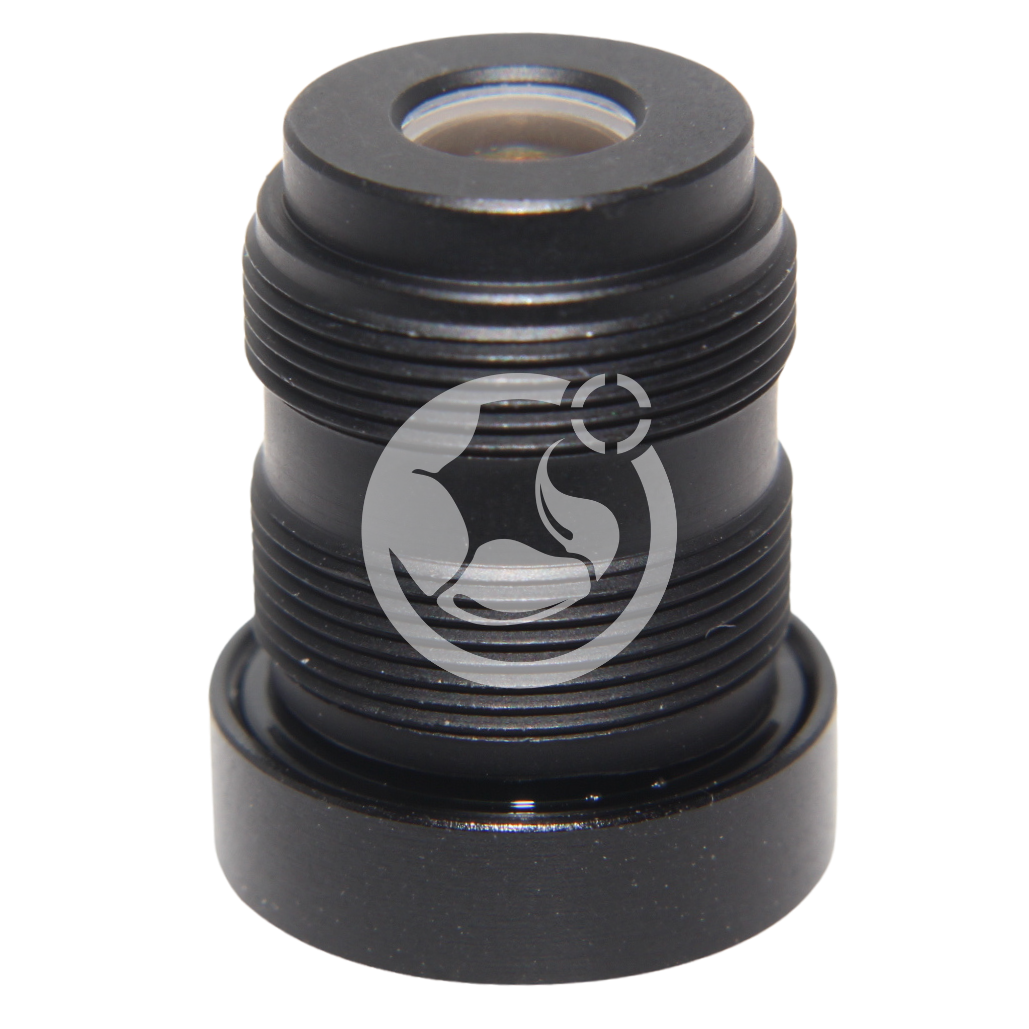

M12 Lens 2.42mm F2.4

SKU: SVL-02520BM

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 2.42mm
  • F Number: F2.4
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/3"
  • Filter Size: n/a
  • Megapixel: 1MP
  • Diagonal Field of View: 140 Degrees
  • Distortion: <-60%
  • Back Focus: 5.01mm
  • Wavelength: 400nm - 700nm

Sample Images

Sensor: 1/3" Aptina MT9V024.

In the image below the sugar cube was 244mm from the lens and shows a horizontal field of view of 600mm.

The sugar cube measures 16mm x 14mm.


The coin was at a distance of approx. 12mm.


In this image, the coin was at a distance of 88mm.


In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 4mm from the lens and the second at 16mm. This lens has a small F Number of F2.0 creating a narrow depth of field.
