Scorpion Vision

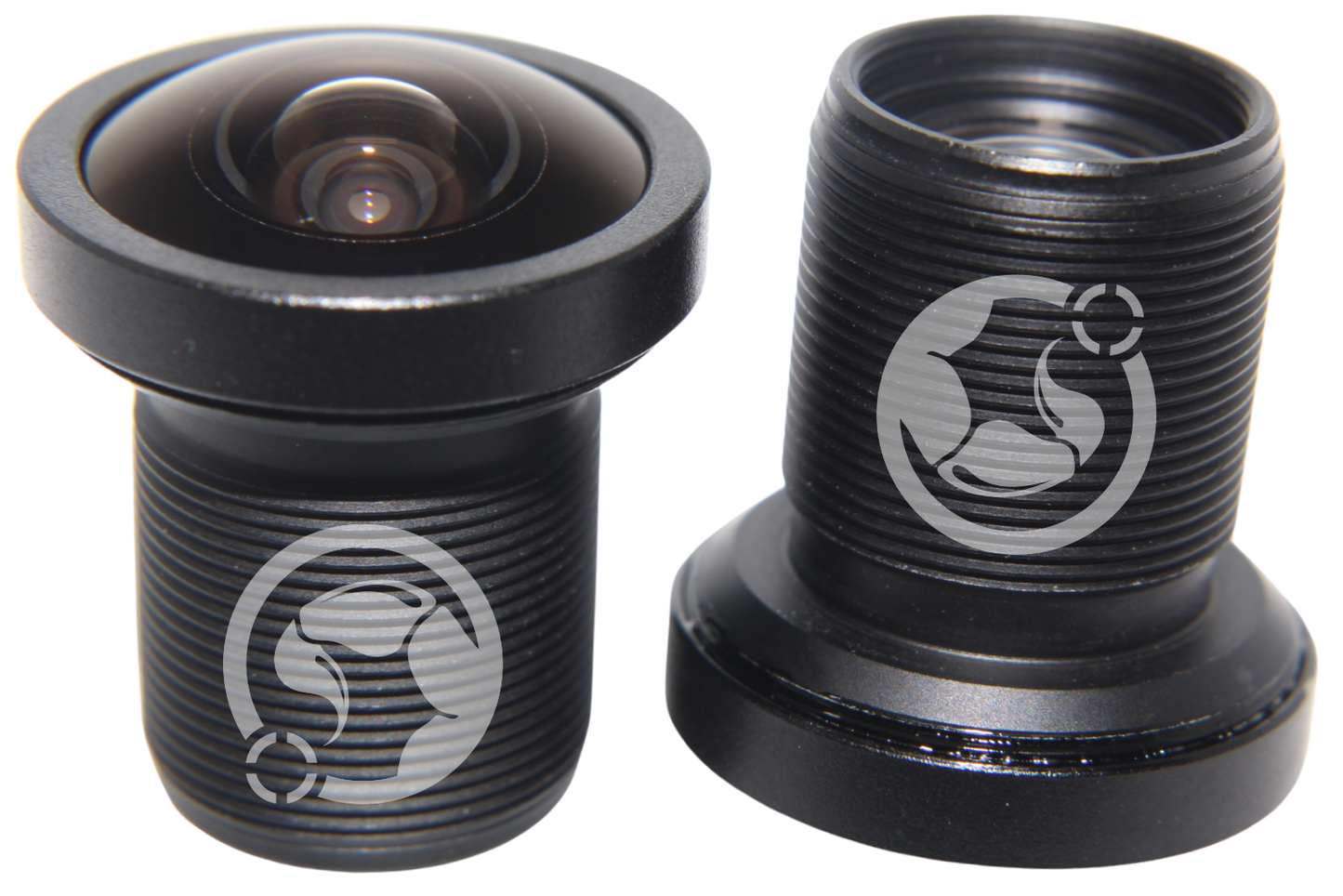

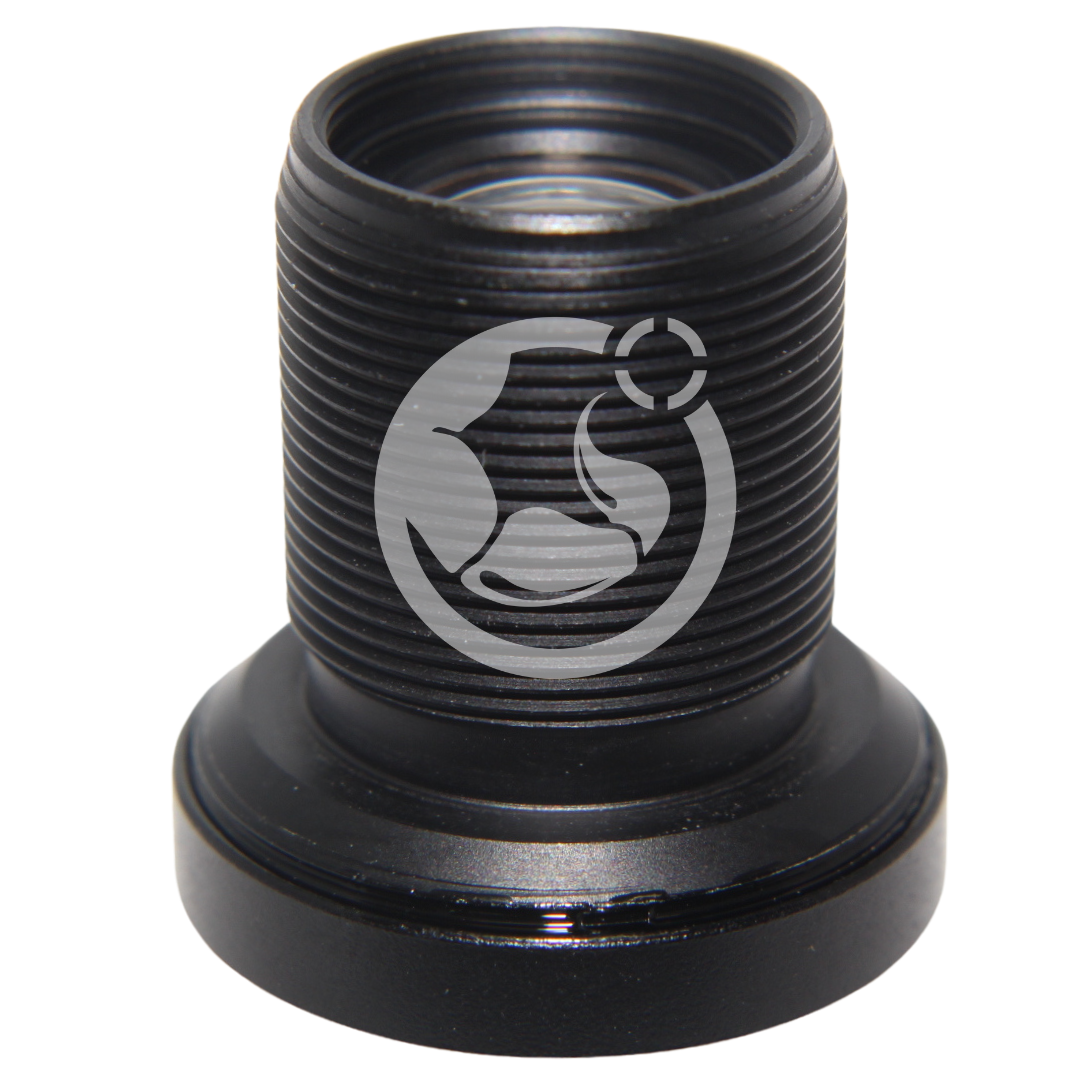

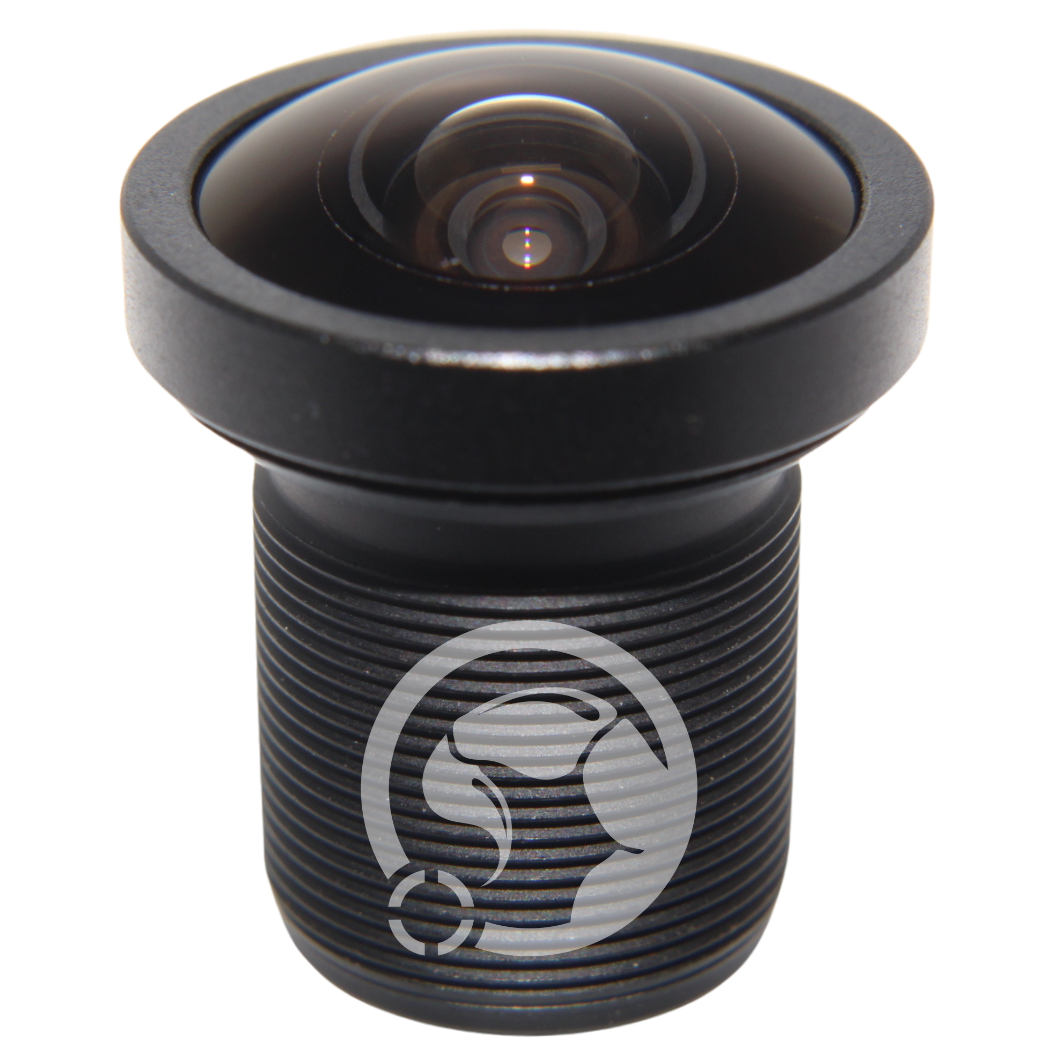

M12 Lens 2.35mm F2.4



Shipping & Returns

Free shipping to all UK addresses. Standard shipping to all other destinations - select destination on checkout to get pricing.


Key Features

  • Focal Length: 2.35mm
  • F Number: F2.4
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/2.7"
  • Filter Size: n/a
  • Megapixel: 5MP
  • Horizontal Field of View: 111.5 Degrees
  • Distortion: <-77%
  • Back Focus: 4.15mm
  • Wavelength: 400nm - 900nm

Sample Images

Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ

In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.

Minimum object distance: 15mmdfk-afux236-m12-svl-ir02424b5m-15mm.jpg

Object distance: 45mmdfk-afux236-m12-svl-ir02424b5m-45mm.jpg

Object distance: 95mm

Object distance: 142mmdfk-afux236-m12-svl-ir02424b5m-142mm.jpg
