Scorpion Vision

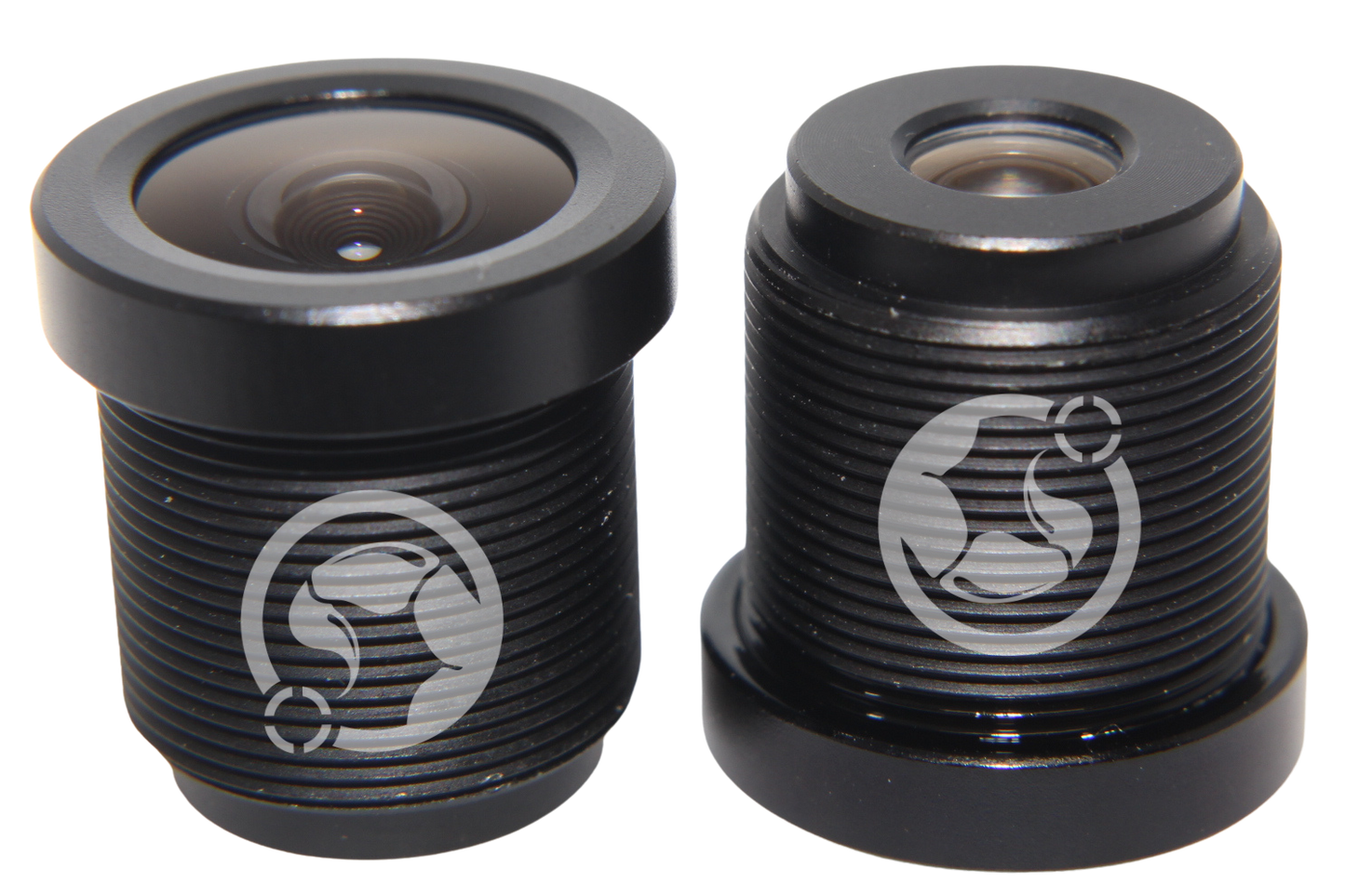

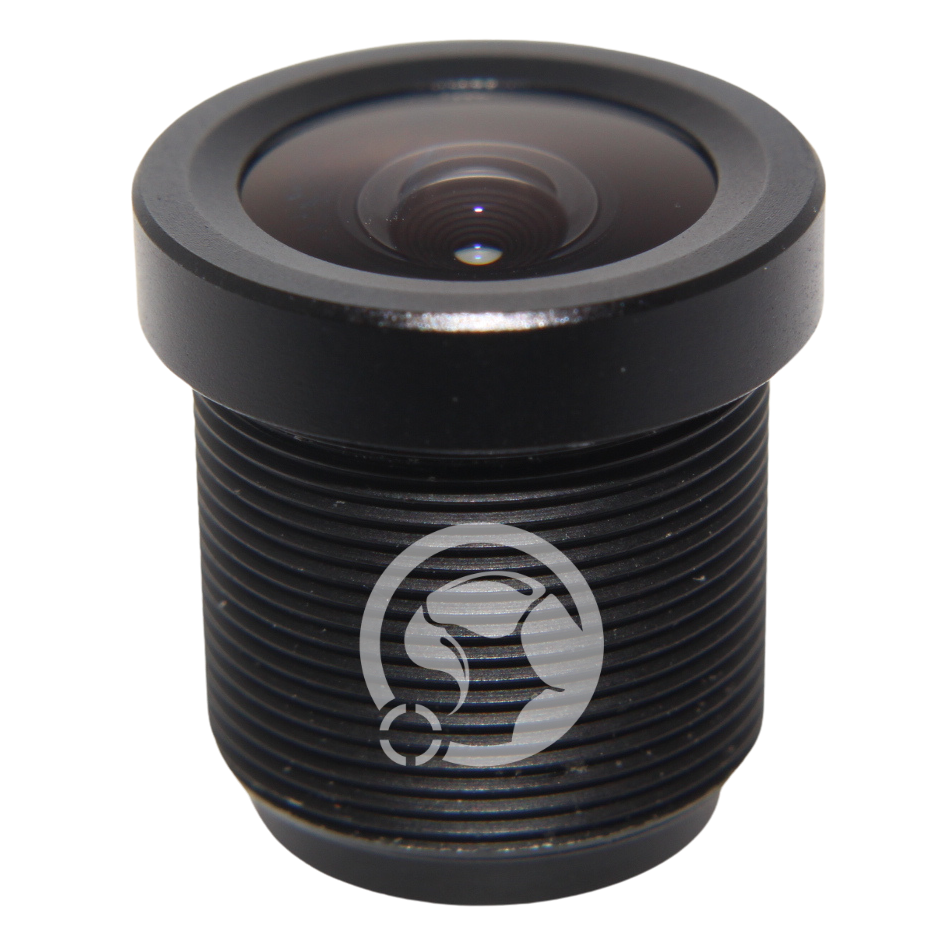

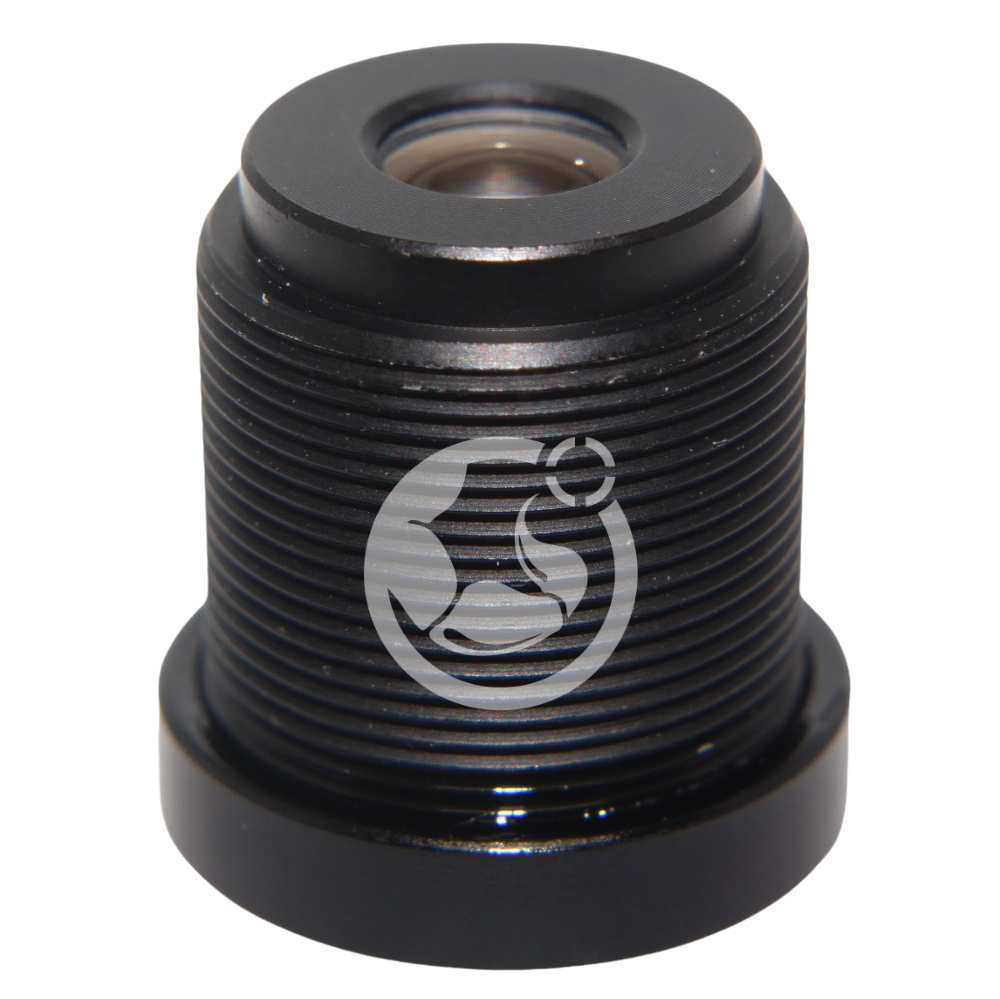

M12 Lens 2.2mm F2.0
SKU: SVL-02220BM
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Free shipping to all UK addresses. Standard shipping to all other destinations - select destination on checkout to get pricing.
Returns
Key Features
- Focal Length: 2.2mm
- F Number: F2.0
- Iris: Non-adjustable
- Mount: M12
- Format: 1/4"
- Filter Size: n/a
- Megapixel: 1MP
- Horizontal Field of View: 96 Degrees
- Distortion: <-40%
- Back Focus: 5mm
- Wavelength: 400nm - 700nm
Sample Images
Sensor: 1/3" Aptina MT9V024.
In the image below the sugar cube was 165mm from the lens and shows a horizontal field of view of 580mm.
The sugar cube measures 16mm x 14mm.
In the next image the coin was at a distance of 12mm.
In this image, the coin was a distance of 63mm.
In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 8mm from the lens and the second at 20mm. This lens has a small F Number of F2.0 creating a narrow depth of field.
