Scorpion Vision

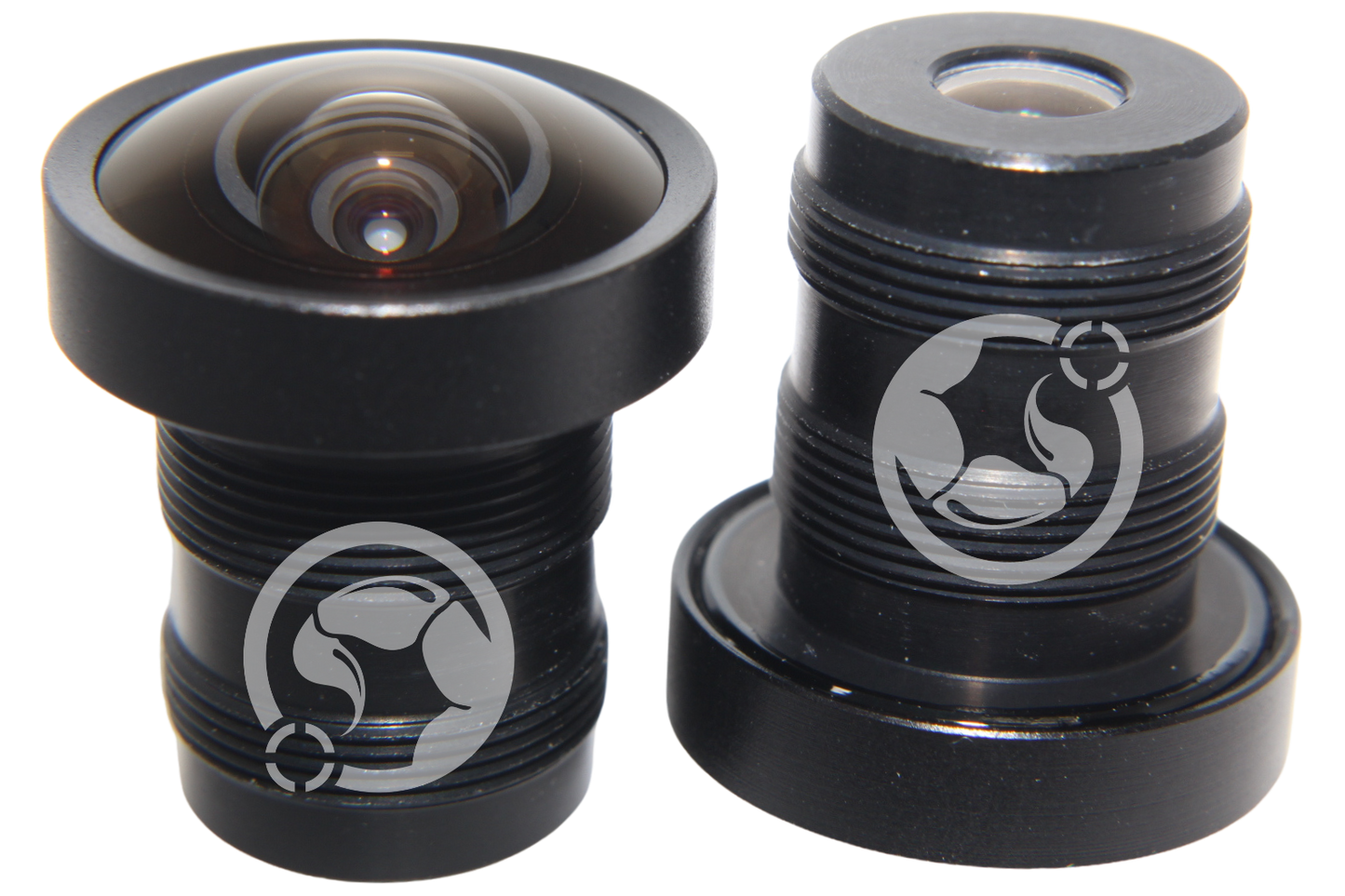

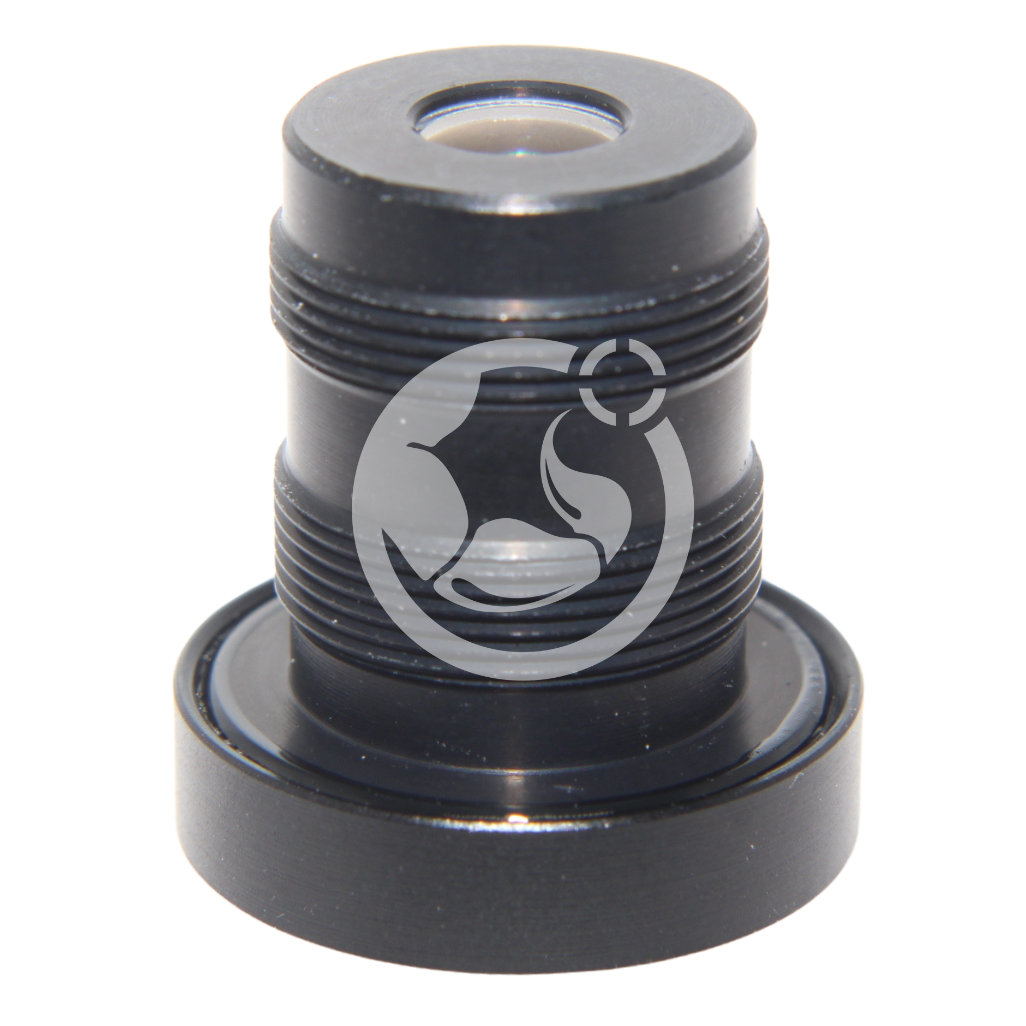

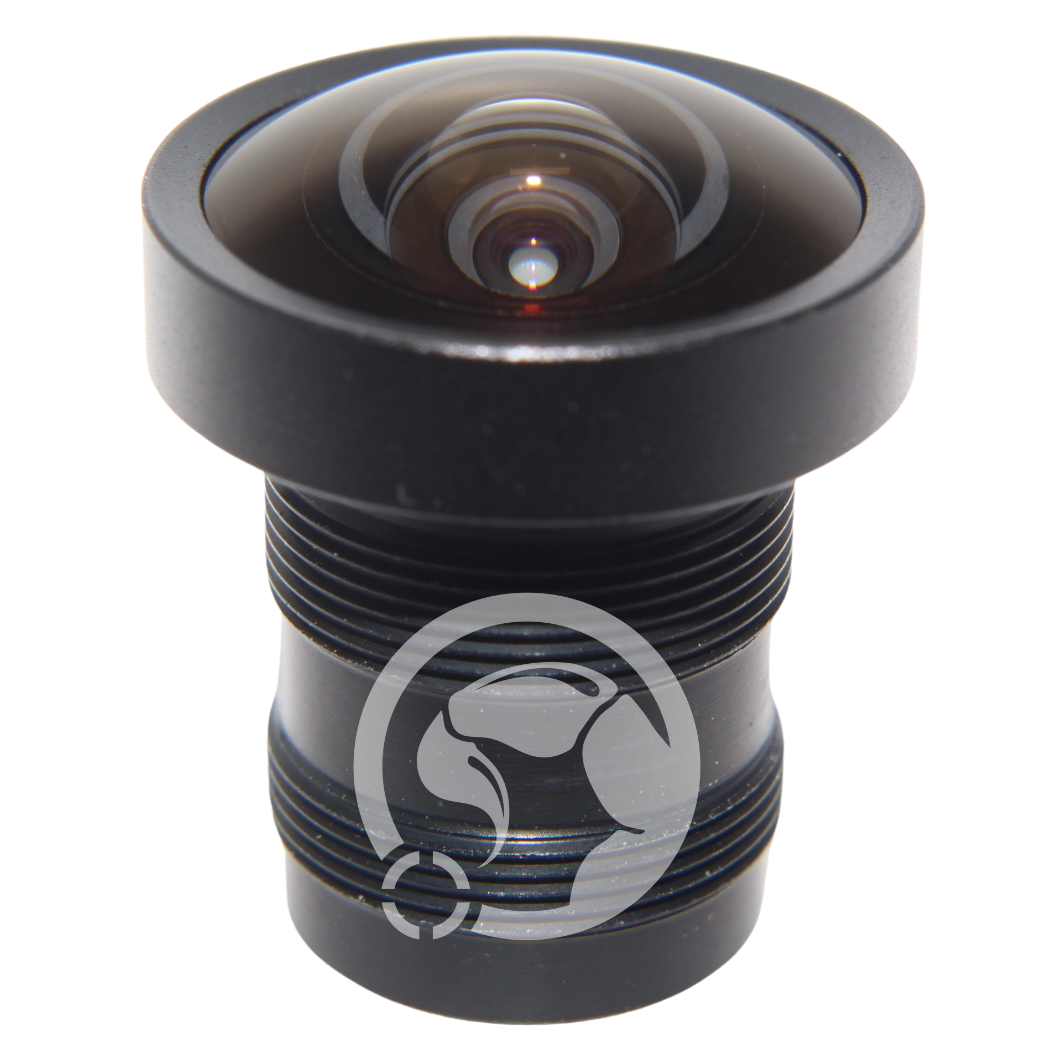

M12 Lens 2.1mm F2.0
SKU: SVL-02120BM
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 2.1mm
- F Number: F2.0
- Iris: Non-adjustable
- Mount: M12
- Format: 1/3"
- Filter Size: n/a
- IR Block: No IR Block
- Megapixel: 1MP
- Horizontal Field of View: 125 Degrees
- Distortion: <-65%
- Back Focus: 4.95mm
Sample Images
Sensor: 1/3" Aptina MT9V024
In the image below the sugar cube was 180mm from the lens and shows a horizontal field of view of 650mm.
The sugar cube measures 16mm x 14mm.
In this next image, the coin was at a distance of approx. 3mm from the lens.
In this next image, the coin was at a distance of 65mm.
In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 3mm from the lens and the second at 20mm. This lens has a small F Number of F2.0 creating a narrow depth of field.
