Scorpion Vision

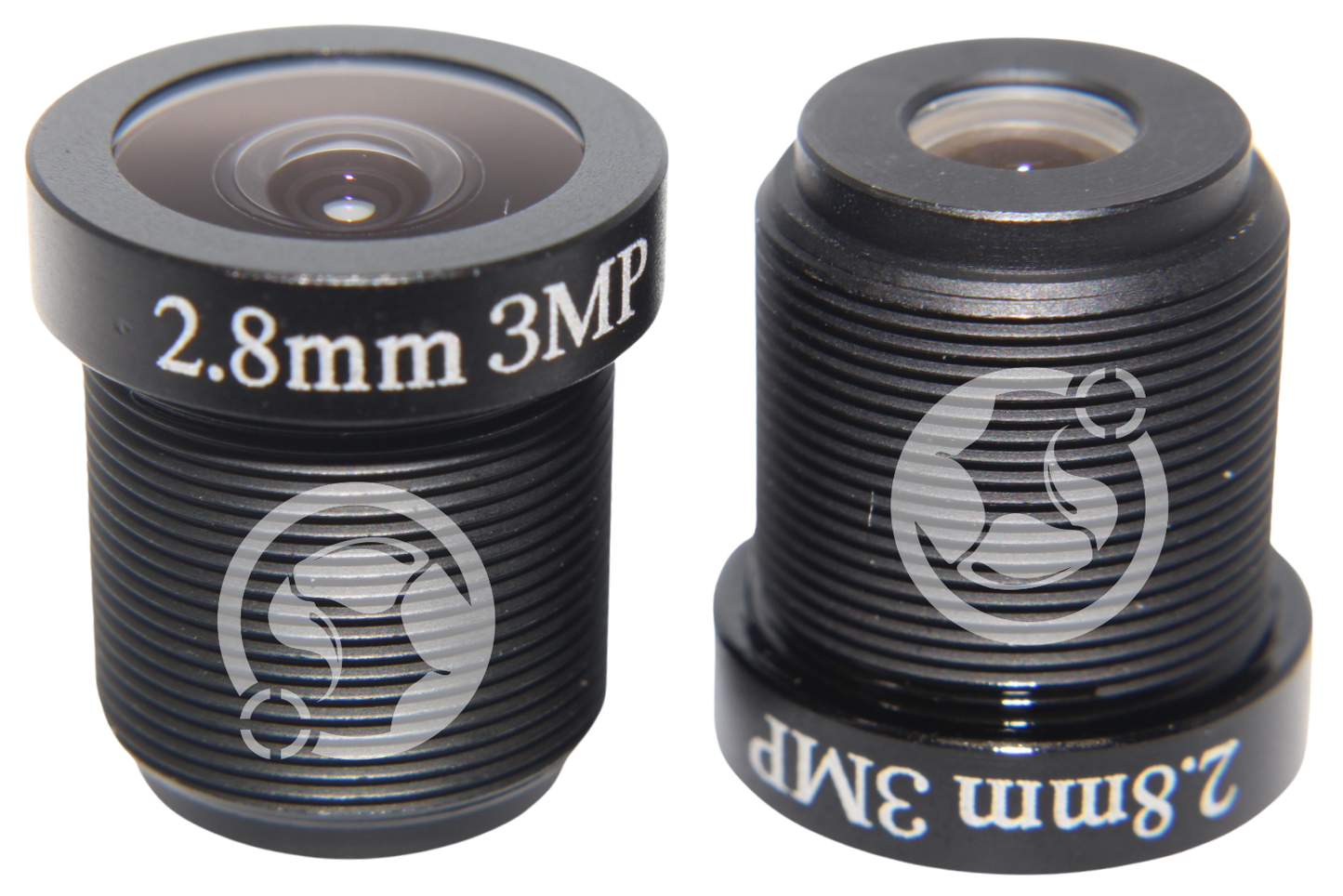

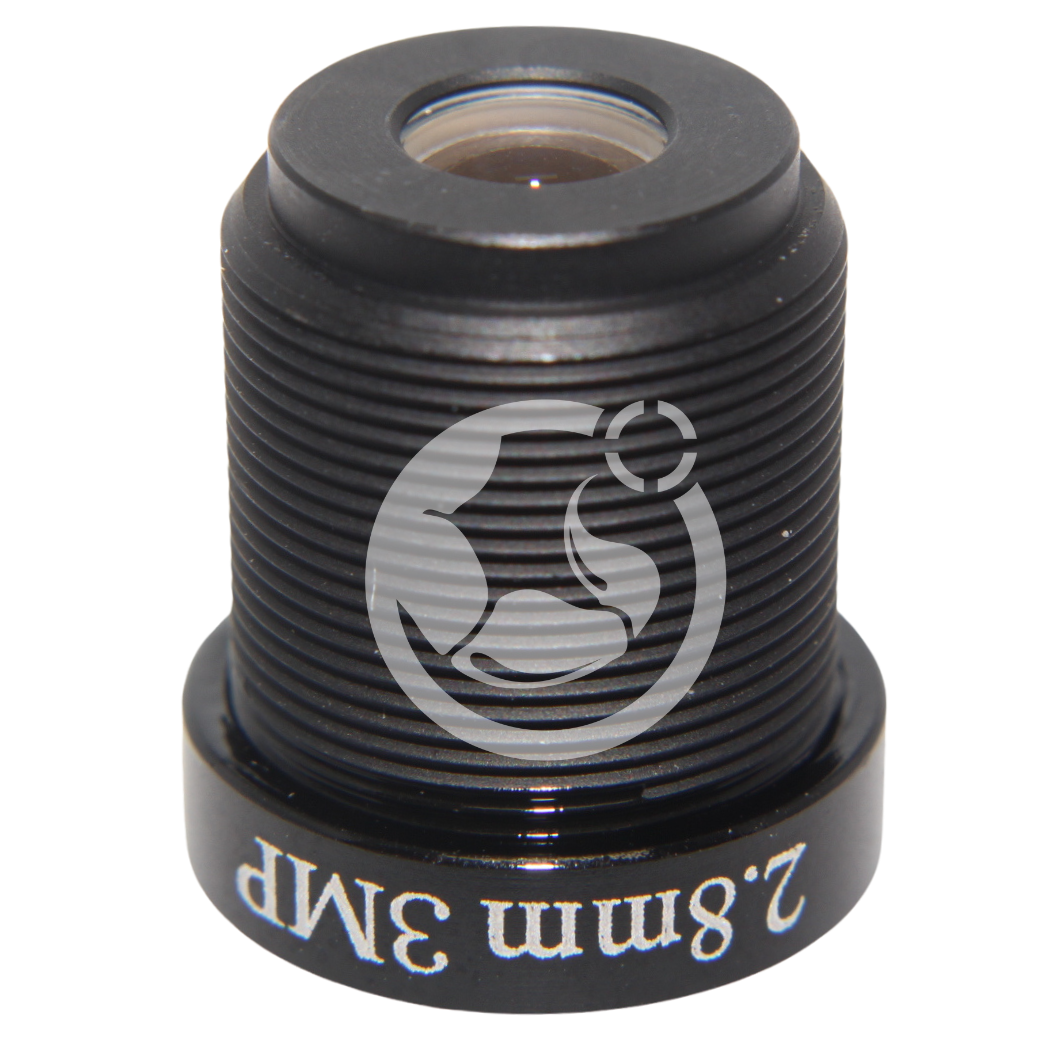

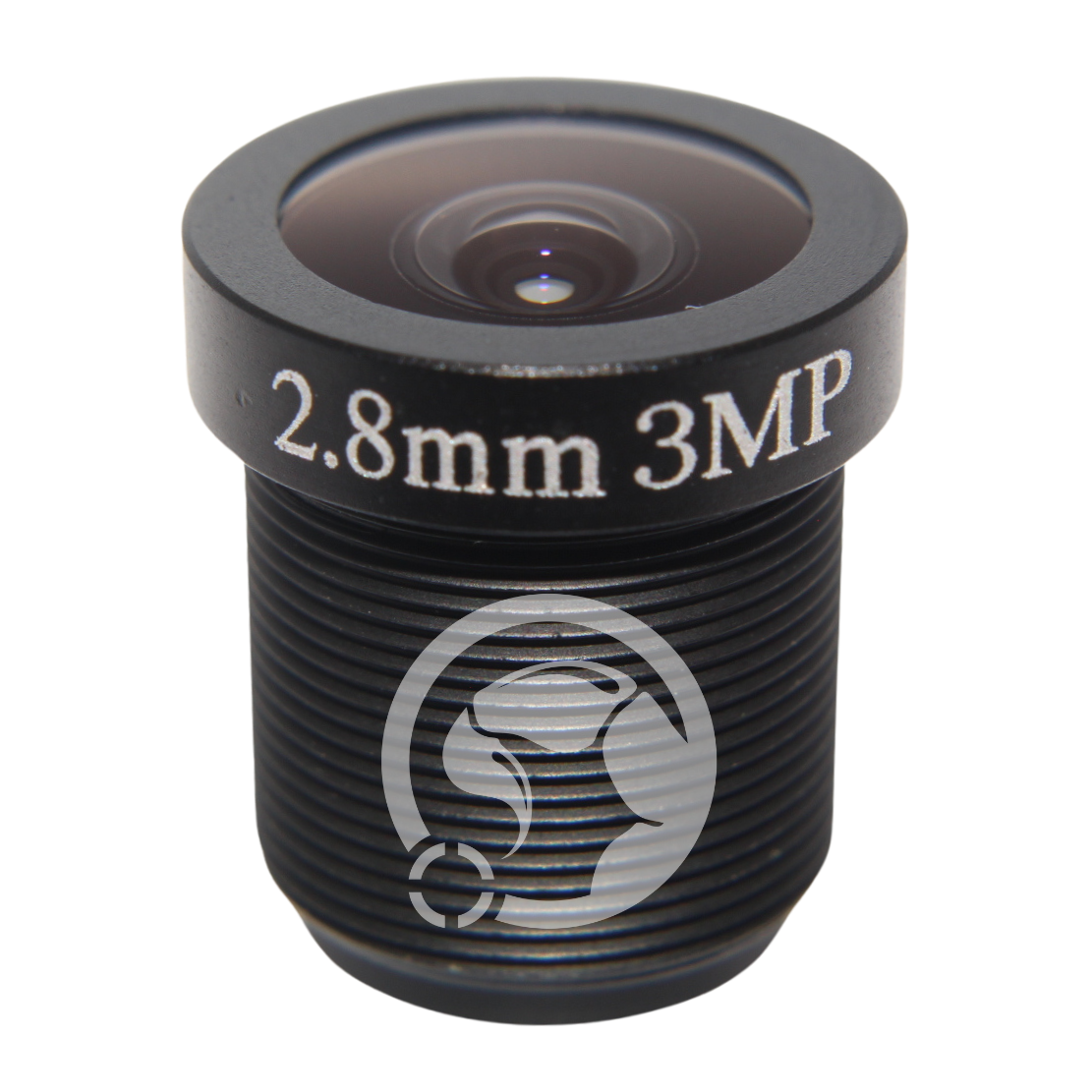

M12 Lens 2.8mm F2.6

SKU: SVL-IR02826B3M

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 2.8mm
  • F Number: F2.6
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/2.7"
  • Filter Size: n/a
  • Megapixel: 3MP
  • Horizontal Field of View: 126 Degrees
  • Back Focus: 5mm
  • Wavelength: 400nm - 900nm

Sample Images

Sensor: 1/3" Aptina MT9V024

In the below image, the sugar cube is 23mm from the lens. This is the minimum distance at which the entire cube remains in focus.

The sugar cube measures 16mm x 14mm.


In this next image, the sugar cube was 340mm from the lens and shows a horizontal field of view of 590mm.


The coin was at a distance of approx. 22mm.


In this next image, the coin was at a distance of 112mm.


In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 11mm from the lens and the second at 27mm. This lens has a small F Number of f2.6 creating a narrow depth of field.
