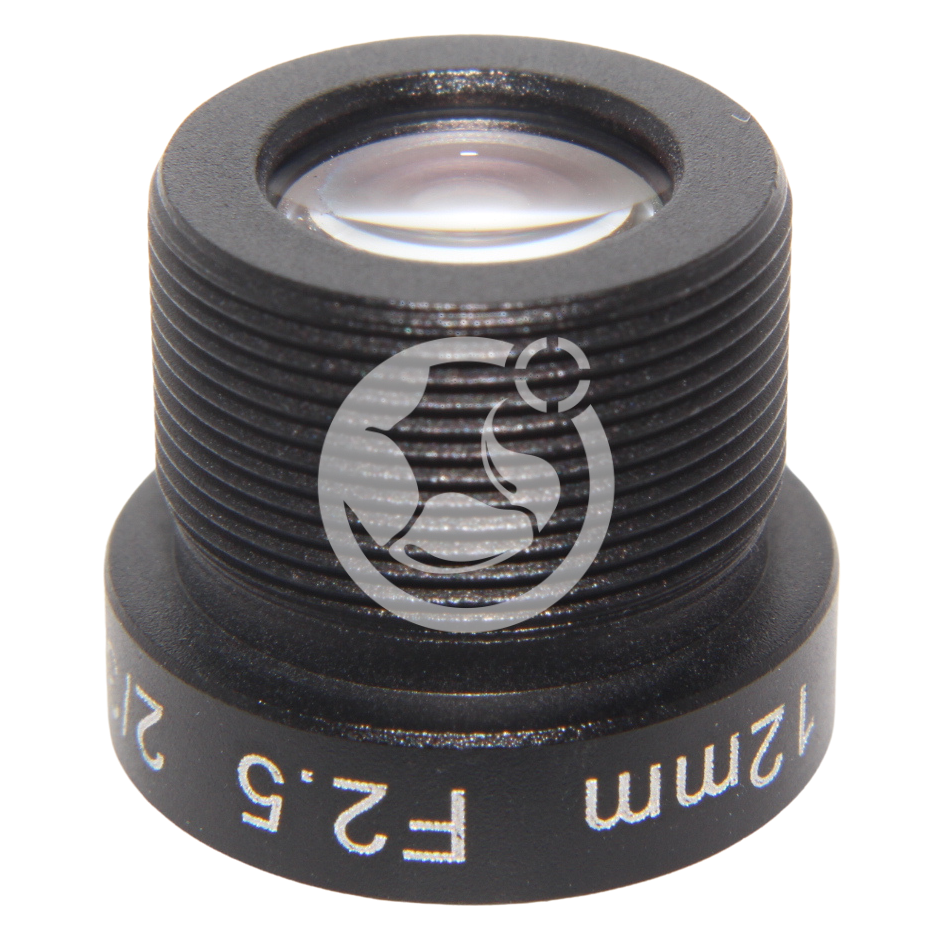

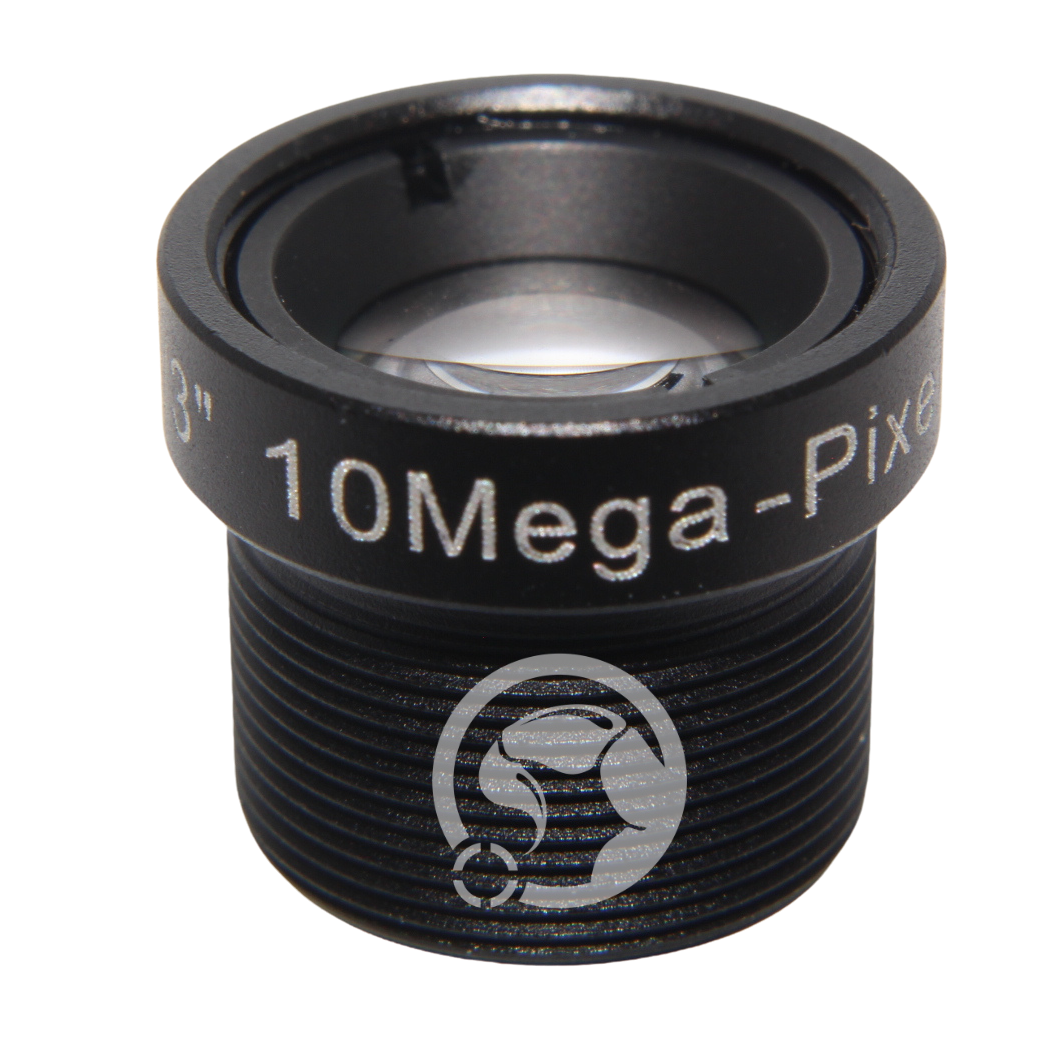

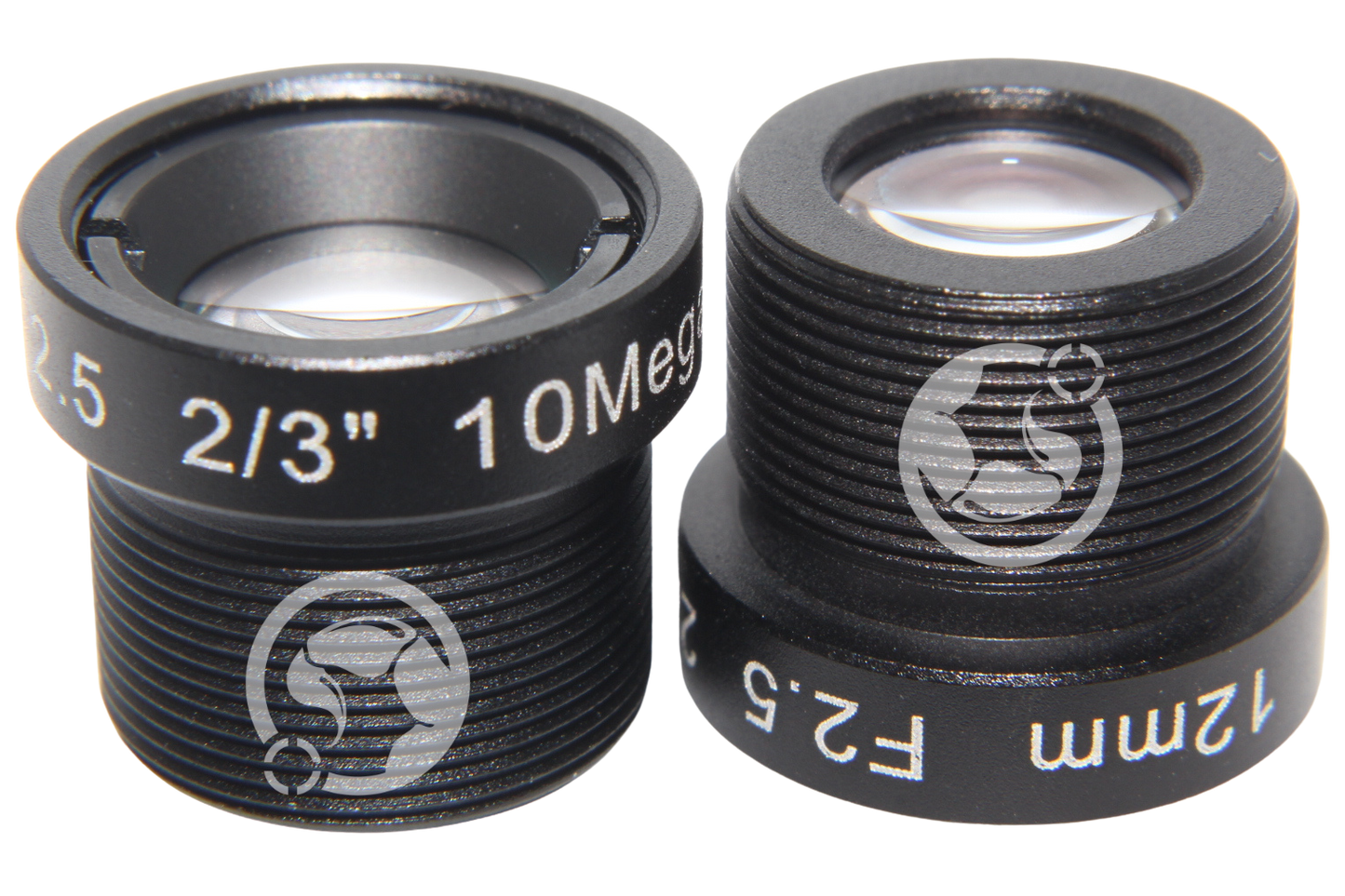

M12 Lens 12mm F2.5
SKU: SVL-F1225FM
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 12mm
- F Number: F2.5
- Iris: Non-adjustable
- Mount: M12
- Format: 2/3"
- Filter Size: n/a
- IR Block: No IR Block
- Megapixel: 10MP
- Horizontal Field of View: 40 Degrees
- Distortion: <-1.2%
- Back Focus: 8mm
- Wavelength: 400nm-950nm
- Working distance: ∞ ~ 0.1m
Sample Images
Sensor: 1/3" Aptina MT9V024
In the image below the sugar cube was 54mm from the lens. This is the minimum distance that this lens will focus.
The next image shows the sugar cube at 105mm from the lens.
The sugar cube measures 16mm x 14mm.
In this sample image the penny (d=20.3mm) was at a distance of 20cm from the lens.
This lens has a large focal length and low distortion.
This image has been taken at the minimum possible operating distance which is approximately 70mm. The coin is about 20mm in diameter.
In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 36mm from the lens and the second at 54mm. This lens has a small F Number of f2.5 creating a narrow depth of field.
