Scorpion Vision

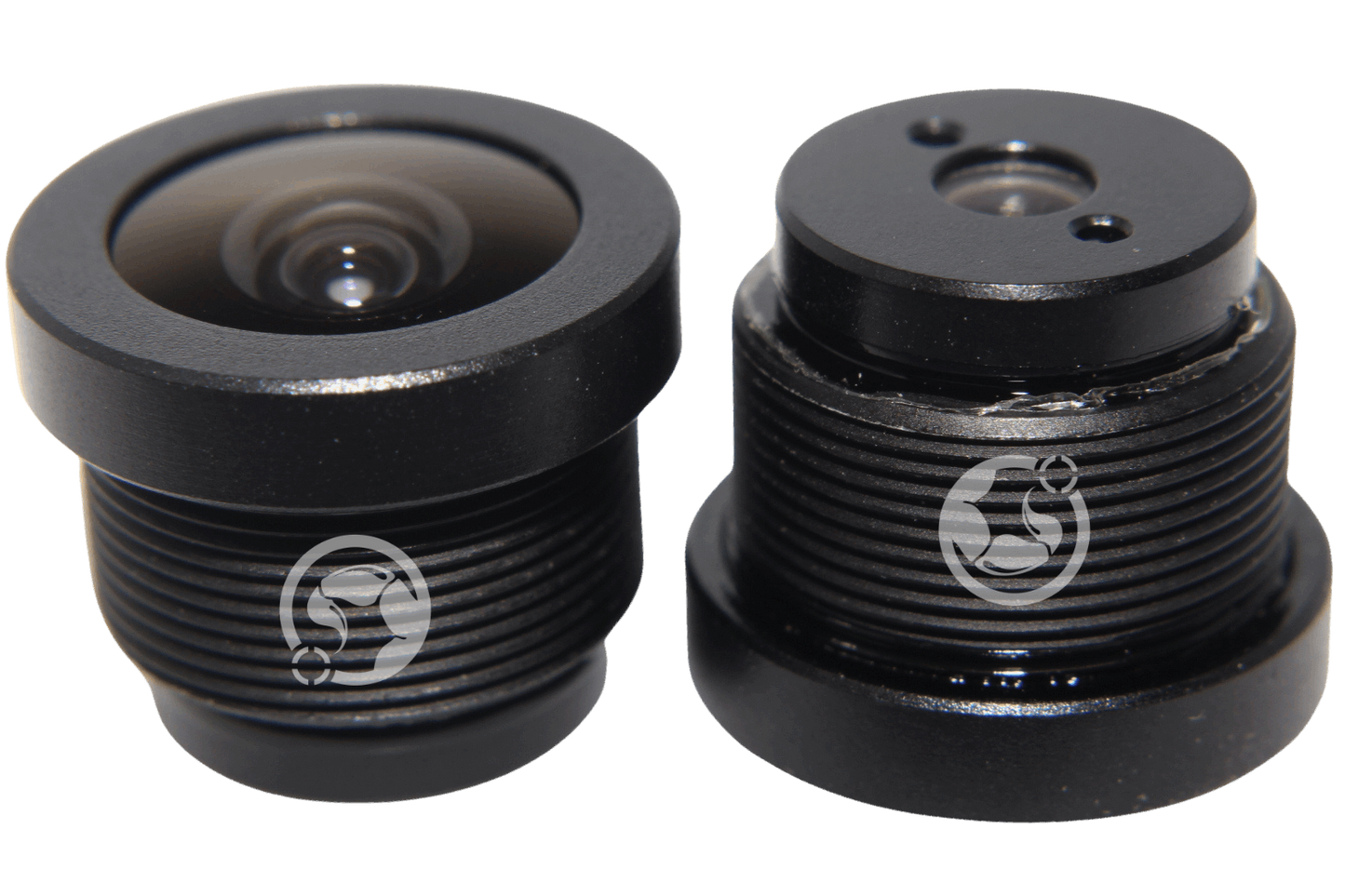

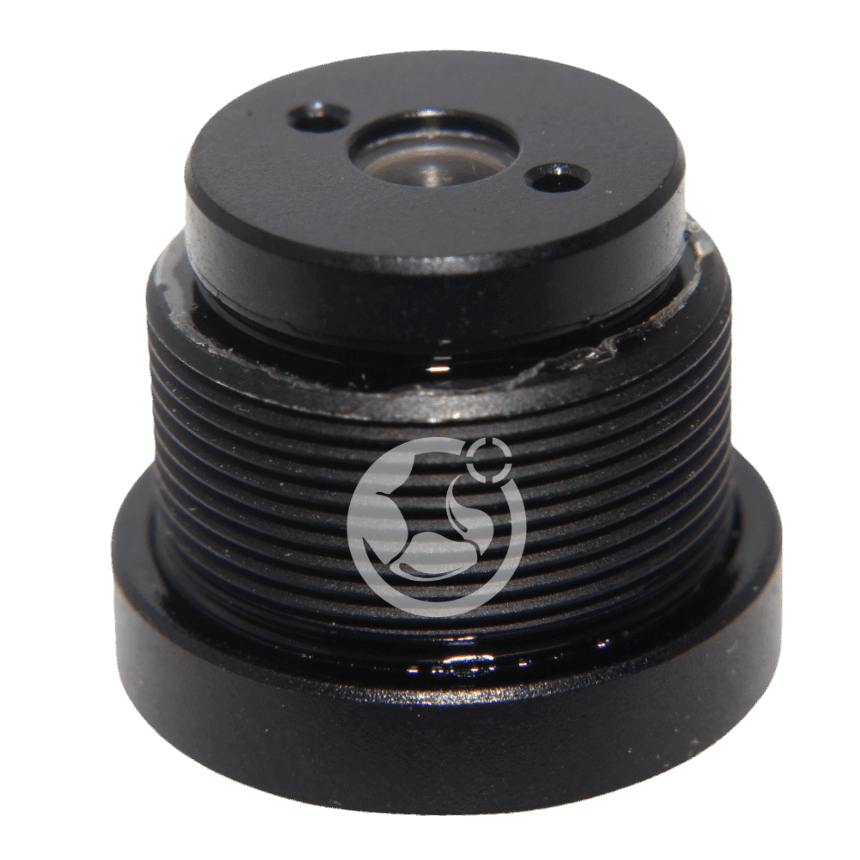

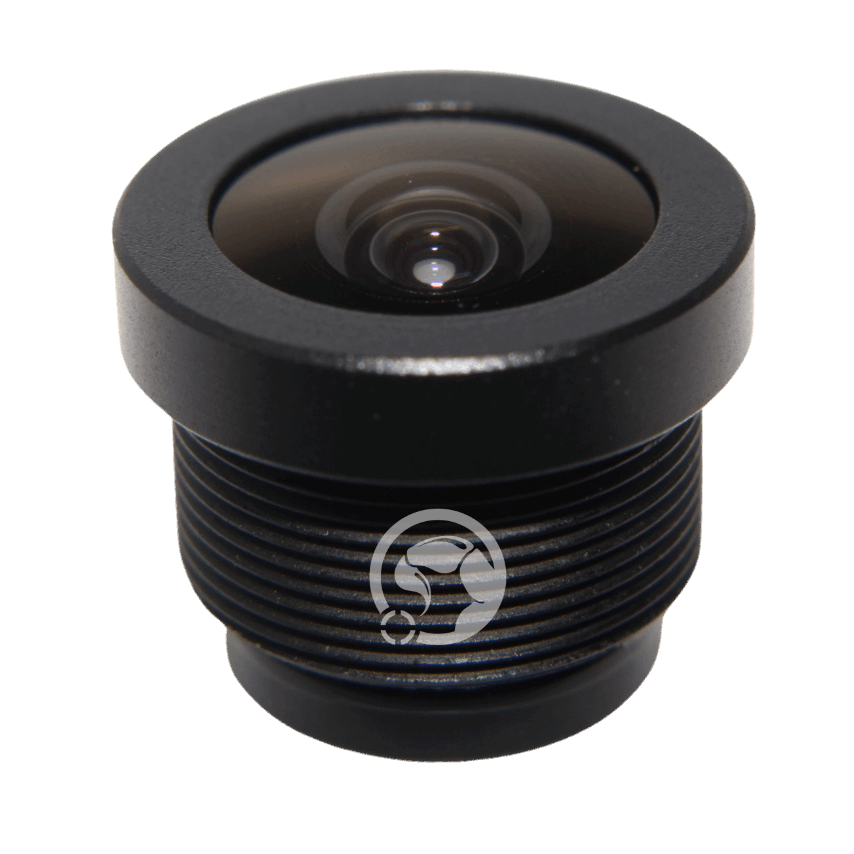

M12 Lens 1.9mm F2.2

SKU: SVL-01922BM

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 1.9mm
  • F Number: F2.2
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/4"
  • Filter Size: n/a
  • Megapixel: 1MP
  • Horizontal Field of View: 120 Degrees
  • Distortion: <-62%
  • Back Focus: 5
  • Wavelength: 400nm-700nm

Sample Images

Sensor: 1/3" Aptina MT9V024

In the image below the sugar cube was 142mm from the lens and shows a horizontal field of view of 600mm.

The sugar cube measures 16mm x 14mm.


In this next image the coin was at a distance of approx. 14mm from the lens.


In this next image, the coin was at a distance of 44mm.


In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 6mm from the lens and the second at 24mm. This lens has a small F Number of F2.2 creating a narrow depth of field.
