Scorpion Vision

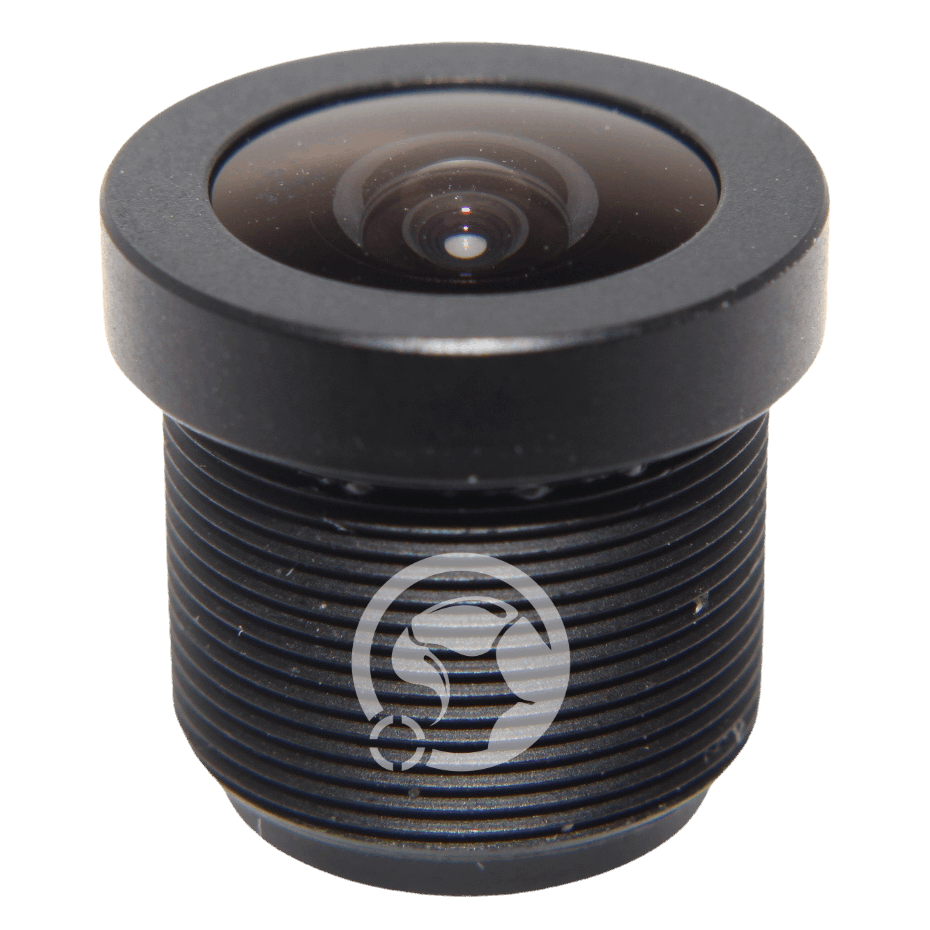

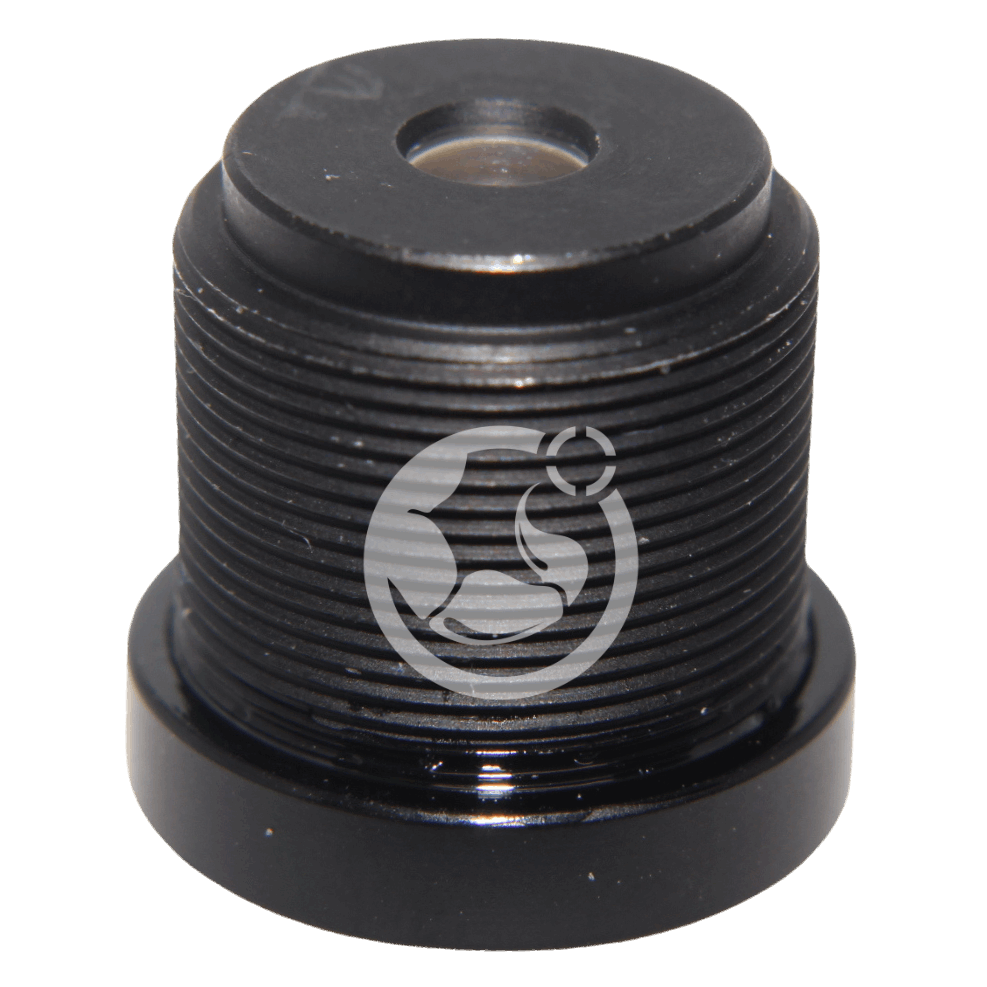

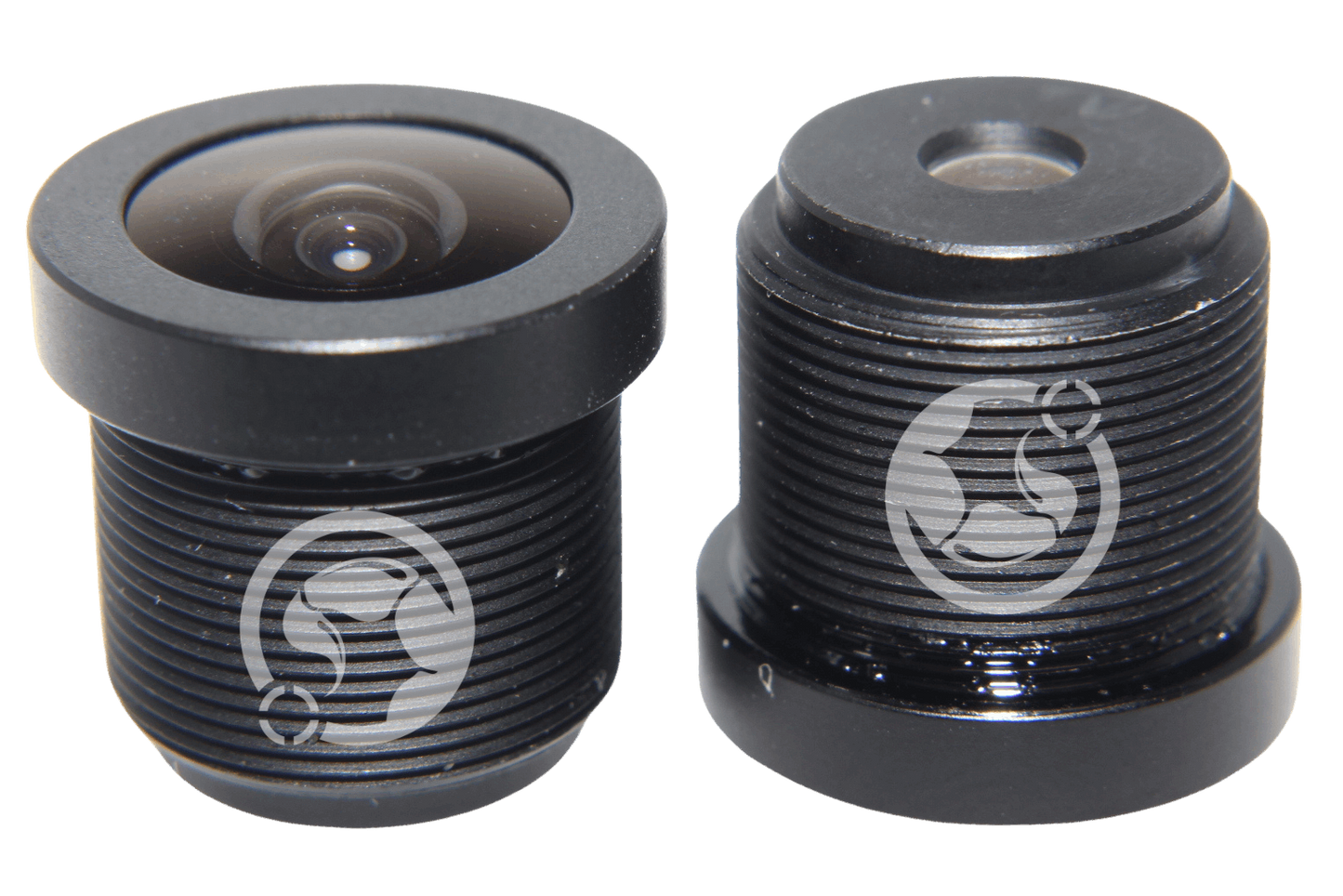

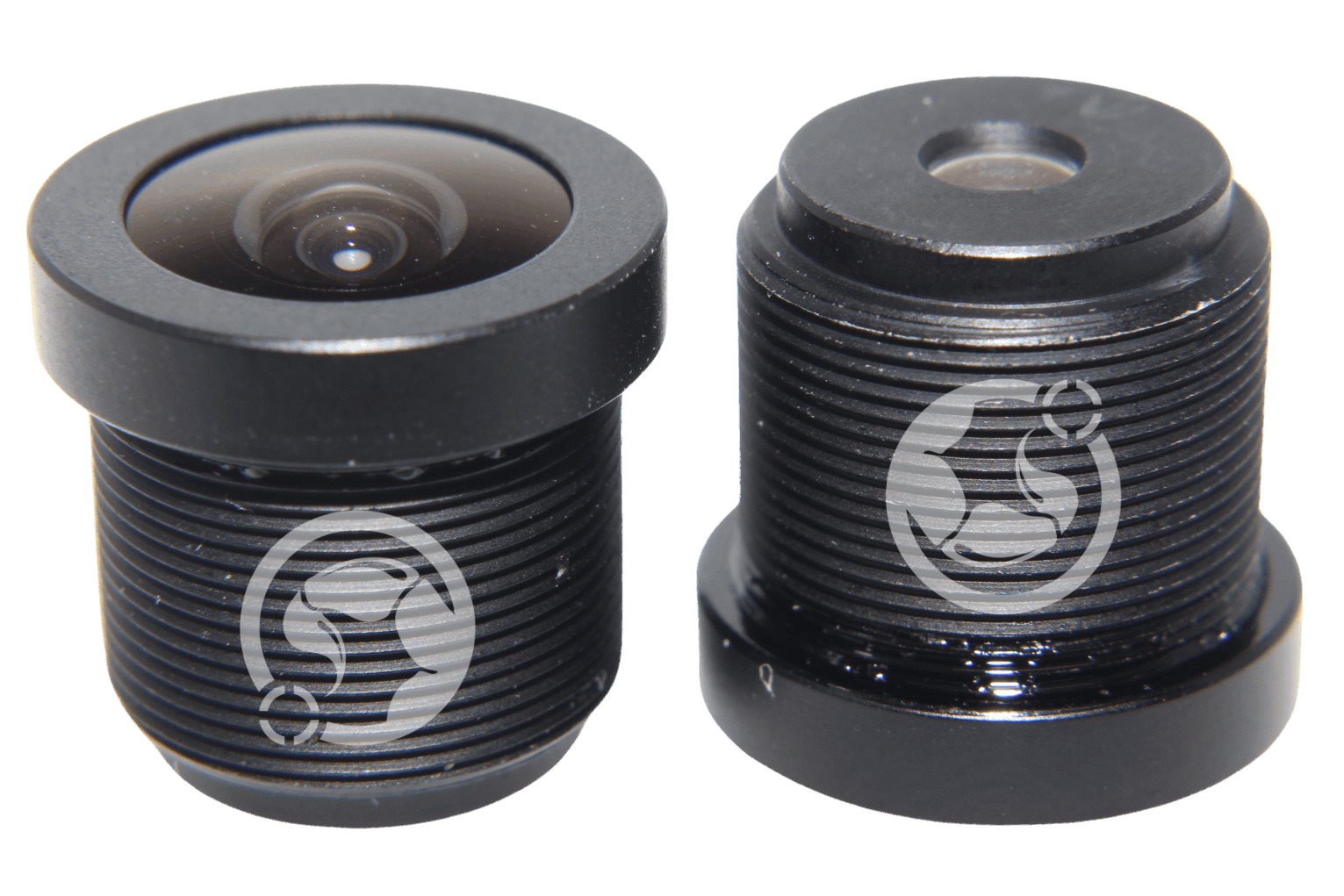

M12 Lens 1.49mm F2.4

SKU: SVL-01524BMC

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 1.49mm
  • F Number: F2.4
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/4"
  • Filter Size: n/a
  • Megapixel: 1MP
  • Horizontal Field of View: 175 Degrees
  • Distortion: <-85%
  • Back Focus: 2mm
  • Wavelength: 400nm-700nm

Can't find the lens you are looking for? Use our Lens Selector to narrow down the different lenses by their features.

Sample Images

Sensor: 1/3" Aptina MT9V024

In the image below the sugar cube was 65mm from the lens and shows a horizontal field of view of 980mm.

The sugar cube measures 16mm x 14mm.


Minimum object distance: approx. 8mm



Object distance: 35mm
