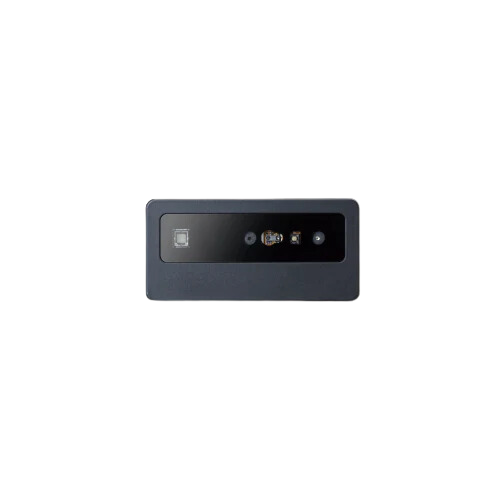

• LIPSedge L215u 3D Structured Light Camera with enclosure viewed from the front

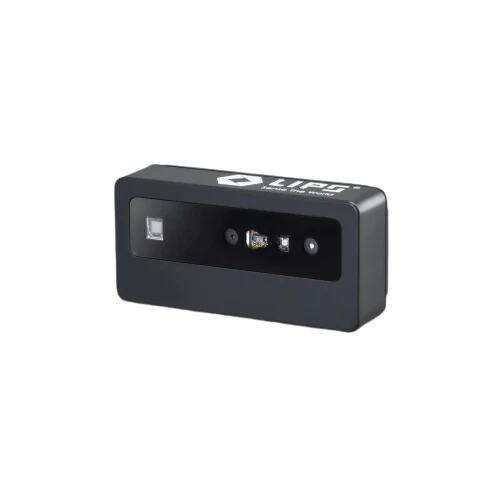

  • LIPSedge L215u 3D Structured Light Camera with enclosure

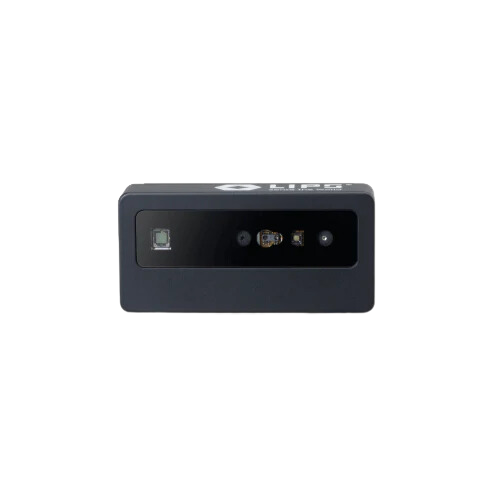

  • LIPSedge L215u 3D Structured Light Camera with enclosure tilted to the left
1 4

LIPS Corporation

LIPSedge™ L215u 3D Structured Light Camera (with enclosure)

SKU: L215U

Login to see the price

Specification

L215U Datasheet

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

The LIPSedge™ L Series represents the most compact 3D structured light camera currently available, boasting significant features. The LIPSedge L210u and L215u models offer a high-definition resolution, exceptional precision (≤ 0.3% at 100 cm), and utilise a 940nm wavelength VCSEL light source, making them suitable for both indoor and outdoor use. These cameras are designed to support short-range 3D sensing applications, including 3D scanning, facial recognition, 3D measurement, and visual defect inspection.

The LIPSedge ™ L210u/ L215u is a three-dimensional depth camera that employs structured light technology. It projects light patterns to ascertain the depth and surface characteristics of objects within its field of view. This camera utilizes a USB 2.0 connection interface to relay the data obtained from both the Near-Infrared sensor and the RGB image sensor for depth information processing.

Key Features

  • Compact size for embedded integration
  • High accuracy & optimised for short-range applications
  • Great for 3D scan, 3D facial recognition, 3D measurement & optical inspection
  • Support both indoor & outdoor use, featuring VCSEL @ 940nm with sunlight resistance up to 80K Lux
  • USB plug & play to a host PC
  • Supports industrial 3D frameworks including OpenNI, OpenCV & ROS

Depth

Technology: Structured Light
Z Accuracy: 0.3% @ 100cm
Maximum Working Distance: 1.2 metres
Minimum Working Distance: 0.4 metres
Frame Rate: 1280x800@6fps, 640x480@25fps
Shutter Type: Global Shutter
FoV (H x V x D): 50.7° x 74.2° (+/-2°)

RGB

Resolution: 1280x800/6fps (YUV), 640x480/25fps (YUV)
FoV (H x V x D): H:45.89°@UXGA, 38.86°@720p, 45.89°@VGA
V: 58.89°
Shutter Type: Rolling Shutter

Illumination

Type: Infrared
Wavelength: 940nm
Illuminating Component: Vertical-cavity surface-emitting laser (VCSEL)

General

Dimensions (mm): 63.0 x 30.2 x 17.0mm
Weight (g): Approximately 85g (module: 16.4 g)
Storage Temperature: -30 ~ 70˚C
Ambient Temperature: 0 ~ 40˚C
Working Environment: Indoor / Outdoor
Power: USB Power-in, DC 5V/1A
Output Interface: Micro USB (USB 2.0)

SDK

Multiple Frameworks supported: OpenNI, NVIDIA Isaac, ROS

OS

Multiple OS supported: Windows 10 and Ubuntu 16.04 / 18.04 LTS / 20.04 / 22.04 LTS

Example Applications

  • Facial Recognition
  • Dimension Measurements
  • Defect Inspection
  • Pick & Place Robot
