LIPSedge™ AE470 3D Stereo Camera Starter Kit (with M12 to RJ45 cable)
SKU: AE470-starter-kit
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

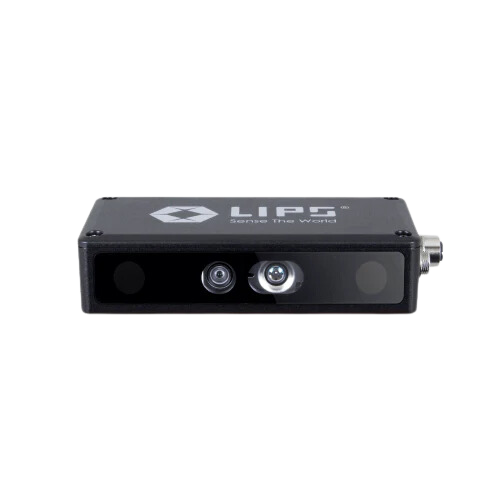

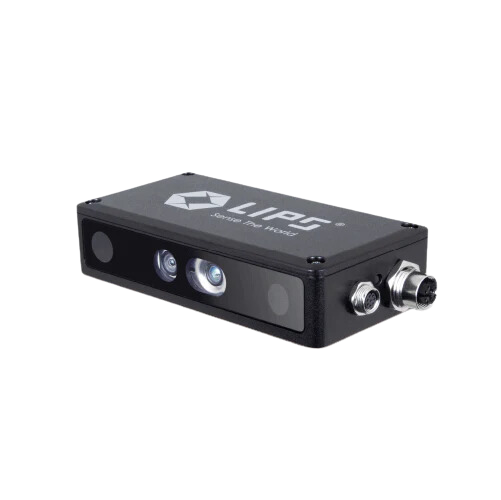

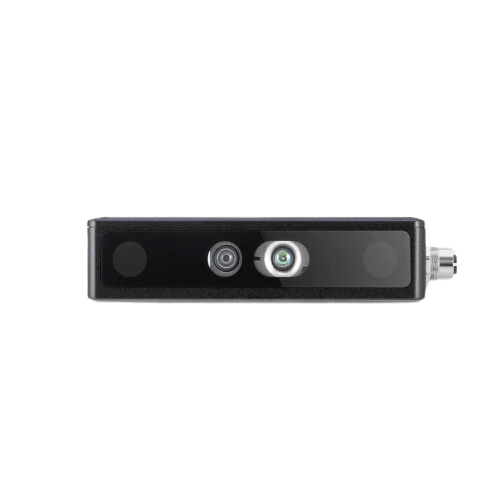

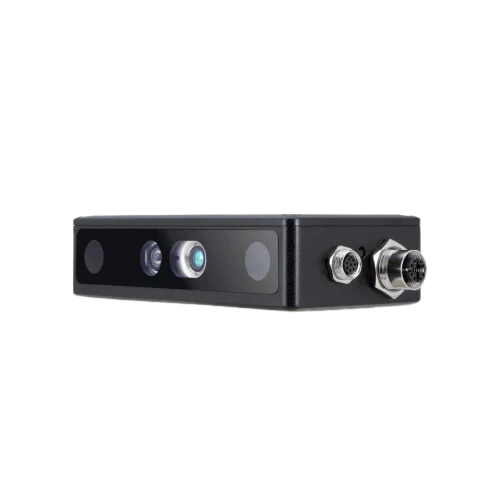

The LIPSedge AE470 from the LIPSedge AE series features a lightweight design of under 300 grams, a compact size of 130 x 32 x 66 mm, GigE/PoE compatibility, an edge-AI system on a chip (SOC), and is IP67-rated for dust and water resistance.
AE470 is a high-quality 3D camera ideal for robotic hand-eye coordination, factory automation, and various other applications that require long-range capture and detection.
Key Features
- Global Shutter - utilises global shutter technology, allowing for simultaneous start and stop exposure of pixels for every image capture
- Compact & Industrial Ready - features compact form factor (135 x 100 x 42mm), light-weight body (280g), and ruggedized casing (IP67 compliant)
- Long range of 10+ metres - It is most suitable for detections that require long distances and enhanced range 3D depth mapping
- An IMU inside - comes with a built-in 6-axis Inertial Measurement Unit (IMU)
- Equipped with GigE and PoE technology, enabling data transmission and power supply (802.3at) for distances up to 100 metres
- It ensures data reliability by maintaining a persistent network connection for up to 15 seconds during network sessions, even when temporarily disconnected
- Integrated industrial heatsink designed to endure high operating temperatures in an industrial factory environment
- Incorporates edge computing with an AI system on a chip (SOC) to support additional neural network applications, achieving a performance of 5.0 TOPS
- Supports industrial 3D frameworks including ROS, NVIDIA Isaac, OpenNI, OpenCV, and HALCON
- Compatible with the complete LIPS ® middleware suite
| Camera Specs |
Description |
|---|---|
| Sensor | OmniVision OV9782 |
| Pixel Size |
3.0μm x 3.0μm |
|
Active Pixels |
1280 x 800 |
| Optical Format | 1/4" |
| Aperture | F2.0 |
| Focal Length | 1.93mm |
| Focus Type | Fixed |
| Shutter Type | Global Shutter |
| Distortion | ≤1.5% |
| IMU Sensor |
3-axis accelerator & 3-axis gyroscope |
Depth
Technology: Active Stereo
Baseline: 95mm
Maximum Working Distance: 10+ metres
Minimum Working Distance: 0.52 metres
Frame Rate: 1280x720@30fps
Shutter Type: Global Shutter
FoV (H x V x D): 87° x 58° x 95°
Z Accuracy: ≤2% up to 4 metres and 80% of FoV (the accuracy will vary with distance)
RGB
Resolution: 1280x800@30fps
FoV (H x V x D): 87° x 58° x 95°
Shutter Type: Global Shutter
Illumination
Type: Infrared
Wavelength: 850nm
Pattern Type: Static
Illuminating Component: Vertical-cavity surface-emitting laser (VCSEL)
A.I. Processor
ARM Cortex: Quad Core ARM Cortex-A73, paired with Dual Core
Cortex A-53 CPU and ARM Mali-G52 GPU
General
Dimensions (mm): 130 x 32 x 66 mm
Weight (g): Approximately 300g
Storage Temperature: -40 ~ 60˚C
Ambient Temperature: 0 ~ 40˚C
Cooling: Built-in industrial heatsink
Working Environment: Indoor / Outdoor

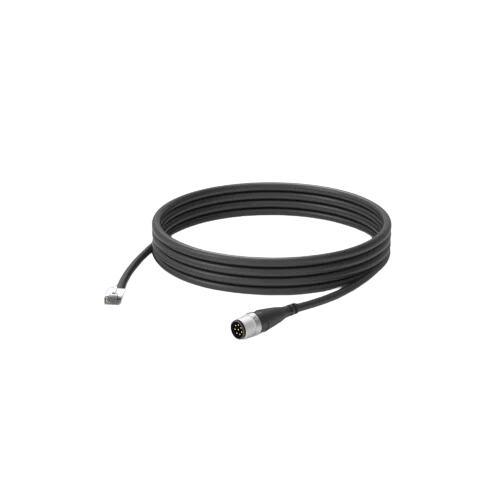

Power: PoE (IEEE 802.3 at/at), M12-to-RJ45 Cable (included), Power wire (12V, 1A) with M8 standard connector
Output Interface: M12 to Gigabit Ethernet cable for power and data
SDK
Multiple Frameworks supported: OpenNI, NVIDIA Isaac, ROS
OS
Multiple OS supported: Windows 10 and Ubuntu 18.04 / 20.04 / 22.04 LTS
