LIPSedge™ AE430 3D Stereo Camera Starter Kit (with M12 to RJ45 cable)
SKU: AE430-starter-kit
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

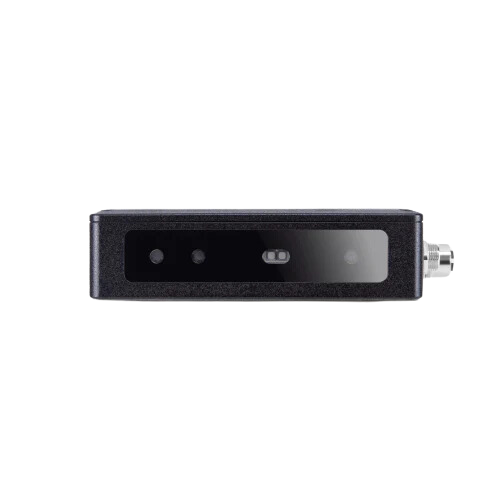

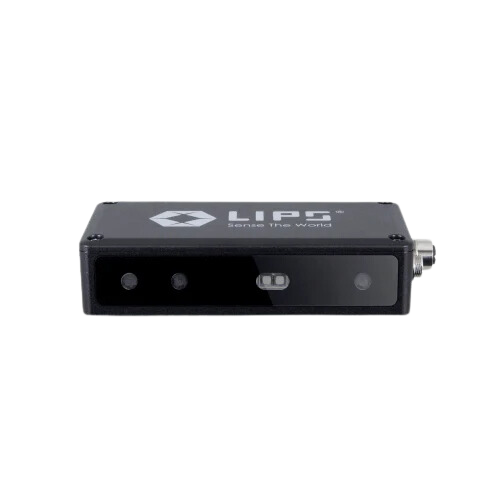

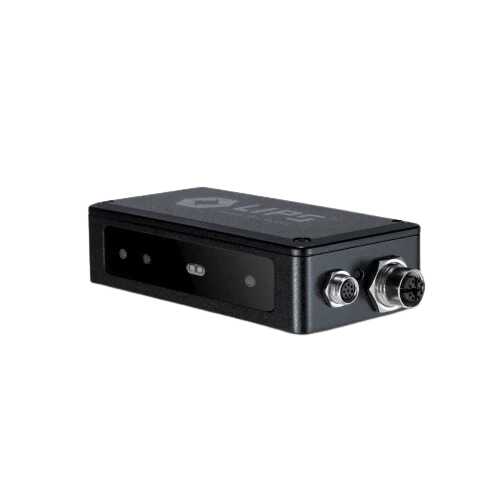

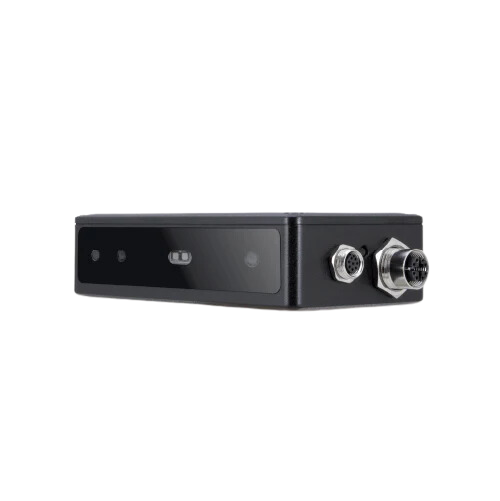

The LIPSedge™ AE430 is a lightweight, compact and rugged 3D stereo camera developed for industrial applications. Weighing just 288 grams and featuring a small form factor, it supports GigE/PoE, includes a built-in industrial heatsink, and is IP67-rated for dust and water resistance. This makes the LIPSedge™ AE430 an ideal 3D camera for robotic hand-eye coordination and factory automation applications.
The device addresses the challenges of weight capacity and space restrictions in robotic arms, offering quick and secure PoE connectivity through an M12 locked cable designed to endure the twists and turns of robotic movement.
Key Features
- Ruggedised casing (IP67-rated), compact (135 x 100 x 42mm), and lightweight (280g)
- Equipped with an RGB-D sensor that offers superior depth quality per degree and improved depth image clarity
- Supports GigE with PoE, enabling data transfer and power delivery (802.3at) for distances of up to 100 meters
- Ensures a continuous network connection to stay in the same session, even if there are brief disconnections of up to 15 seconds, to maintain data reliability
- Integrated industrial heatsink designed to endure high operating temperatures in an industrial factory environment
- Incorporates edge computing with an AI system on a chip (SOC) to support additional neural network applications, achieving a performance of 5.0 TOPS
- Supports industrial 3D frameworks including ROS, NVIDIA Isaac, OpenNI, OpenCV, and HALCON
- Compatible with the complete LIPS ® middleware suite
| Camera Specs |
Depth Sensor | RGB Sensor |
|---|---|---|
|
Sensor |
OmniVision OV2740 | OmniVision OV2740 |
| Pixel Size | 1.4μm x 1.4μm |
1.4μm x 1.4μm |
| Active Pixels | 1280 x 720 |
1920 x 1080 |
| Optical Format | 1/6" | 1/6" |
| Aperture | F2.0 | F2.0 |
| Focal Length | 1.88mm | 1.88mm |
| Focus Type | Fixed | Fixed |
| Shutter Type | Rolling | Rolling |
| Distortion | ≤1.5% | ≤1.5% |
| IMU Sensor | 3-axis accelerator & 3-axis gyroscope | N/A |
Depth
Technology: Active Stereo
XY Resolution: 1280x720@30fps, 640x480@60fps
Ideal Working Distance: 4m
Minimum Working Distance: 0.16m
Frame Rate: Up to 60fps
Shutter Type: Rolling Shutter
FoV (H x V x D): 65° x 40° x 72°
Z Accuracy: ≤2% up to 2 metres and 80% of FoV (the accuracy will vary with distance)
RGB
Resolution: 1920x1080@15fps, 1280x720@30fps, 640x480@60fps
FoV (H x V x D): 69.4° x 42.5° x 77°
Illumination
Type: Infrared
Wavelength: 850nm
Inertial Measurement Unit
IMU Sensor: 6-axis (3D Accelerator & Gyroscope)
Neural Processing Unit (NPU)
ARM Cortex: Quad Core ARM Cortex-A73, paired with Dual Core
Cortex A-53 CPU and ARM Mali-G52 GPU
Run neural network applications at 5.0 TOPS
General
Dimensions (mm): 118 x 32 x 60 mm
Weight (g): Approximately 280g
Storage Temperature: -40 ~ 60˚C
Ambient Temperature: 0 ~ 40˚C
Cooling: Built-in industrial heatsink
Working Environment: Indoor / Outdoor

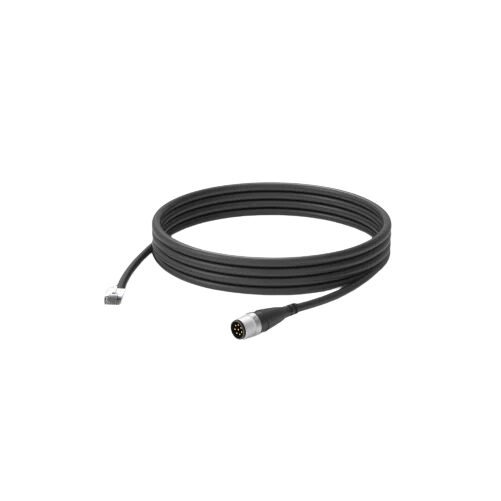

Power: PoE (IEEE 802.3 at/at), M12-to-RJ45 Cable (included), Power wire (12V, 1A) with M8 standard connector
Output Interface: M12 to Gigabit Ethernet cable for power and data
SDK
Multiple Frameworks supported: OpenNI, OpenCV, NVIDIA Isaac, ROS/ROS2 and Halcon
OS
Multiple OS supported: Windows 10 and Ubuntu 18.04 / 20.04 / 22.04 LTS
