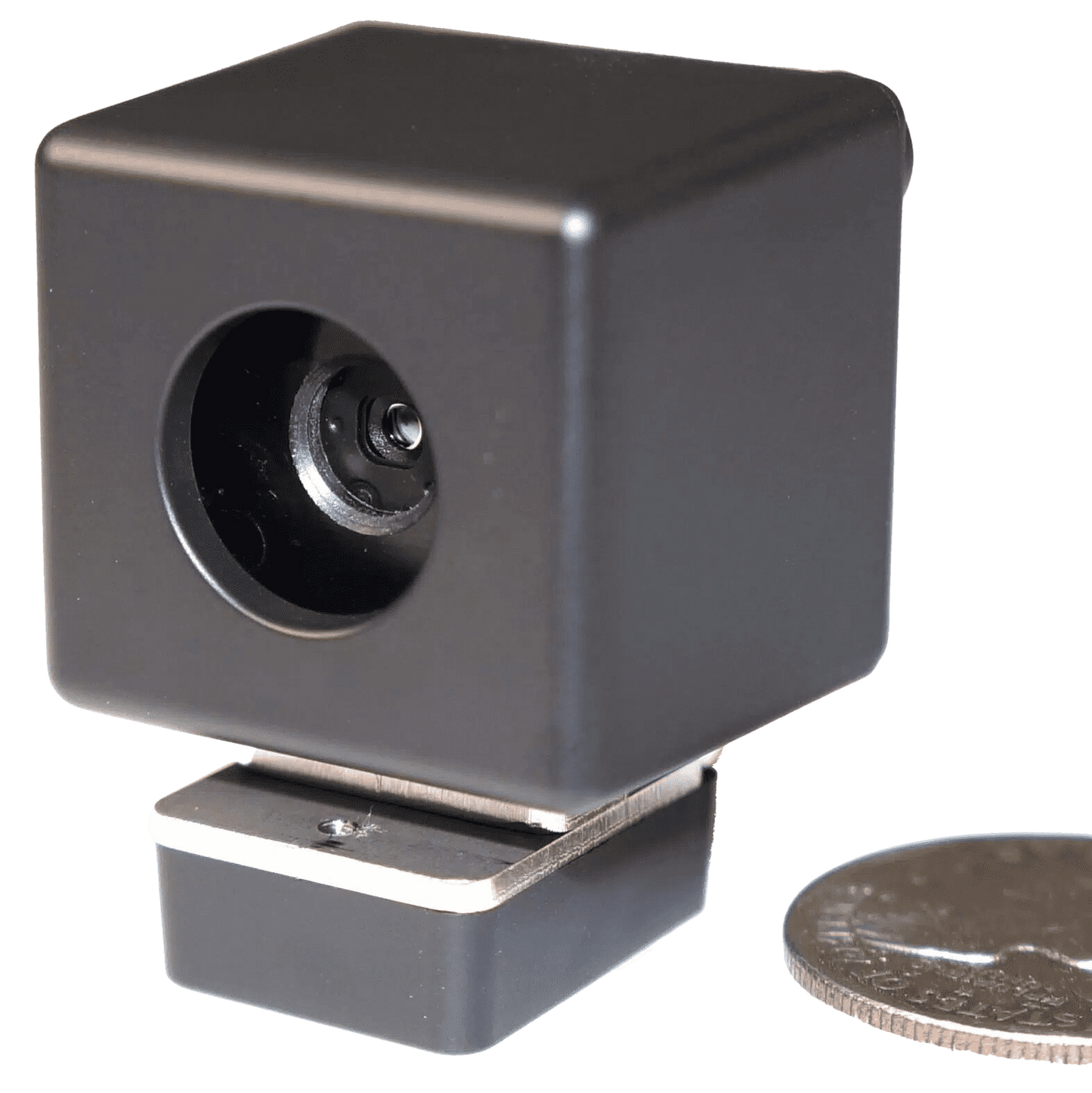

Compact Thermal Camera - Type F

• Interface Type: USB2
• Maximum Frame Rate (at maximum resolution): 8.6fps
• Resolution: 160x120 pixels
• Optical Format: N/A
• Required OS: Windows (10, 64bit), Linux, Android (4 or higher)
• Dimensions: (H x W x L mm): 31x40x28mm
• Lens Mount: N/A
• Bundled Software: Image Capture Software, SDK
• Optics Included: Yes, FoV 54 degrees
• Manufacturer: Infinitegra

This is a low cost thermal camera that can be used for machine vision and scientific applications. It has a measurable temperature range from -5 to 430℃ and a thermal sensitivity of 0.05℃ against a black body at 25℃. The camera is UVC1.0 compliant.

We may have units available for trial on a sale or return basis, please ask for further details.

Note: This product is not available for military use.

Environmental Protection

This camera is not water or dust proof. However, there is an option for an Infrared-transparent insulation cover (GAT) which is a transparent resin cover that simultaneously passes both visible and infrared radiation. We can provide a 10cm x 10cm piece that can be positioned in front of the camera at a distance of 15mm from the sensor.
