Arducam

8MP Visible Light Fixed Focus Camera Module for Raspberry Pi

SKU: B0390

Group 11 Contact Sales for Pricing

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Specification

Camera Specs
 B0390
Sensor Sony IMX219
Sensor Size
 1/4”
Resolution
 8MP 3280 × 2464
Video 1080p@47fps, 1640 × 1232@41fps and 640 × 480@206fps
Field of View (FOV)
 62.2°(H) 48.8°(V)
Focus Type Fixed Focus
Focus Distance
 200mm - ∞
Lens Type
 Stock Lens
Peak Current
 300mA
Dimension 25mm × 24mm

Overview

  • Ready to use: No additional drivers required

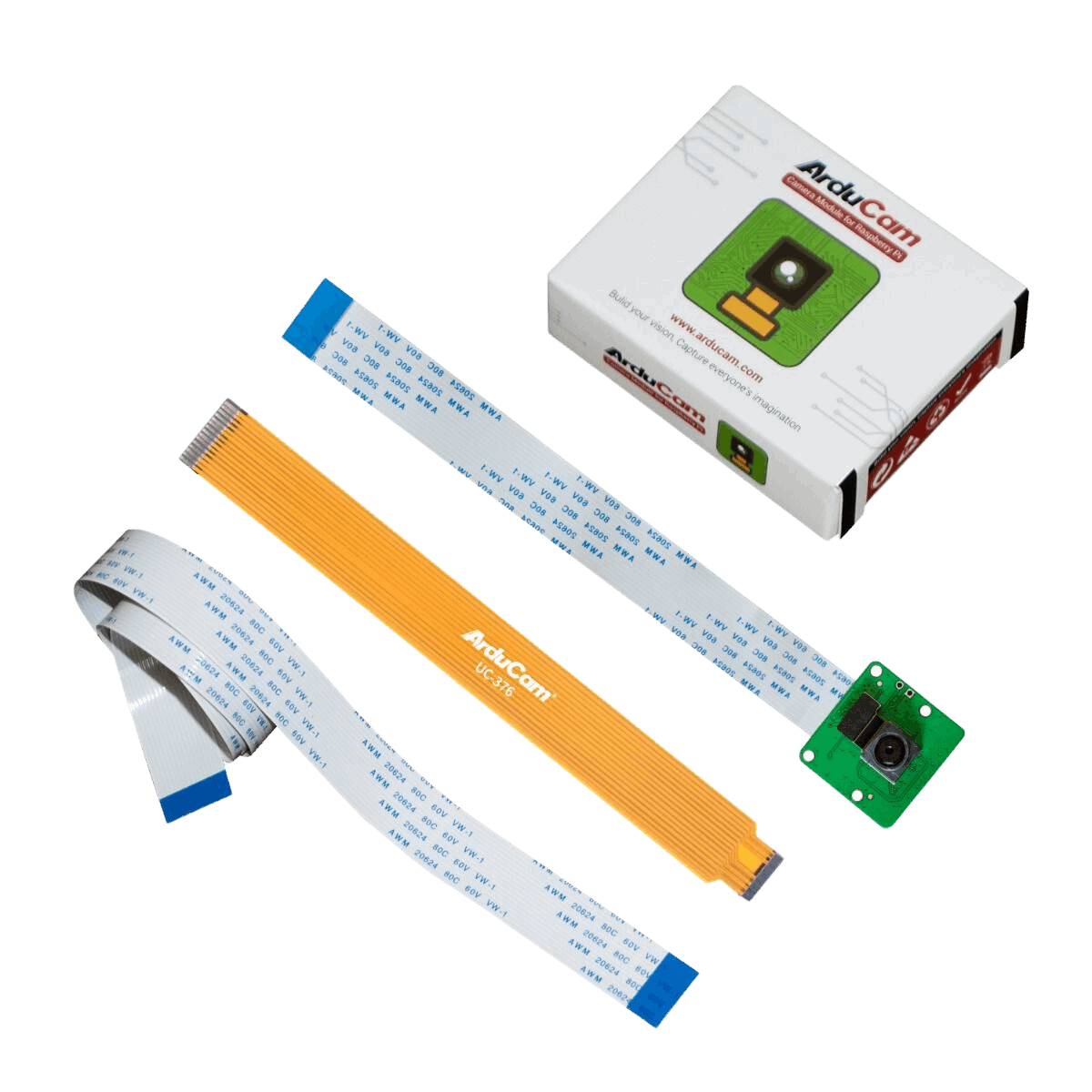

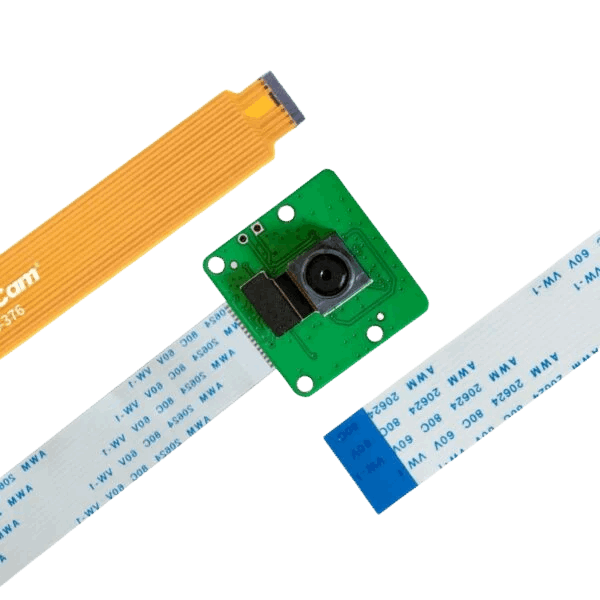

  • Easy setup: connect the camera with the FPC cable
  • Contains Integral IR-CUT filter to keep only the visible light
  • Compatible with Raspberry Pi 3/4 and Raspberry Pi Zero

This 8MP camera module is equipped with a high-definition IMX219 8MP sensor which matches the quality of the previous Raspberry Pi Camera V2. It is the perfect camera for various applications and usages like time-lapse, slow motion, home security applications and more.

This camera module is exclusively compatible with the latest Raspberry Pi OS Bullseye (January 28, 2022 and onwards) and libcamera applications. Regrettably, it is not accessible to users of previous Raspberry Pi OS versions (Legacy).

Example Applications

  • Unmanned Aerail Vehicles (UAVs)
  • Drones
  • Autonomous Robotic Systems
  • Mobile Medical Imaging
  • Intelligent Video Analytics (IVA)
