Arducam

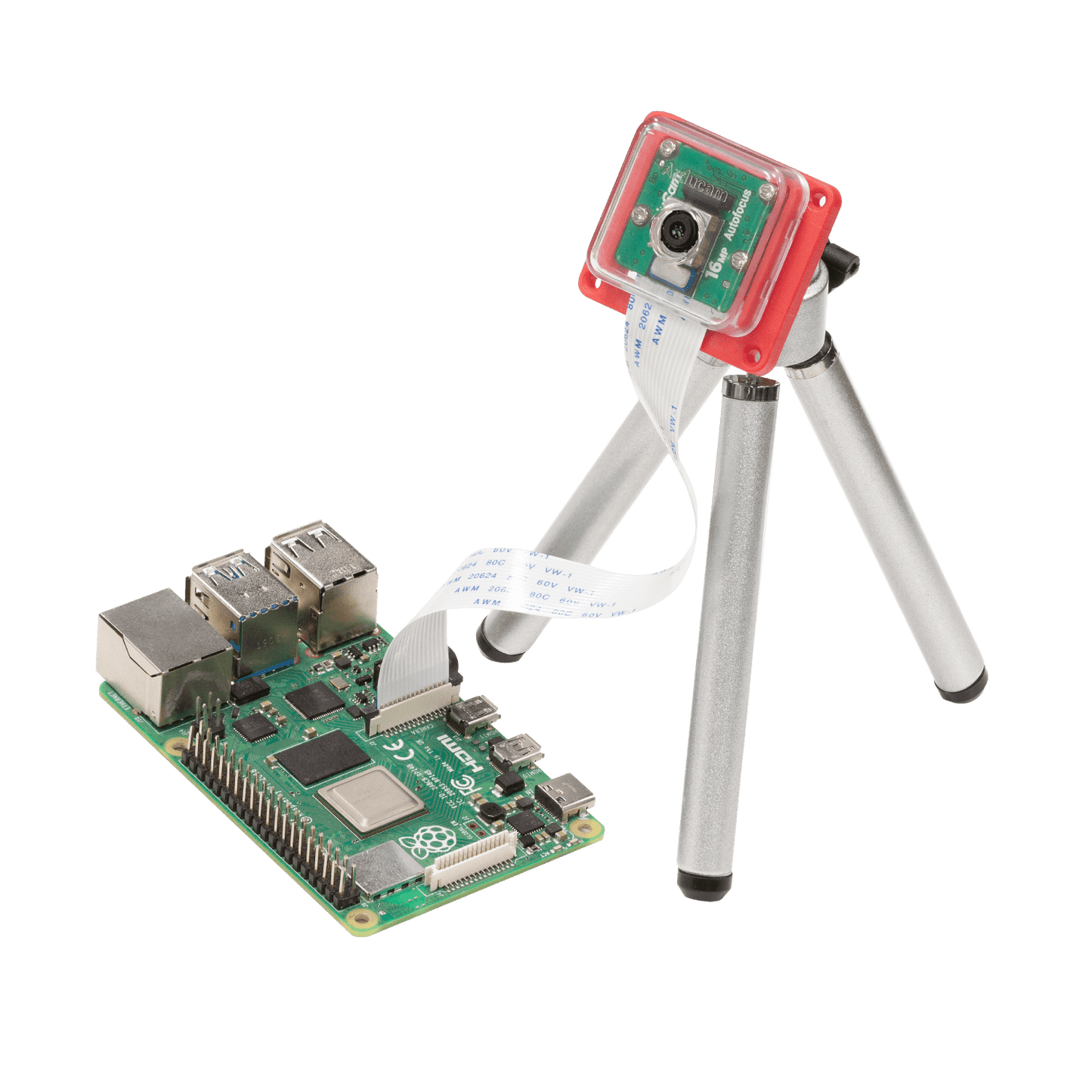

16MP Autofocus Camera Module For Raspberry Pi and Jetson Nano
SKU: B0371
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Specification
| Camera Specs |
B0371 |
|---|---|
| Sensor | Sony IMX519 Sensor |
| Sensor Size |
1/2.53” |
|
Resolution |
12.3MP 4656 × 3496 |
| Video | 1080p@30fps, 720p@60fps |
| Video (Jetson Nano, Xavier) | 4656x3496@10fps, 3840x2160@21fps, 1920x1080@60fps, 1280x720@120fps |
| Video (Jetson Orin NX, L4t 32.x) | 4656x3496@10fps, 3840x2160@21fps, 1920x1080@60fps, 1280x720@120fps L4t 35.x: 4656x3496@9fps, 3840x2160@17fps, 1920x1080@60fps, 1280x720@120fps |
| Field of View (FOV) |
80° |
| Focus Type | Autofocus |
| Focal Length |
4.28mm |
| Lens Type |
Fixed |
| F.NO | F1.75 |
| Dimension | 25 × 24mm |
Overview
-
Interchangeable Lens: View our range of M12 lenses to choose from
- IR Sensitivity: Integral IR-CUT filter to keep only the visible light
- Native to Raspberry Pi: No additional drivers are required
- Easy to use: Supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps
- Open Source: more flexible software development processes and accessible to all
Introducing a 16MP autofocus high-resolution camera board that outperforms Raspberry Pi V1, V2, and HQ in every conceivable aspect. The numerous improvements offer a superior choice for industrial, consumer, and more. Compatible with all Pi models, it works seamlessly with the latest foundation software, utilising official camera module tuning algorithms.
This camera is compatible with the following NVIDIA® devices: Jetson Nano, Xavier NX, AGX Orin, Orin Nano and Orin NX.
Kernel Camera Driver
To ensure compatibility, it is important to refer to the Supported JetPack Version for Different NVIDIA Jetson Platforms, as this camera is dependent on kernel drivers. Specifically, it requires one kernel version and one camera driver to function properly.
SUPPORTED PLATFORM DISCLAIMER
This camera is exclusively tailored for the official NVIDIA® Jetson™ Developer Kit by default, thereby lacking compatibility with third-party carrier boards.
Instructions for Orin Nano/NX and AGX Orin
For the Orin Nano/Orin NX, a 22-22 pin FFC (CB023) is required. If you are using an AGX Orin, an additional camera adapter (B0473) is required. Contact us or use our live chat to find out more.
FAQs
Can this camera be used with any Raspberry Pi Model?
The compatibility of this camera extends to all Pi models featuring a MIPI CSi-2 connector.
Can 30 fps (frames per second) be achieved in 4K resolution?
The Raspberry Pi is unable to capture videos at 30 fps on this camera and resolution, although it can capture still images at a resolution of up to 4656×3496. The camera itself can record videos at 4K@30fps, but the limitation lies with the Pi.
What’s the minimum focus distance?
The closest you can get is 10cm. The focus range of this camera is 10cm ~ ∞.
What’s the longest allowed exposure time?
200 seconds.
