Arducam 1MP*2 Stereoscopic Bundle Kit for Raspberry Pi and Jetson Nano/Xavier NX

SKU: B0266

Regular price $214.00 USD
Regular price Sale price $214.00 USD
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

Camera Specs
B0266
Sensor Omnivision OV9281 Sensor
Sensor Size
1/4"
Resolution 1MP 1280 × 800
Aggregate mode Full Spelling Combine
Output/CSI-2 Speed x1 CSI-2 2-lane Output Port/1.0 Gbps/Lane
External Trigger Supported
Frame Rates (Raspberry Pi)
RAW8/RAW10: 2560×800@60fps, 2560×720@65fps, 1280×400@150fps
Frame Rates (NVIDIA Jetson) RAW8/RAW10: 2560×800@60fps, 2560×720@65fps, 1280×400@150fps
Pixel Size 3µm
Focus Distance 30mm to ∞ (infinity)
F.NO
F2.8
Camera Interface 2-lane MIPI CSI-2
Camera Board Size 40mm × 40mm
Camarray Hat Size 65mm × 56mm
Lens Mount M12 Mount
Distortion <1%
Focal Length 2.8mm
Field of View (FOV) 70° (H) x 43.75°(V)
IR Sensitivity Integral IR Cut filter, visible light
Default Lens Low distortion M12 lens (Part Number: M27280M07S)
ISP Support Supported on Raspberry Pi, not supported on Nvidia Jetson

Overview

  • Complete Synchronisation: The frames of two cameras are synchronised at the hardware level.
  • Wide Compatibility: Works with both Raspberry Pi and NVIDIA Jetson Nano/Xavier NX and can also be extended to other platforms that have MIPI CSI-2 interface and standard Video4Linux2(V4L2) driver.
  • Supports Changing Framerates: Modify the frame rate anywhere between 5fps and 70fps. If the specified frame rate surpasses the maximum limit, it will be adjusted to the maximum value accordingly. The minimum value follows the same rule.
  • Mono Global Shutter: Capture high-speed moving objects with exceptional clarity and precision. By avoiding rolling artefacts, you can obtain a complete and accurate picture, surpassing the limitations of rolling shutter Pi cameras. With a frame rate of 70fps at 1280*2 x 800 on Jetson, you can enjoy smooth and detailed footage.

The Arducam stereo camera bundle kit comprises of two synchronised OV9281 global shutter cameras and an Arducam Camarray stereo camera HAT. This bundle allows for the simultaneous operation of dual cameras with an adjustable baseline, providing enhanced prototyping and evaluation capabilities using a single MIPI CSI camera slot. The two image sensors are located on separate camera boards, allowing for easy repositioning to capture different perspectives, while the Camarray HAT takes care of the remaining tasks. This flexibility is particularly beneficial during the proof-of-concept stage, where more options are desired compared to a fixed stereo camera module. By utilising this bundle, you can determine the optimal baseline for your specific application.

Are you interested in the other multi-cameras or stereo cameras that are available? See our Multi-cameras collection.

Important Notes

  • Supported platforms are Raspberry Pi 4, 3B+, 3, 2, B+, B, A (when using Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps. It is also supported by NVIDIA Jetson Nano, Xavier NX, AGX Orin, Orin Nano and Orin NX (JetPack4.6/L4T32.6.1 on NVIDIA Jetson Nano/Xavier NX).
  • This kit is released for official Raspberry Pi/Jetson Nano/Xavier NX boards by default and does not support other third-party boards.
  • Raspberry Pi and Jetson board are not included in the package.
  • This bundle kit is not recommended for Raspberry Pi Zero.
  • The OV9281 cameras in this kit are special and cannot be used directly on Raspberry Pi or Jetson.
  • The I2C signal and clock of each camera are fully synchronized. It is unavailable to capture the same frame of images at different exposure times for each camera.
  • The lens on this camera is not interchangeable. If you need to replace the lens, please contact us.

Documentation

OV9281 Sensor Datasheet

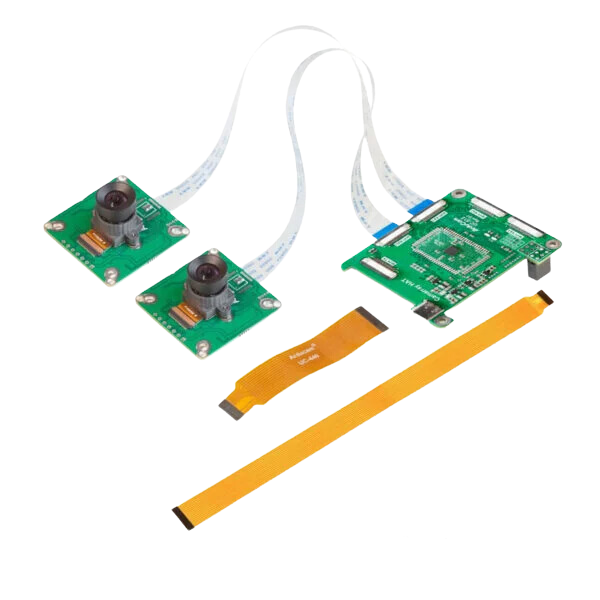

Package Contents

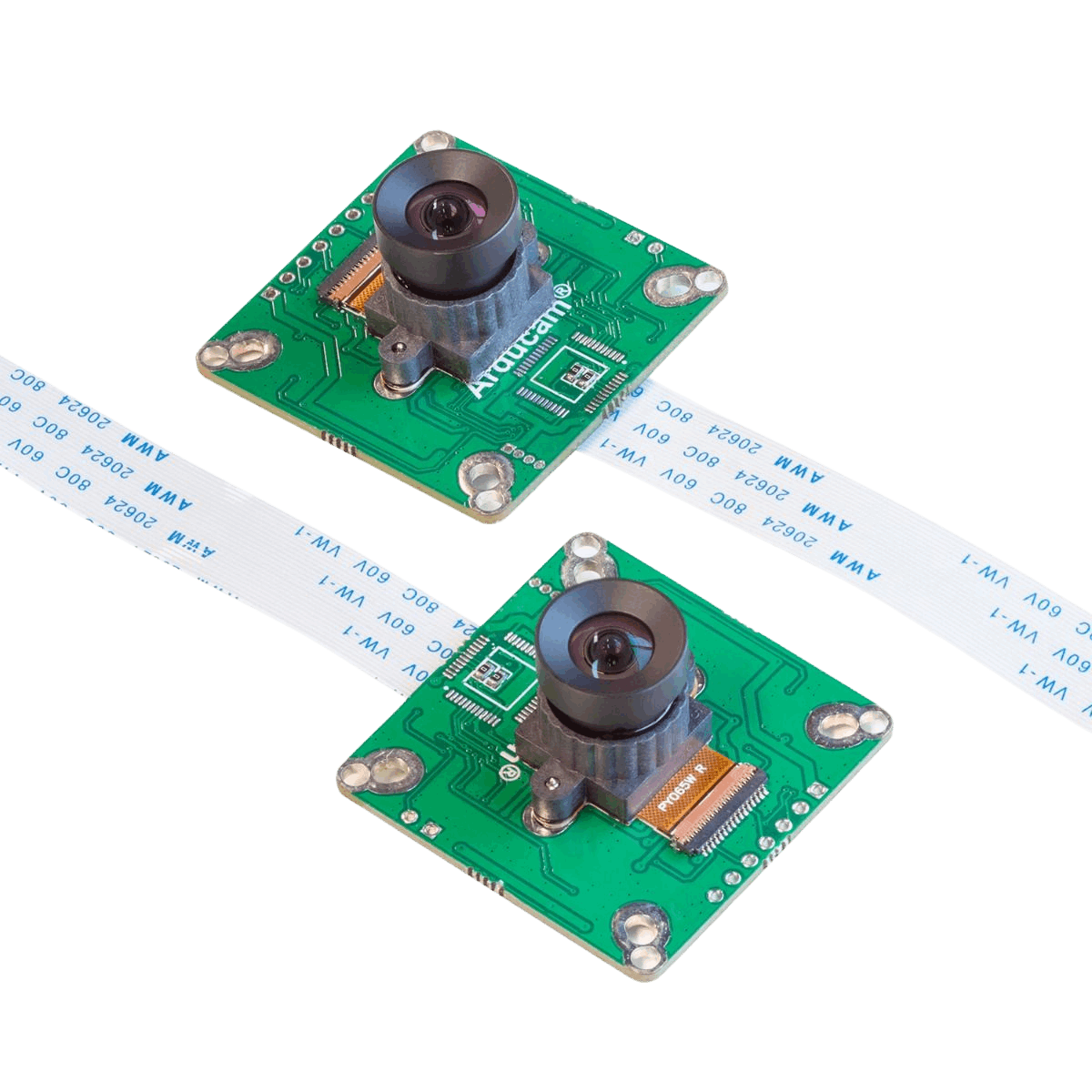

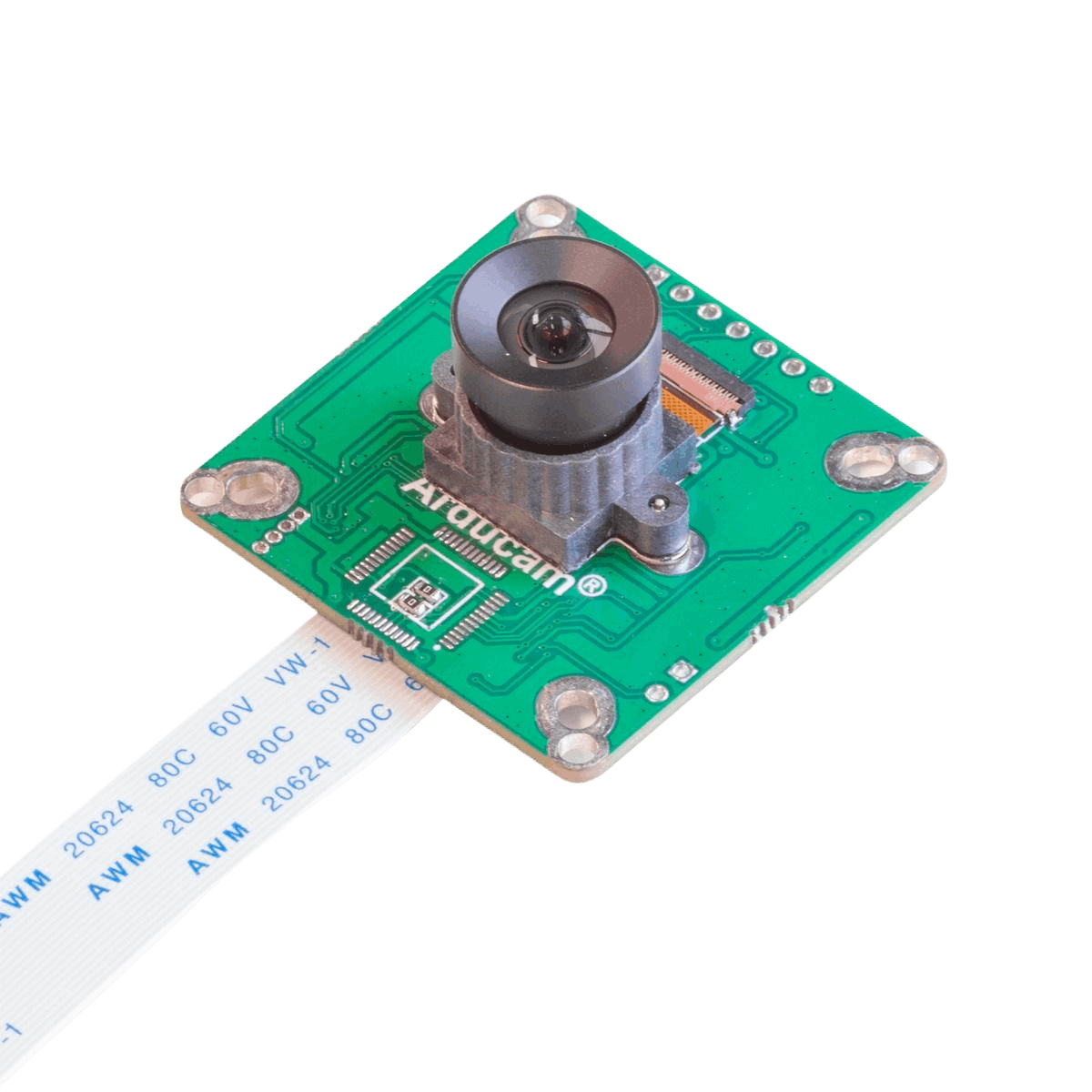

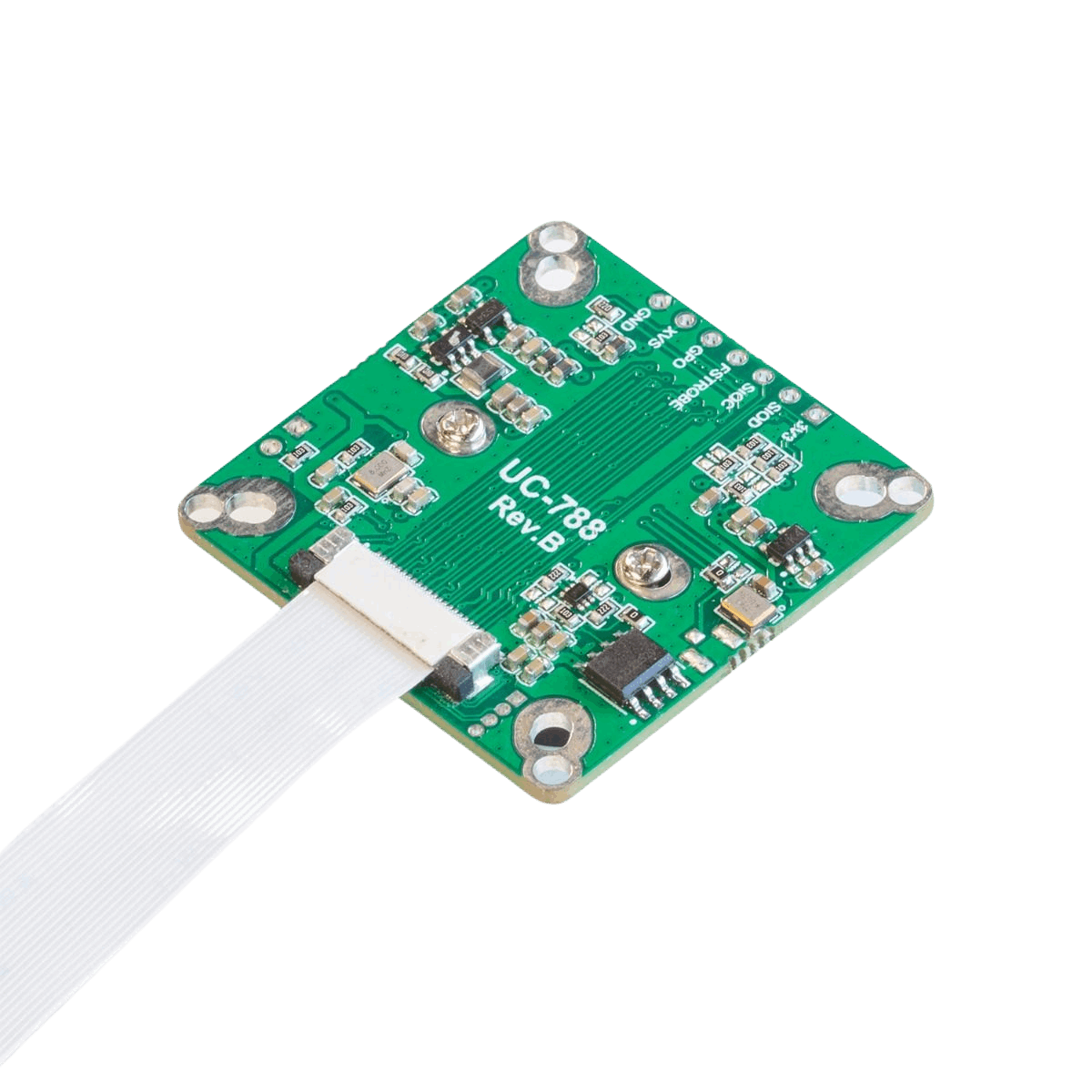

  • 2 × Arducam 1MP OV9281 global shutter camera module with low distortion M12 lens

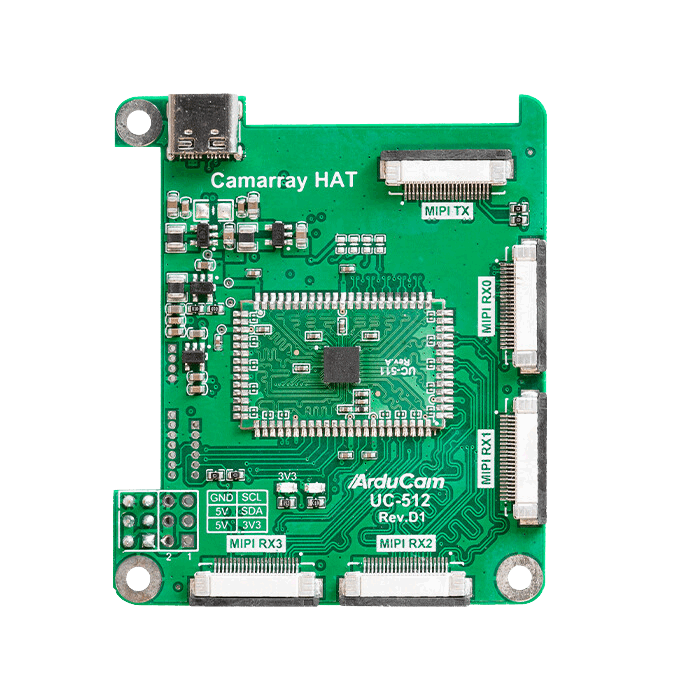

  • 1 × Arducam Camarray Stereo Camera HAT
  • 2 × 150mm/6inch 22pin to 22pin camera cable
  • 1 × 300mm/12inch 15pin to 22pin camera cable
  • 1 × 300mm/12inch 22pin to 22pin camera cable
  • 1 × 73mm/2.87inch 15pin to 22pin camera cable
  • 4 × M2.5*10mm Nylon Hex Standoffs
  • 4 × M2.5 Nylon Nuts
  • 4 × M2.5*6mm Nylon Screws

Example Applications

  • Robot Navigation
  • Object Tracking
  • 3D measuring
  • 3D reconstruction
  • Depth-related vision applications, etc
