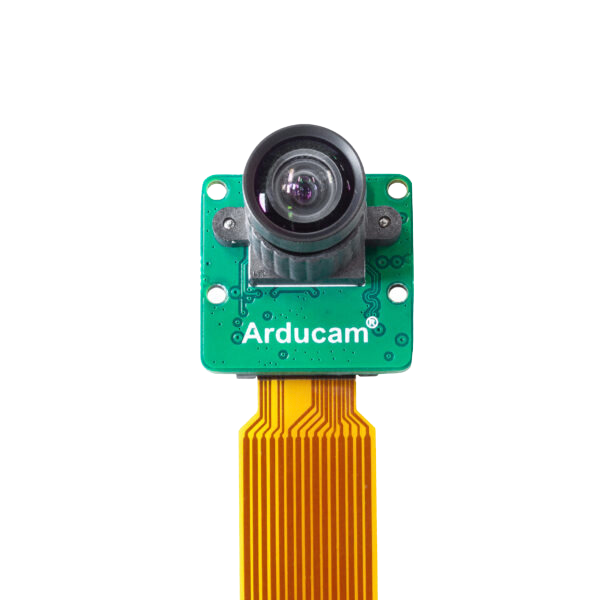

12.3MP Mini HQ Camera Module for Jetson Nano and Xavier NX
SKU: B0251
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Specification
| Camera Specs |
B0251 |
|---|---|
| Sensor | Sony IMX477 |
| Sensor Size |
1/2.3” |
|
Resolution |
12MP 4056 × 3040 |
| Video (L4t 32.x) |
4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps |
| Video (L4t 35.x) | 4032x3040@20fps, 3840x2160@30fps, 1920x1080@60fps |
| Field of View (FOV) |
88°(D) × 75°(H) |
| Focus Type | Manual Focus |
| Focal Length |
3.9mm |
| Lens Type |
M12 Lens |
| F.NO |
F2.8 |
| Dimension | 24mm × 25mm |
Overview
Arducam launched a compact camera module for Jetson Nano/Xavier NX, which is ideal for applications with size and weight constraints. This camera module is designed to deliver high-quality performance and is similar to the Raspberry Pi V2 module size. It features a 24mm x 25mm camera board and a low-distortion M12 mount lens. Additionally, you can use this camera module on Jetson Nano/Xavier NX natively with hardware ISP features.
Currently, the NVIDIA Jetson Orin series developer board has been recently launched by NVIDIA. In addition, we have successfully integrated the camera with the NVIDIA Jetson Orin kernel.
Compatible Platforms
- NVIDIA Jetson Nano
- NVIDIA Jetson Xavier NX
- NVIDIA Jetson AGX Orin
- NVIDIA Jetson Orin NX
For the Raspberry Pi version, view the B0262.
Kernel Camera Driver
To ensure compatibility, it is important to refer to the Supported JetPack Version for Different NVIDIA Jetson Platforms as this camera is dependent on kernel drivers. Specifically, it requires one kernel version and one camera driver to function properly.
SUPPORTED PLATFORM DISCLAIMER
This camera is exclusively tailored for the official NVIDIA® Jetson™ Developer Kit by default, thereby lacking compatibility with third-party carrier boards.
Instructions for Orin Nano/NX
For the Orin Nano/Orin NX, a 22-22 pin FFC (CB023) is necessary. In the case of utilising an AGX Orin, an extra camera adapter (B0473, contact us or use our live chat to find out more) is mandatory.
