Arducam

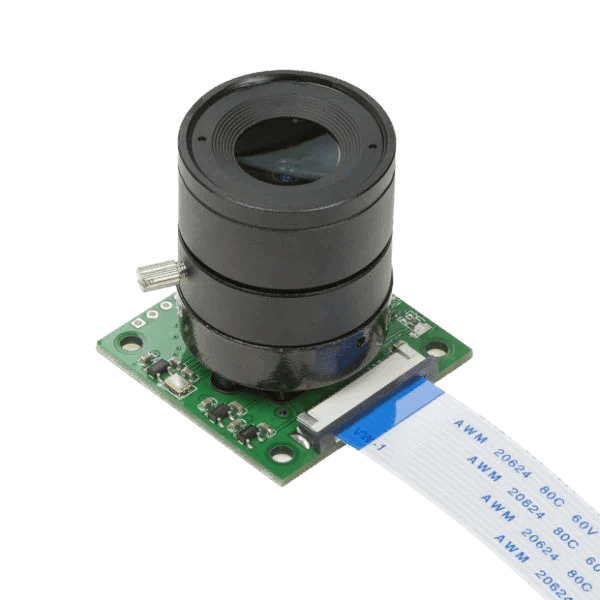

Arducam 8MP Camera Module with CS lens for Raspberry Pi

SKU: B0102

£60.00 GBP
£60.00 GBP
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Specification

Camera Specs
 B0102
Sensor Sony IMX219
Sensor Size
 1/4" (4.6mm diagonal)
Resolution
 8MP 3280 × 2464
Video 1080p47, 1640 × 1232p41 and 640 × 480p206
Field of View (FOV)
 70°(H)
IR Sensitivity Integral IR-cut filter, visible light only
Focus Type Manual Focus
F.NO F1.4
Focal Length 4mm
Lens Type
 CS Lens (LS-2718CS)
Peak Current
 300mA
Pixel Size 1.12μm

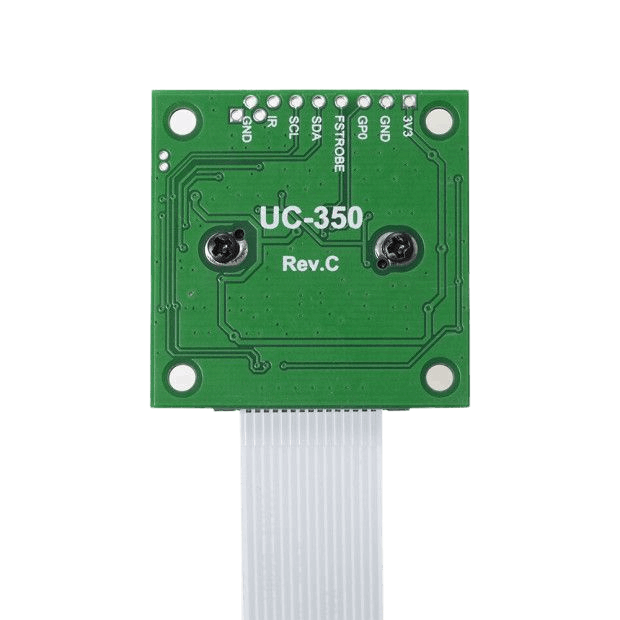

Dimension 36mm × 36mm, 4 mounting holes

Overview

  • CS-Mount Lens: The CS-mount lens offers improved clarity, focus, and the added benefit of interchangeable lenses
  • Seamless Integration: Native to Raspberry Pi, no additional drivers required and can use libcamera apps to capture images
  • IR Sensitivity: Integral IR filter, visible light only
  • Highly Compatible: supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps

Do you require an M12 lens verison of this camera? See the B0103

This 8MP camera is compatible with the Raspberry Pi and uses the Sony IMX219 image sensor. It produces 3280 x 2464 pixel static images and connects to the Pi through the dedicated CSi interface. It is an ideal complement to the official Raspberry Pi camera with a variety of lens mounts, FOV and DOF options as well as a motorized IR cut filter version for both day and night vision. This 8MP camera offers superior image quality and connectivity, delivering highly detailed images perfect for a broad range of photography and video needs.

Documentation

Arducam B0102/B0103 Datasheet
Sensor Datasheet for the Sony IMX219

Package Includes

  • 1 x 8 megapixel IMX219 sensor camera module with CS mount
  • 1 x 15cm 15pin FPC cable

Example Applications

  • Mobile Phones
  • Home Security Systems
  • Digital Still Cameras
  • Various Battery Powered Devices
  • Machine Vision
