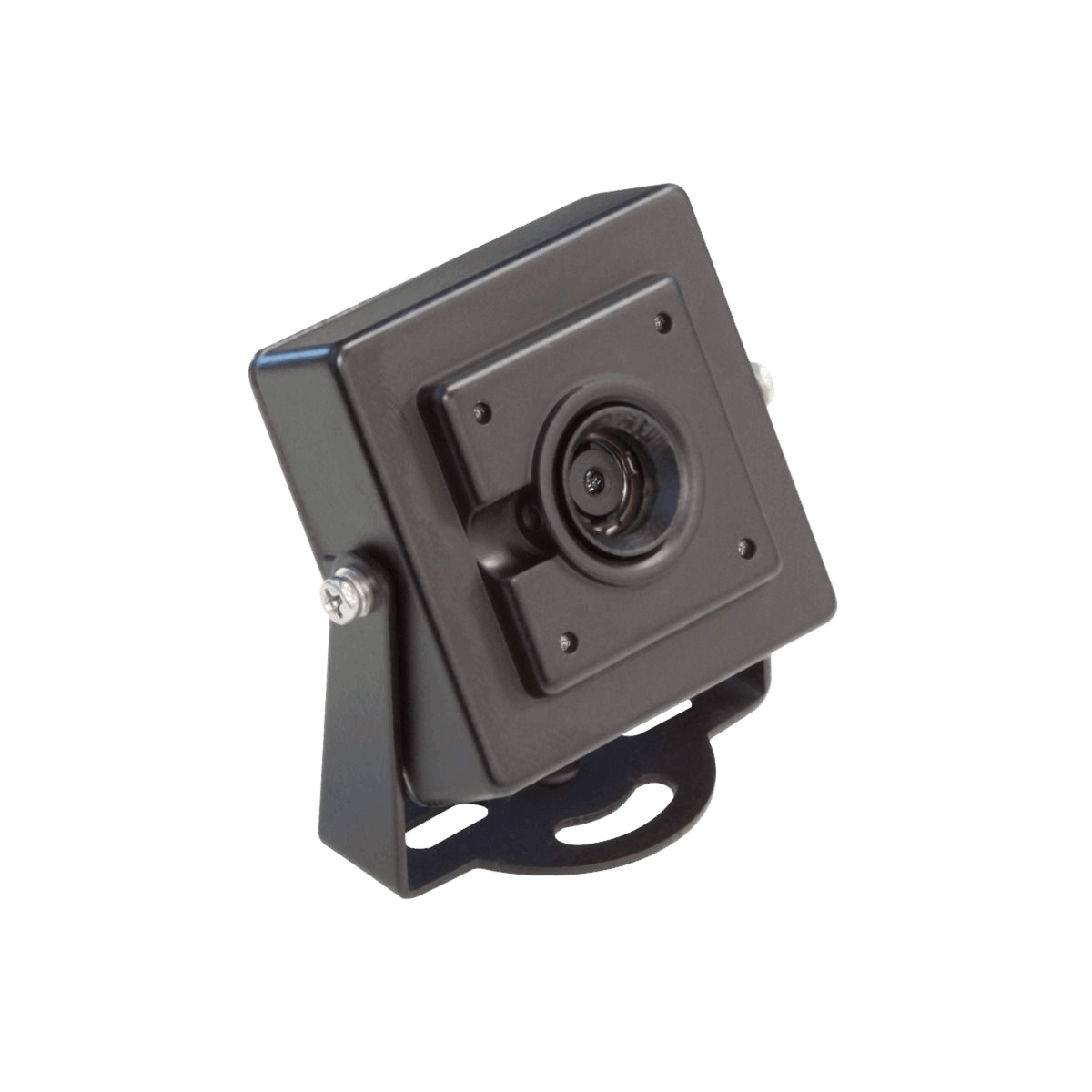

• Image of Arducam B0447C camera module with metal case

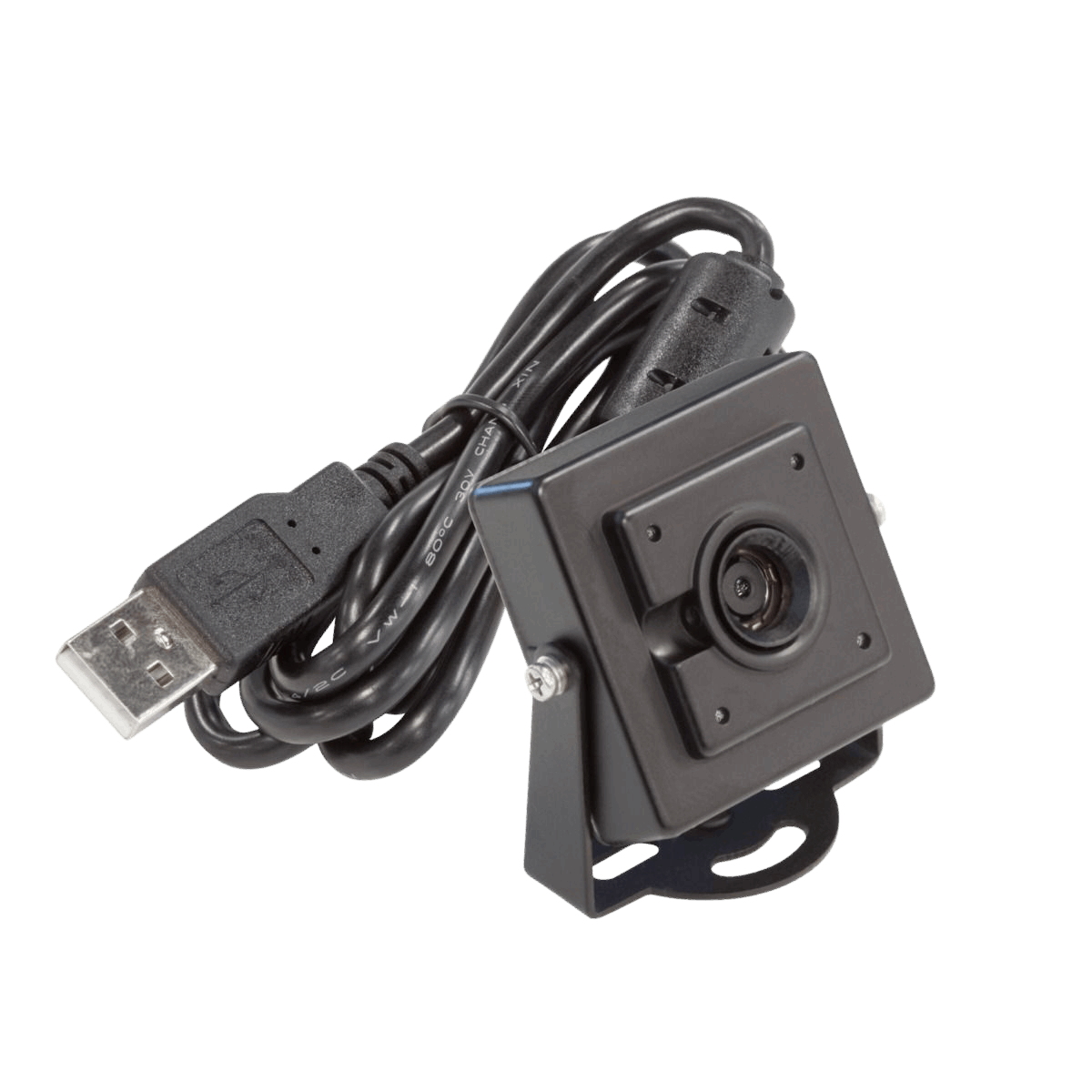

  • image of Arducam B0447C camera module with metal case with USB 2.0 cable

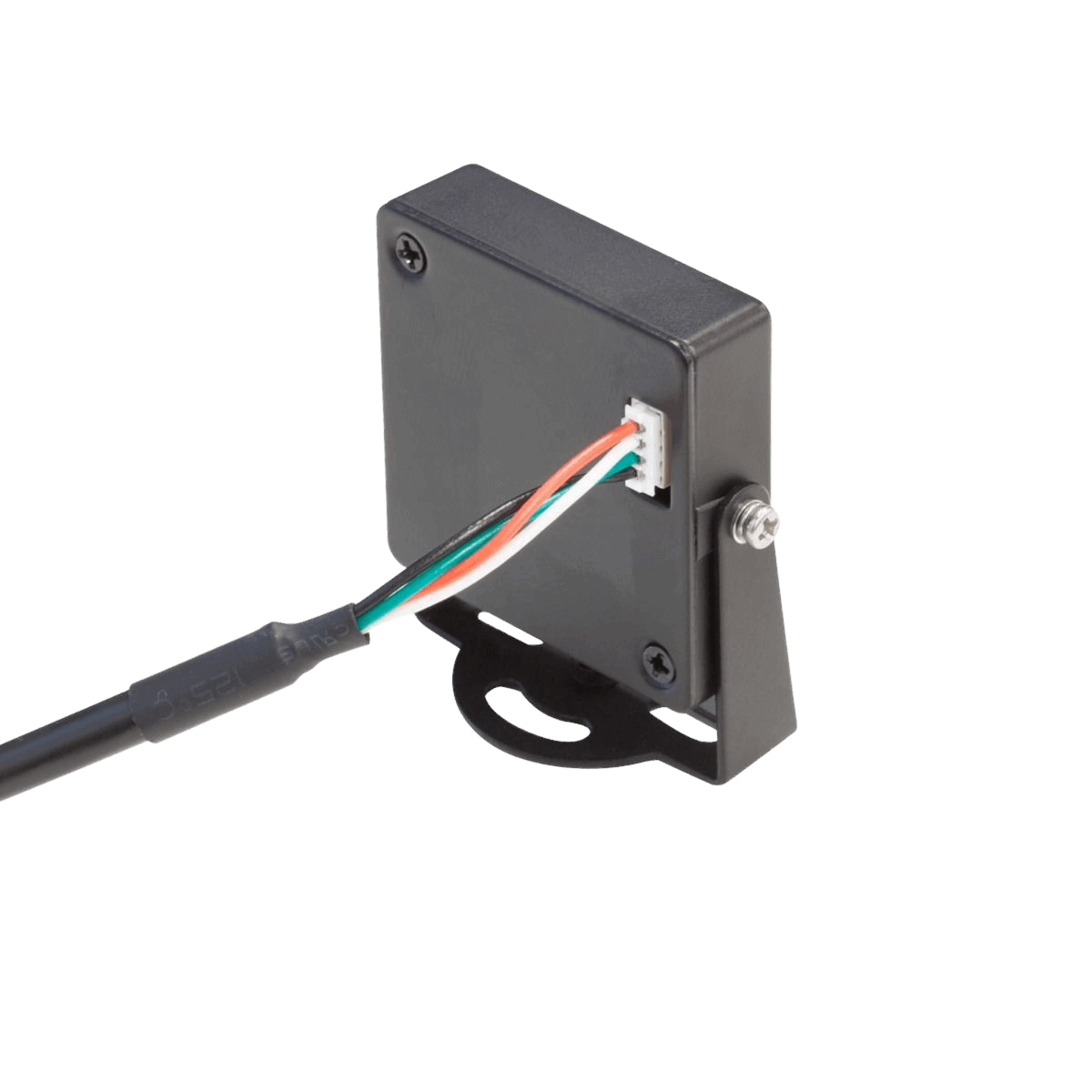

  • image of Arducam B0447C connected with USB 2.0 cable to B4B-ZR connector

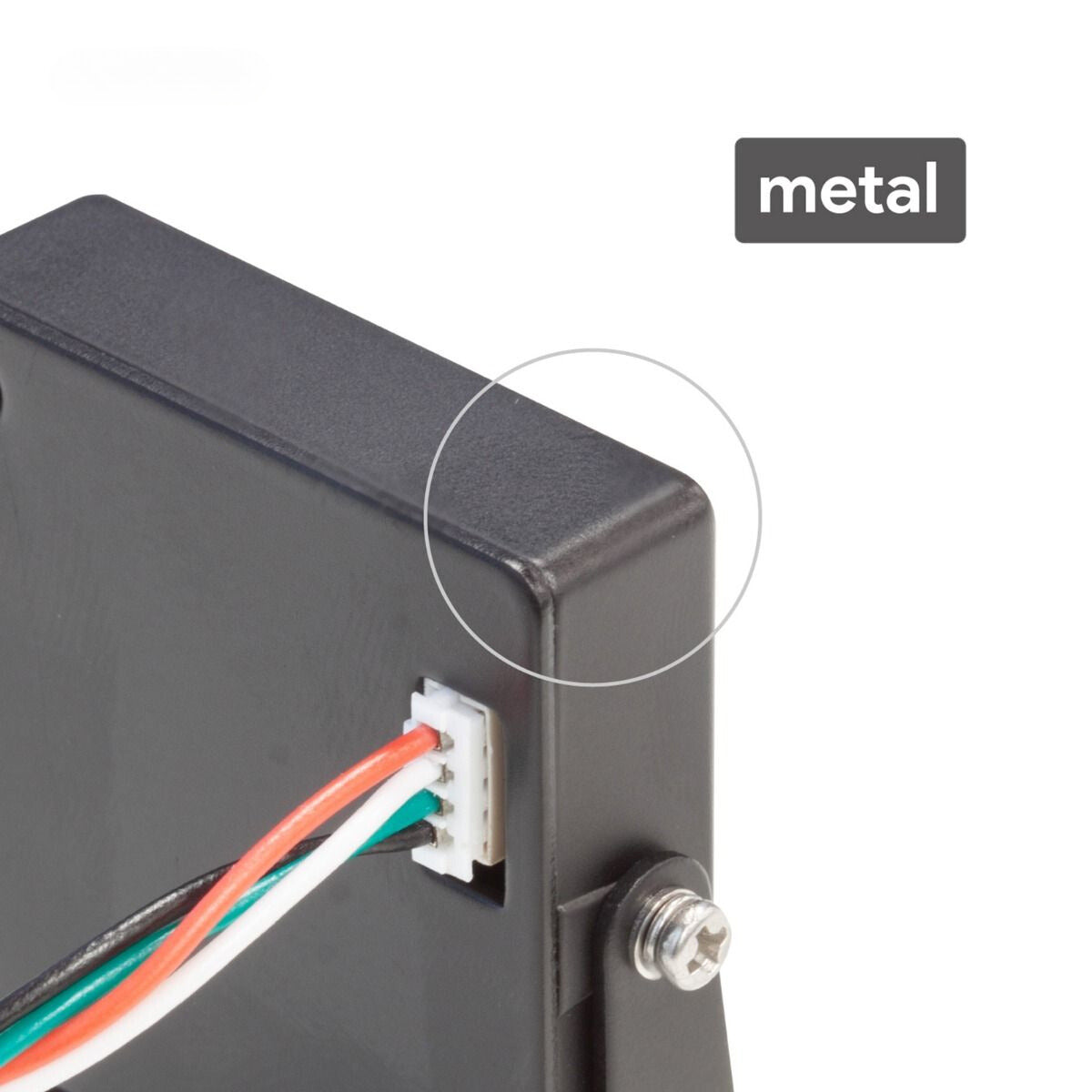

  • image of Arducam B0447C close-up showing the case is metal

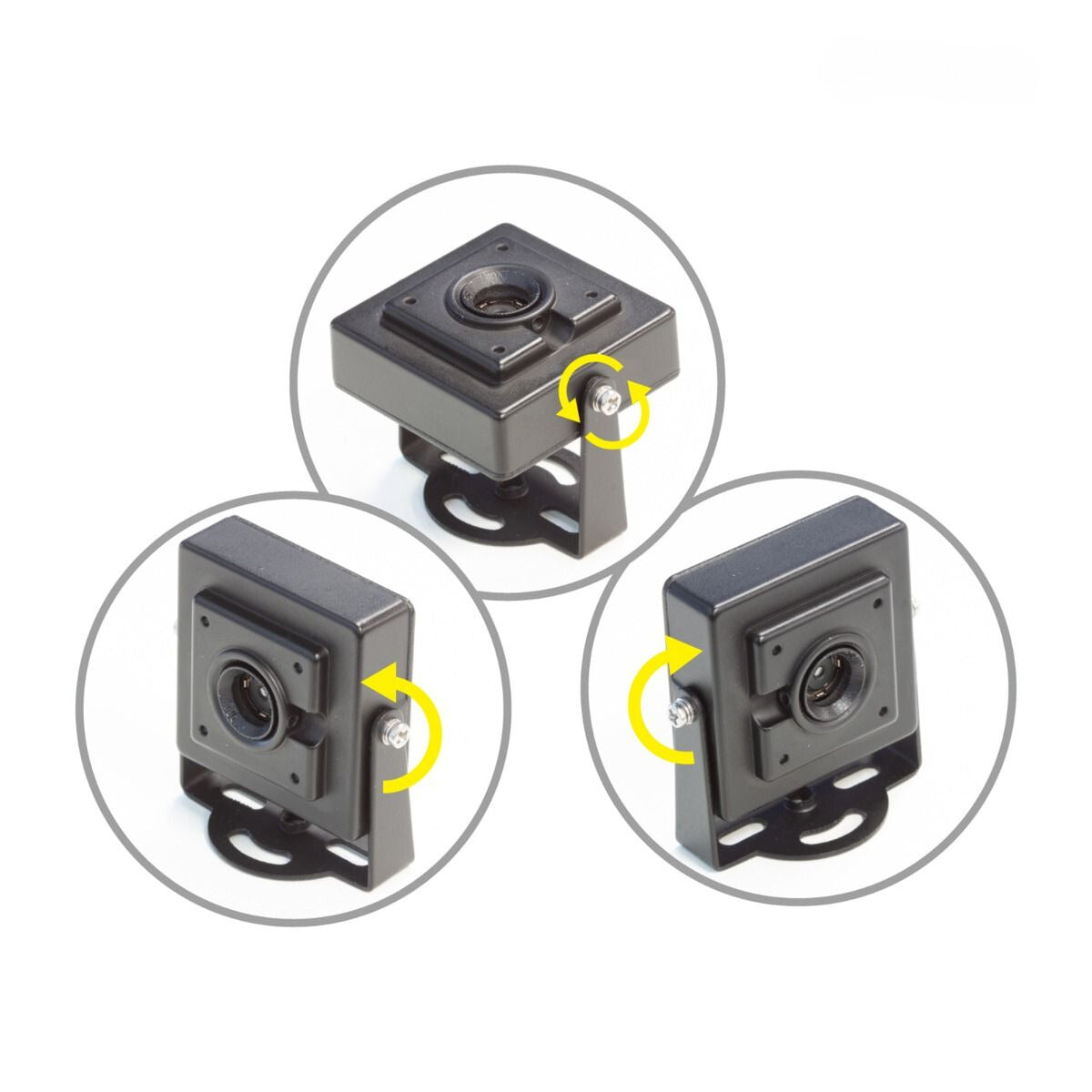

  • image of Arducam B0447C showing how you can tilt the camera/case
  • Arducam 8MP Autofocus UVC Camera Module with Metal Case
1 7

Arducam

Arducam 8MP Autofocus UVC Camera Module with Metal Case

SKU: B0447C

£64.00 GBP
£64.00 GBP
Sale Sold out

Specification

B0447C Datasheet

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

Camera Specs
 B0447C
Sensor Sony IMX179 CMOS Sensor
Format 1/3.2"
Resolution 8MP 3264×2448
Pixel Size 1.4µm
Output Format YUYV/MJPG
Frame Rates (MJPG)

30fps@3264×2448, 2592×1944, 1920×1080, 1600×1200, 1280×720, 640×480
Frame Rates (YUY2)

1fps@3264×2448, 2fps@2592×1944 5fps@1920×1080, 1600×1200 10fps@1280×720, 30fps@640×480
Lens Type
 Stock Lens
Focus Type Manual Focus
Lens Mount
 M8.5±0.25
F.NO 2.0±5%
Effective Focal Length (E.F.L)
 3.543
Field of View (H) 63°
Interface USB 2.0
Connector B4B-ZR
Shutter Type Rolling
Audio
 Single Microphone
Dimensions 38mm × 38mm
Peaking Current Max 300mA
Operating Temperature
 -4°F-158°F(-20°C to 70°C)
UVC Controls Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp and Gain
Supported Platforms/OS Windows, Linux, Android, and Mac OS

Overview

  • Plug-and-Play: The camera is UVC-compliant and doesn't require any additional drivers
  • Autofocus: Perfect for scenarios where you are required to focus on objects that may be moving
  • Compact and Protected: Secured inside a metal case, resulting in less of a risk of damage

The Arducam B0447C camera module is built with a powerful 8MP Sony IMX179 sensor. This is an ideal camera module for vision solutions requiring easy integration, with more than 1080P resolution, and equipped with a powerful, fast-acting autofocus lens. Furthermore, the metal case enables the camera to be water and dust-resistant. If your application benefits from the use of audio, the camera is equipped with a single microphone. Finally, the UVC controls empower the device with helpful adjustable features such as brightness, contrast, gamma, saturation, sharpness and more for when the image/video needs to be tailored for the most optimal output.

Package Includes

  • 1 × Arducam 8MP AF Camera Module with metal case
  • 1 × USB Cable (1m, USB to B4B-ZR)
  • 1 × Quick Start Guide

Example Applications

  • Surveillance
  • Video System
  • VR Camera
  • Camera for Lightburn Laser Engraver Machine
