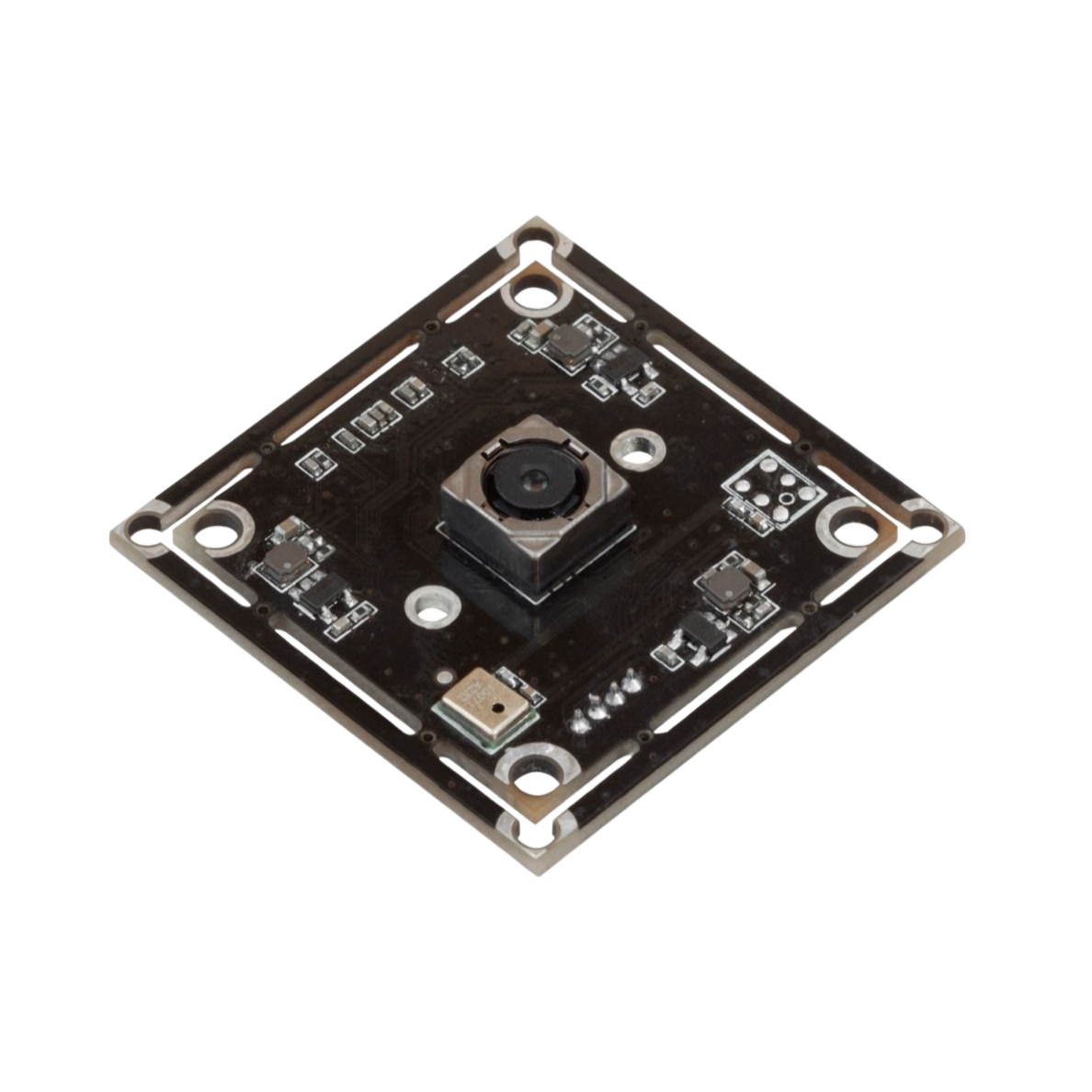

• Arducam 8MP IMX179 Autofocus UVC USB camera module with Single Microphone for Windows, Linux, Android and Mac OS

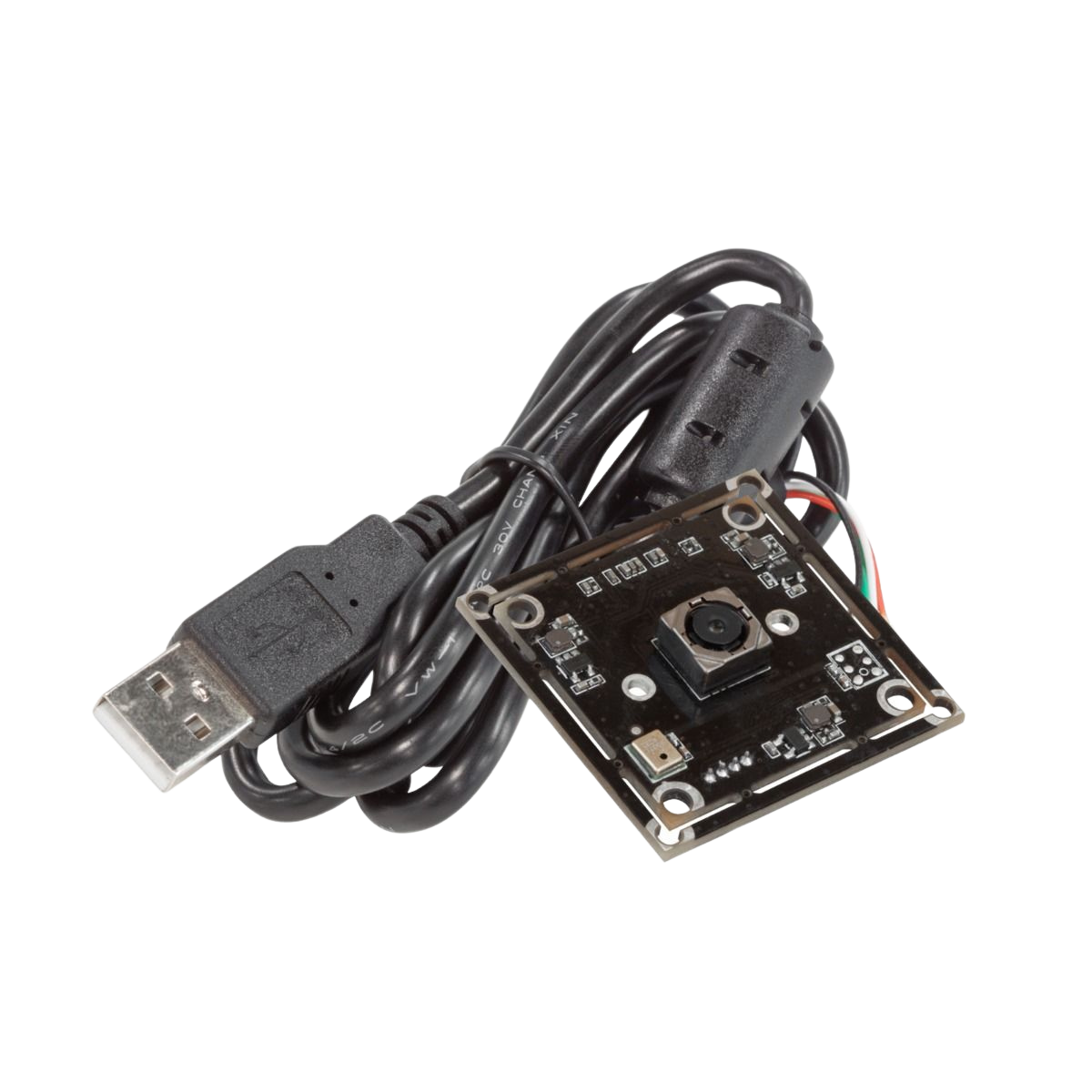

  • Arducam 8MP IMX179 AF USB camera module with USB cable

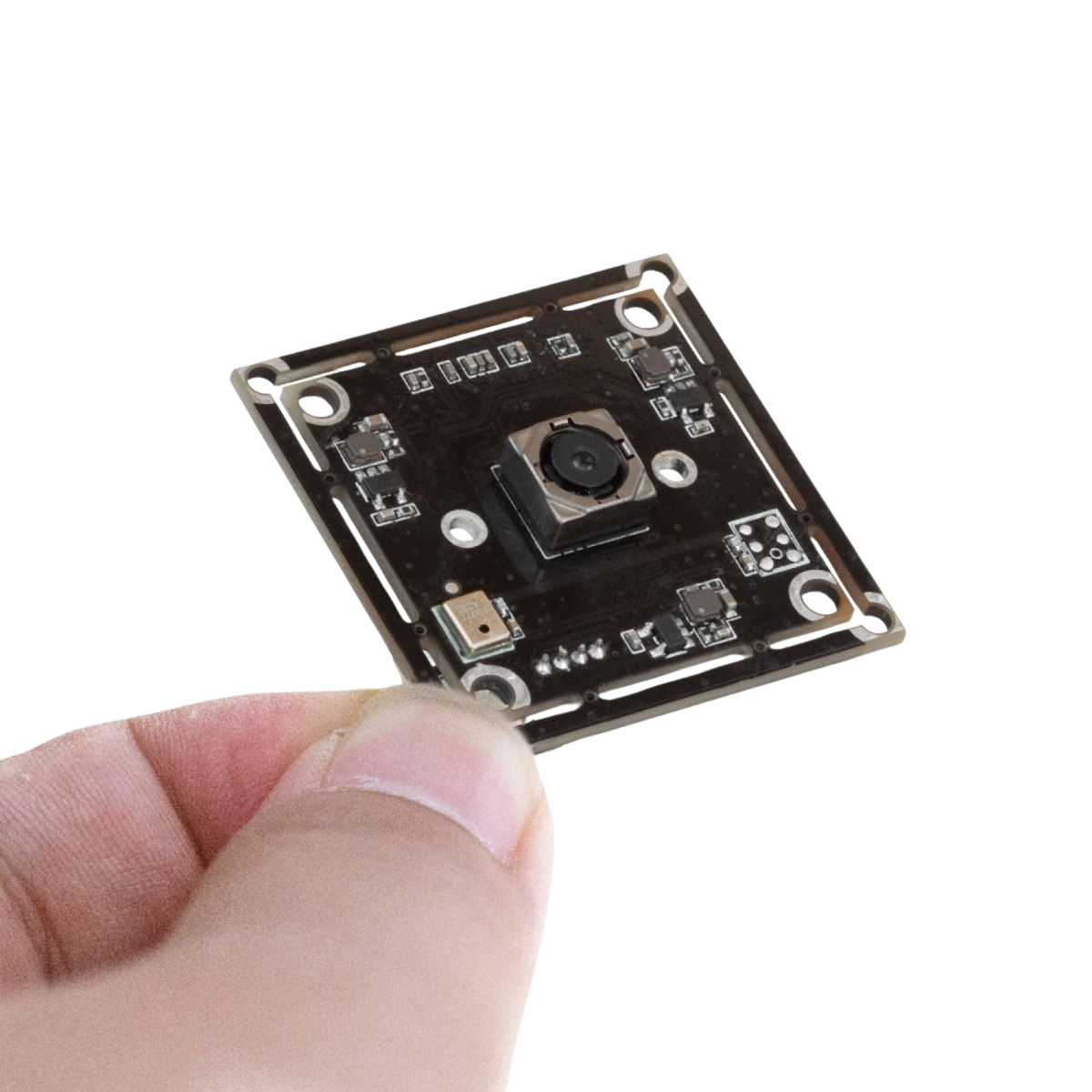

  • Arducam B0447 held in fingers showing small size

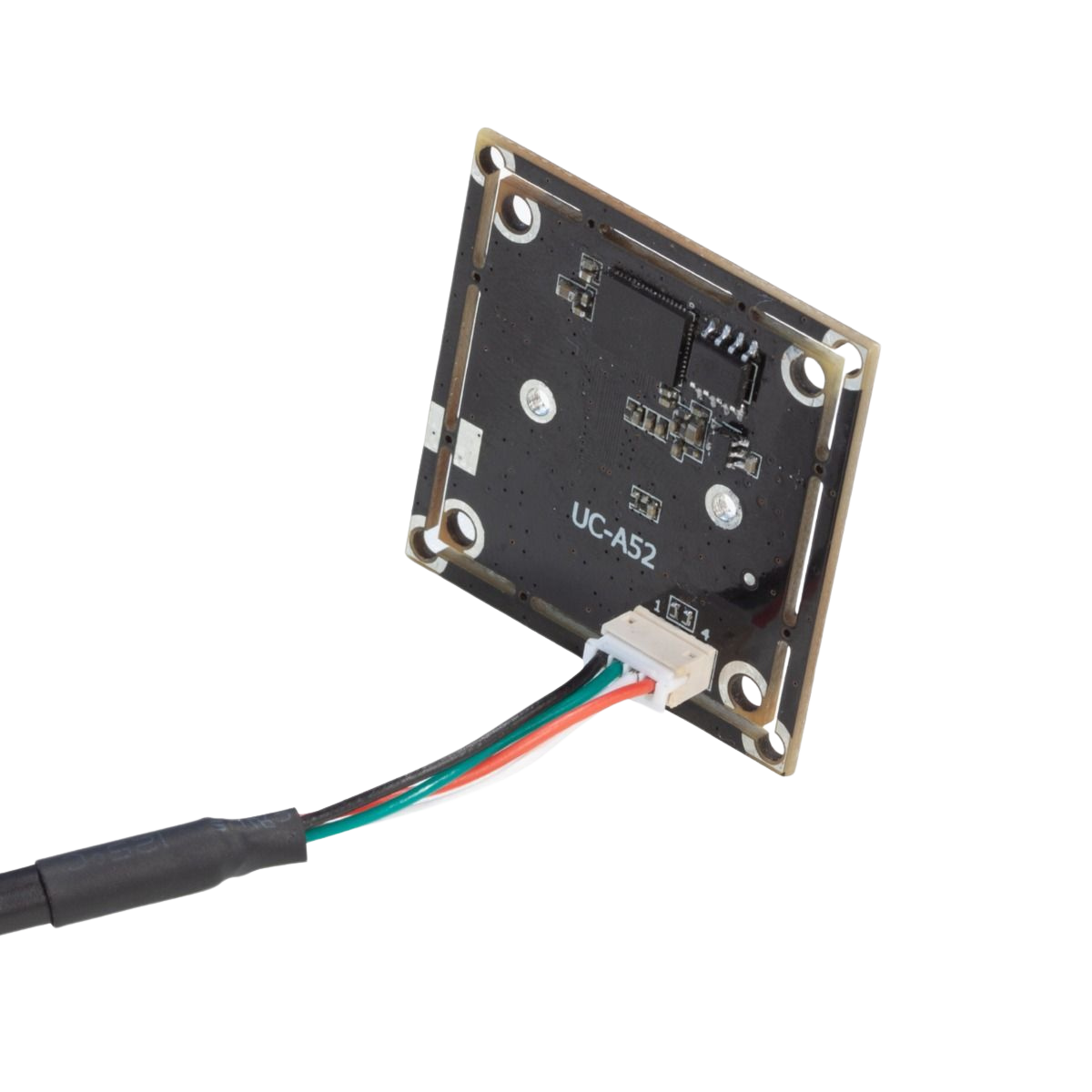

  • Arducam B0447 with USB connected via B4B-ZR connector

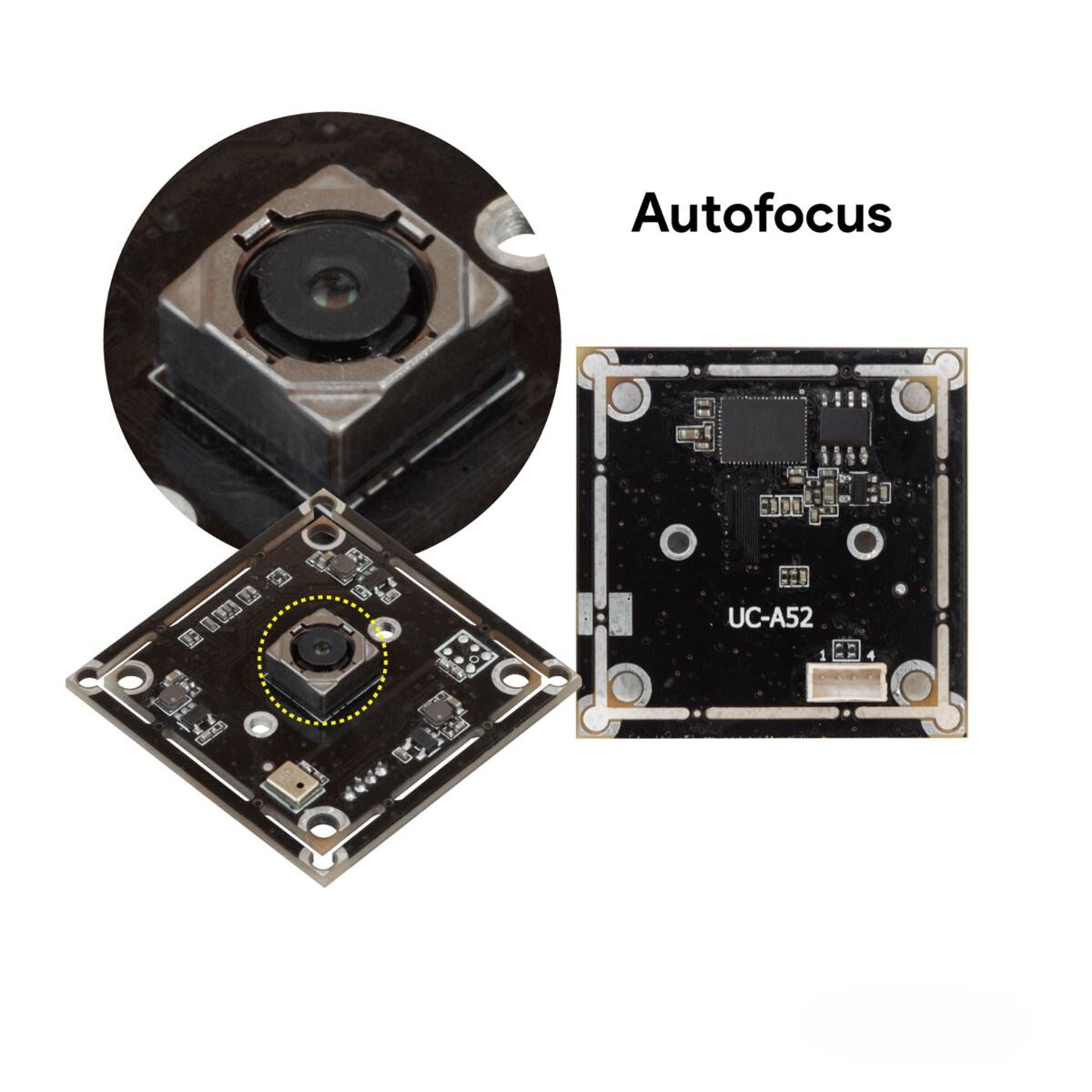

  • Arducam B0447 showing autofocus capability

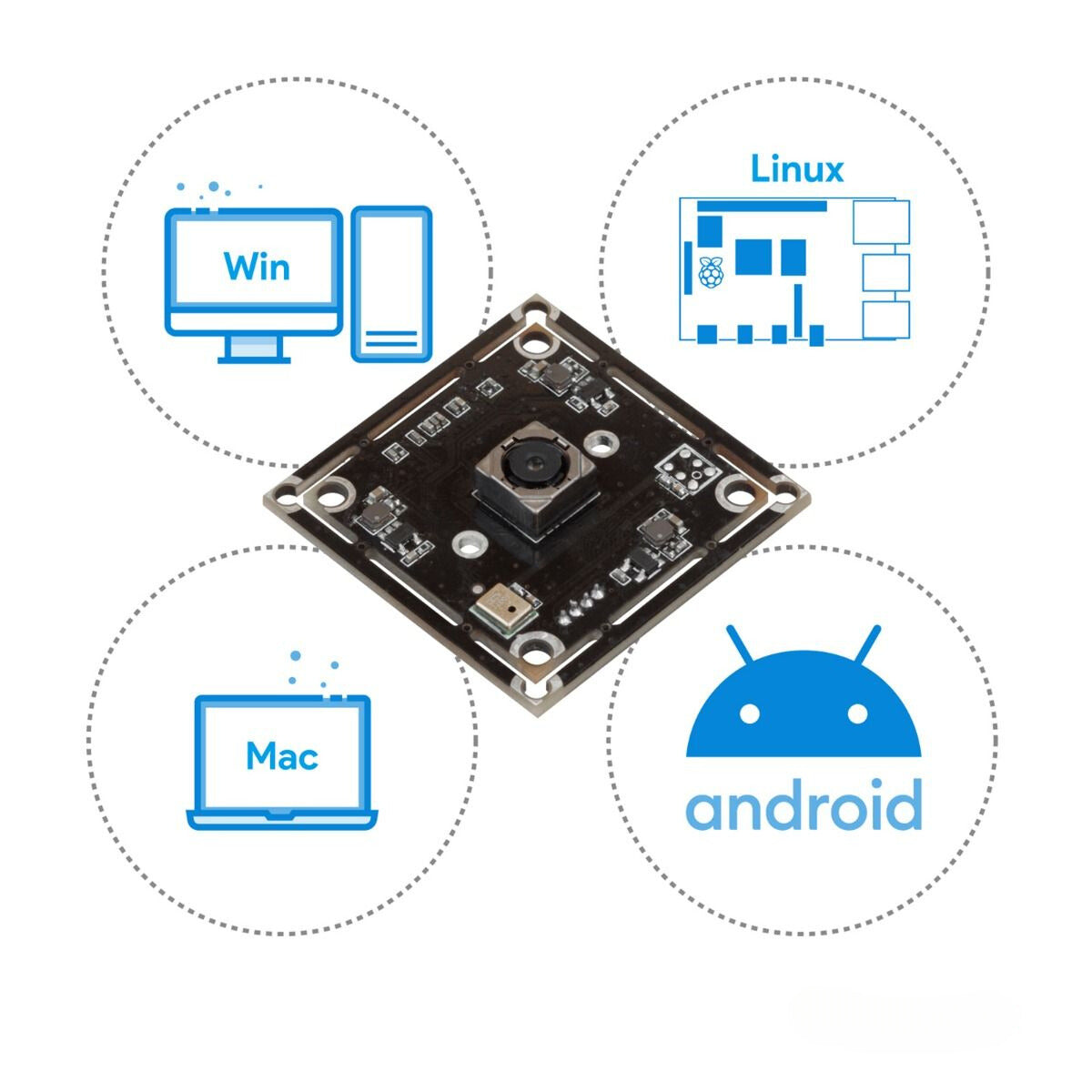

  • Arducam B0447 with the usuable interfaces/operating systems
1 7

Arducam

Arducam 8MP Autofocus UVC Camera Module with Mic

SKU: B0447

£59.00 GBP
£59.00 GBP
Sale Sold out

Specification

B0447C Datasheet

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

Camera Specs
 B0447
Sensor Sony IMX179 CMOS Sensor
Format 1/3.2"
Resolution 8MP 3264×2448
Pixel Size 1.4µm
Output Format YUYV/MJPG
Frame Rates (MJPG)

30fps@3264×2448, 2592×1944, 1920×1080, 1600×1200, 1280×720, 640×480
Frame Rates (YUY2)

1fps@3264×2448, 2fps@2592×1944 5fps@1920×1080, 1600×1200 10fps@1280×720, 30fps@640×480
Lens Type
 Stock Lens
Focus Type AutoFocus
Lens Mount
 M8.5±0.25
F.NO 2.0±5%
Effective Focal Length (E.F.L)
 3.543
Field of View (H) 63°
Interface USB 2.0
Connector B4B-ZR
Shutter Type Rolling
Audio
 Single Microphone
Dimensions 38mm × 38mm
Peaking Current Max 300mA
Operating Temperature
 -4°F-158°F(-20°C to 70°C)
UVC Controls Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp and Gain
Supported Platforms/OS Windows, Linux, Android, and Mac OS

Overview

  • Plug-and-Play: The camera is UVC-compliant and doesn't require any additional drivers
  • Autofocus: Perfect for scenarios where you are required to focus on objects that may be moving

The Arducam B0447 camera module is built with a powerful 8MP Sony IMX179 sensor. This is an ideal camera module for vision solutions requiring easy integration, with more than 1080P resolution, and equipped with a powerful, fast-acting autofocus lens. If your application benefits from the use of audio, the camera is equipped with a single microphone. Finally, the UVC controls empower the device with helpful adjustable features such as brightness, contrast, gamma, saturation, sharpness and more for when the image/video needs to be tailored for the most optimal output.

Package Includes

  • 1 × Arducam 8MP AF Camera Module
  • 1 × USB Cable (1m, USB to B4B-ZR)
  • 1 × Quick Start Guide

Example Applications

  • Surveillance
  • Video System
  • VR Camera
  • Camera for Lightburn Laser Engraver Machine
