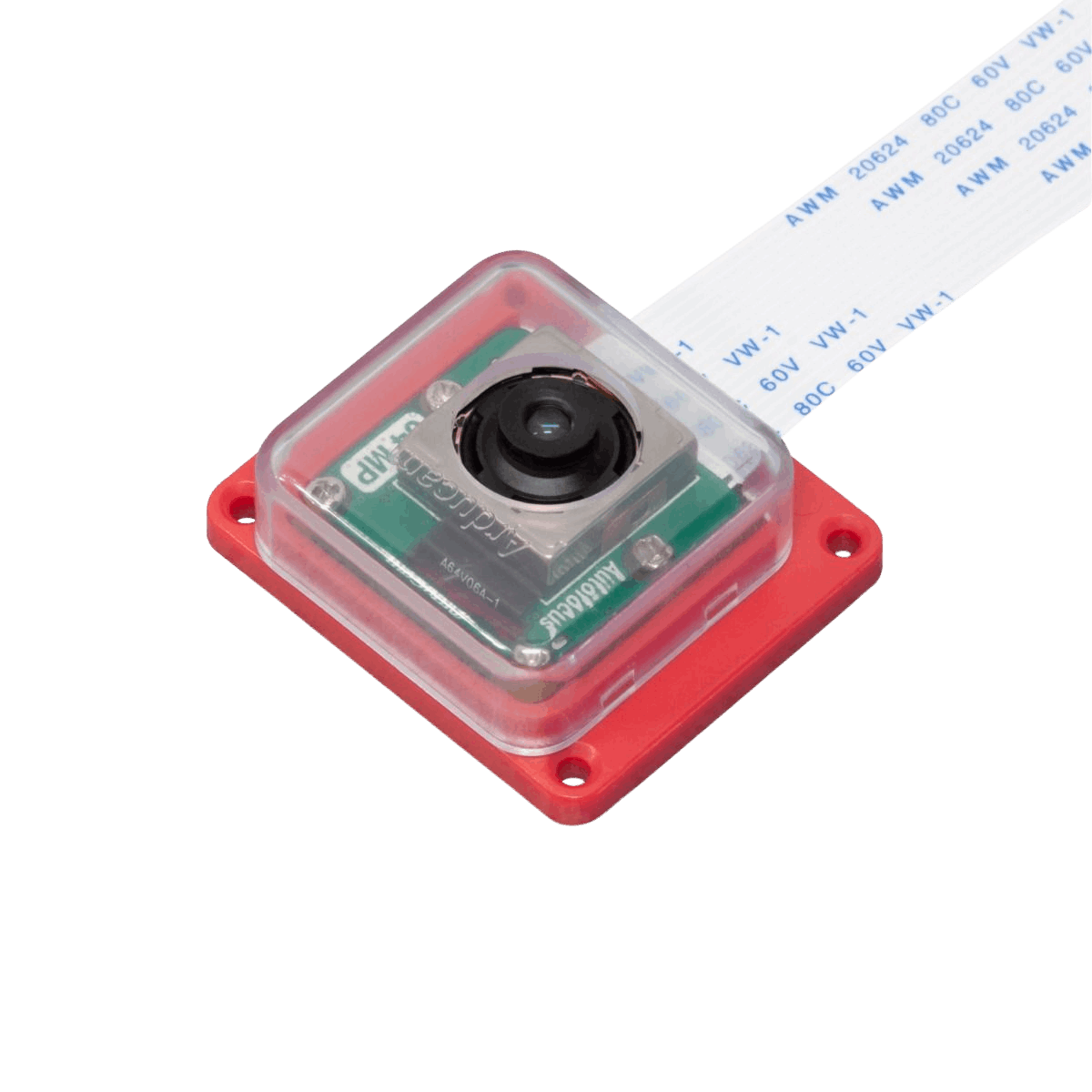

Arducam 64MP 1/1.32" Autofocus Camera Module for Raspberry Pi

Name: Arducam 64MP 1/1.32" Autofocus Camera Module for Raspberry Pi
Brand: Arducam
SKU: B0483
Price: 59.99 GBP
Availability: InStock

SKU: B0483

£59.99 GBP

Sale Sold out

Product variants

Quantity

Specification

B0483

Dimensions

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Specification

Camera Specs	B0483
Sensor	Omnivision OV6A40 Sensor
Sensor Size	1/1.32"
Resolution	64MP 9248 × 6944
Pixel Size	1.008 µm × 1.008 µm
Video Modes (on Raspberry Pi)	1080p30, 720p60 and 640×480p60/90
Video Modes (Camera Module)	9152×6944@2fps, 8000×6000@2.5fps, 4624×3472@7.6fps, 3840×2160@14.8fps, 2312×1736@26.7fps, 1920×1080@45fps
Output Format	JPEG/YUV/RGB/RAW10
Field of View (FOV)	84°(D) × 68°(H) × 56°(V)
Focus Type	Automatic, Manual and Continuous
Focal Length	6.65mm
IR Sensitivity	Integral IR-cut Filter, visible light only
Lens Type	Stock Lens
F.NO	F1.9
Default Focus Range	12cm~∞

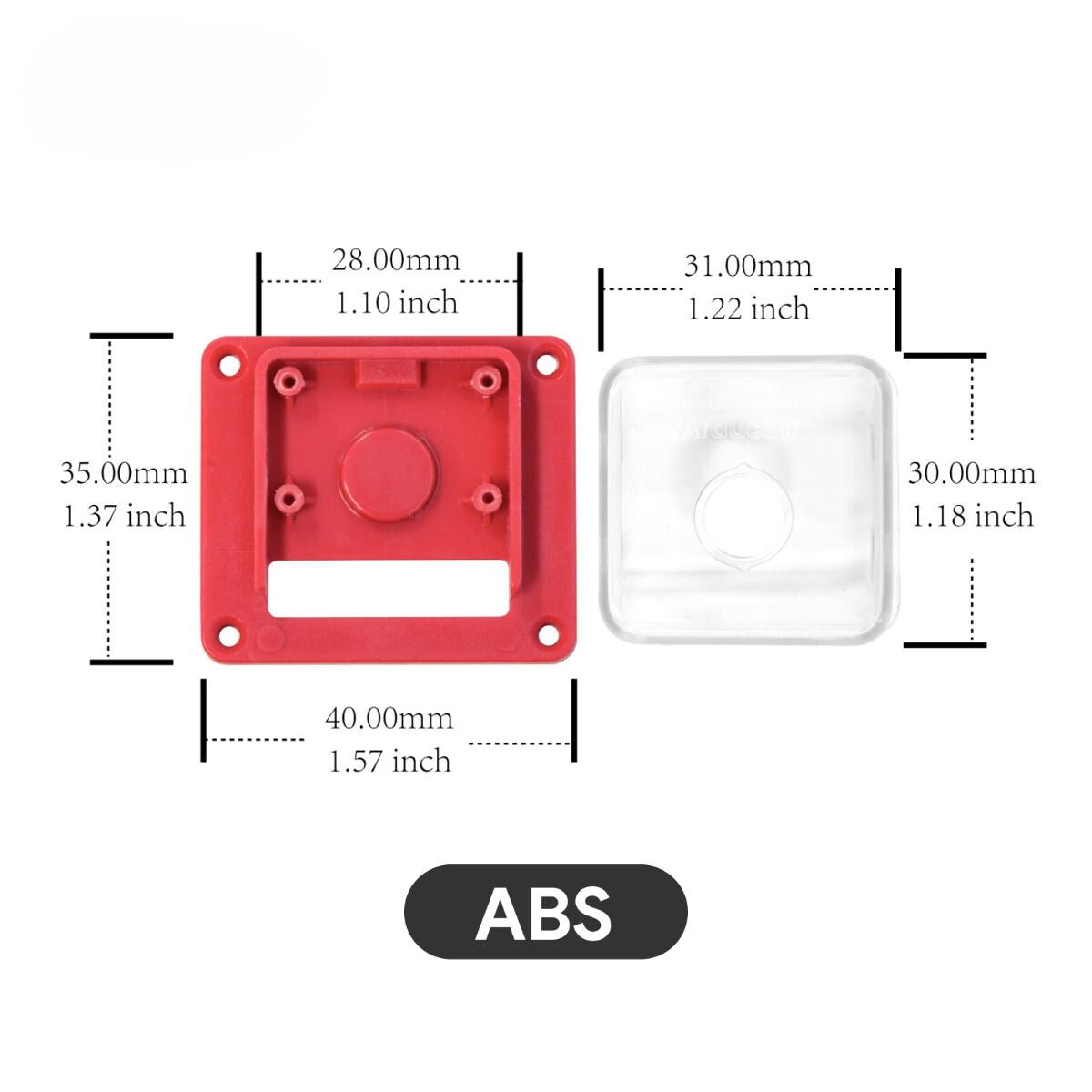

Dimension	25 × 24mm
Supported Platforms	Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W

Overview

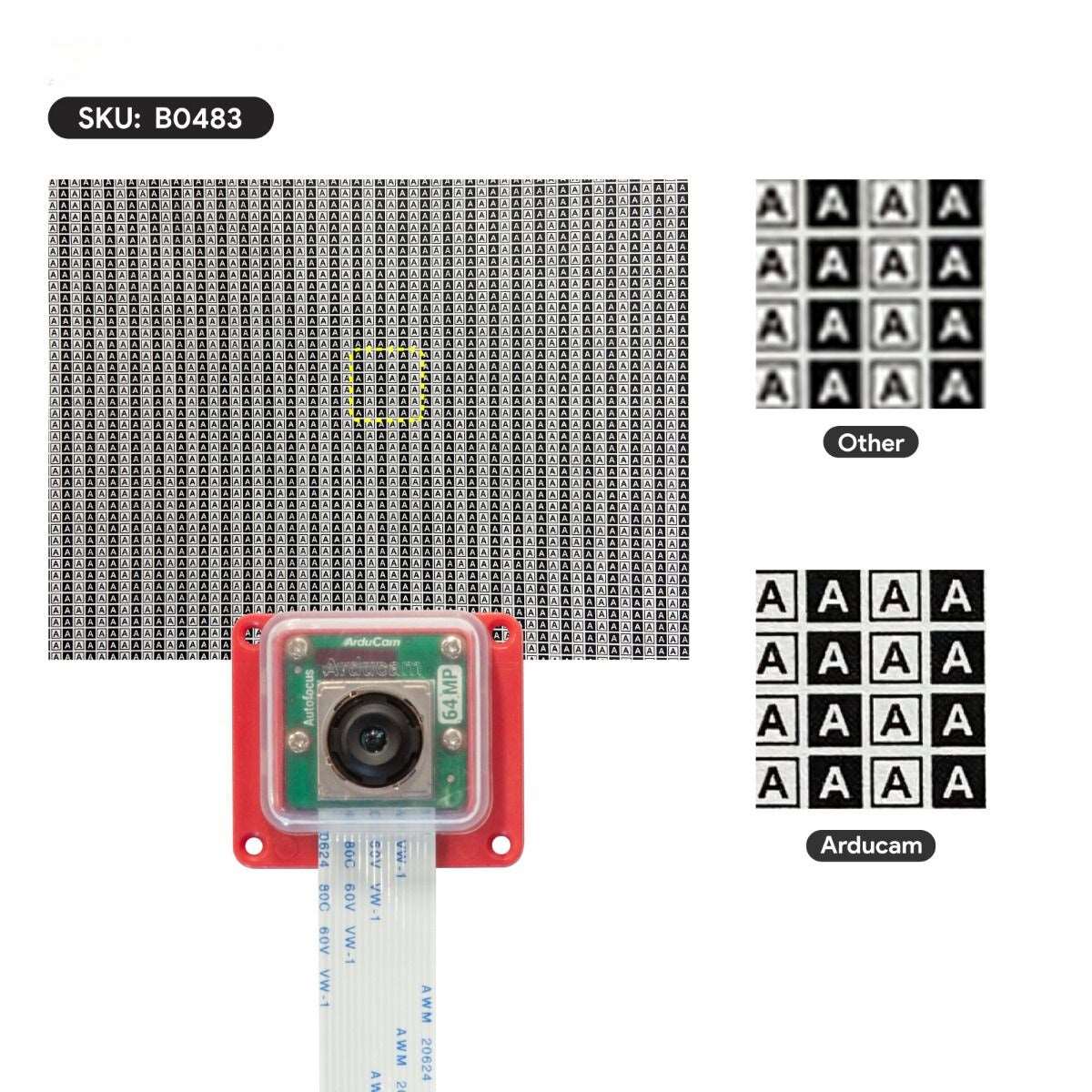

Powerful Digital Focus: Up to 10x digital zoom and an exposure time of up to 900s at max resolution
Ultra-high Resolution: It contains the largest sensor in a Raspberry Pi camera, with 64MP.
IR Sensitivity: Integral IR-CUT filter to keep only the visible light
Seamless Integration: Native to Raspberry Pi and doesn't require any additional drivers (Debian version: 11 'bullseye')

Arducam raises the bar with its latest 64MP camera, setting new standards for Raspberry Pi cameras. This camera stands out with its impressive sensor size, the largest available in the Raspberry Pi market. It delivers stunning image quality with a resolution of 9248 x 6944 pixels. Additionally, it offers a remarkable 10x digital zoom, allowing users to capture subjects at different distances while maintaining flexibility in framing. Moreover, the camera boasts a maximum exposure time of up to 900s at its highest resolution, ensuring exceptional performance even in challenging lighting conditions. Its sensor size empowers the camera with outstanding light-sensitive capabilities.

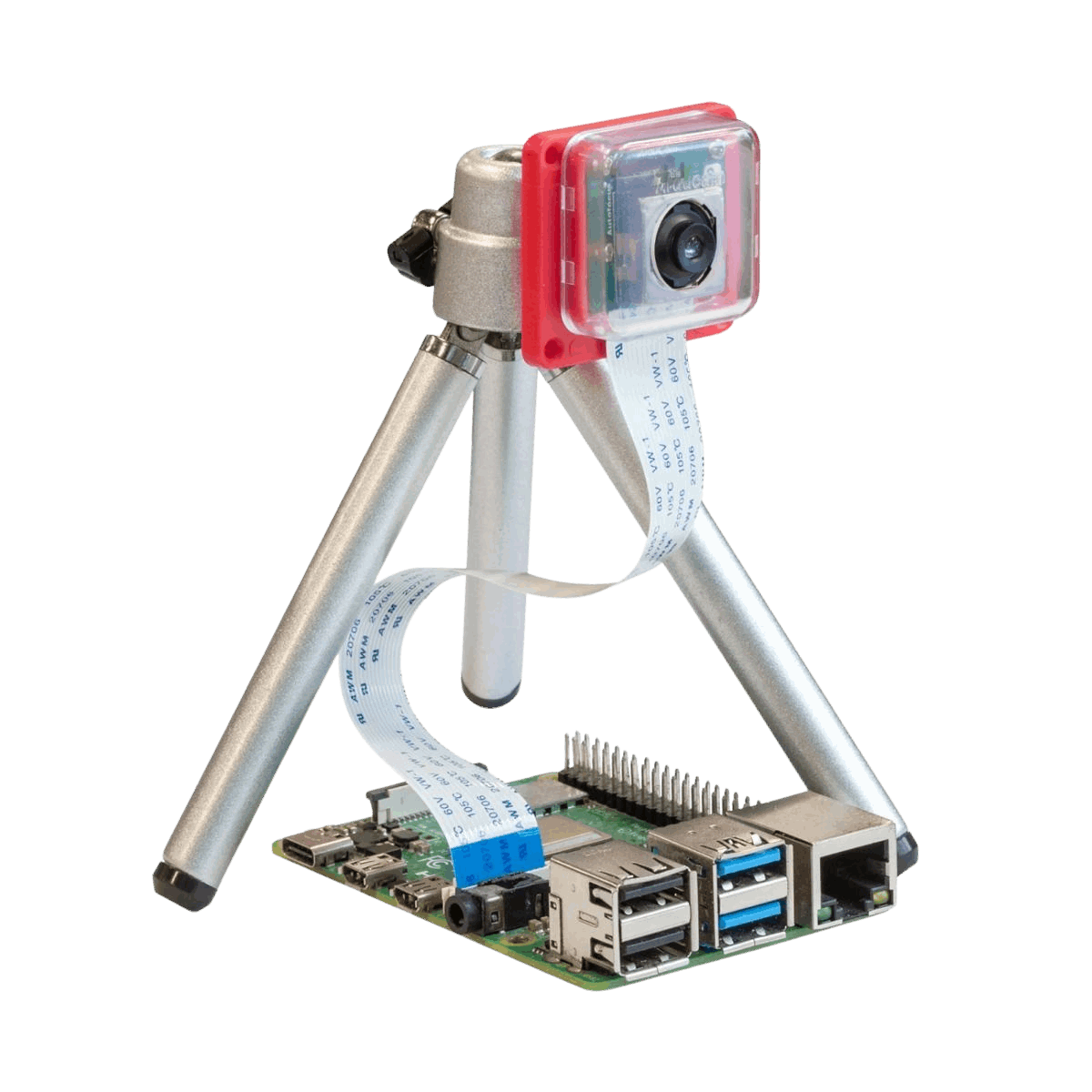

This camera provides effortless integration with libcamera, ensuring a smooth and trouble-free experience for Raspberry Pi users. There is no requirement to modify any configuration files as it offers a true plug-and-play solution straight out of the box.

The camera offers a range of focus choices, such as auto-focus, manual focus, and continuous focus. Whether you desire precise control over focus or prefer a more hands-off approach, this camera can accommodate your individual requirements.

Important Notes

This camera module supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps.
Raspberry Pi 2/3/Zero W may not be able to enable maximum resolution due to RAM. Please make sure your platform has RAM greater than or equal to 1G. Capturing maximum resolution on the Pi 4 and CM4 may be impacted by CMA, which can be fixed by switching the GUI mode to terminal mode.
