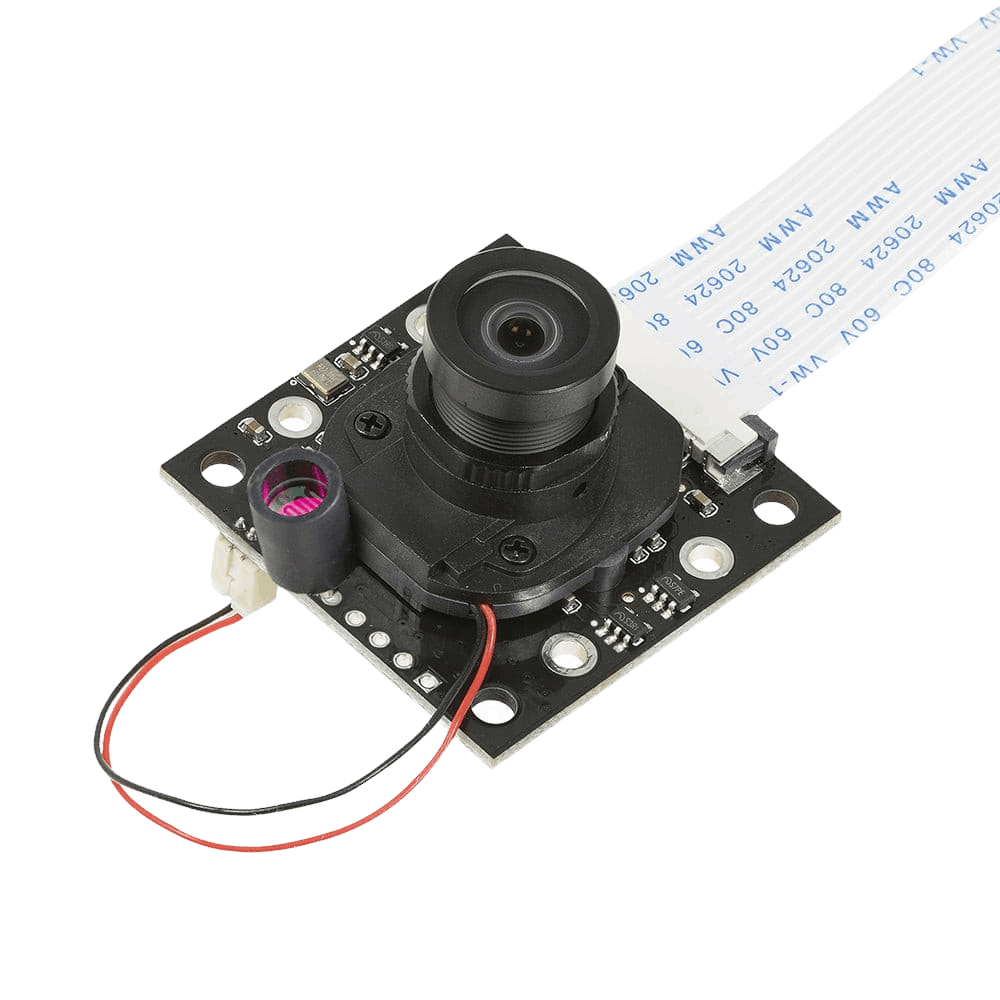

Arducam 5MP NoIR Camera Module with Motorised IR-cut Filter for RPi

SKU: B0151

Regular price $46.00 USD
Regular price Sale price $46.00 USD
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

 Specification

Camera Specs
B0151
Sensor Omnivision OV5647 sensor
Sensor Size
1/4” (OV5647)
Resolution
5MP 2592 × 1944
Video 1080p 30 fps, 720p 60fps, 480p 90fps
Focus Type Manual Focus
Lens Type M12 Lens
IR Sensitivity
Motorised IR-cut filter
Peak Current
300mA
Dimension 36mm × 36mm
Supported Platforms Raspberry Pi 4, 3B+, 3, 2, B+, B, A,

Overview

  • Interchangeable M12 Lens: You can replace the M12 lens to tailor your optics for your chosen application/solution

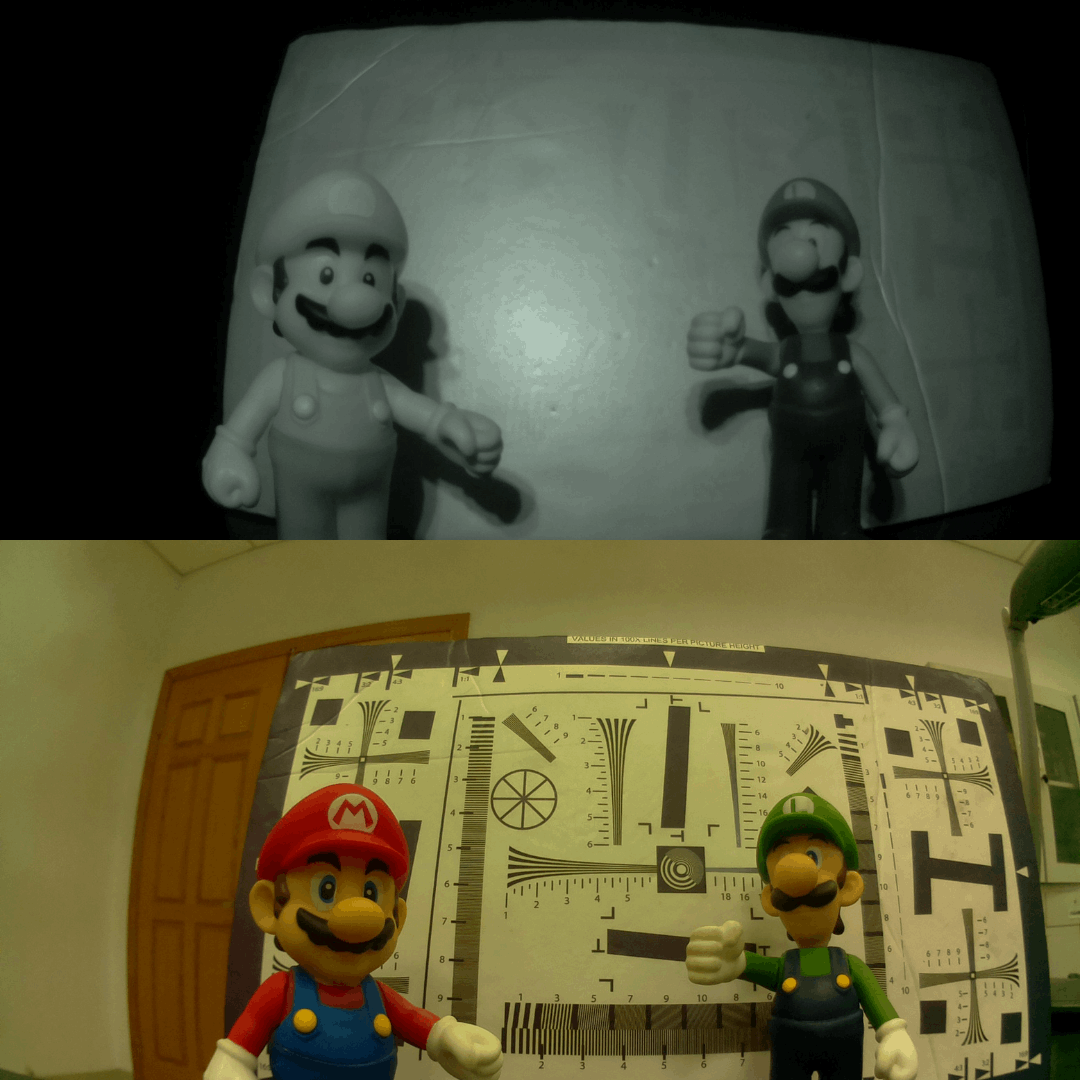

  • Motorised IR-cut Switch: equipped with an onboard motorized IR cut filter, supporting visible and night vision capabilities.

This camera has been specifically designed for night vision purposes. The Arducam OV5647 day and night camera can meet your needs in various lighting conditions. Its unique technology enables automatic IR-cut switching throughout the day. Additionally, it comes with a M12x0.5 Mount LS1820 Lens, which can be interchanged if required.

The utilisation of Raspberry Pi in various projects has been extensive. However, certain users encountered difficulties when employing the camera in low light conditions alongside an Infrared light source. Regrettably, the Raspberry Pi camera module incorporates an Infrared filter, rendering it unsuitable for their specific undertaking. As a solution, we have developed a specialised camera module known as the Pi NoIR camera, tailored specifically for such projects. This camera module is identical to the standard version, except it has a motorised IR-cut filter to enable seamless filter switching.

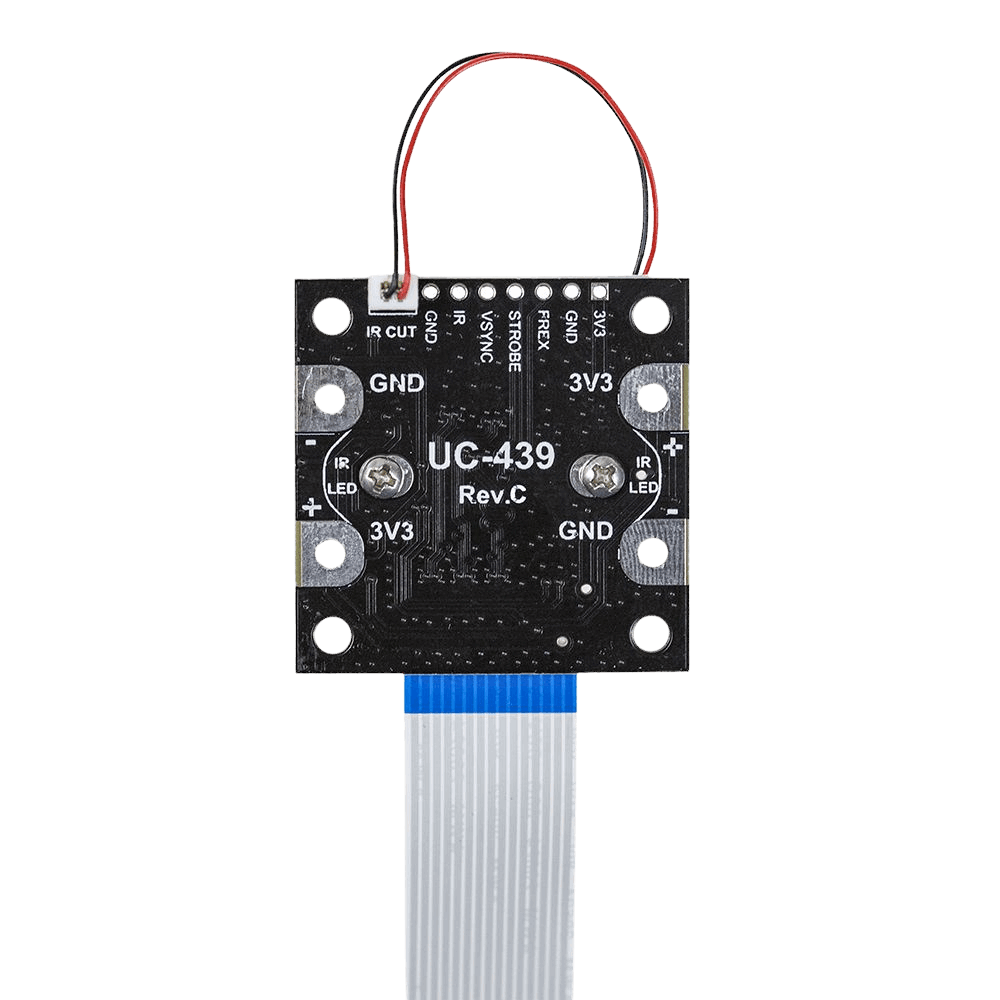

The connection to Raspberry Pi is established through one of the two compact sockets located on the upper surface of the board. These two sockets are 2 × 4-lane MIPI DSI/CSI connectors, which are specifically designed for integration with cameras.

Documentation

OV5647 Datasheet

Package Contents

  • 1 × 5MP OV5647 NoIR Camera Module with Motorised IR-cut filter & M12x0.5 mount lens LS1820 for Raspberry Pi
  • 1 ×15cm 15pin FPC cable

Example Applications

  • Mobile Phones, Tablets, Toys
  • Other battery-powered products
  • Robot Vision, Machine Vision
  • Various Raspberry Pi platforms
  • Digital still cameras and more
