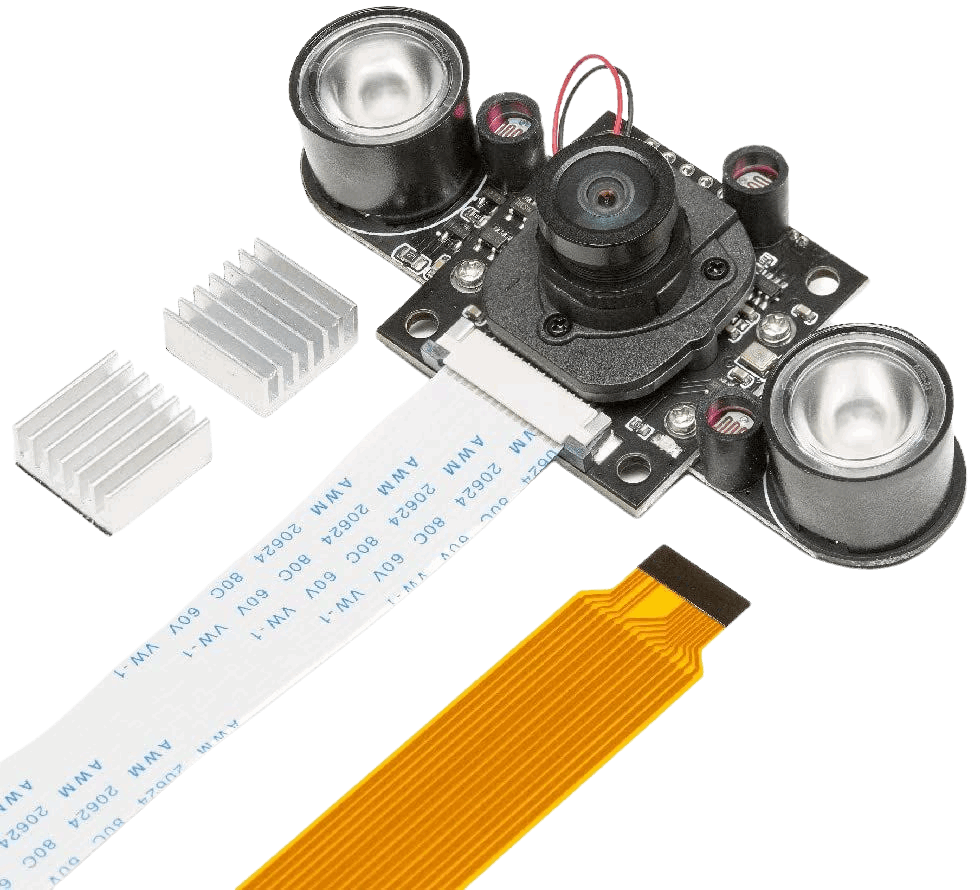

• Image of Arducam B003504 Camera Module with Motorised IR-Cut filter

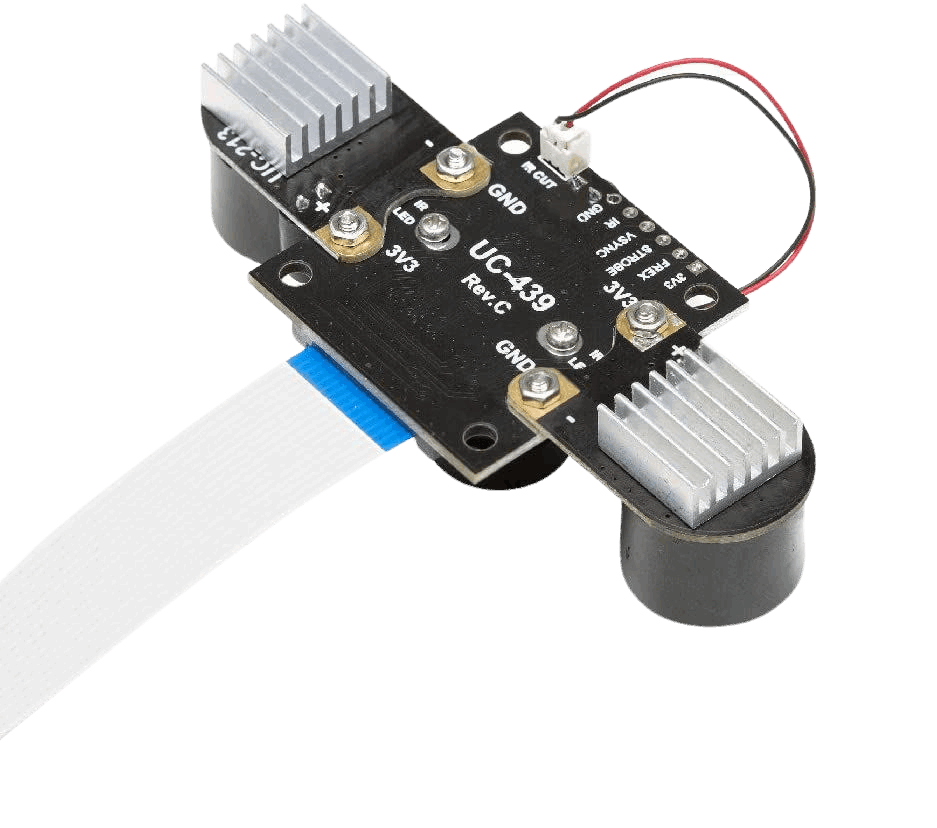

  • Image of Arducam B003504 Camera Module with Motorised IR-Cut filter viewed from below

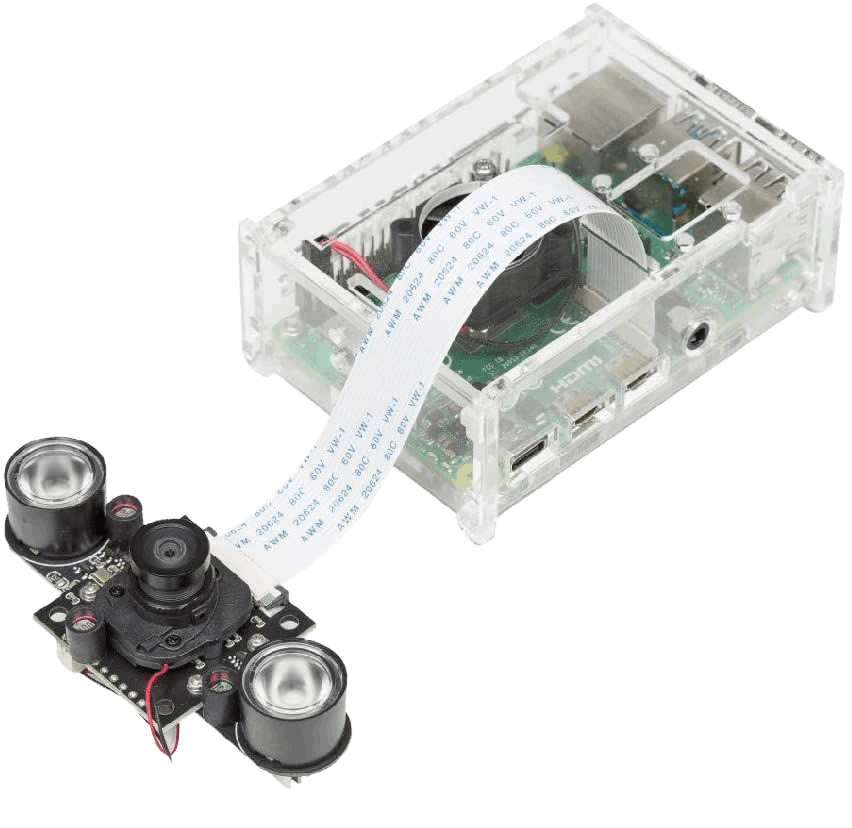

  • Image of Arducam B003504 Camera Module with Motorised IR-Cut filter connected to Raspberry Pi

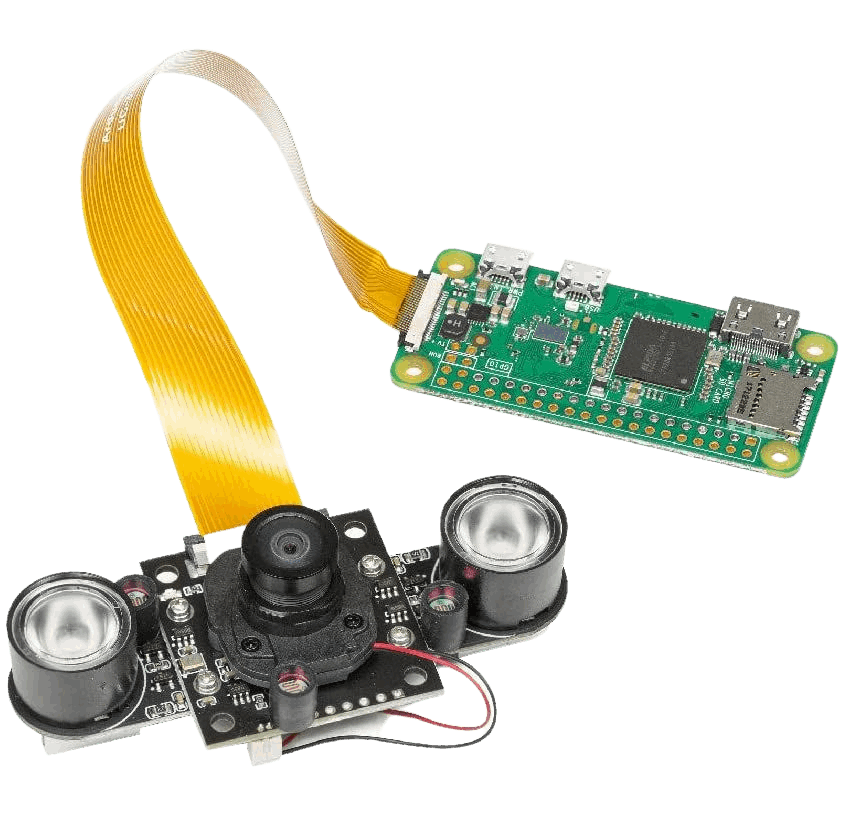

  • Image of Arducam B003504 Camera Module with Motorised IR-Cut filter connected to Raspberry Pi Zero

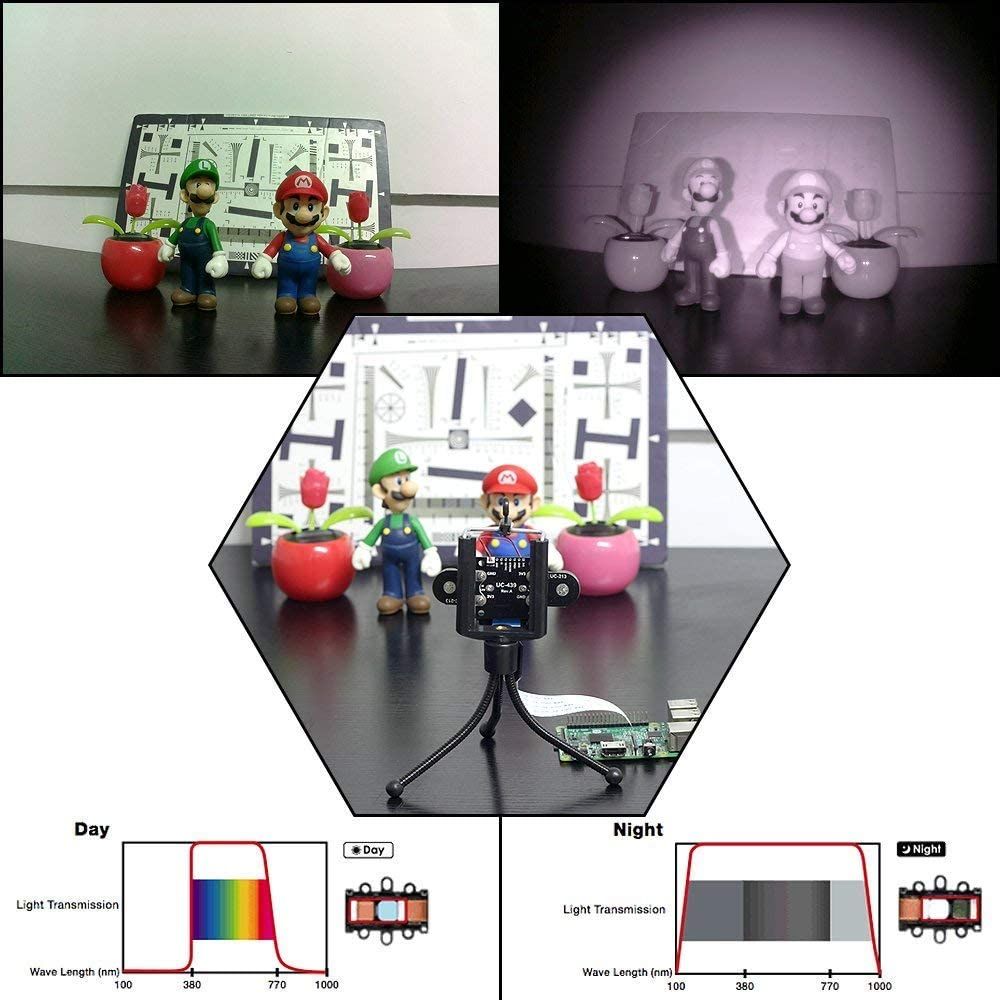

  • Example images using the Arducam B003504 camera
1 6

Arducam

Arducam 5MP Camera Module with Motorised IR-Cut Filter for RPi

SKU: B003504

£28.00 GBP
£28.00 GBP
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Specification

Camera Specs
 B003504
Sensor Omnivision OV5647 sensor
Sensor Size
 1/4” (OV5647)
Resolution
 5MP 2592×1944
Video 1080p 30fps, 720p 60fps, 480p 90fps
Field of View (FOV)
 130°(D), 105°(H)
IR Sensitivity Motorised IR-Cut Filter
Lens Type M12 Lens
Pixel Size 1.4μm
Focal Length
 2.25mm
Power Output
 3.3V power output for IR LED
Peaking Current 300mA
Focus Distance 30cm to ∞
Dimension 36×36 mm, 4 screw mounting holes
Supported Platforms Raspberry Pi 4, 3B+, 3, 2, B+, B, A, Zero and Zero W

Overview

  • Seamless Integration: Native to Raspberry Pi and doesn't require any additional drivers
  • Up-to-date: Supports the latest Raspberry Pi Bullseye OS and libcamera applications
  • For Daylight and Nightime: Using the motorised IR-Cut filter you can use this camera in the daytime and nighttime
  • Low-dispersion glass: By focusing various wavelengths of light onto a single image plane, it significantly minimises the occurrence of focus shift and chromatic aberration

This Raspberry Pi video camera boasts a 5MP sensor equipped with an IR cut filter and two infrared LED illuminator boards, the camera automatically switches between modes depending on the lighting environment. which enables it to capture high-quality images in both daylight and low-light conditions.  It is compatible with all Raspberry Pi board versions, including Pi3 and Pi Zero, making it a versatile tool for various applications such as wildlife photography and agriculture NDVI analysis.

Documentation

User Guide for B003504

Package Contents

  • 1 × 5MP Motorised IR-Cut Camera for Raspberry Pi
  • 2 × Infrared LED Board
  • 2 × Heat Sink
  • 1 × 15cm (5.9 inch) flat ribbon cable 15pin 1.0mm pitch to 15 pin 1.0mm pitch
  • 1 × 15cm (5.9 inch) flat ribbon cable 15 Pin 1.0mm pitch to 22 pin 0.5mm pitch

Example Applications

  • Home Surveillance
  • Battery-powered products
  • Wildlife Photography
  • Various Raspberry Pi platforms
  • NDVI in agriculture and more
