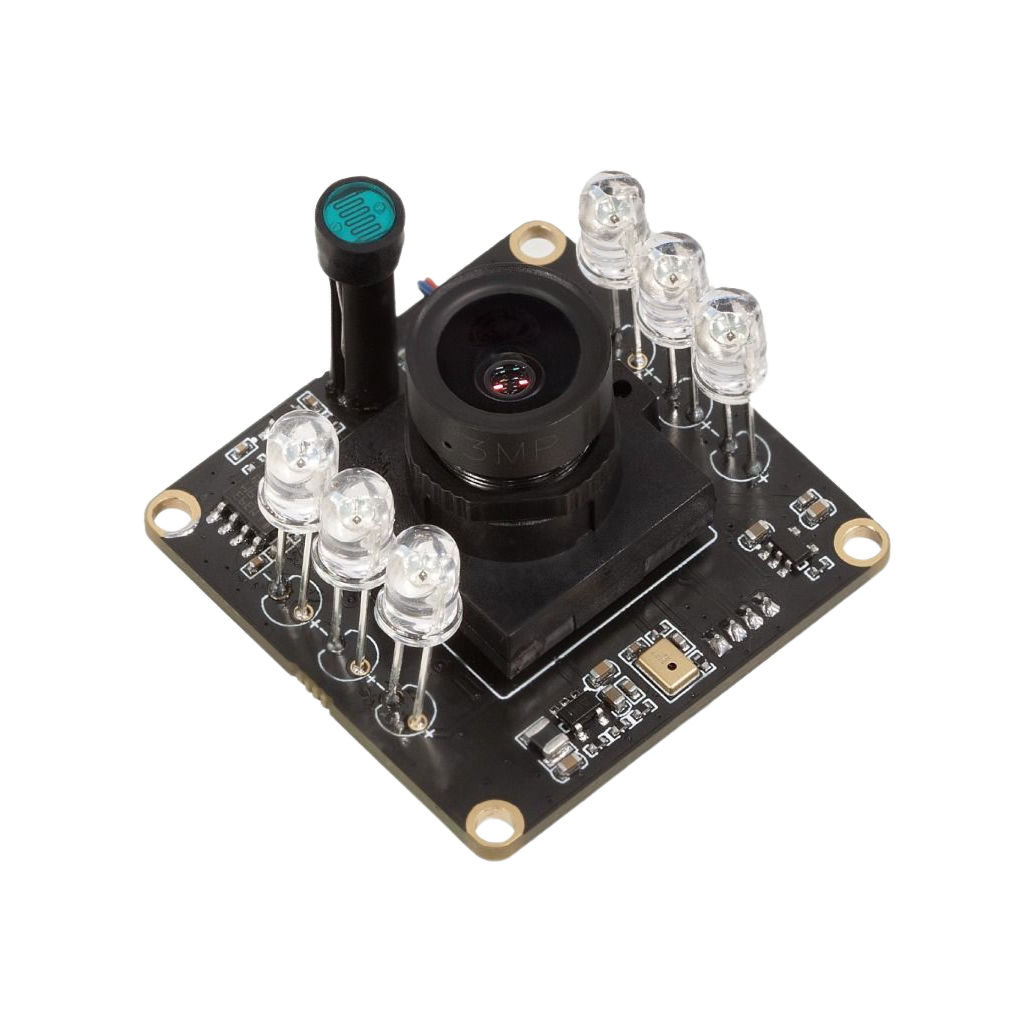

Arducam 2MP Day/Night Infrared UVC Camera with Automatic IR-Cut Switching & LEDs

SKU: B0506

Regular price £35.00 GBP
Regular price Sale price £35.00 GBP
Sale Sold out

Shipping & Returns


Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.


If you would like to return or have any questions about your returning your item, please contact


Camera Specs
Sensor OV2710
Sensor Size
2MP 1920×1080
Frame Rate (MJPG) 30fps@320*240, 352*288, 640*480, 800*600, 1024*768, 1280*720, 1280*960, 1280*1024, 1920*1080
Frame Rate (YUY2) 30fps@320*240, 352*288; 15fps@640*480; 20fps@800*600; 10fps@1024*768, 1280*720; 5fps@1280*960, 1280*1024, 1920*1080
Colour Filter Type Colour / Monochrome
Pixel Size 3μm
Field of View (FOV)

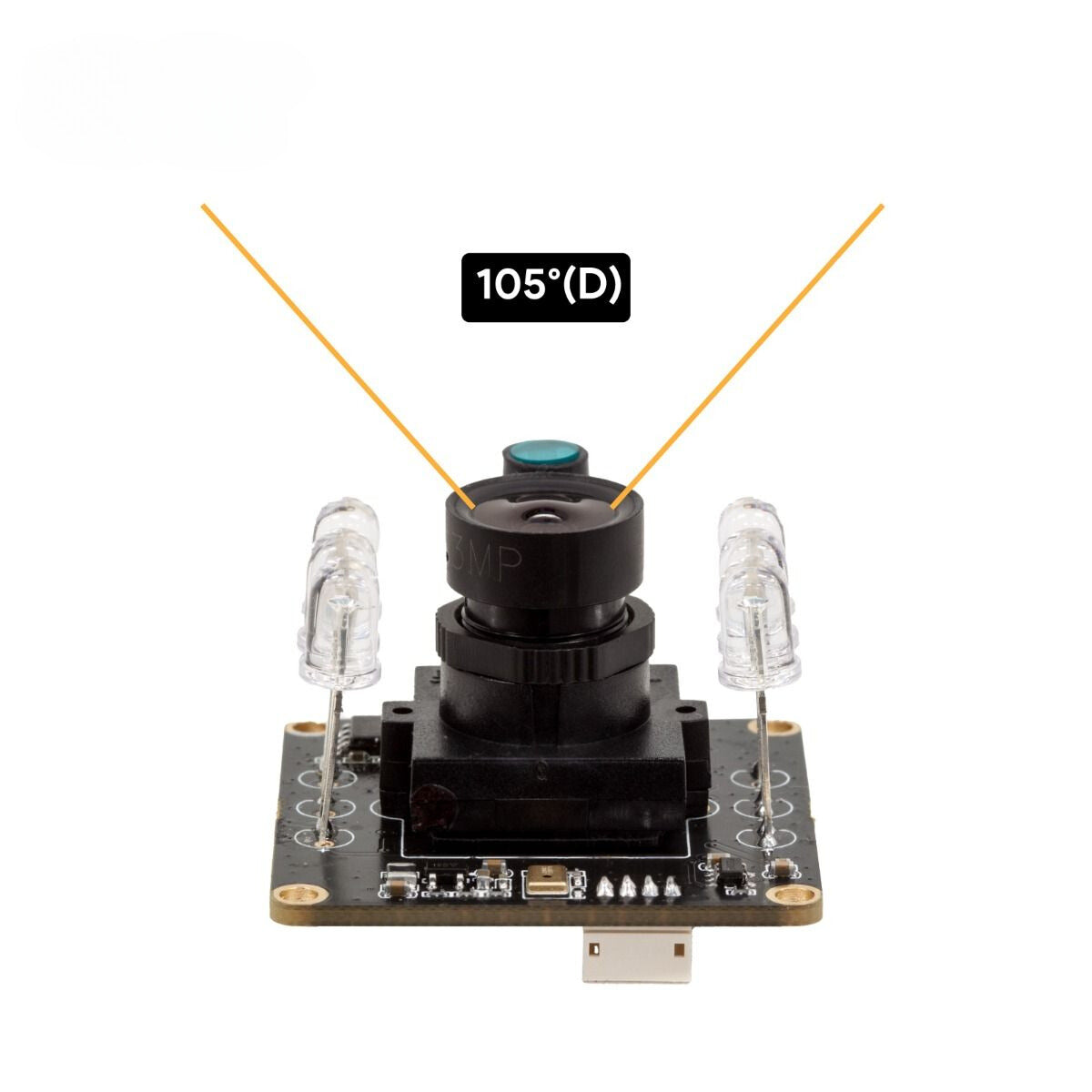

105°(D) × 92°(H) × 76°(V)
Focus Type Manual Focus
F Number
Focus Distance 2m - ∞ (Infinity)
Effective Focal Length 4.3±5%
Lens Mount
M12 Lens (S-Mount)
Shutter Type
IR Sensitivity
Integral IR-Cut Filter (Only sensitive to visible light during the day, sensitive to IR at night with 850 IR LEDs on)
Interface USB 2.0
Connector B4B-ZR
Audio Single Microphone
Supported OS Windows, Linux, Android and MAC OS
Recommended Sample Application Amcap for Windows
UVC Controls Brightness, Hue, Contrast, Saturation, Sharpness, Gamma, White Balance (Manual/Auto), Gain, Backlight Comp, Exposure (Manual/Auto)

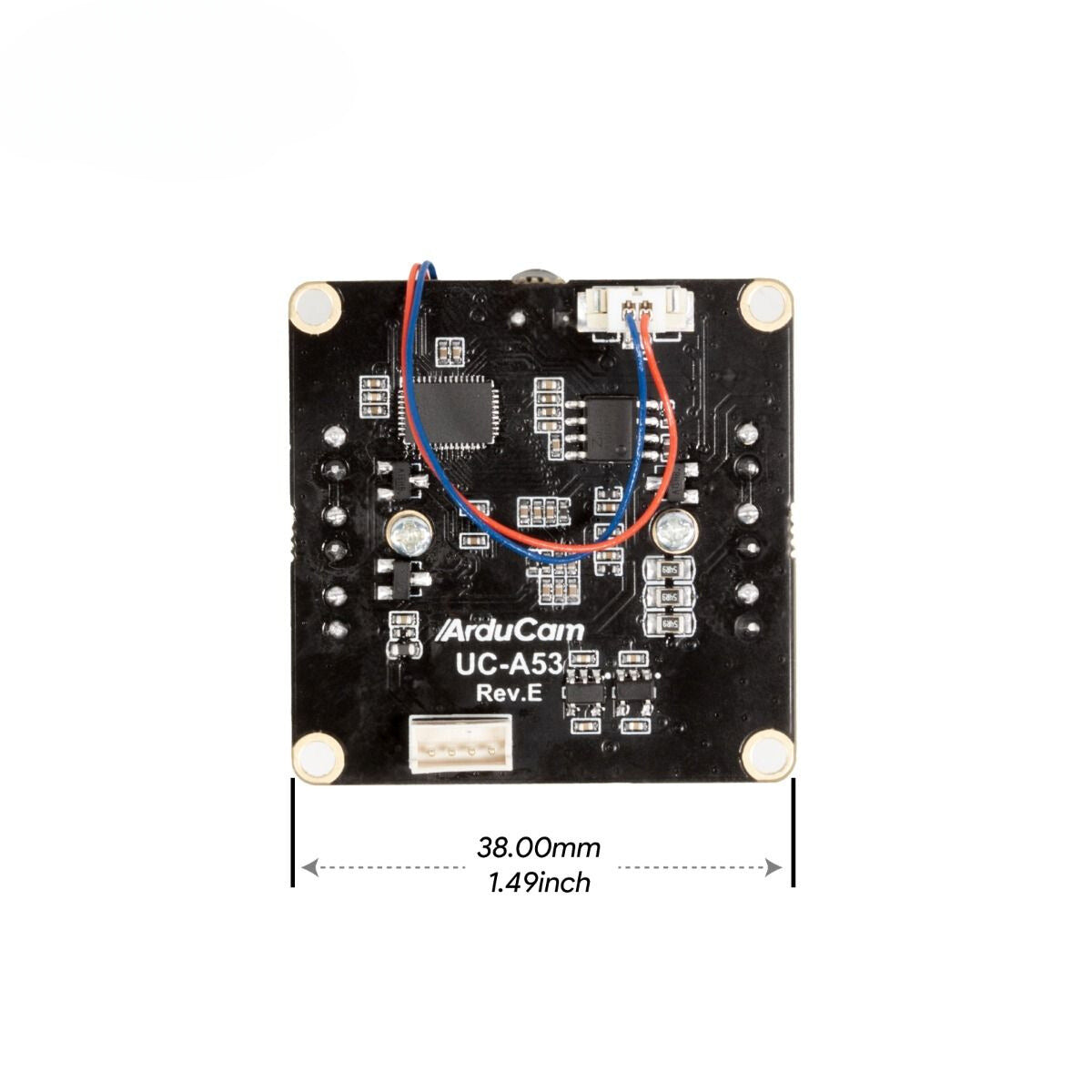

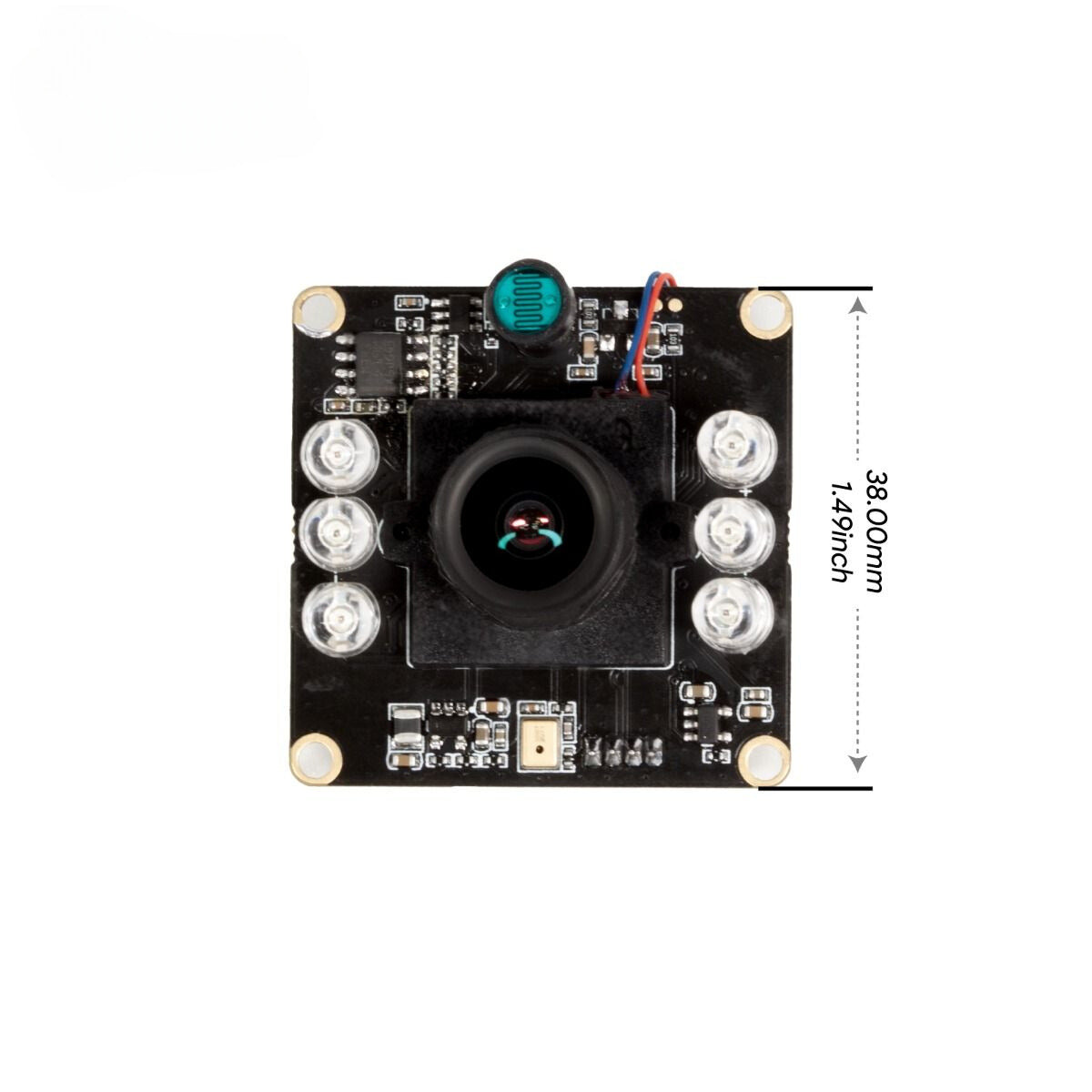

Dimension 38mm × 38mm


  • UVC-Compliant: Plug-and-Play, and can be connected to a PC, laptop, Android device, or Raspberry Pi for flexible surveillance options.
  • Wide-Angle Lens: The 105-degree starlight lens, featuring an F1.6 aperture, is able to capture even the most intricate details.
  • Day and Night Vision: The low light conditions are no longer a hindrance with the presence of 6pcs of 850nm IR LEDs and a photoresistor, ensuring clear imagery.

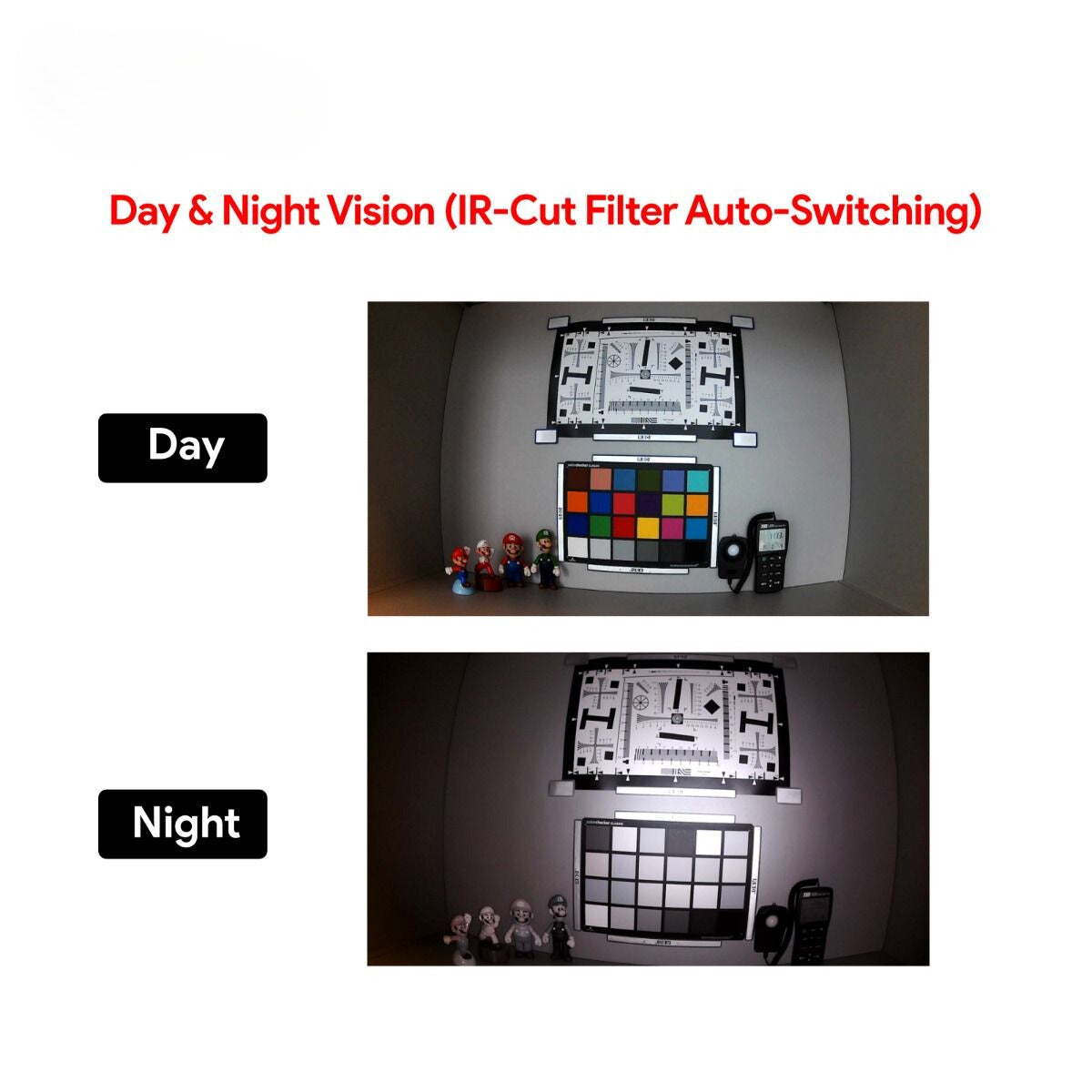

  • Automatic IR-Cut Switching: Enhanced vision with seamless transitions between day and night.
  • Developer-friendly SDK: Use the SDK & API for easy integration

Presenting the newest addition to the Arducam USB2.0 camera lineup, this is a innovative device equipped with a 1/2.7" CMOS OV2710 sensor. The camera guarantees a smooth video capture at 30 frames per second in 1080P resolution. With its remarkable ability to deliver high-quality imagery day and night, you can rely on this camera to provide clear and sharp visuals at all times.

With a built-in IR LED and photoresistor, it smoothly switches between day and night modes, activating IR light automatically to enhance low-light performance. Paired with its starlight-rated wide-angle M12 lens, it enhances light capture for more advanced surveillance abilities.

No need to worry about installing drivers anymore. Just connect this mini USB camera to your PC, laptop, Android device, or Raspberry Pi using a USB cable. It's a versatile and adaptable camera that's ideal for various purposes such as home surveillance, monitoring 3D printers, video conferencing, using as a dashcam, and much more.


Datasheet for B0506
Quick Start Guide

Package Includes

  • 1 x Arducam 2MP USB2.0 Day/Night Infrared Camera
  • 1 x 1m USB 2.0 Cable

Example Applications

  • Animal Monitoring
  • Video Surveillance
  • 3D Scanning and Metrology
  • Dashcam
