Arducam 1MP NoIR Camera Module For Raspberry Pi
SKU: B0165
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Specification
| Camera Specs |
B0165 |
|---|---|
| Sensor | Monochrome, Global Shutter, Omnivision OV9281 Sensor |
| Sensor Size |
1/4" |
|
Resolution |
1MP 1280×800 |
| Video | 1280×800@120fps |
| Field of View (FOV) |
75°(D), 67°(H), 42°(V) |
| IR Sensitivity | NoIR, IR sensitive |
| Lens Type | M12 Lens |
| Focus Distance | 30cm to ∞ |
| Focus Type | Manual Focus |
| Pixel Size | 3μm |
| Focal Length |
2.8mm |
|
F.NO |
F2.8 |
| Output Format | 8/10-bit BW RAW |
|
Default Lens |
Low distortion M12 lens (Part Number: M27280M07S) |
| Dimension | 40mm x 40mm |

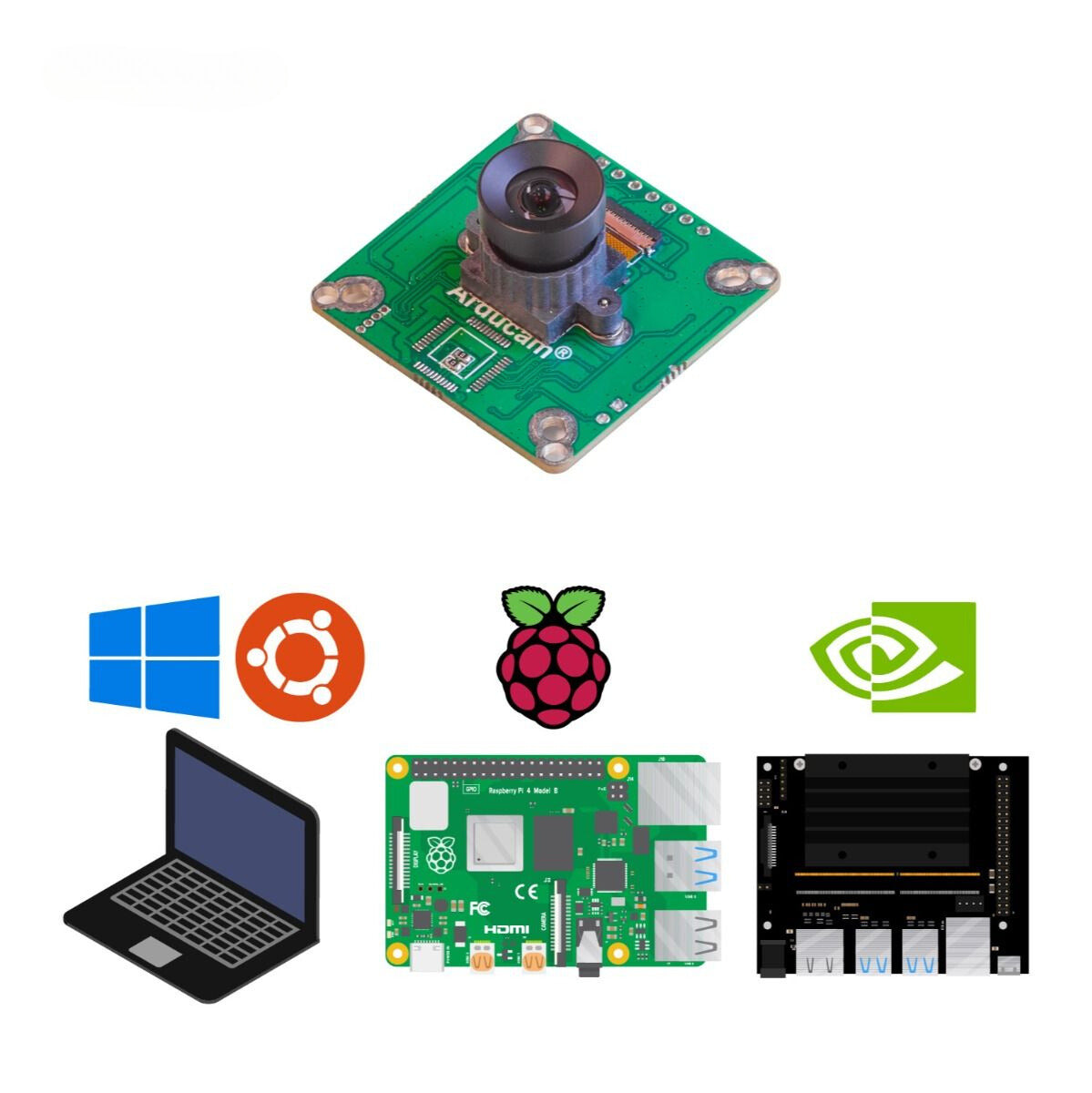

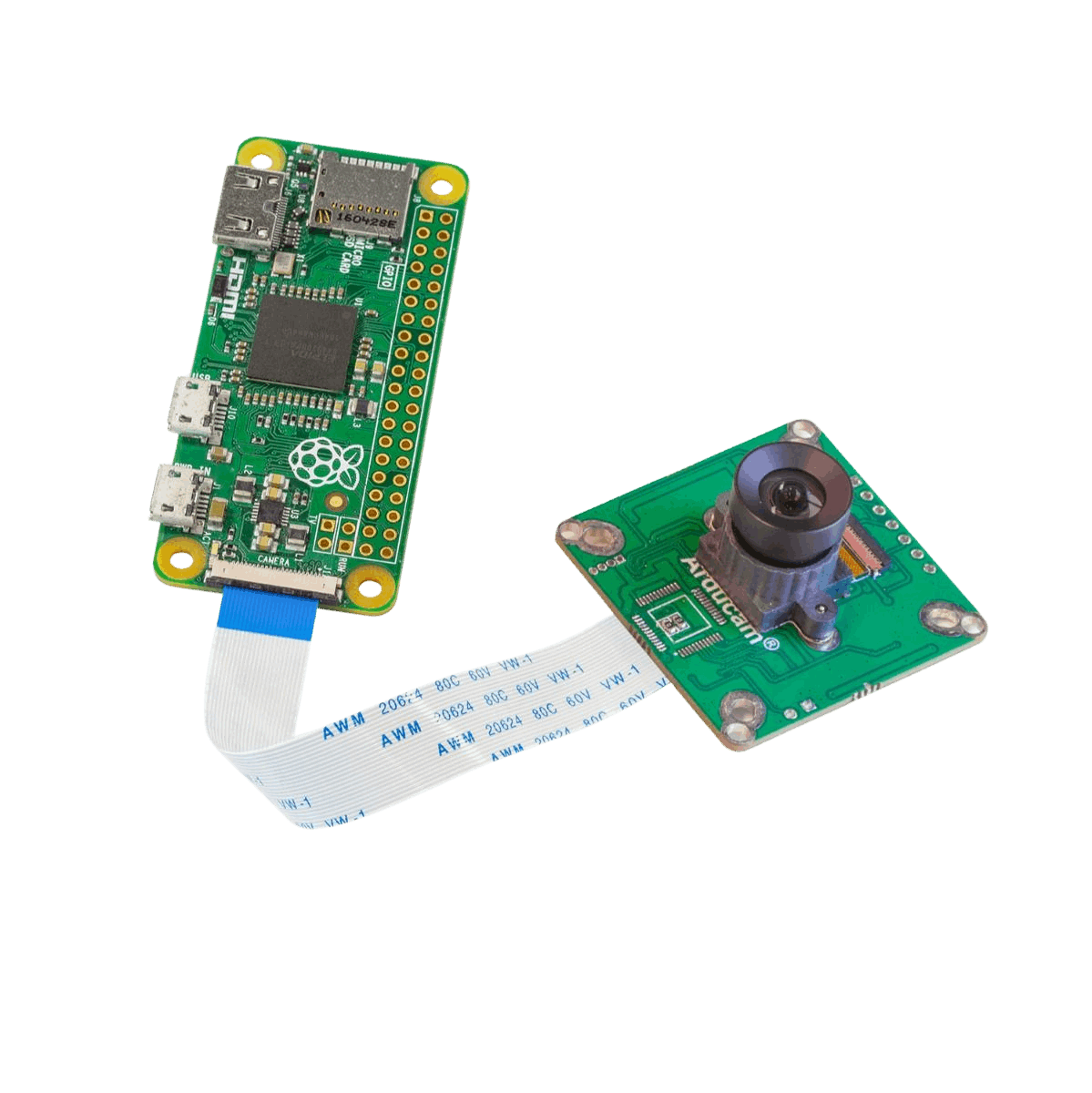

| Supported Platforms | Raspberry Pi 4, 3B+, 3, 2, B+, B, A, Zero and Zero W and more |
Overview
- Seamless Integration: Native to Raspberry Pi and doesn't require any additional drivers
- Easy to Use: Just enable the overlay to make it work
-
Without IR-cut filter: NoIR, with external light sources like IR LED illuminators
- Global Shutter: Shoot high-speed moving objects in crisp, sharp images

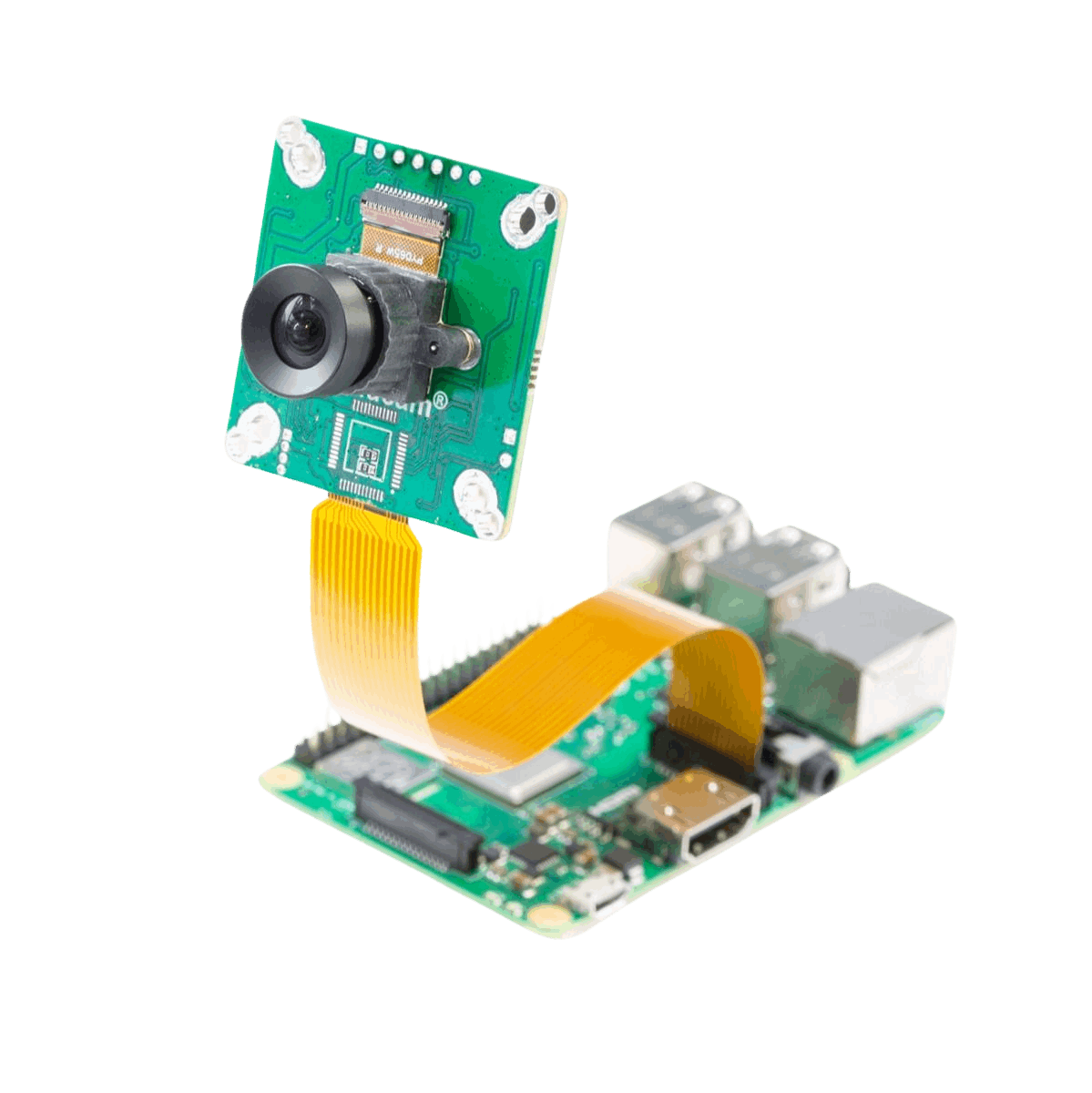

The Arducam OV9281 camera module is specifically designed for Raspberry Pi boards, offering a monochrome (B&W) global shutter with a resolution of 1280×800. It conveniently connects directly to the RPi's CSI-2 camera interface without requiring any extra hardware. This camera module (Rev.B) is fully compatible with the official V4L2 camera driver, ensuring seamless integration. With its global shutter and impressive low-light sensitivity, this camera is ideal for various applications, including gesture detection, head and eye tracking, as well as depth and motion detection.
Documentation
Package Contents

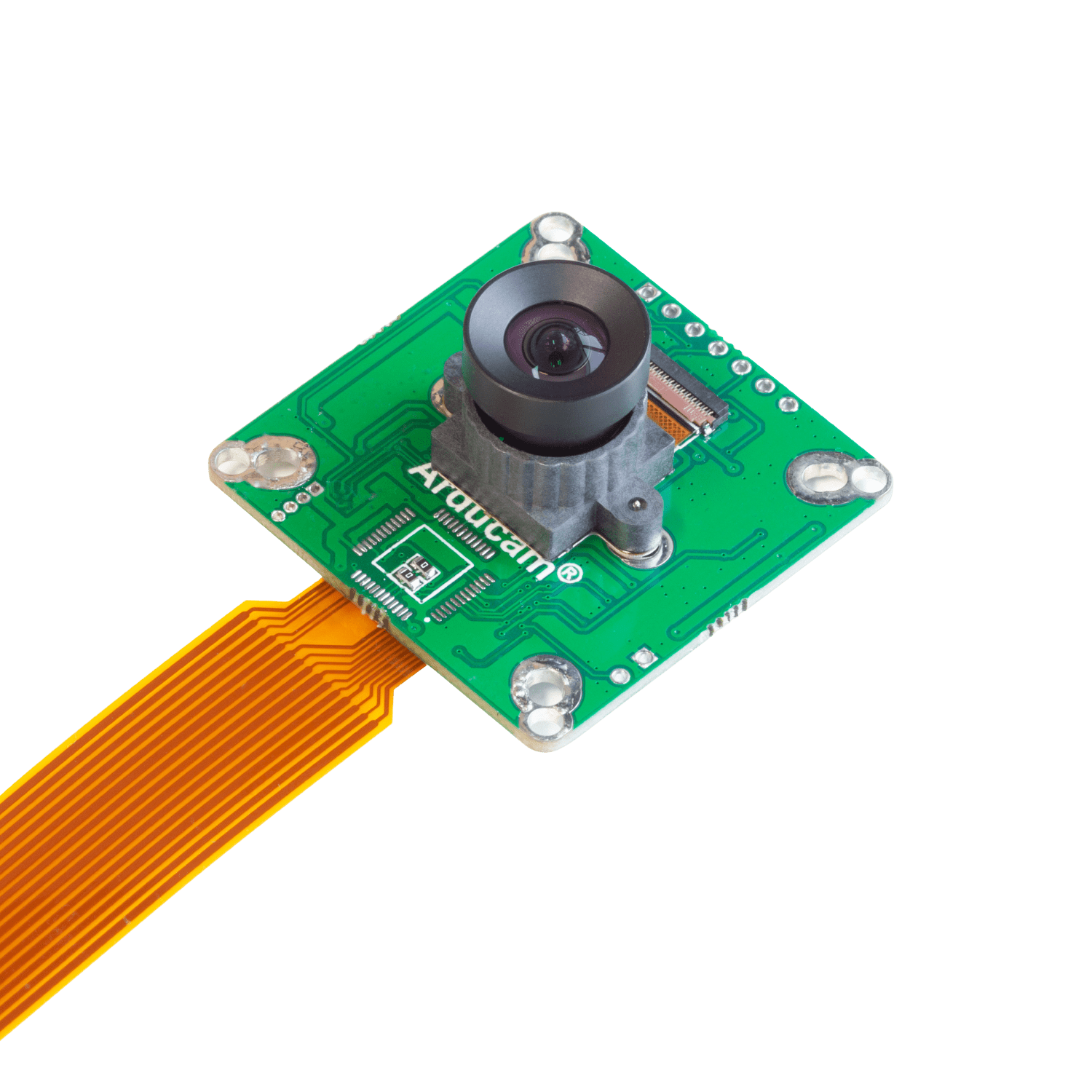

- 1 × Arducam OV9281 1MP 1/4" Monochrome Global Shutter Camera Module with Low Distortion M12 lens for Raspberry Pi
- 1 × 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
- 1 × 80mm 22pin 0.5mm pitch FPC cable
Example Applications
- Home Surveillance, Security
- Battery-powered products
- High Dynamic Range Imaging
- Drones
- Stereo Vision
- Machine Vision, Robot Vision, Automation
