Arducam

Arducam 12MP Wide Angle Autofocus Raspberry Pi Official Camera Module V3

SKU: B0307

Regular price $80.00 USD
Regular price Sale price $80.00 USD
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Specification

Camera Specs
B0307
Sensor Sony IMX708 Sensor
Sensor Size
1/2.43"
Resolution
11.9MP 4608 × 2592
Pixel Size 1.4 µm × 1.4 µm
Video Modes

2304 × 1296p56, 2304 × 1296p30 HDR, 1536 × 864p120

Field of View (FOV)
120°(D) × 102°(H) × 67°(V)
Focus Type Motorised
Focal Length
2.75mm
IR Sensitivity Integral IR-cut Filter, visible light only
F.NO F2.2
Shutter Rolling
Dimension 25 × 24mm
Supported Platforms Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W

Overview

  • Wide Angle Lens: 102°(HFOV) Autofocus Lens. The shorter focal length and wider viewing angle of the wide-angle lens enables you to efficiently capture expansive scenery with ease. See Standard Angle version: B0306
  • High Resolution: Equipped with a 12MP IMX708 Image Sensor, this camera has a maximum resolution of 4608x2592. Users can also utilise the HDR mode for up to 3MP resolution.
  • PDAF & CDAF: Efficiently combines Phase Detection Autofocus with Contrast Detection Autofocus for optimal results.
  • MIPI CSI-2 Communication: MIPI CSI-2 2-wire serial communication (supports I2C fast mode and fast mode plus) and 2-wire serial control of focus mechanism.

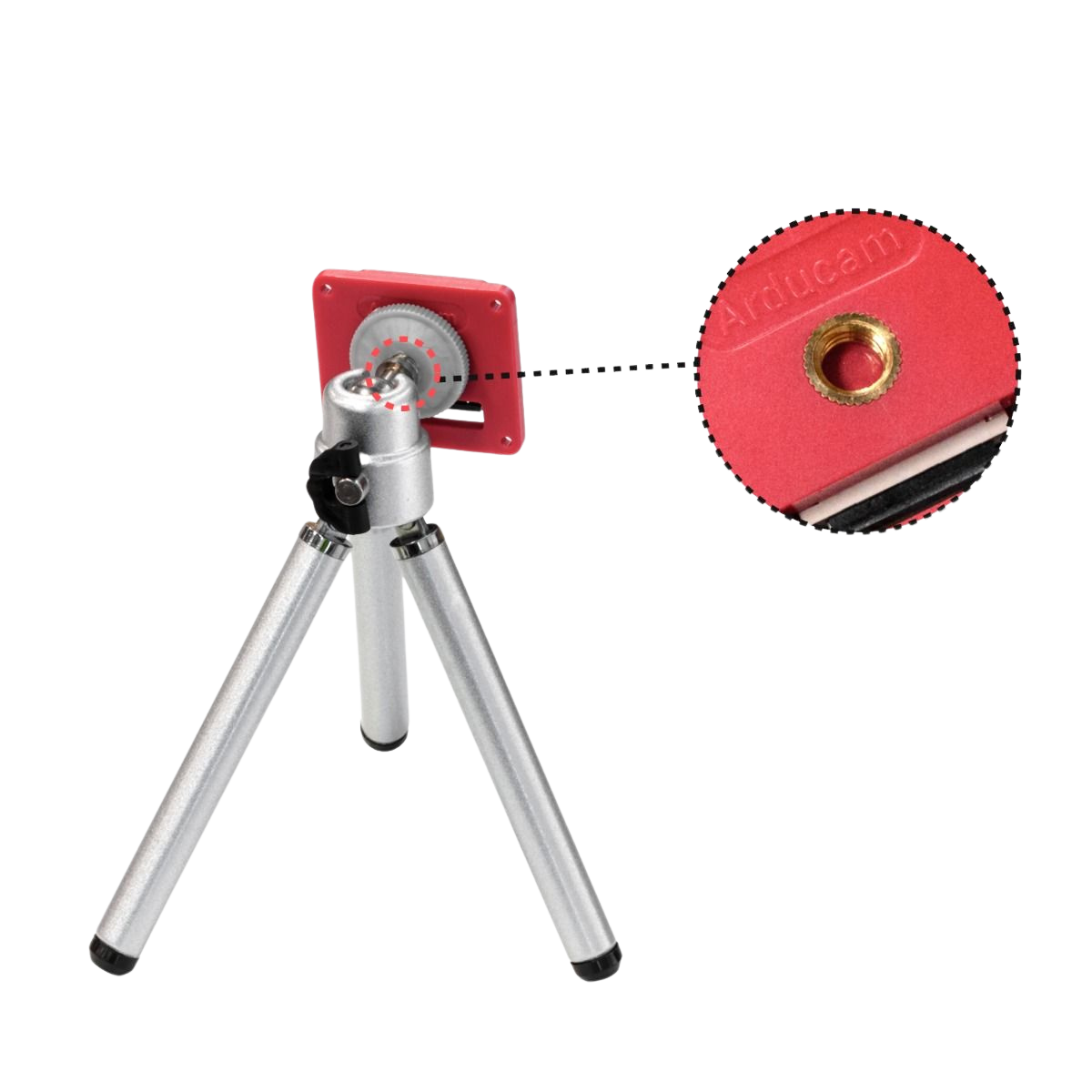

  • Acrylic Case: Arducam camera enclosure case designed for v1/v2/V3 boards.

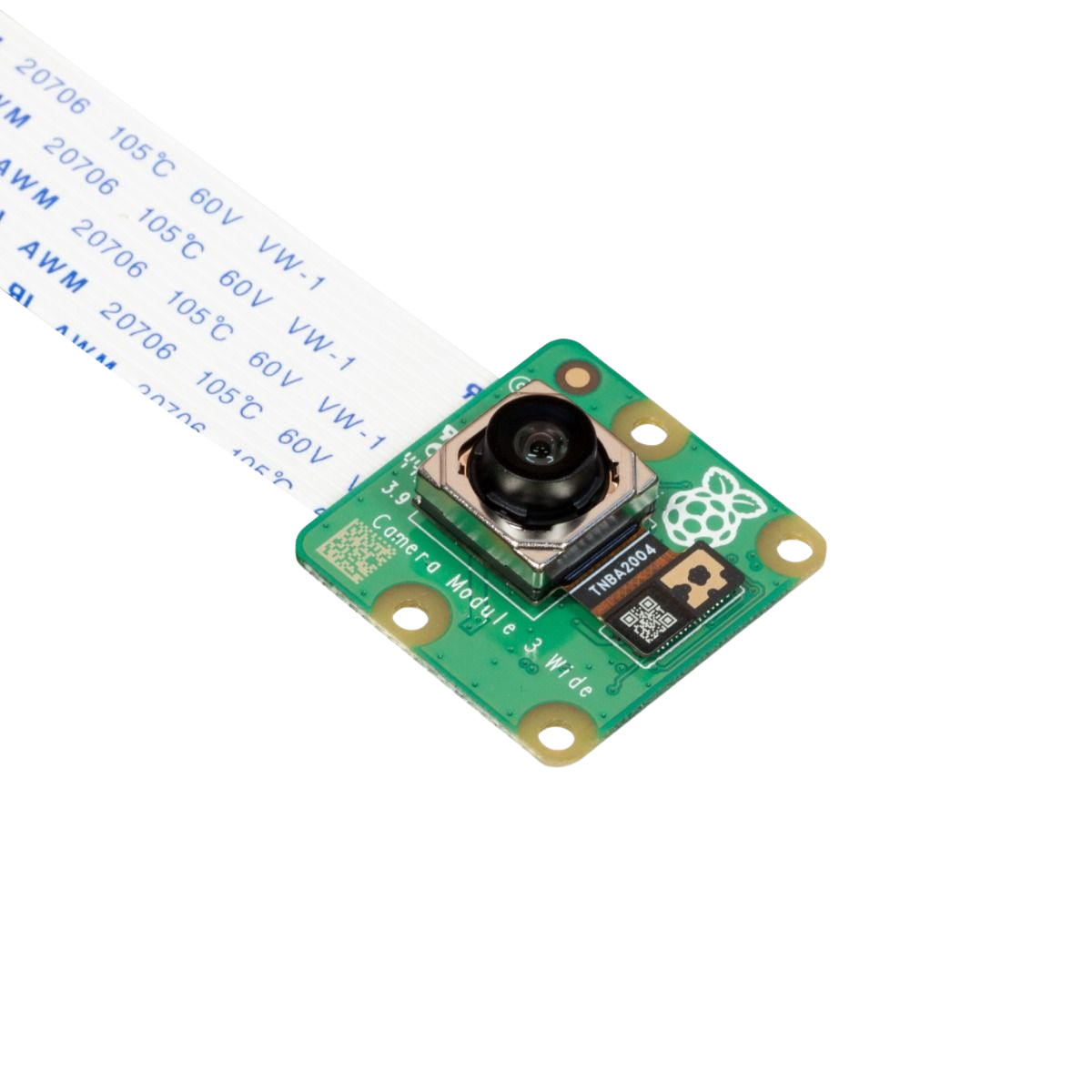

The Arducam 12MP Autofocus Raspberry Pi Official Camera Module V3, released in 2023, boasts the latest in camera technology, including the Sony 11.9MP IMX708 Image Sensor. This versatile camera is capable of capturing full HD video and high-resolution still photos, with the added feature of an HDR mode of up to 3 megapixels.

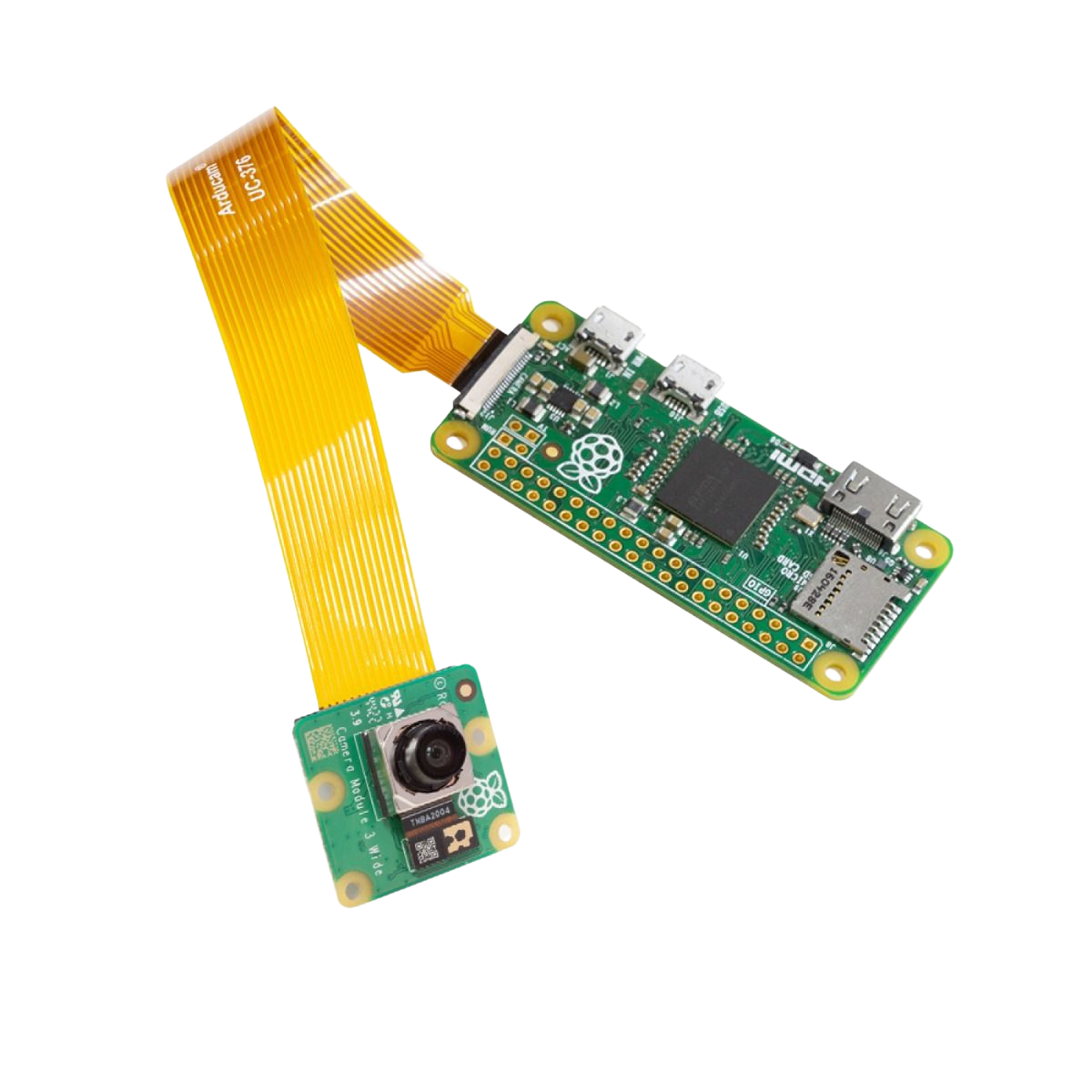

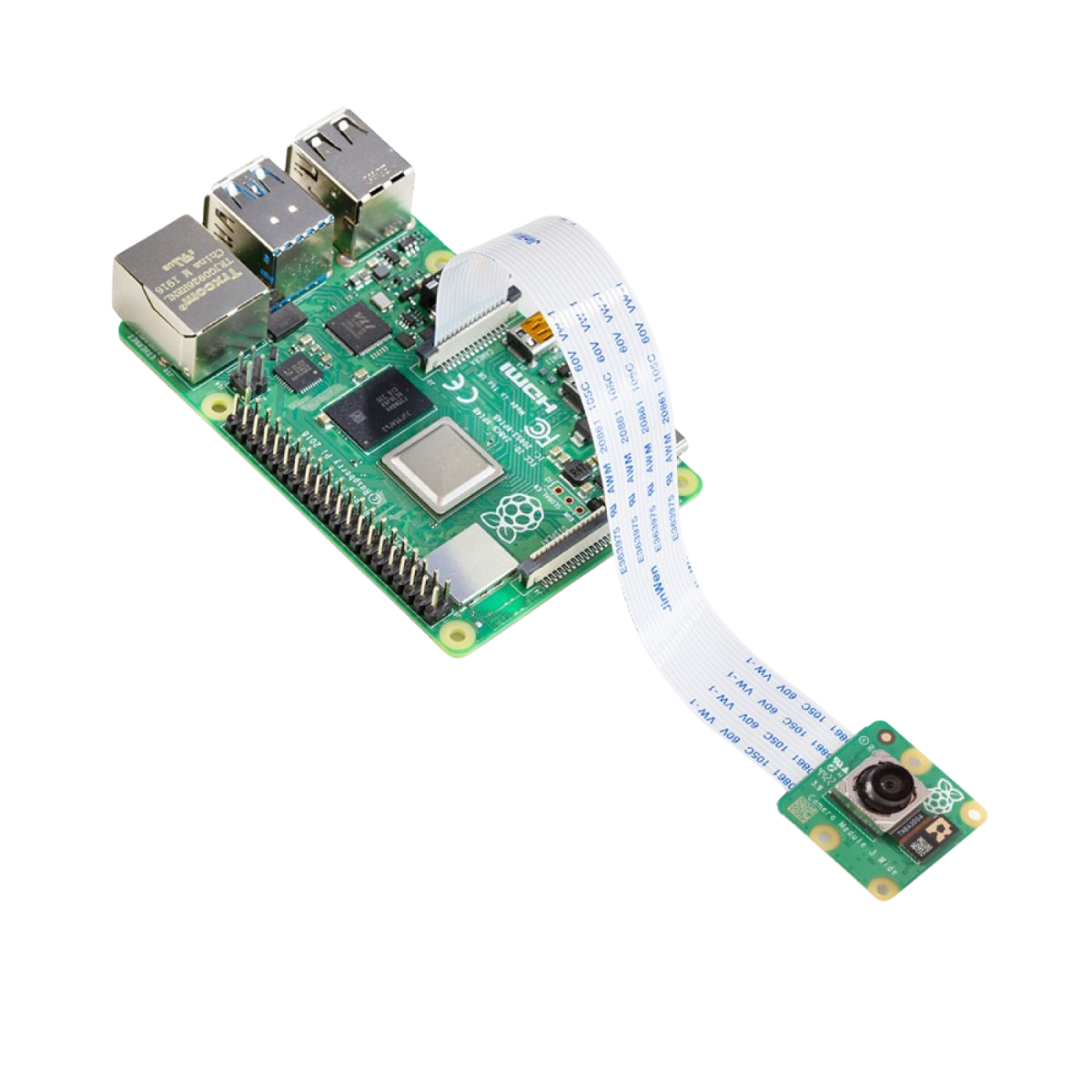

The camera is equipped with a 102° Wide Angle Lens, which features a built-in IR-cut filter and utilises Phase Detection Autofocus technology. It is fully supported by both the libcamera and Picamera2 library. Camera Module 3 is compatible with all Raspberry Pi models.

Arducam has developed various accessories for the Raspberry Pi Camera Module V3, including a fully compatible camera enclosure case for Raspberry Pi V1/V2/V3 and Arducam 16MP/64MP cameras.

Example Applications

  • AI applications
  • Deep Learning Application
  • Wildlife Photography
  • Machine Vision

Documentation

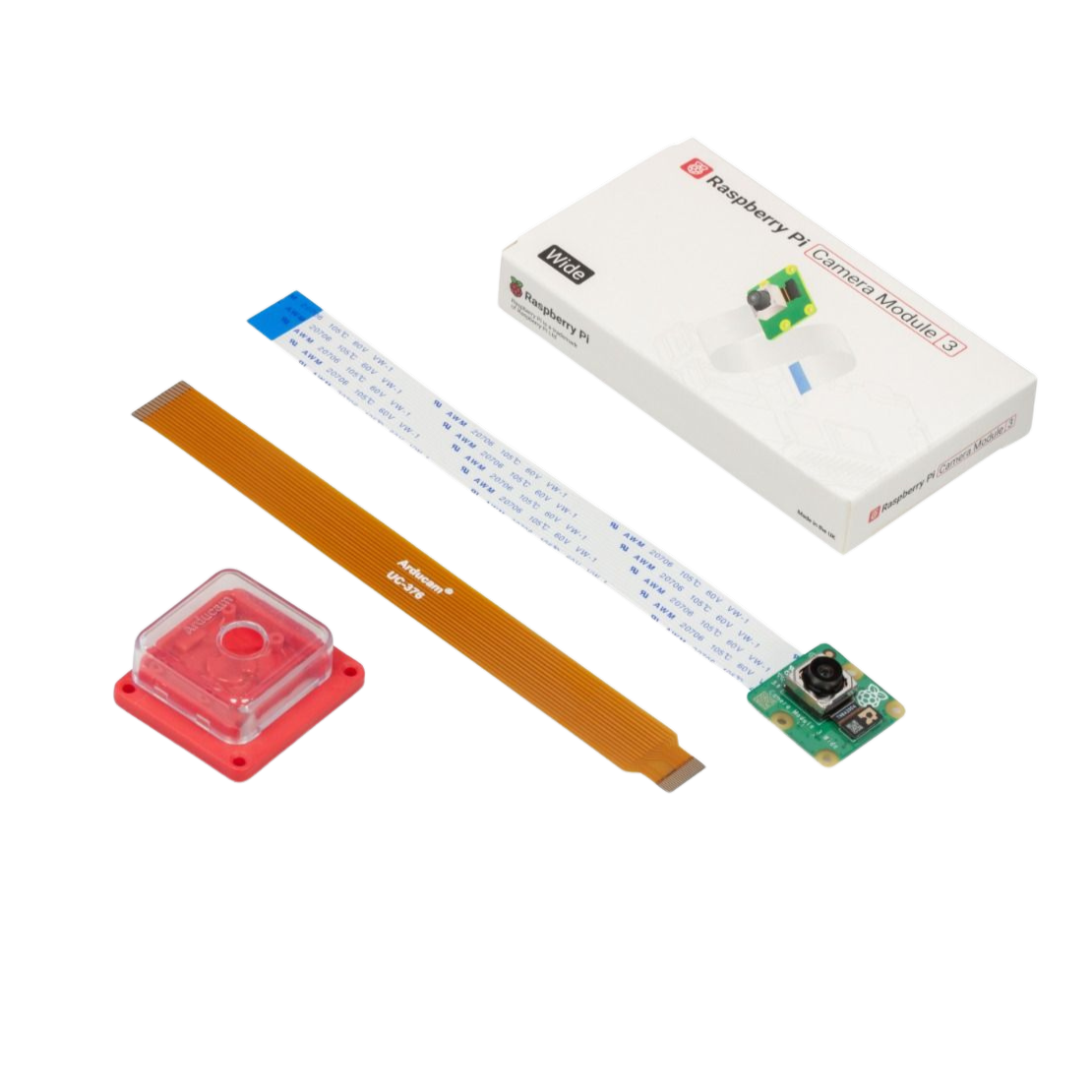

Package Contents

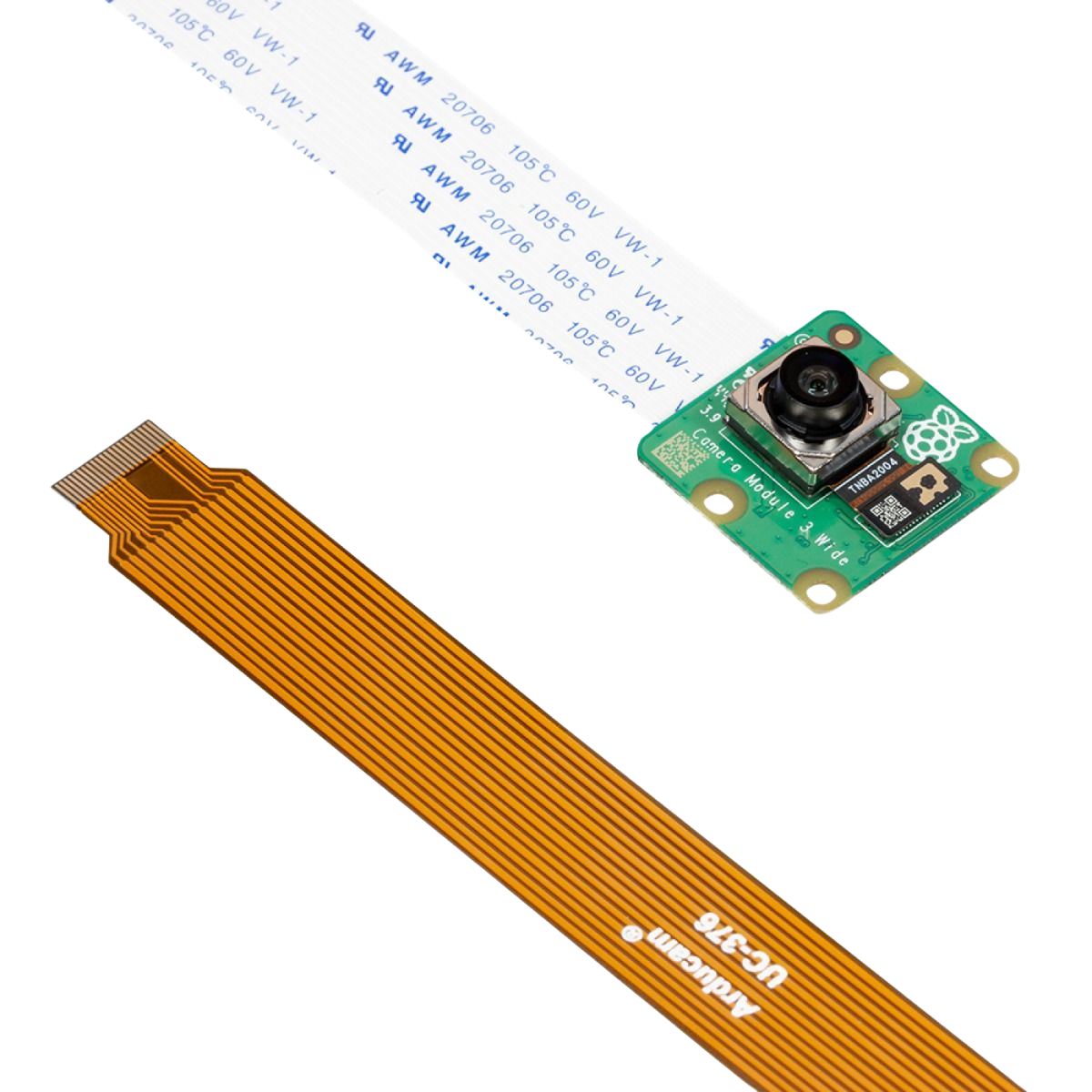

  • 1 × Raspberry Pi Official camera module V3 (Wide Angle) with a 150mm 15pin FFC cable
  • 1 × 150mm 15pin-22pin FPC Cable
  • 1 × ABS Camera Case
