8MP Wide Angle UVC Camera Module
SKU: B0446
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Specification
Camera Specs |
B0446 |
---|---|
Sensor | Sony IMX179 |
Sensor Size |
1/3.2” |
Resolution |
8MP 3264 × 2448 |
Frame Rate (MJPG) |
30fps@3264×2448/2592×1944/1920×1080/1600×1200/1280×720/640×480 |
Frame Rate (YUY2) | 1fps@3264×2448 2fps@2592×1944 5fps@1920×1080/1600×1200 10fps@1280×720 30fps@640×480 |
Field of View (FOV) |
115°(H) |
Focus Type | Manual Focus |
Focal Length |
2.1mm |
Lens Type |
M12 Lens |
F.NO |
F2.0±5% |
Dimension | 38mm × 38mm |
Pixel Size | 1.4μm |
Audio | Single Microphone |
UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp, Gain |
Sample Application | AMCap-Windows Camera application for Video and Still Capture |
Connector | B4B-ZR |
Overview

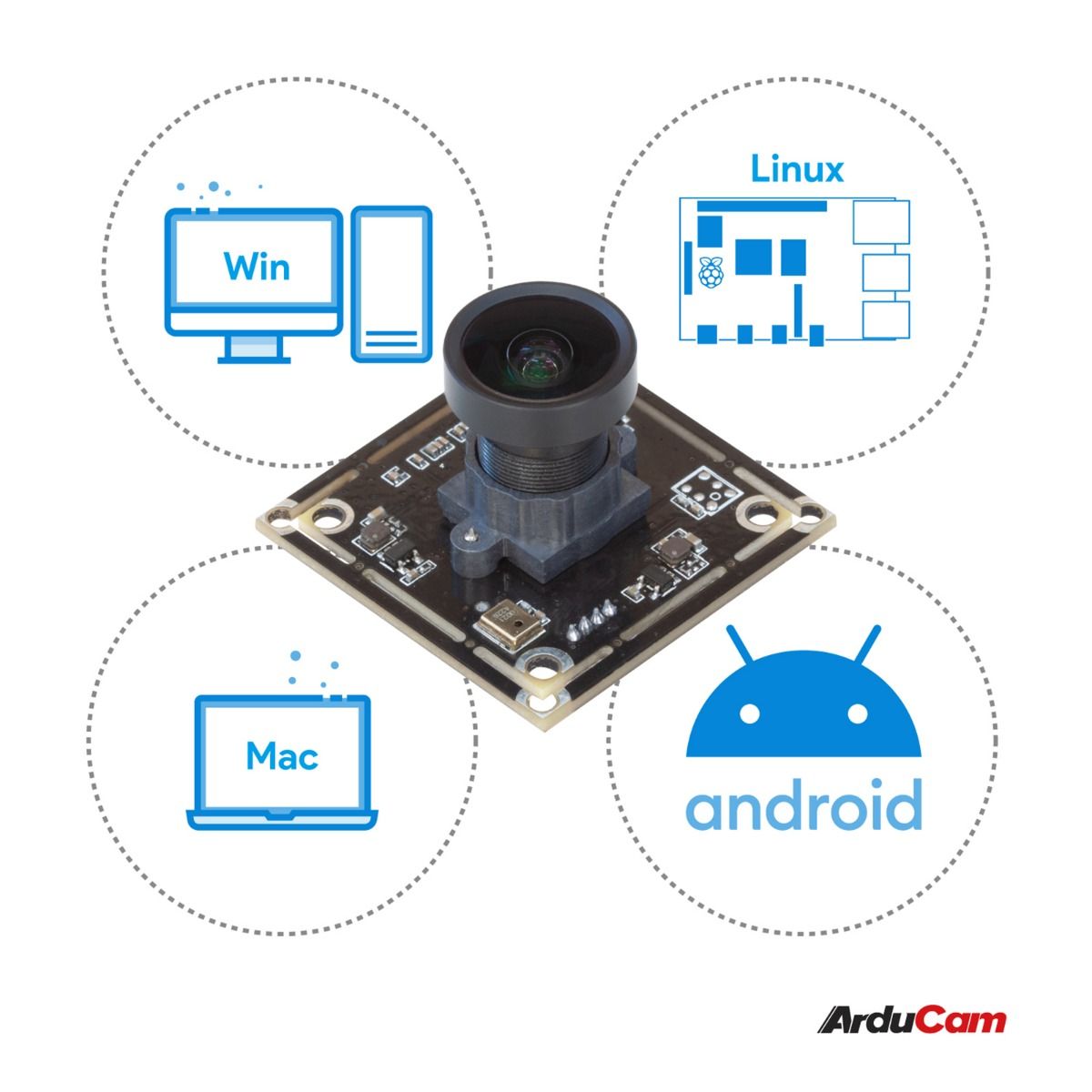

- Supports All Platforms: Supports a wide range of platforms including Windows, Linux, Mac, Android, and more
- Plug and Play: All pre-training examples have been integrated without requiring any additional driver
-
Wide-Angle Manual Focus: The addition of a 115°(HFOV) M12 Lens enhances the camera's ability to capture depth, making it an excellent choice for landscape and low-light photography
Utilising an 8MP IMX179 image sensor, this camera offers exceptional image quality. It supports MJPG and YUY2 output formats, providing flexibility in capturing and processing images. The camera boasts a maximum resolution of 3264×2448 and can achieve a frame rate of 30fps for MJPG and 1fps for YUY2. To further enhance its functionality, we have incorporated a Manual Focus M12 Lens. With a 115°(H) M12 Lens, this camera can be utilised for specific applications requiring a wider field of view. Moreover, it is compatible with Windows, Linux, Android, and Mac OS, eliminating the need for any additional drivers.
If you are interested in changing the M12 lens (see our full range of M12 lenses), we will need to confirm the chosen lens is compatible with the sensor format and the lens tube length. Speak to us via live chat or use our contact page.
Example Applications
- Video System
- Surveillance
- Machine Vision
- Robot Vision
