Arducam
8MP Mini Camera Module for Jetson Nano/Xavier NX [DISCONTINUED]
SKU: B0342
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
DISCONTINUED
Check alternative products: B0179 and B0183
*NOTE* All Arducam products (that aren't discontinued) are available, even if not listed on our website. Please contact us if you would like to purchase one of these products.
Specification
| Camera Specs |
B0342 |
|---|---|
| Sensor | Sony IMX219 Sensor |
| Sensor Size |
1/4” (4.6mm diagonal) |
|
Resolution |
8MP 3280 × 2464 |
| Video (NVIDIA Jetson Nano/Xavier NX/Orin NX/Orin Nano/AGX Orin) |
3280x2464@21fps, 3280x1848@28fps, 1920x1080@30fps, 1640x1232@30fps, 1280x720@60fps |
| Field of View (FOV) |
110°(H) |
| Focus Type | Manual Focus |
| Focal Length |
2mm |
| Lens Type |
M12 Lens |
| F.NO | F2.0 |
| Dimension | 25 × 24mm |
| Pixel Size | 1.12µm |
Overview
-
Interchangeable Lens: Equipped with a 110° (HFOV) M12 Lens. You can replace it with our range of M12 lenses (speak to us to confirm compatibility)
- Manual Focus: This is especially ideal for specific photographic circumstances like low-light, close-up shots (macro) and more

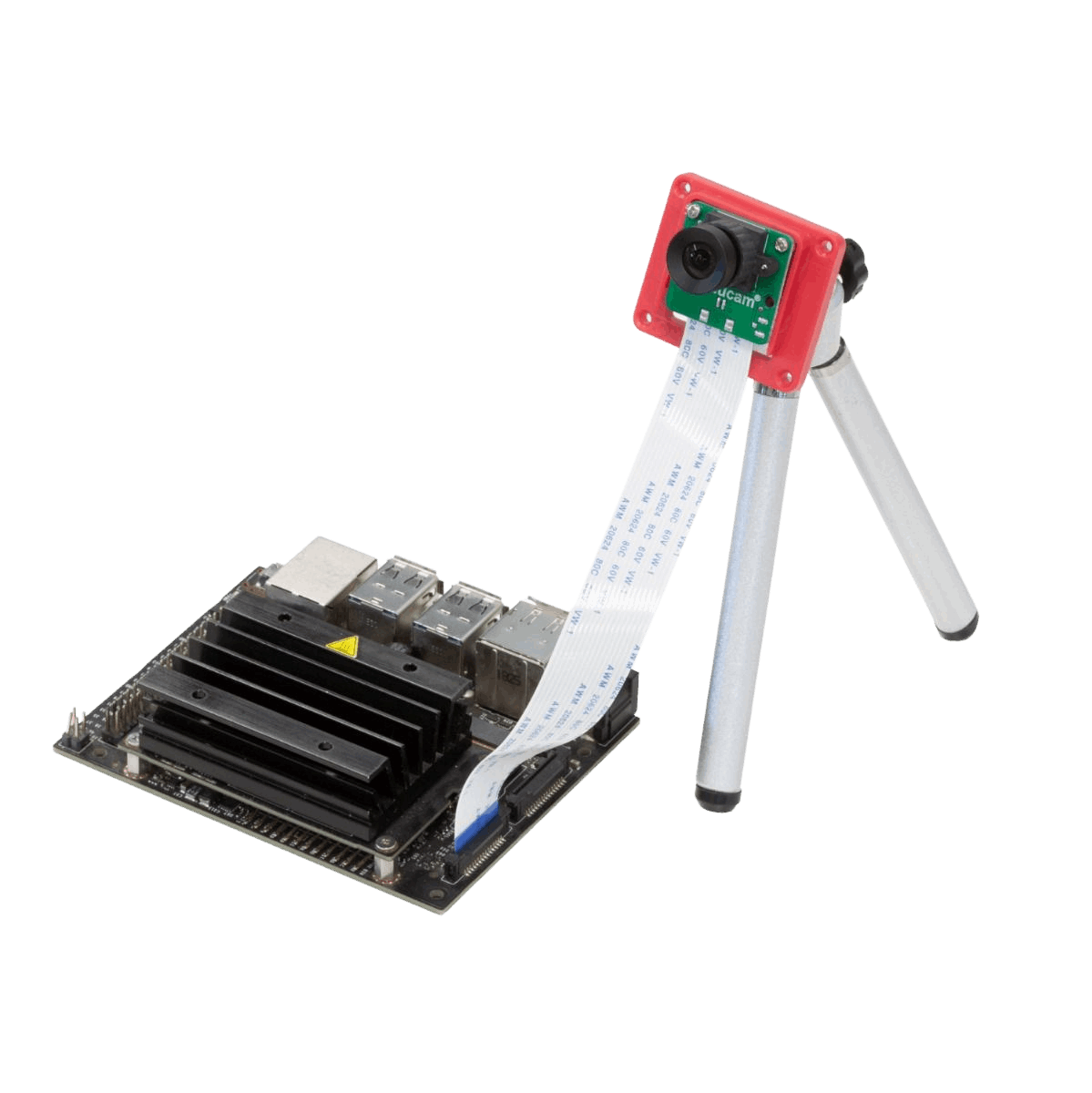

- Designed for NVIDIA® Jetson Nano: But works with Xavier NX, Orin NX, Orin Nano and AGX Orin
The camera comes with an M12 Lens that has a wide angle of 110°. It's equipped with the Sony IMX219 sensor capable of reaching 8MP resolution. Additionally, the camera has a manual focus feature that enables you to use it in challenging situations such as macro photography and low light conditions where autofocus may not be feasible.
If you are interested in changing the M12 lens, we will need to confirm the chosen lens is compatible with the sensor format and the lens tube length.
Kernel Camera Driver
To ensure compatibility, it is important to refer to the Supported JetPack Version for Different NVIDIA Jetson Platforms, as this camera is dependent on kernel drivers. Specifically, it requires one kernel version and one camera driver to function properly.
SUPPORTED PLATFORM DISCLAIMER
This camera is exclusively tailored for the official NVIDIA® Jetson™ Developer Kit by default, thereby lacking compatibility with third-party carrier boards.
Instructions for Orin Nano/NX and AGX Orin
For the Orin Nano/Orin NX, a 15-22 pin FFC (CB011) is required. If you are using an AGX Orin, an additional camera adapter (B0472) is required. Contact us or use our live chat to find out more.
