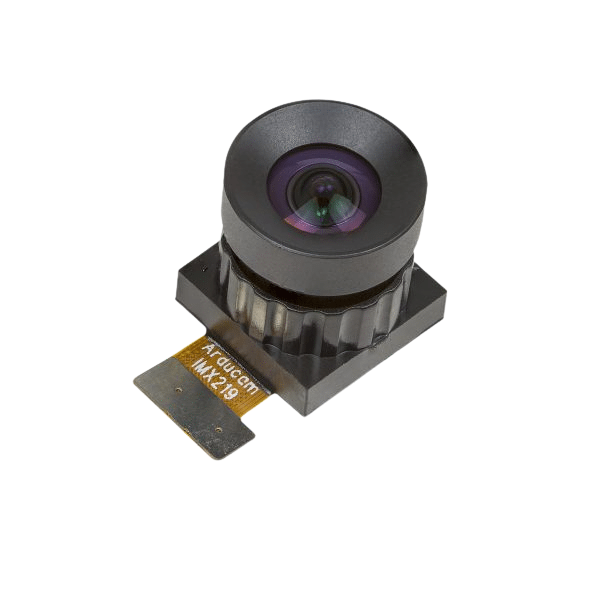

Arducam 8MP Low Distortion Drop-in Camera Module for Raspberry Pi and Jetson Nano

SKU: B0184

Regular price £17.00 GBP
Regular price Sale price £17.00 GBP
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Specification

Camera Specs
B0184
Sensor Sony IMX219
Sensor Size
1/4" (4.6 mm diagonal)
Resolution
8MP 3280 × 2464
Video 1080p47, 1640 × 1232p41 and 640 × 480p206
Field of View (FOV)
75°(H)
IR Sensitivity Integral IR filter, visible light only
Lens Type M12 Lens
Focus Type Manual Focus
Pixel Size 1.12μm
Focal Length
2.8mm
F.NO F2.8
Dimension 25 × 24mm
Supported Platforms Raspberry Pi 4, 3B+, 3, 2, B+, B also, NVIDIA Jetson Nano, Orin Nano and Orin NX

Overview

  • Easy-To-Use: simply remove the existing IMX219 module and then attach this replacement module in its place.
  • Fisheye Lens: The 175°(D) wide-angle Lens offers an expansive field of view, allowing for a significantly broader field of view.
  • Low Distortion: 70°(H) Low-Distortion (<3%) M12 Lens, minimize the image distortion and wide angle

The Arducam IMX219 low-distortion lens camera module is primarily intended for use with the Raspberry Pi V2 camera board. It serves as a replacement for the default standard IMX219 camera module, providing a view with minimal distortion (<3%). This module can be used in applications like drones, robots, action cameras, and 3D scanning.

The lens is glued on. If you require this not to be the case or want to change the lens, please contact us (only for bulk purchases).

Kernel Camera Driver
To ensure compatibility, it is important to refer to the Supported JetPack Version for Different NVIDIA Jetson Platforms, as this camera is dependent on kernel drivers. Specifically, it requires one kernel version and one camera driver to function properly.

SUPPORTED PLATFORM DISCLAIMER
This camera is exclusively tailored for the official NVIDIA® Jetson™ Developer Kit by default, thereby lacking compatibility with third-party carrier boards.

Instructions for Orin Nano/NX and AGX Orin
For the Orin Nano/Orin NX, a 15-22 pin FFC (CB011) is required. If you are using an AGX Orin, an additional camera adapter (B0472) is required. Contact us or use our live chat to find out more.

Important Note

  • The Raspberry Pi V2 camera board is needed to work with this camera module
  • Only compatible with systems (RPi) after Buster, e.g. Bullseye and Bookworm
  • There is no FPC Cable included in the package
  • This camera is specifically designed for the official NVIDIA® Jetson™ Developer Kit and does not guarantee compatibility with other third-party boards
  • The lens on this camera is not interchangeable. If you need to replace the lens, please contact us

Documentation

Sensor Datasheet for IMX219

Package Contents

  • 1 × Arducam 8MP Low Distortion Drop-in Camera Module

Example Applications

  • Unmanned Aerial Vehicles (UAVs)
  • Building Drones and other Battery-powered products
  • Mobile Medical Imaging
  • Home Security System
  • Machine Vision, Robot Vision, Automation
