HIKROBOT

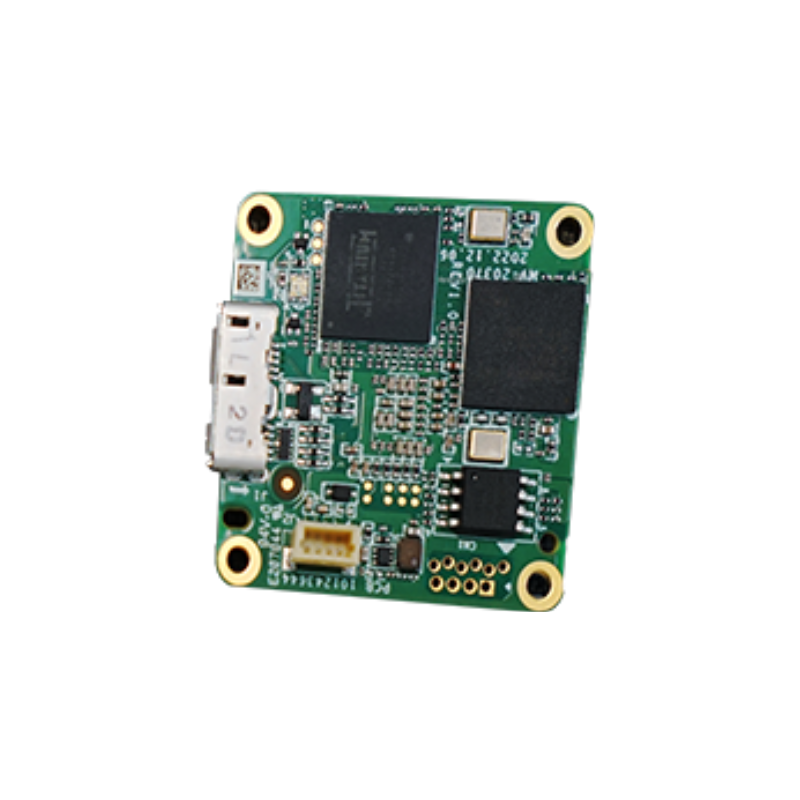

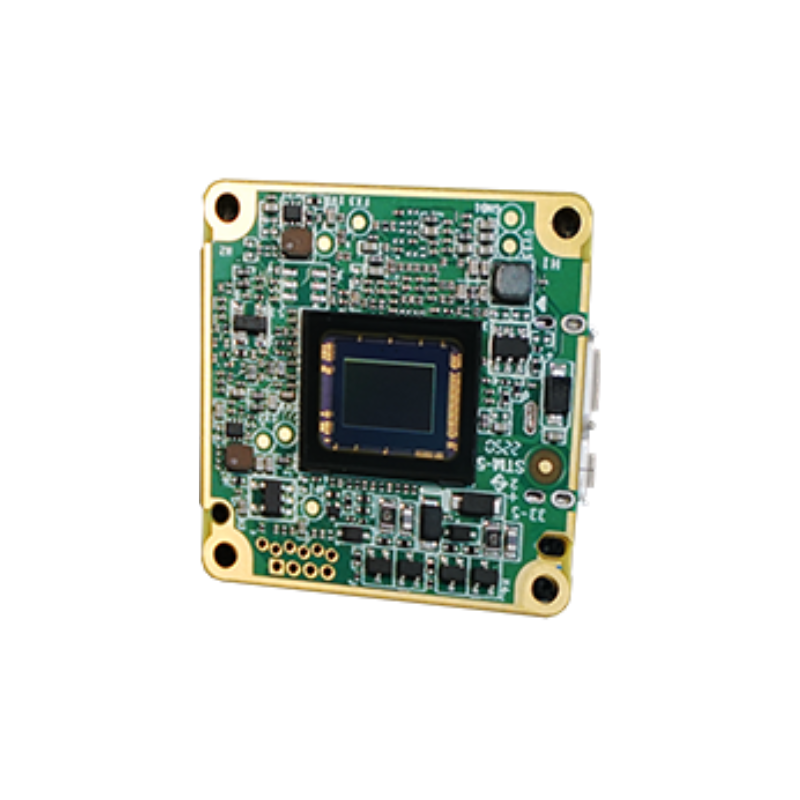

6MP 1/1.8" IMX178 USB3.0 Board Level Camera
SKU: MV-CB060-10UC-B
Couldn't load pickup availability
Specification
Specification

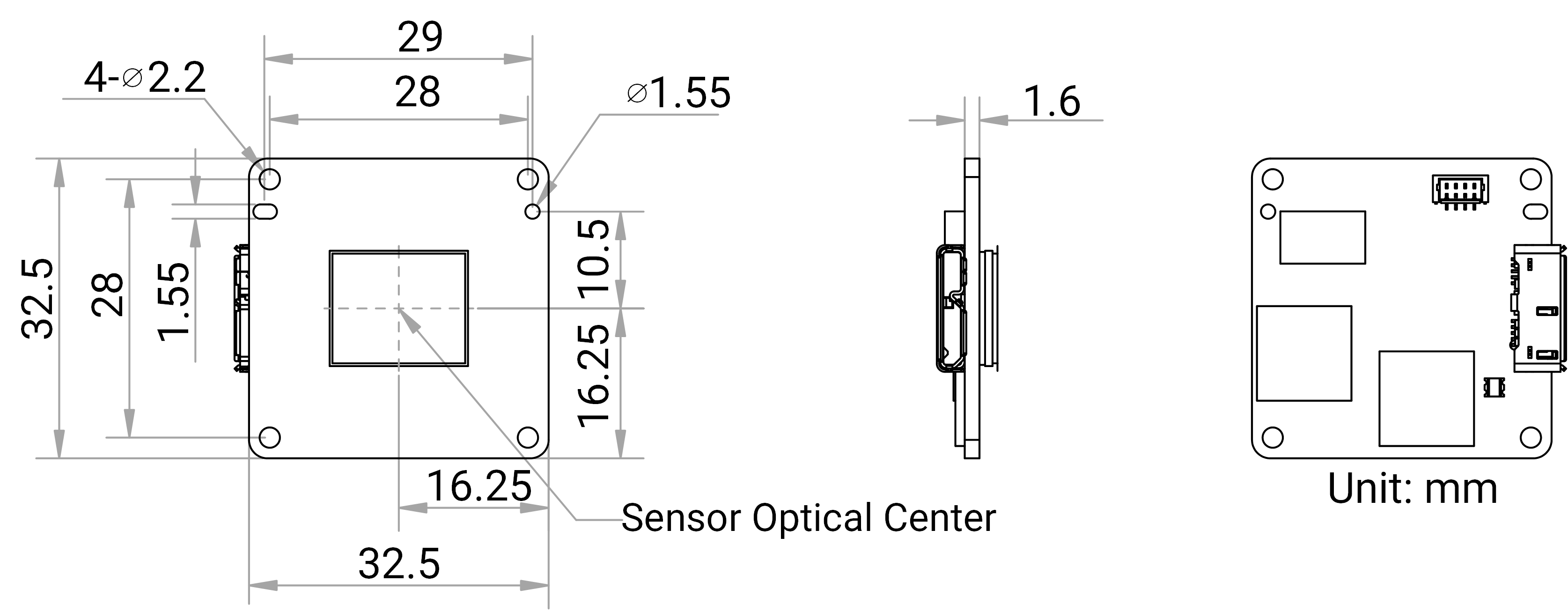

Dimensions
Dimensions
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- CB Series Industrial Board Level Camera
- USB3.0 Interface
- 1/1.8" inch Sony STARVIS IMX178 CMOS Sensor
- 3072 × 2048 (6MP), up to 60.9 fps
- Pixel Size: H: 2.4μm, V: 2.4μm
- Rolling Shutter
- Trigger and I/O inputs
- V4 Edition
- Bare Board camera: 32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1")
- C-Mount camera: 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
- M12-Mount camera: 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
Do you need a C-Mount or M12 lens to pair with your camera? See our catalogue of C-Mount lenses and M12 lenses.
What are the benefits of using a USB interface camera?
USB cameras offer integration with minimal effort and, in some cases, can offer UVC-compliance, which enables plug-and-play. The bandwidth of USB can achieve 5Gbps (depending on whether you are using USB 2.0 or USB 3.0) and can reach a range of up to 7 metres with passive cables. However, you can use an active optic cable to facilitate a longer cable distance of up to 100m, which may require an external power source (Active optic cables, in most cases, are at a higher price point and may not provide power to the end device).
What are the CB series cameras?
The CB series board-level cameras feature a design that accommodates single or stacked multi-board setups, supporting GigE or U3V protocols. They are applicable in industrial, embedded, 3D, medical, and other fields where space is at a premium. The board-level camera offers multiple lens mount options, including bare board (B), C-mount (C), and M12-mount (S) to meet diverse needs.
