• 37U Series, The Imaging Source DMK 37AUX178 Monochrome Camera
1 2

The Imaging Source

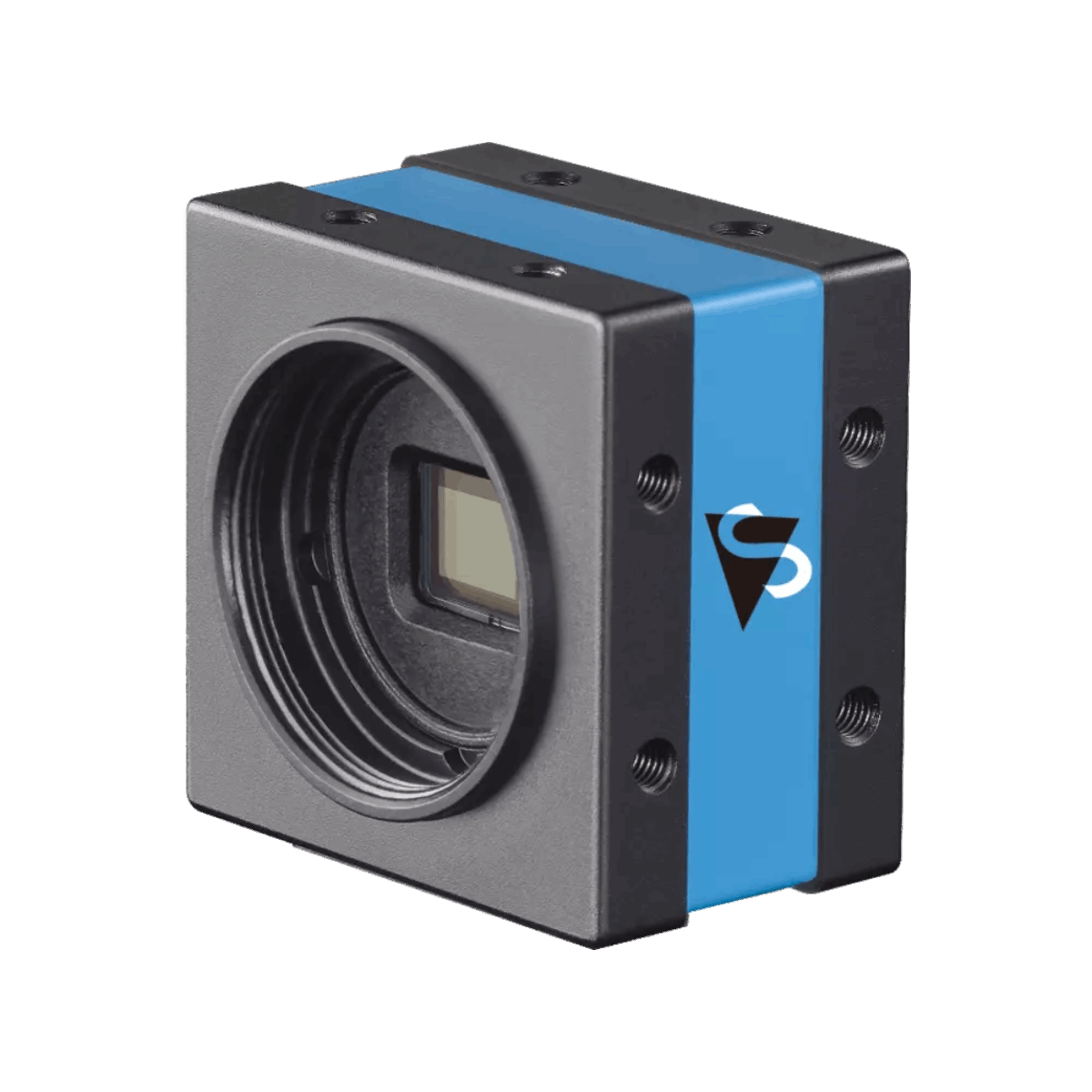

6.3MP 1/1.8" IMX178 USB3.1 Monochrome Camera

SKU: DMK 37AUX178

Login to see the price

Specification

DMK 37AUX178

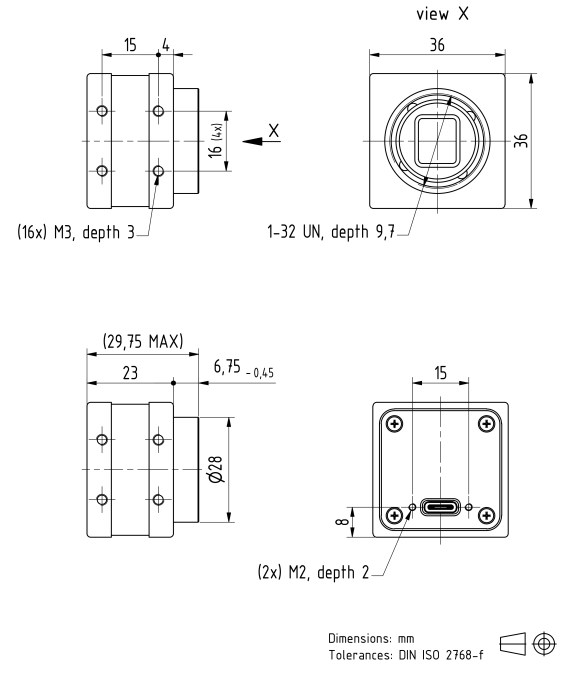

Dimensions

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • 37U Series Monochrome Industrial Camera
  • USB 3.1 Interface
  • 1/1.8 inch Sony CMOS STARVIS IMX178 Sensor
  • 3,072×2,048 (6.3 MP), up to 60 fps
  • Pixel Size: H: 2.4 µm, V: 2.4 µm
  • Rolling Shutter
  • Only 36×36×25 mm

Do you need a C-Mount lens to pair with your camera? See our catalogue of C-Mount lenses.

What are the benefits of using a USB interface camera?

USB cameras offer integration with minimal effort and, in some cases, can offer UVC-compliance, which enables plug-and-play. The bandwidth of USB can achieve 5Gbps (depending on whether you are using USB 2.0 or USB 3.0) and can reach a range of up to 7 metres with passive cables. However, you can use an active optic cable to facilitate a longer cable distance of up to 100m, which may require an external power source (Active optic cables, in most cases, are at a higher price point and may not provide power to the end device).

What are the 37U series cameras?

The 37U series by The Imaging Source is designed with high-performance Sony Pregius and STARVIS sensors, making it an excellent choice for systems engineers and OEMs seeking a cost-effective solution. With its diverse form factor variants, this series provides a customisable option for different requirements. The compact and cost-optimised 37 Series USB 3.1 industrial cameras are specifically tailored for high-speed machine vision tasks, including production automation, quality assurance, and inspection.
