Arducam

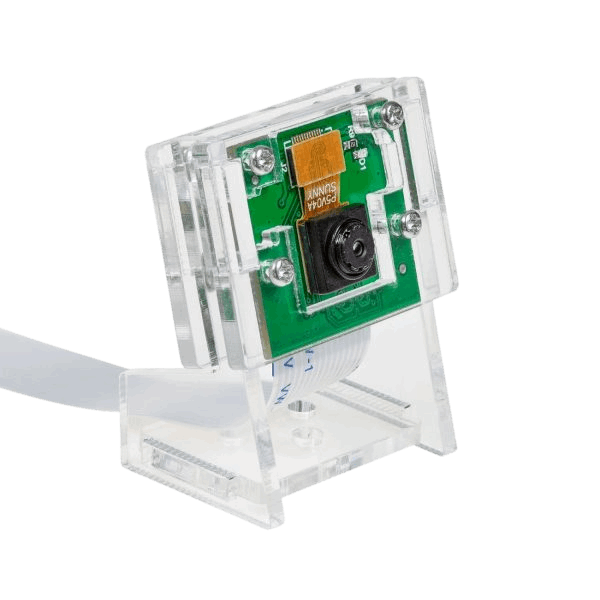

Arducam 5MP Mini Camera Module with Case for Raspberry Pi

SKU: B0033C

Regular price $20.00 USD
Regular price Sale price $20.00 USD
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

 Specification

Camera Specs
B0033C
Sensor Omnivision OV5647 sensor
Sensor Size
1/4” (OV5647)
Resolution
5MP 2592 × 1944
Video 1080p 30 fps, 720p 60fps, 480p 90fps
Field of View (FOV)
54°(H), 41°(V)
Focus Type Fixed Focus
Focus Length
3.60mm
Focus Distance
1m - ∞ (infinity)
Full-frame SLR lens equivalent
35mm
Peak Current
300mA
Dimension 24mm × 25mm
Supported Platforms Raspberry Pi 3, 3B+ and 4

Overview

  • Small but powerful: Same size as the Raspberry Pi V1 camera module
  • Highly Compatible: Supports the latest Raspberry Pi Bullseye OS and libcamera applications
  • Use with a mount or stand: Acrylic case for the RasPi Camera included

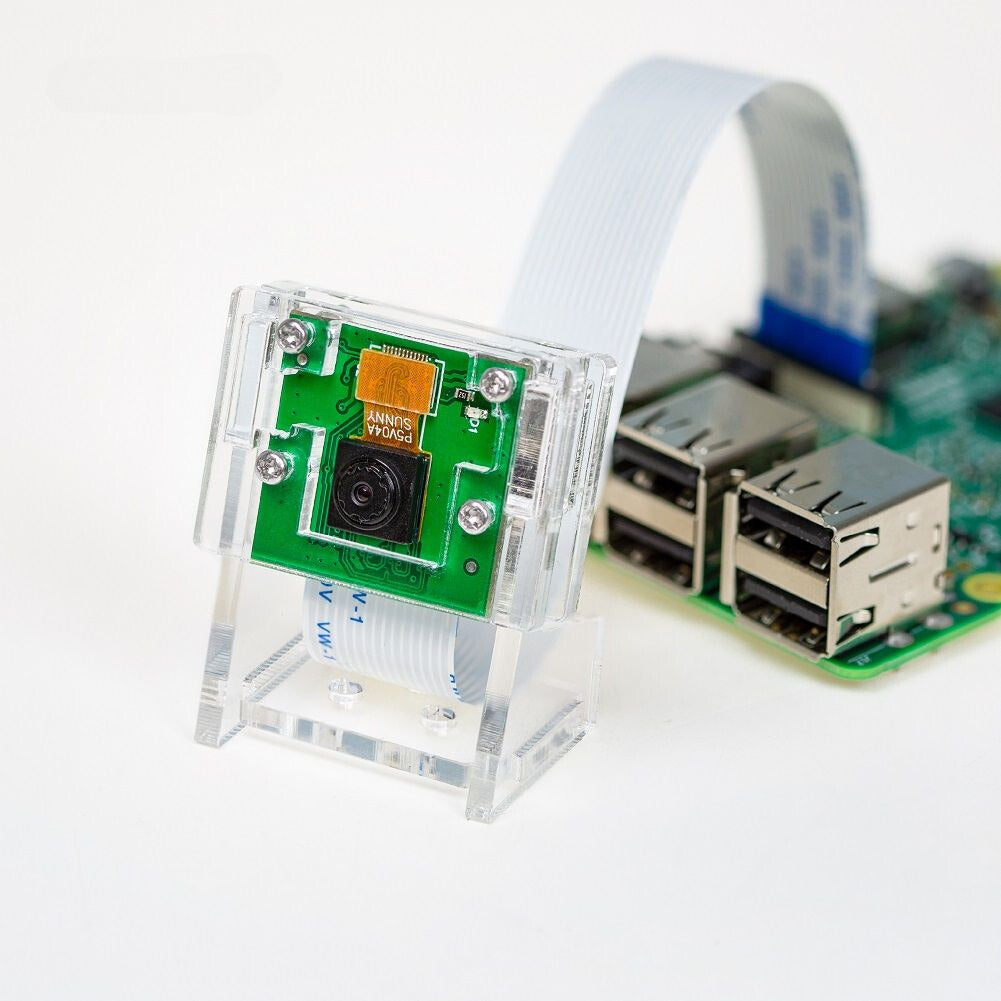

The board's compact size, measuring approximately 25mm x 24mm, makes it an ideal choice for mobile applications prioritising size and image quality. It establishes a connection with the Raspberry Pi through a short ribbon cable. The camera, in turn, links to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a high-speed interface responsible for transmitting pixel data from the camera to the processor. This bus travels along the ribbon cable, securely attaching the camera board to the Pi.

The connection to Raspberry Pi is established through one of the two compact sockets located on the upper surface of the board. These two sockets are 2 × 4-lane MIPI DSI/CSI connectors, which are specifically designed for integration with cameras.

Documentation

User Guide by Arducam for B0033C
Installation Guide for B0033C casing

Package Contents

  • 1 × 5MP Mini Camera Module with case for Raspberry Pi (B0033C)
  • 1 × 15cm 15pin FPC cable
  • 1 × ABS camera case
  • 4 × M1.8*5 self-tapping screws

Example Applications

  • Mobile Phones, Tablets, Toys
  • Other battery-powered products
  • PC multimedia
  • Various Raspberry Pi platforms
  • Digital still cameras and more
