Arducam
Arducam 5MP Camera Module For Raspberry Pi
SKU: B0031
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Specification
| Camera Specs |
B0031 |
|---|---|
| Sensor | Omnivision OV5647 sensor |
| Sensor Size |
1/4” (OV5647) |
|
Resolution |
5MP 2592×1944 |
| Video | 1080p 30 fps, 720p 60fps, 480p 90fps |
| Field of View (FOV) |
56°(H) |
| Focus Type | Manual Focus |
| Focal Length |
4mm |
| Lens Type |
M12 Lens |
| Peak Current |
300mA |
| Pixel Size | 1.4μm |
| Dimension | 36mm × 36mm, 4 mounting holes |
| Supported Platforms | Raspberry Pi 4, 3B+ and 3 |
Overview
-
Seamless Integration: Native to Raspberry Pi and doesn't require any additional drivers
- Interchangeable Lens: Equipped with an M12 lens (HX-27227). You can replace it with our range of M12 lenses (speak to us to confirm compatibility)
- Easy Usage: supports the latest Raspberry Pi Bullseye OS and libcamera applications
- Supports the Pi Zero: Works with Pi Zero but requires another cable - B0087
The camera module is a a custom add-on specifically designed for Raspberry Pi, which can be easily attached to one of the two small sockets on the board's upper surface. This add-on utilises the dedicated CSI interface, which is exclusively designed for interfacing with cameras. The CSI bus is capable of transmitting pixel data at extremely high data rates, ensuring efficient and reliable performance.

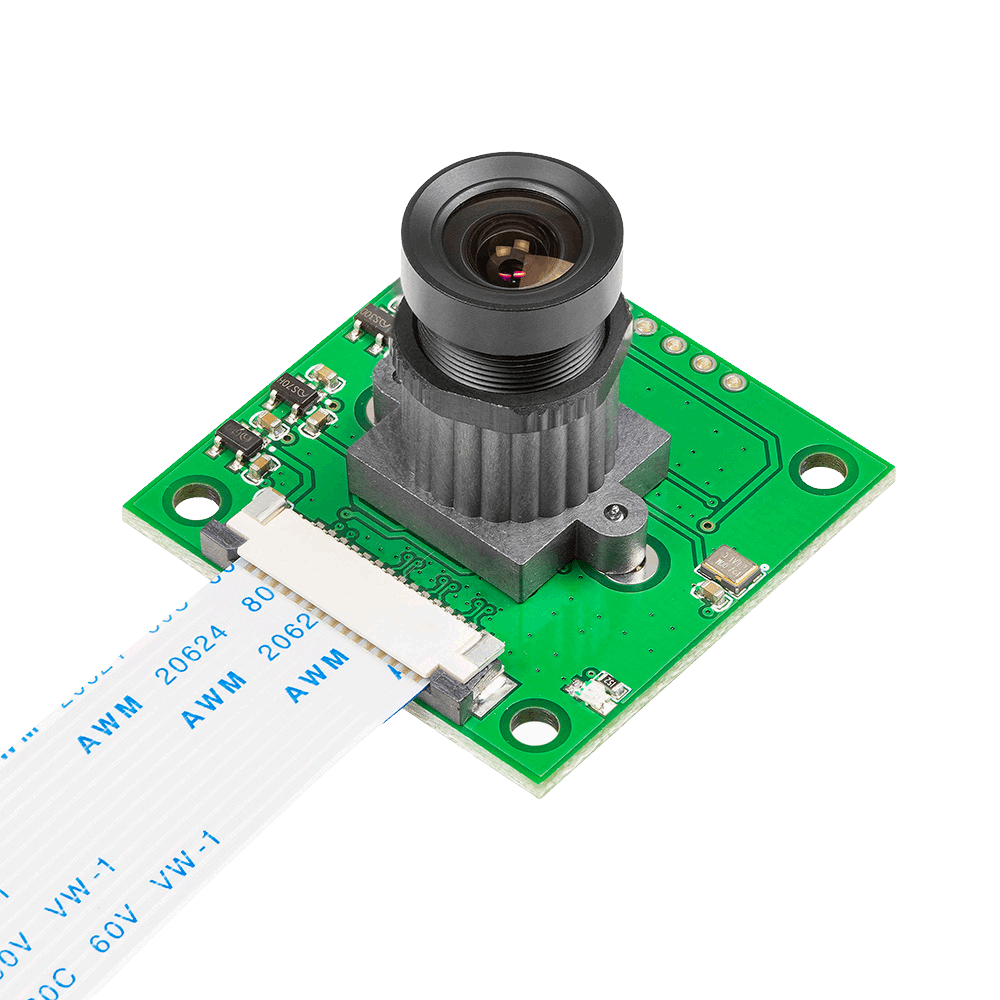

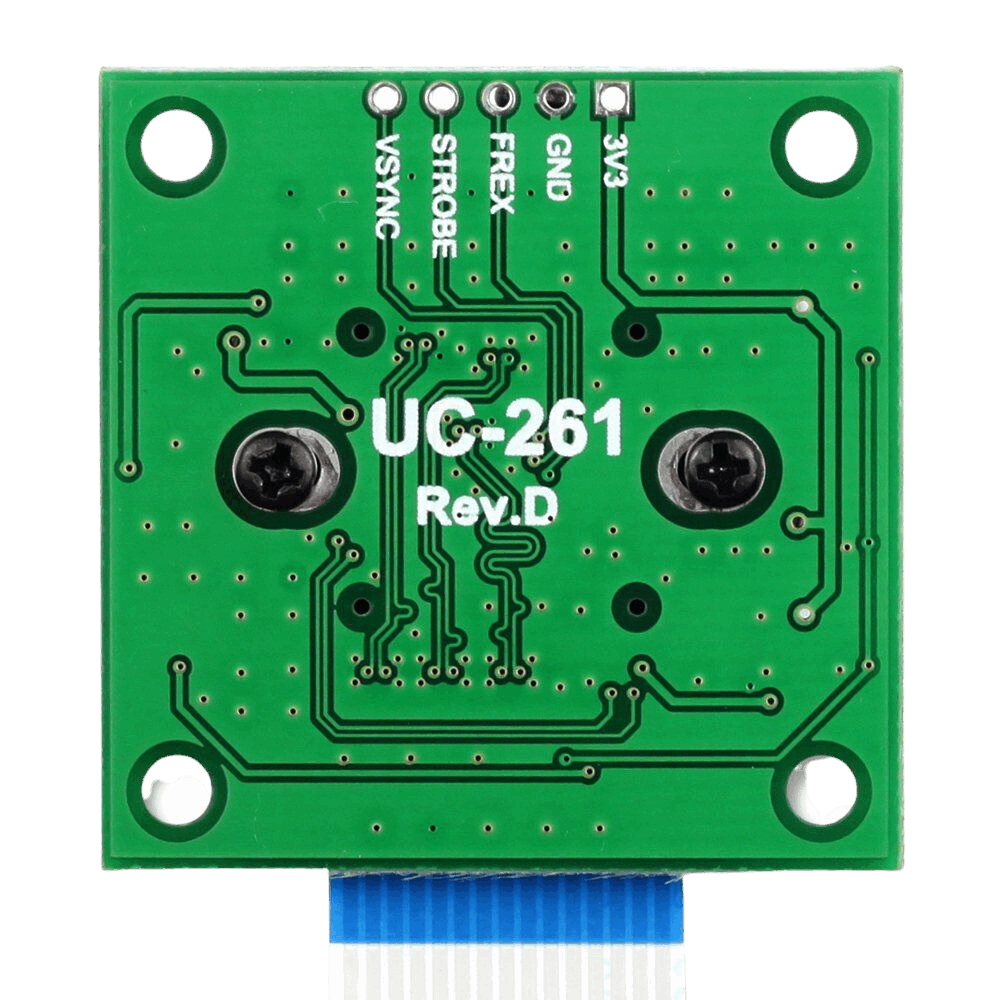

The module boasts a compact board measuring approximately 36mm x 36mm. A notable feature of our module is its replaceable lens, setting it apart from the official version. This attribute makes it an ideal choice for mobile or other applications prioritising size and image quality. The module conveniently connects to the Raspberry Pi through a short ribbon cable. The camera is linked to the BCM2835 processor on the Pi via the CSI bus, a high-speed connection that efficiently transfers pixel data from the camera to the processor. This bus travels along the ribbon cable, securely attaching the camera board to the Pi.
The sensor possesses a native resolution of 5 megapixels and is equipped with a fixed-focus lens. Regarding still images, the camera can capture still images with a resolution of 2592 x 1944 pixels. Additionally, it supports video recording at 1080p30, 720p60, and 640x480p60/90.
If you require a motorised focus version, see the B0176
Package Includes
- 1 x 5MP OV5647 Camera Module
- 1 x 15cm 15pin FPC cable
Example Applications
- Mobile Phones, Tablets, Toys
- Other battery-powered products
- PC multimedia
- Various Raspberry Pi platforms
- Digital still cameras and more
