The Imaging Source

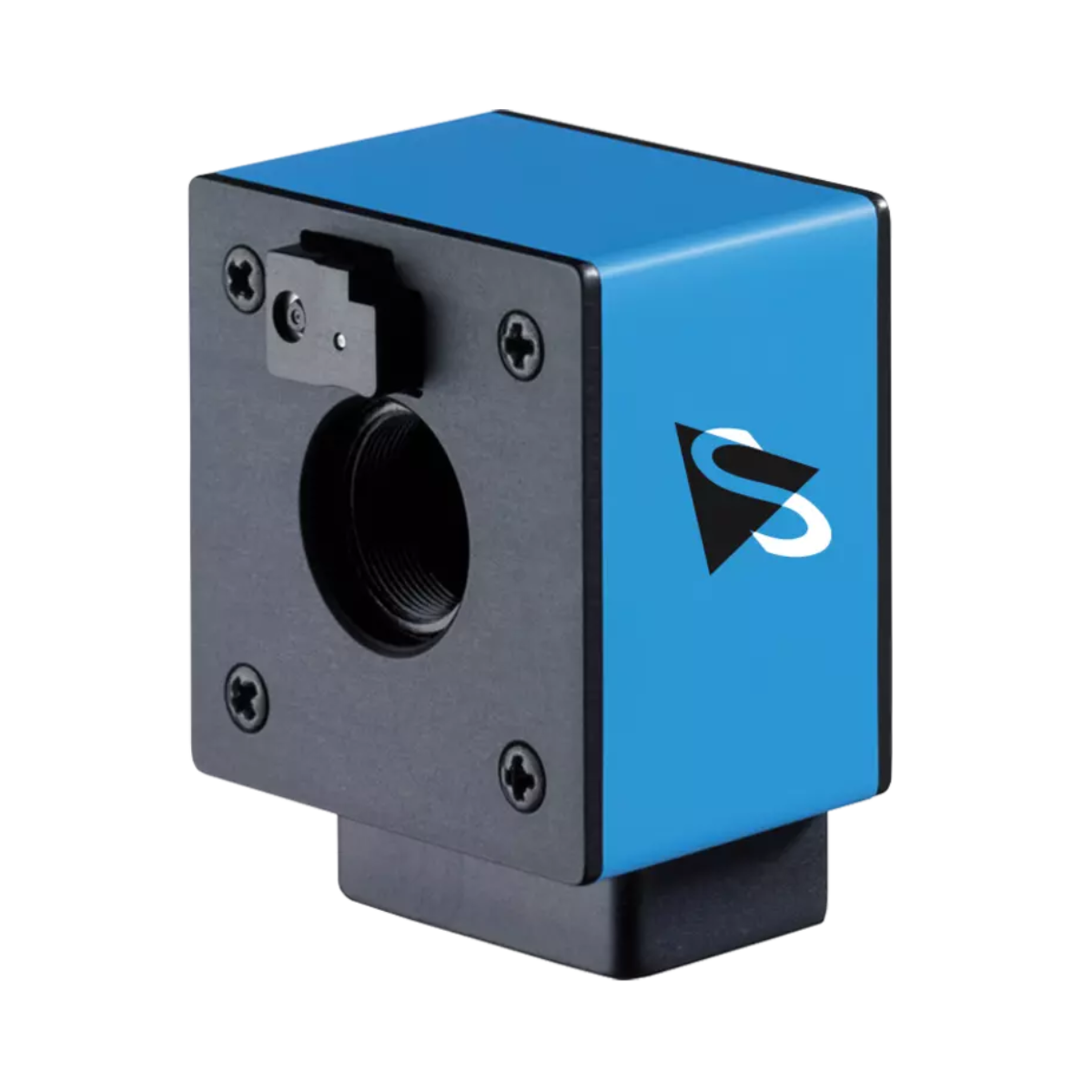

5MP 1/2.5" MT9P031 USB3.0 Colour Autofocus Camera

SKU: DFK AFUP031-M12

Login to see the price

Specification

DFK AFUP031-M12

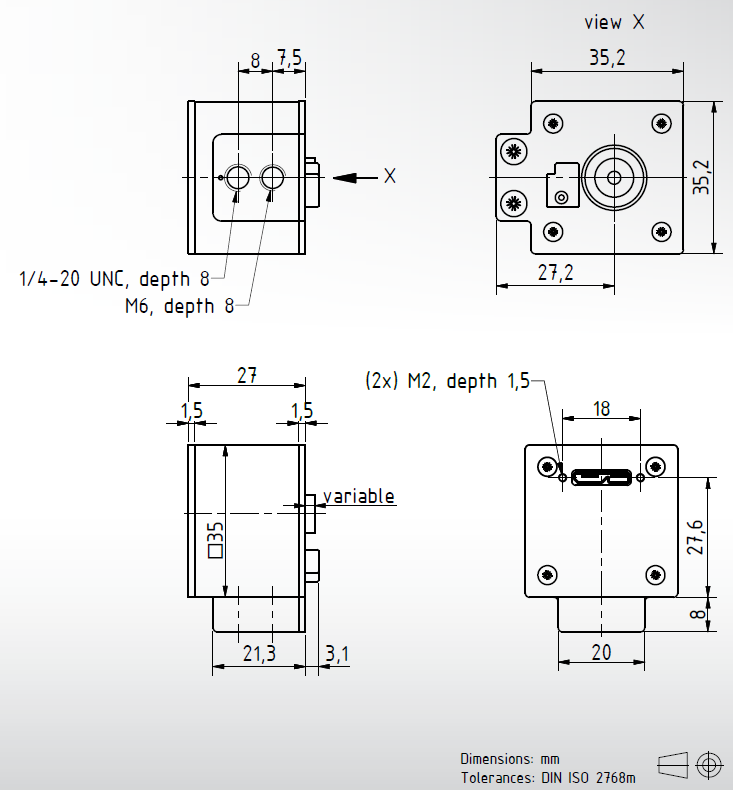

Dimensions

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • AFU Series Colour Autofocus Camera
  • USB 3.0 Interface
  • 1/2.5 inch onsemi CMOS MT9P031 Sensor
  • 2,592×1,944 (5 MP), up to 15 fps
  • Pixel Size: H: 2.2 µm, V: 2.2 µm
  • Rolling Shutter
  • Only 36×36×30 mm

Do you need an M12 lens to pair with your camera? See our catalogue of M12 lenses.

What are the benefits of using a USB interface camera?

USB cameras offer integration with minimal effort and, in some cases, can offer UVC-compliance, which enables plug-and-play. The bandwidth of USB can achieve 5Gbps (depending on whether you are using USB 2.0 or USB 3.0) and can reach a range of up to 7 metres with passive cables. However, you can use an active optic cable to facilitate a longer cable distance of up to 100m, which may require an external power source (Active optic cables, in most cases, are at a higher price point and may not provide power to the end device).

What are the AFU USB3.0 series cameras?

The Imaging Source's AFU USB 3.0 series is a range of autofocus cameras, ideal for machine vision projects where maintaining consistent working distances is a challenge. These cameras utilise software-driven one-push autofocus, enabling the capture of sharp and precise images, even in situations where working distances vary. Their compact dimensions make them suitable for easy integration into both new and existing applications.
