• 27U Series, The Imaging Source DFK 27AUP006 Colour Camera
1 2

The Imaging Source

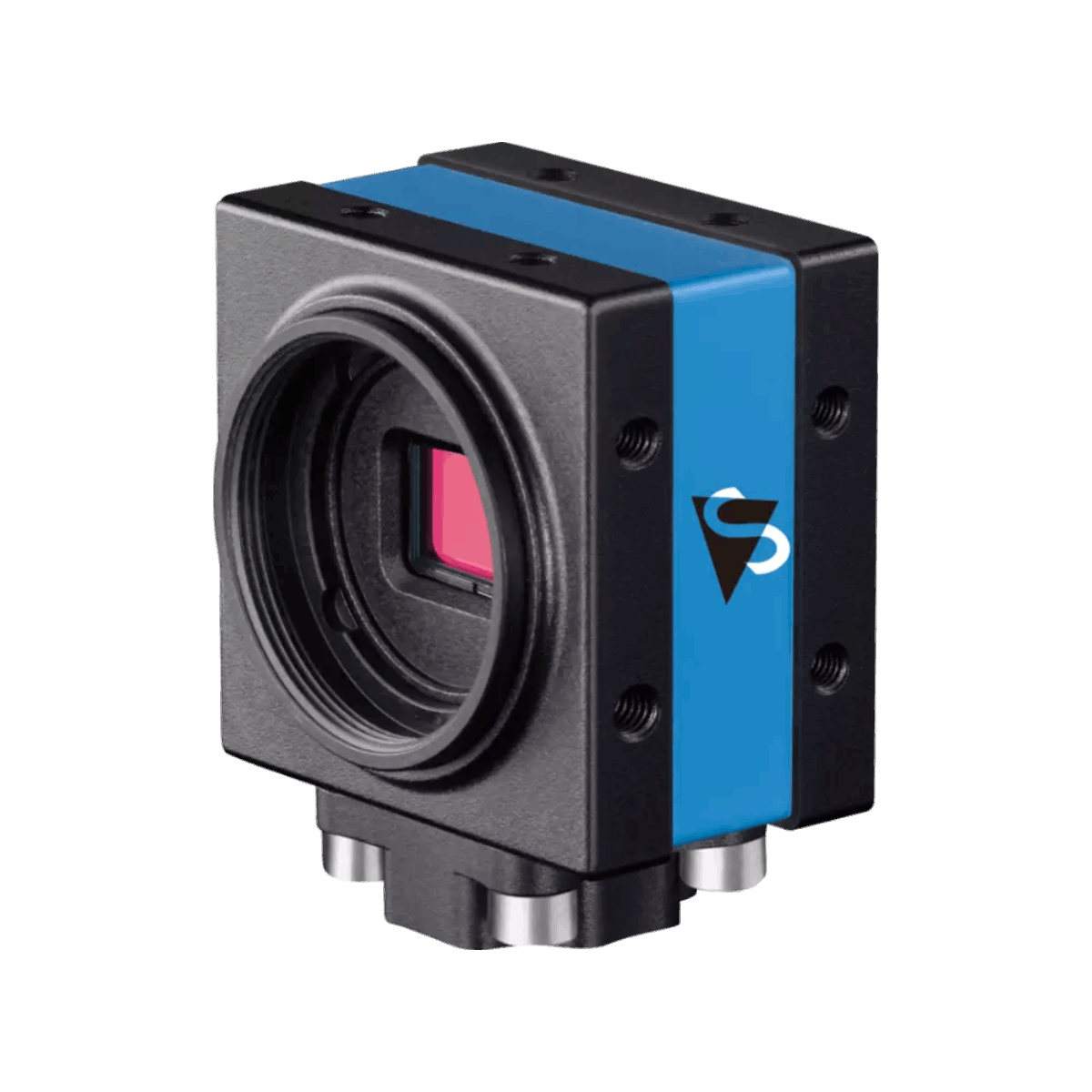

5MP 1/2.5" MT9P006 USB3.0 Colour Camera

SKU: DFK 27AUP006

Login to see the price

Specification

DFK 27AUP006

Dimensions

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • 27U Series Colour Industrial Camera
  • USB 3.0 Interface
  • 1/2.5 inch onsemi CMOS MT9P006 Sensor
  • 2,592×1,944 (5 MP), up to 15 fps
  • Pixel Size: H: 2.2 µm, V: 2.2 µm
  • Rolling Shutter
  • Only 36×36×25 mm

Do you need a C-Mount lens to pair with your camera? See our catalogue of C-Mount lenses.

What are the benefits of using a USB interface camera?

USB cameras offer integration with minimal effort and, in some cases, can offer UVC-compliance, which enables plug-and-play. The bandwidth of USB can achieve 5Gbps (depending on whether you are using USB 2.0 or USB 3.0) and can reach a range of up to 7 metres with passive cables. However, you can use an active optic cable to facilitate a longer cable distance of up to 100m, which may require an external power source (Active optic cables, in most cases, are at a higher price point and may not provide power to the end device).

What are the 27U series cameras?

The 27U series by The Imaging Source contains Onsemi sensors integrated into these single board cameras that have been optimised for cost, resulting in a dependable and value-driven imaging solution that is both cost-effective and efficient. Utilising the USB 3.0 interface, these cameras can reach up to 10.7MP resolution and a frame rate of up to 60 fps.
