The Imaging Source

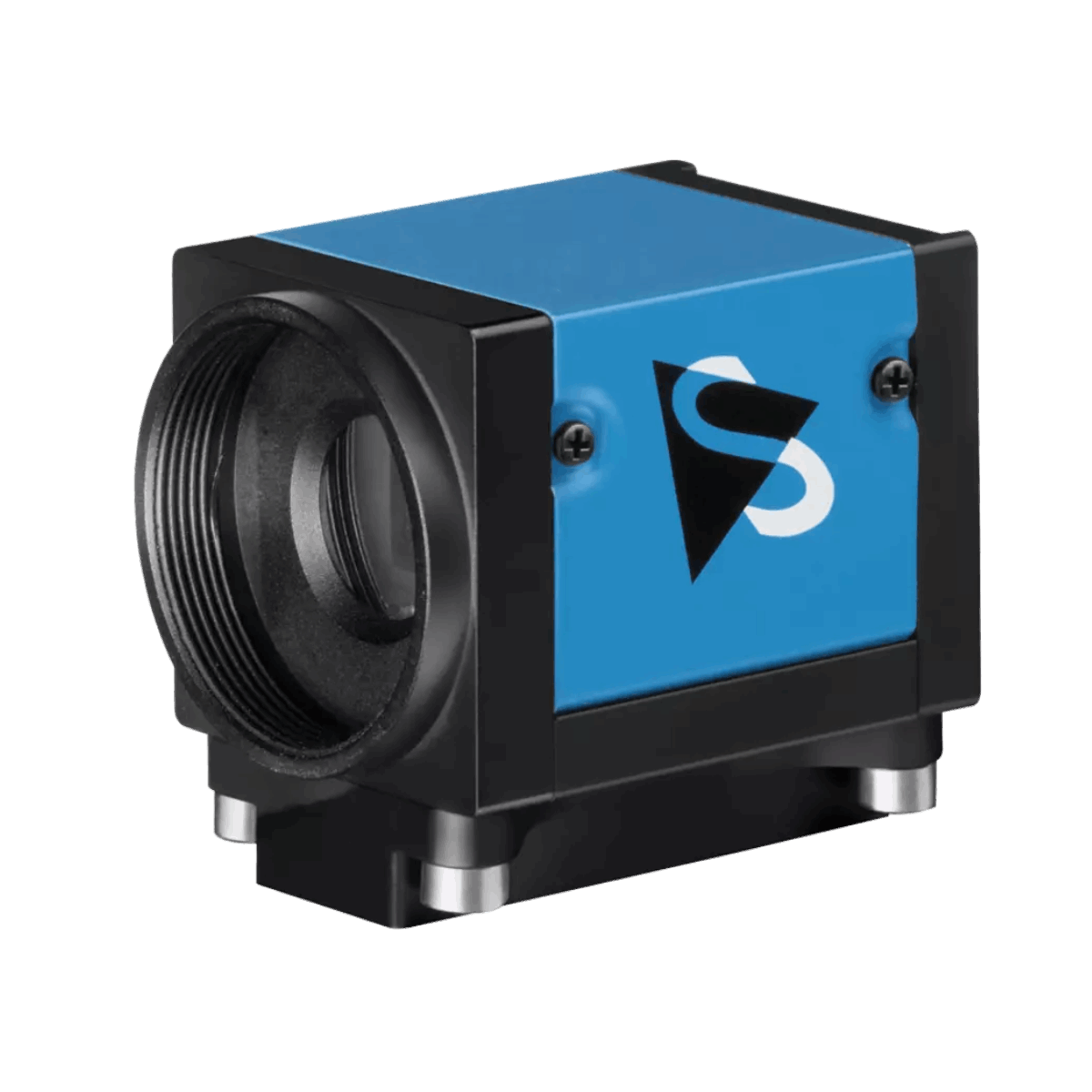

2.3MP 1/1.2" IMX174 USB3.0 Colour Camera

SKU: DFK 33UX174

Specification

Dimensions

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • 33U Series Colour Industrial Camera
  • USB 3.0 Interface
  • 1/1.2 inch Sony CMOS Pregius IMX174 Sensor
  • 1,920×1,200 (2.3 MP), up to 162 fps
  • Pixel Size: H: 5.86 µm, V: 5.86 µm
  • Global Shutter
  • Trigger and I/O Inputs
  • Only 29×29×43 mm

Do you need a C-Mount lens to pair with your camera? See our catalogue of C-Mount lenses.

What are the benefits of using a USB interface camera?

USB cameras offer integration with minimal effort and, in some cases, can offer UVC-compliance, which enables plug-and-play. The bandwidth of USB can achieve 5Gbps (depending on whether you are using USB 2.0 or USB 3.0) and can reach a range of up to 7 metres with passive cables. However, you can use an active optic cable to facilitate a longer cable distance of up to 100m, which may require an external power source (Active optic cables, in most cases, are at a higher price point and may not provide power to the end device).

What are the 33U series cameras?

The Imaging Source's 33U series is a comprehensive range of industrial cameras that provides developers and integrators with a wide range of resolutions and frame rates to choose from. With a USB 3.0 interface, these cameras offer efficient data transfer and can achieve up to 20MP and frame rates of up to 539 fps (higher with ROIs). These industrial cameras are compact, lightweight, and come with full-featured capabilities, making them a cost-effective solution for imaging needs.
